FX Maverick air tube dimensions request

[Thach2264]

Anyone with a maverick can help with the dimensions of the below: I want to see if it'll fit on a potential project I am planning to work on before I put in an order. Thanks in advance.
Length for A & B, also can you help confirm that the OD tube is 36mm correct?

And by chance anyone know the thread size for those tube on both end?



[HogKiller]

I can tell you that "B: os 126.61mm. A is underneath a piece can't measure it.



[Thach2264]

I can tell you that "B: os 126.61mm. A is underneath a piece can't measure

Thank you!!!
Can you help measure A length with the clamp and OD size of the air tube please. Thank you



[HogKiller]

Thank you!!!
Can you help measure A length with the clamp and OD size of the air tube please. Thank you

I can give you an OD, maybe but, the clamp is covering the joint so the length is out, I have no idea where it falls in there for a precise length.



[Thach2264]

for A, measure to the clamp and add the clamp length should equal to total of A. Thanks!!!



[Thach2264]

Can anyone help with the measurement of the outside diameter of the tube, THANK YOU!!!



[HogKiller]

Can anyone help with the measurement of the outside diameter of the tube, THANK YOU!!!

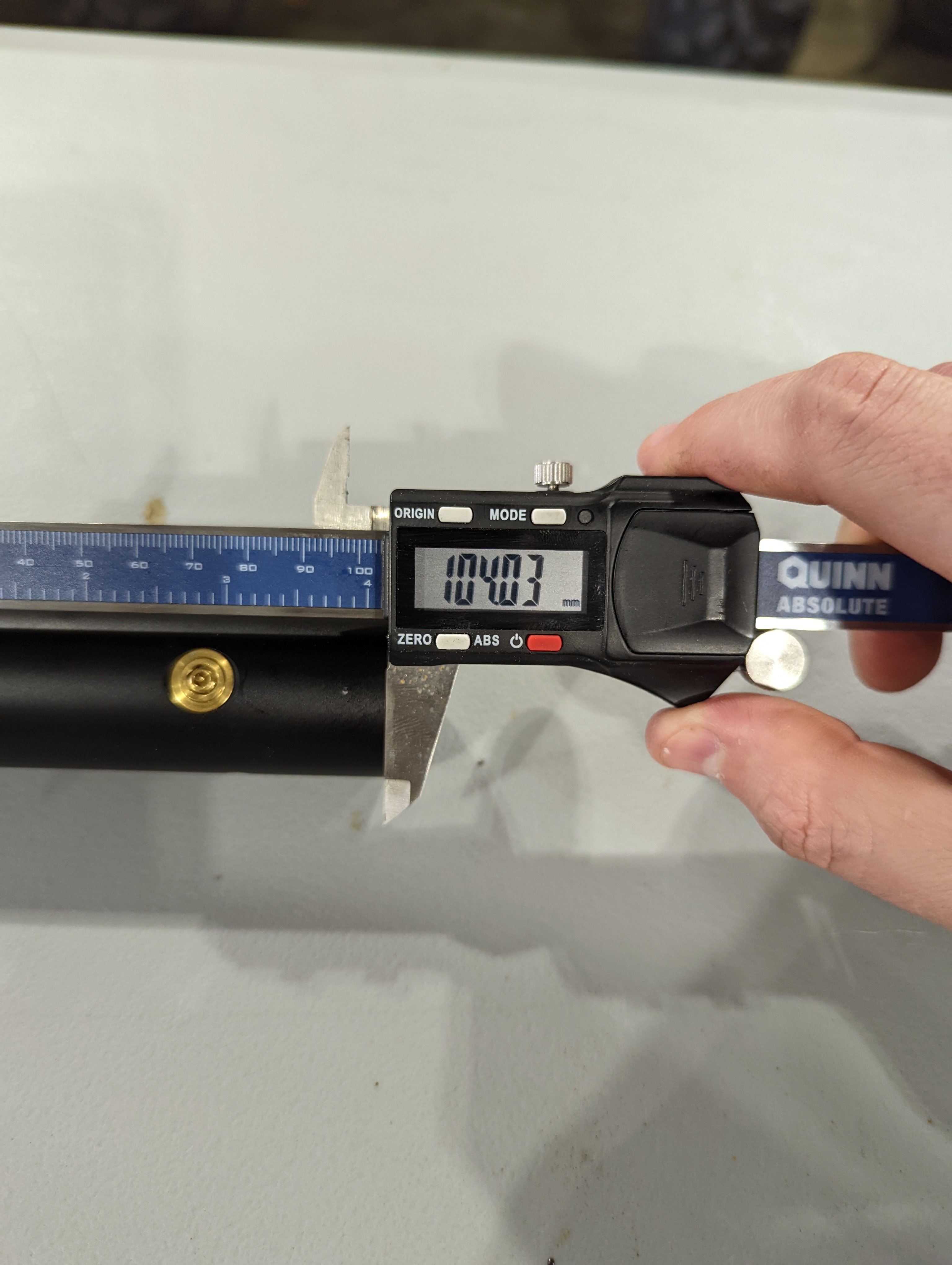

Around 33mm, length of A is about 110ish, maybe a bit less.



[revenger]

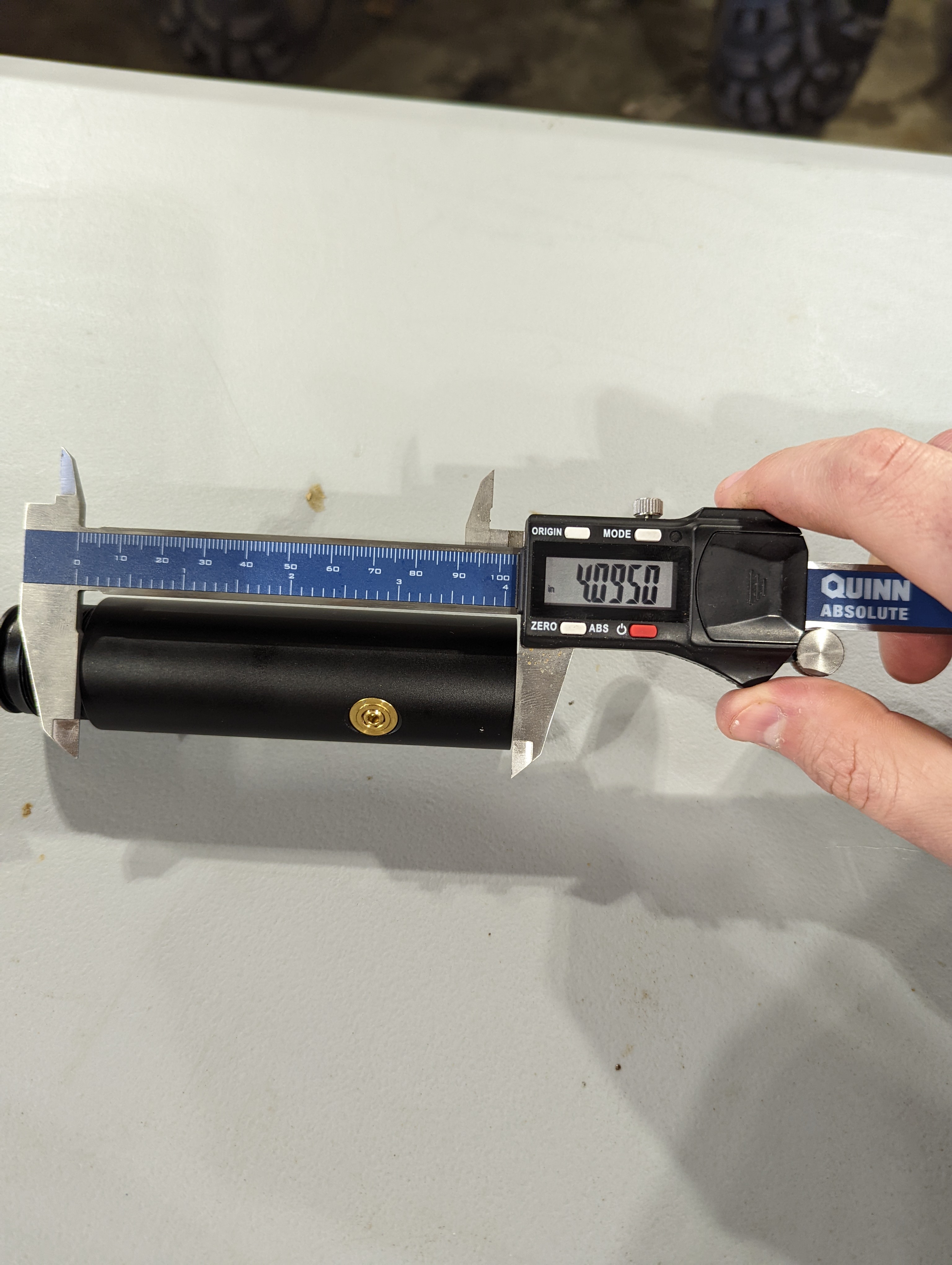

I have part A just laying around in my shop. Can get measurements for it.



[revenger]

Part A...



[revenger]

Overall length is 127mm with the threads and all.



[Thach2264]

Overall length is 127mm with the threads and all.

Greatly appreciates it!!!
