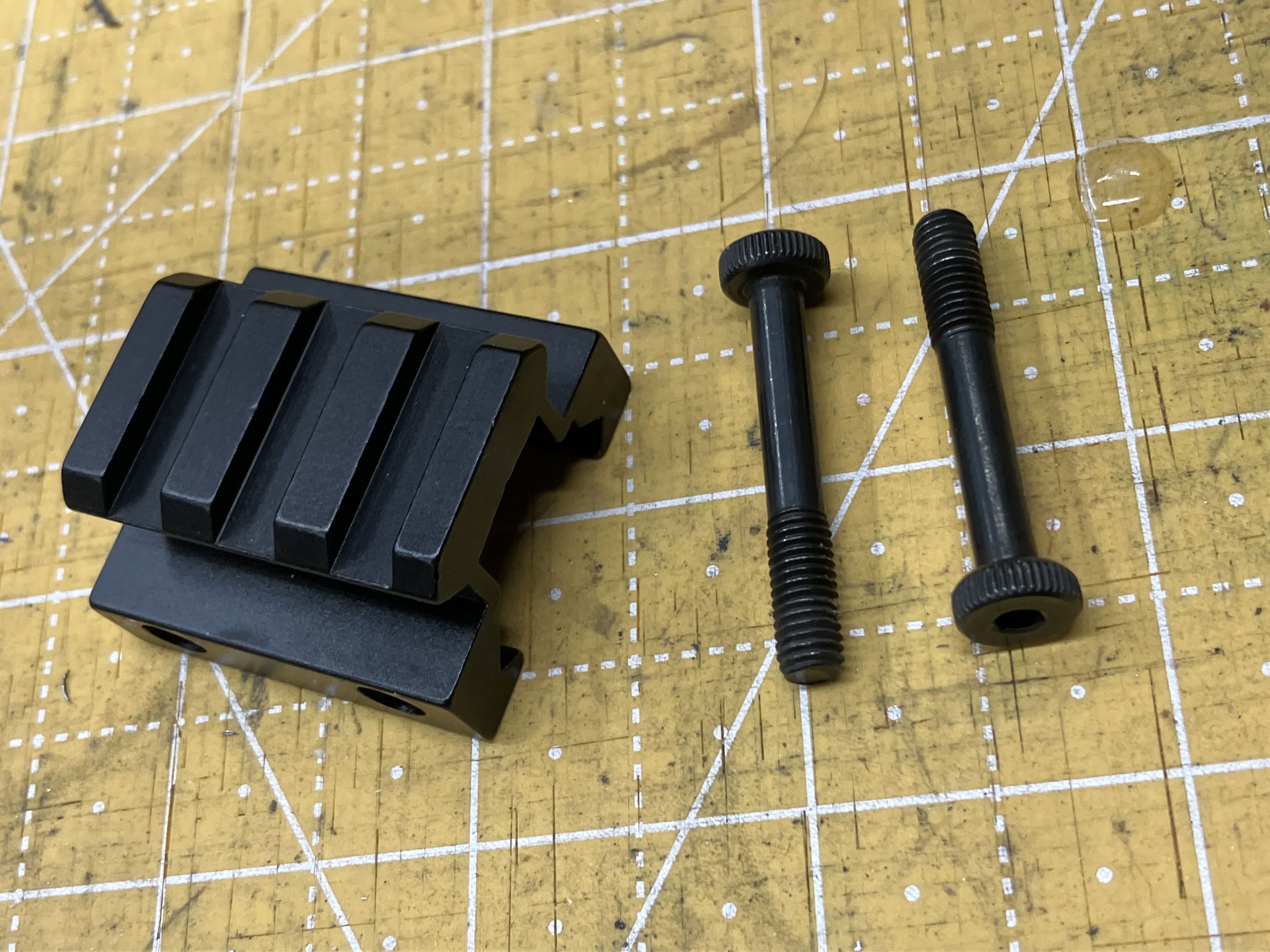

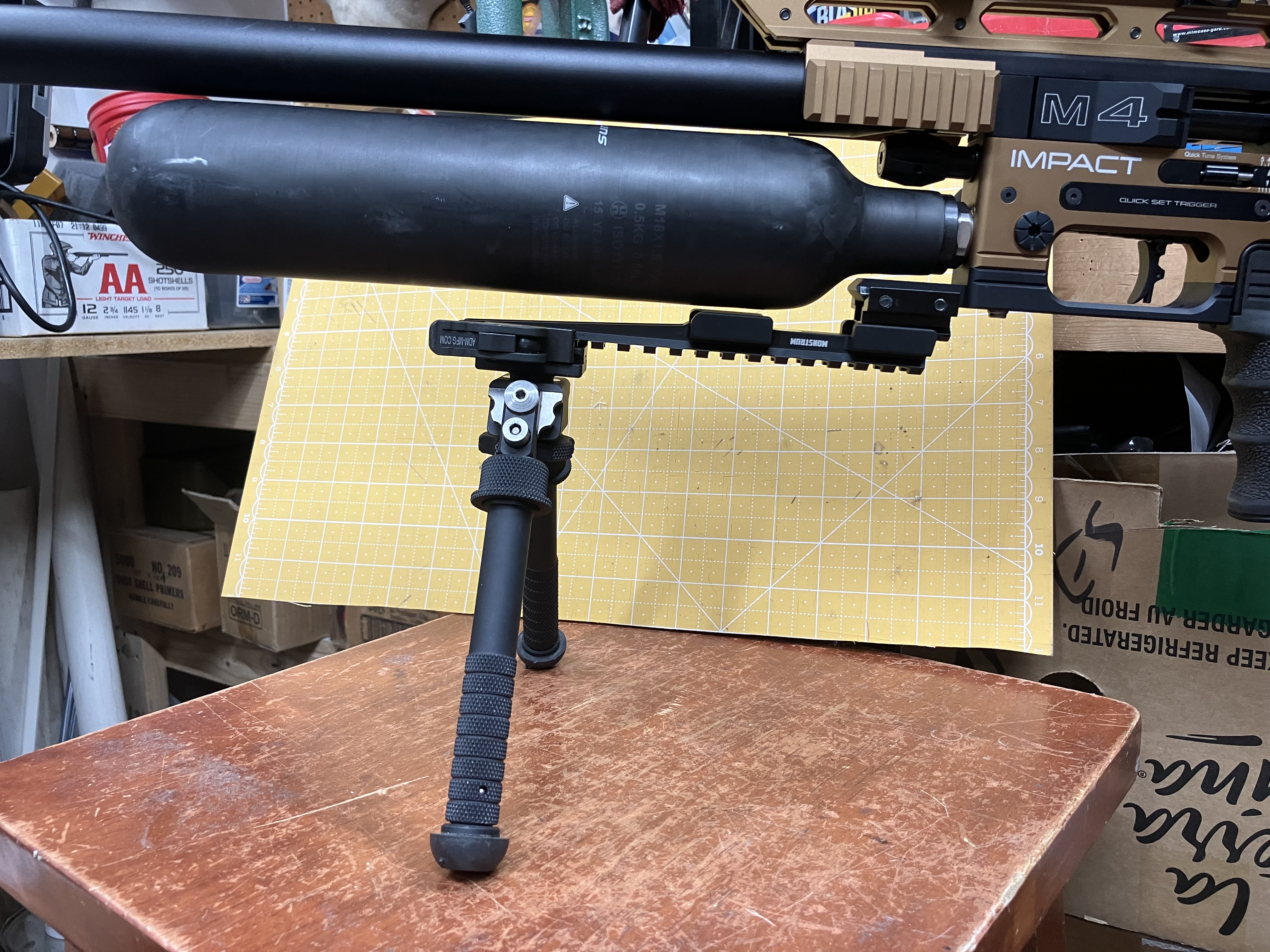

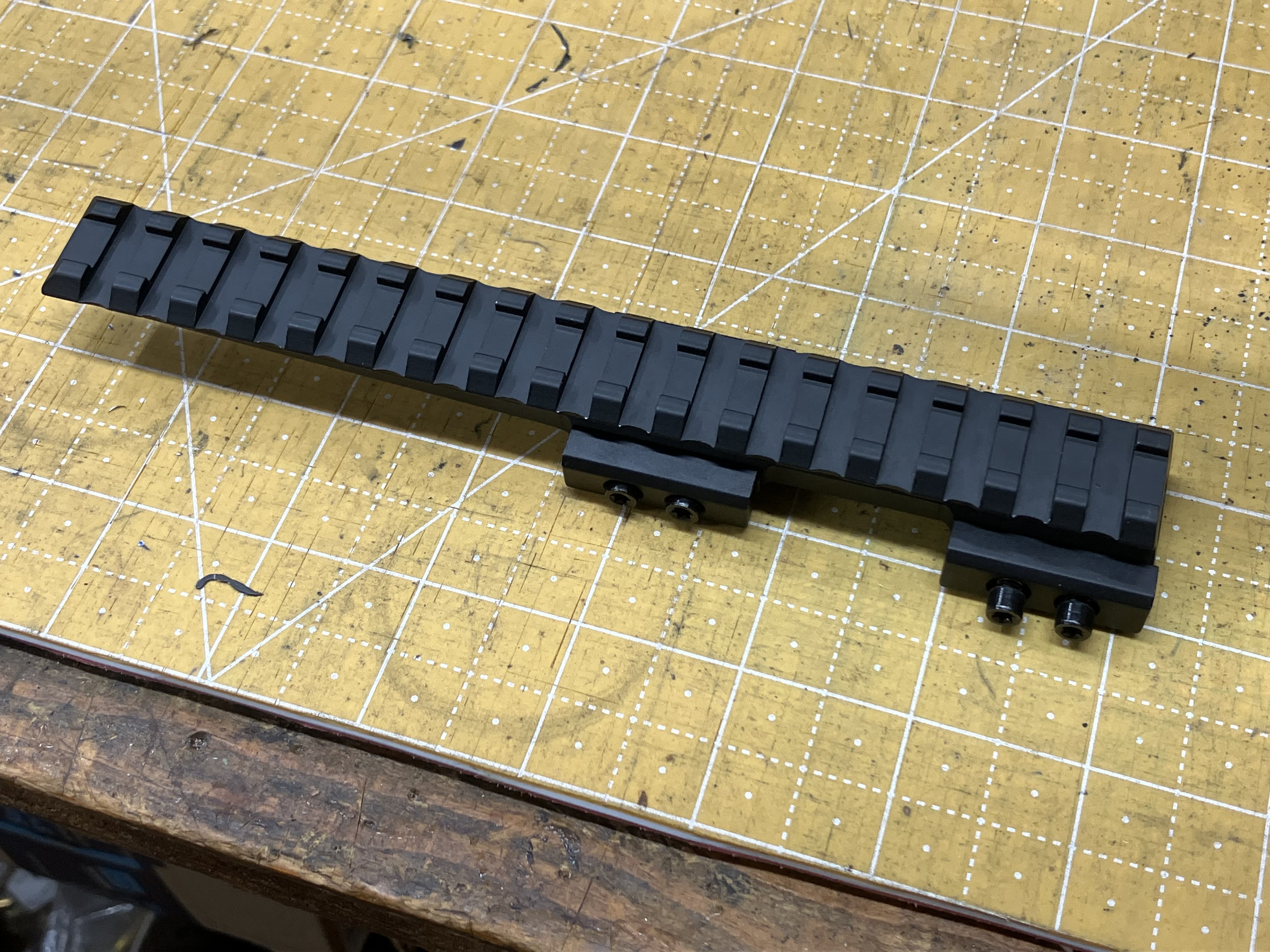

I got this idea from an older post here on AGN. I thought I would show my completed project. I bought a short riser base for about $10 and a scope picatinny rail extension for about $20 on Amazon. I then attached them upside down to the short picatinny base on the FX impact m4 trigger guard. I was then able to place my bipod further forward to make a more stable platform. I would think this will also work on other Airgun's.
You are using an out of date browser. It may not display this or other websites correctly.
You should upgrade or use an alternative browser.
You should upgrade or use an alternative browser.
FX m4 Inexpensive bipod extension
- Thread starter Dan B
- Start date
Now that is thinking outside of the box. Good for you! How is the stability? Any lateral movement, flexing up/ down or is the mount solid as a one piece?
Upvote 0
Very happy with it. Solid as if one piece. The riser and picatinny fit was a little sloppy so I did shim the two pieces and they locked up tight when I tightened the screws .
Upvote 0
