Fx impact wika gauges

[Omaralaa25]

What is the size, model and part number of the wika gauges that fit the impact and where can i buy them



[Centercut]

It’s been covered many times in the past year on AGN. Use the search function above next to the Logout.



[alpine84]

I bought this one for my impact.
https://www.huma-air.com/FX-regulator-tester-gauge



[sonny]

I bought the same ones as alpine84, very accurate and small like the originals.



[Omaralaa25]

"sonny"I bought the same ones as alpine84, very accurate and small like the originals.

How did you know its acurate how did you test it also when i install them should i put loctite on the threads or what?



[sonny]

I have a very accurate gauge on my fill bottle I compared it to, no loctite, there is a washer that seals the gauges inside the hole they screw into.It just needs snuged maybe a quarter turn after it touches/bottoms out.



[Omaralaa25]

Thanks man i ordered two ?



[Pelletpinger]

"sonny"I have a very accurate gauge on my fill bottle I compared it to, no loctite, there is a washer that seals the gauges inside the hole they screw into.It just needs snuged maybe a quarter turn after it touches/bottoms out.

Hi I’m interested in these gauges as the stock FX ones are very poor considering the cost of the rifle! Can you confirm that it’s just a simple switch with no extra orings etc required?
Thanks.



[Glem.Chally]

You can fit these, the brass edge Wikas and the Edgun EDMU no problem.

EDMU is awesome i put one on my Royale.



[Evanixxx]

Wika gauges also can be used on Inpact
http://www.csgshop.com/product.php?id_product=248



[eodman]

I bought the Huma gauges a lot more accurate than the FX. One thing on the Huma gauge it is a little bigger than the FX gauge and won't fit unless you modify the base plate on the Impact. I had to set the plate up in the mill and use an adjustable cutter to open it up and use Aluma black to darken up the finish. You could do it by hand but be careful it is Aluminum.



[Smudgerii]

"eodman"I bought the Huma gauges a lot more accurate than the FX. One thing on the Huma gauge it is a little bigger than the FX gauge and won't fit unless you modify the base plate on the Impact. I had to set the plate up in the mill and use an adjustable cutter to open it up and use Aluma black to darken up the finish. You could do it by hand but be careful it is Aluminum.

Could just fit it with a o ring and save all the work..



[eodman]

Tried that hangs out too far for me.



[Omaralaa25]

"eodman"I bought the Huma gauges a lot more accurate than the FX. One thing on the Huma gauge it is a little bigger than the FX gauge and won't fit unless you modify the base plate on the Impact. I had to set the plate up in the mill and use an adjustable cutter to open it up and use Aluma black to darken up the finish. You could do it by hand but be careful it is Aluminum.

Are you talking about the bottle gauge or the regulator one



[eodman]

The Regulator guage. The standard guage is around 0.920 in dia and the Huma is 1.000 in dia. You could put an "o" ring as others have and this will raise the guage so it wont interfere with base plate. I don't know the dia of the Edgun guage but a lot of people use them.



[Omaralaa25]

"eodman"The Regulator guage. The standard guage is around 0.920 in dia and the Huma is 1.000 in dia. You could put an "o" ring as others have and this will raise the guage so it wont interfere with base plate. I don't know the dia of the Edgun guage but a lot of people use them.

What's the diameter of the o ring



[sonny]

huma was same size as original fx gauges smaller than wika and no machining to install mine.both gauges reg and bottle are the same size theres a washer in the hole they screw into that seals them.no need to over tighten them just snug is good.



[toku58]

I'll probably order the Wika for the bottle and the Huma for the reg.
I'll see what Ernest has to say? I messaged him asking if the Impact X has better gauges???



[Pelletpinger]

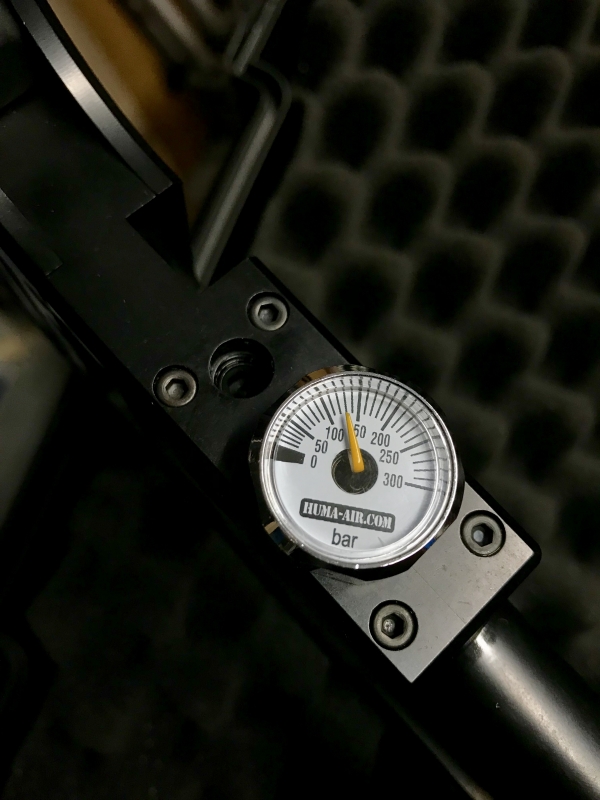

Thanks for the heads up fellas, I bought the Huma gauge for the reg, 5min job to fit.
I did need an oring as the back of the gauge bottomed out on the body of the rifle.



[sonny]

looks great pelletpinger
