"I've been a loyal FX customer and defender (on this forum), but enough is enough!"
It sure is!
It sure is!
Upvote 0
Had these bushings made up awhile back for the purpose of barrel tensioning the 700mm and 600mm impacts. I wanted to see how these would do in addition to the bottle to shroud clamps I use along with the epoxied liner sleeve.
With the complaints of the valve knob front end running into the rear of the shroud long before it ran out of forward adjustment, I addressed that problem with the design. Currently going thru testing right now, and the little bit I’ve shot with it on I see promise.
the one thing about using this design of tensioning, is the tightness of the shroud to compress this bushing against the trigger block must be repeatable and exactly the same every time. I’ve had to place concealed index marks on the barrel shrouds so I can tighten up to the same torque each and every time.

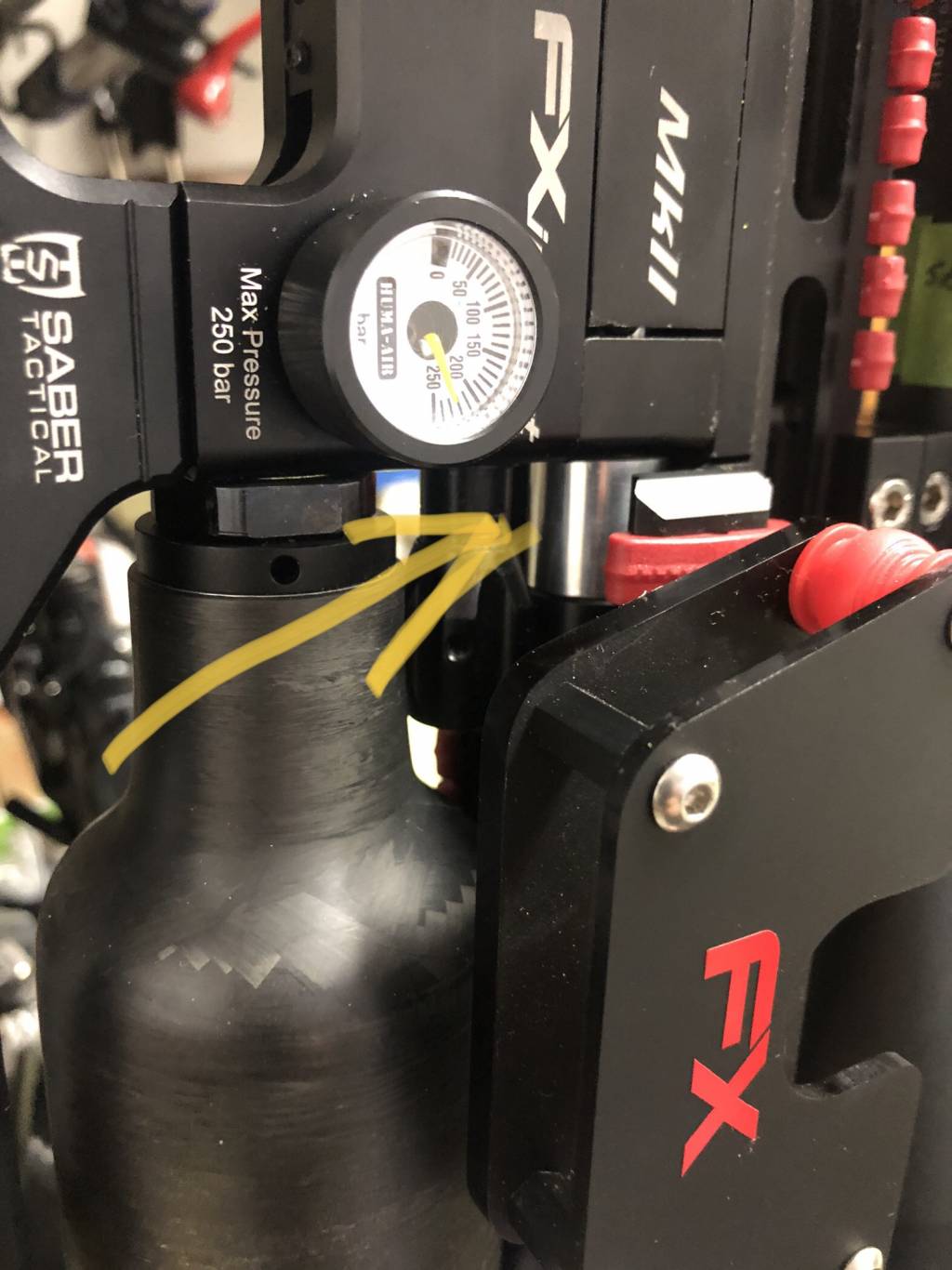

here is the one for the 700mm barrel installed, hidden by the impacts scope rail-
and by the way- this is not my own idea I dreamt up. I owe all to BIOHAZARD MAN as he posted his own design using a length of carbon fiber behind his barrel shroud, compressed between the shroud and trigger block. All I did was come up with my own version.
With the complaints of the valve knob front end running into the rear of the shroud long before it ran out of forward adjustment, I addressed that problem with the design. Currently going thru testing right now, and the little bit I’ve shot with it on I see promise.
the one thing about using this design of tensioning, is the tightness of the shroud to compress this bushing against the trigger block must be repeatable and exactly the same every time. I’ve had to place concealed index marks on the barrel shrouds so I can tighten up to the same torque each and every time.
here is the one for the 700mm barrel installed, hidden by the impacts scope rail-
and by the way- this is not my own idea I dreamt up. I owe all to BIOHAZARD MAN as he posted his own design using a length of carbon fiber behind his barrel shroud, compressed between the shroud and trigger block. All I did was come up with my own version.
Upvote 0
What? No FX Impact m3 + Power Block for me?
My Impact M3.25 has no Power Block, and I have no intention of changing it. I simply do not need or want that much power. In it, I am only shooting the 33.95 gr JSB pellets, so I doubt I would need or want the tensioned barrel. I don't even have the carbon fiber tube over the liner, or the Superior Heavy liner. but they're cheap enough to add if I ever want to. In the MKII's I've owned, the standard liner shot the lighter slugs good enough for me, or there is always the Hybrids that should work well also.
I do find a lot of the new accuracy and power mods interesting to read about though I may not adopt all of them.
Upvote 0
Hi
I think that all the M3 have the same block that is different from the MKII because by increasing the power plenum 720cc they have had to modify the block to be able to give performance to the new plenum, the power block is just an advertising claim. These are my thoughts
Regards
Enkey
Edit: Power plenum 720 - 72cc
I think that all the M3 have the same block that is different from the MKII because by increasing the power plenum 720cc they have had to modify the block to be able to give performance to the new plenum, the power block is just an advertising claim. These are my thoughts
Regards
Enkey
Edit: Power plenum 720 - 72cc
Upvote 0
Well, that may be possible, but I’m gonna go with what FX said, which is that they started putting the new block on guns manufactured in January 2022. My gun (M3) dates all the way back to May/June 2021so I expect that I have the “old” M3 block. I assume that is different from my MK II block, but maybe those are the same and only the Power Plenum is different on the M3.
Upvote 0
My opinion only as I don’t have the new block on hand-
1. The rear blocks on the M3 and MK2 have to be the same, and I’m highly assuming that because M3 power plenums can be purchased in kit form and everything in that kit minus the pp body is exactly the same part as on the MK2.
2. The new block has a larger air passageway between the valve and the barrels transfer port. Others in the past have done this mod by drilling thru the valve body grub screw port, that locks the valve in place, to enlarge that passageway and had to re tap the grub screw hole for new, larger diameter metric threads to accept a new larger grub screw with this mod.
sometime in the last year, Ernest posted a video of him enlarging that passageway with a special two part drill bit so the grub screw chase would remain intact at 6mm.
it would make sense now that with the larger opening a different valve would be used, as shown on utah Airguns parts catalog for FX
1. The rear blocks on the M3 and MK2 have to be the same, and I’m highly assuming that because M3 power plenums can be purchased in kit form and everything in that kit minus the pp body is exactly the same part as on the MK2.
2. The new block has a larger air passageway between the valve and the barrels transfer port. Others in the past have done this mod by drilling thru the valve body grub screw port, that locks the valve in place, to enlarge that passageway and had to re tap the grub screw hole for new, larger diameter metric threads to accept a new larger grub screw with this mod.
sometime in the last year, Ernest posted a video of him enlarging that passageway with a special two part drill bit so the grub screw chase would remain intact at 6mm.
it would make sense now that with the larger opening a different valve would be used, as shown on utah Airguns parts catalog for FX
Upvote 0
Hi
I have read somewhere that people have upgraded the power plenum from 720 to MKII and they haven't seen any difference Just changing the power plenum. But I can't say that it's true.
Regards
Enkey
I have read somewhere that people have upgraded the power plenum from 720 to MKII and they haven't seen any difference Just changing the power plenum. But I can't say that it's true.
Regards
Enkey
Upvote 0
Hi
The power block differs because the hole is larger than 9mm and the orings go into the power block not into the valvehouse B30. But what makes the difference in the power block is the valvehose B30 which is a completely different design.
Regards
Enkey
Upvote 0
As a FX fanboy the tensioned barrel is just a bandaid for a weak barrel interface. With power reaching 22LR range the barrel interface should be completely redesigned. I’ve tried tensioned barrel on my FX and it’s only helps the POI shift when bumped due to weak barrel attachment/interface. Fortunately the carbon tube is cheap and does work well enough but I have not tried it in wide temp changing conditions. I’m waiting for a much better interface design.
Upvote 0
Maybe a better thing to do with those who are really pushing the limits of their impact is to just rebarrel with a LW or whatever they chose, choked (or not?) Sounds like this option in the end maybe the better solution. No barrel whip, solid old school barrel. That is if there is a known Barrel that shoots slugs great or whatever your fancy. Then again it could be a total gamble and you just wasted even more money trying to make something do what it was not originally designed to do.
Allen
Allen
Last edited:
Upvote 0
Hi,
I didn't think I would write about what I did, I'm not a person who writes much or everything about tuning but:
I did what you mean without knowing this topic here on this forum. I got this link from a friend ( he shoots too fx impact), so I logged into this forum and I have some answers:
Yes, I made tensioning system only for the liner not the housing
Yes, the results are excellent for me, and I will not change back to oryginal (FX)
Yes, shooting accuracy is much better than what I had
Yes, the shot groups at 50,75 and 100m are pretty much the same (almost every group is about 2cm) - it doesn't matter how many shots
I would not like to inform you about the solution how it is done (in details) but here some pictures

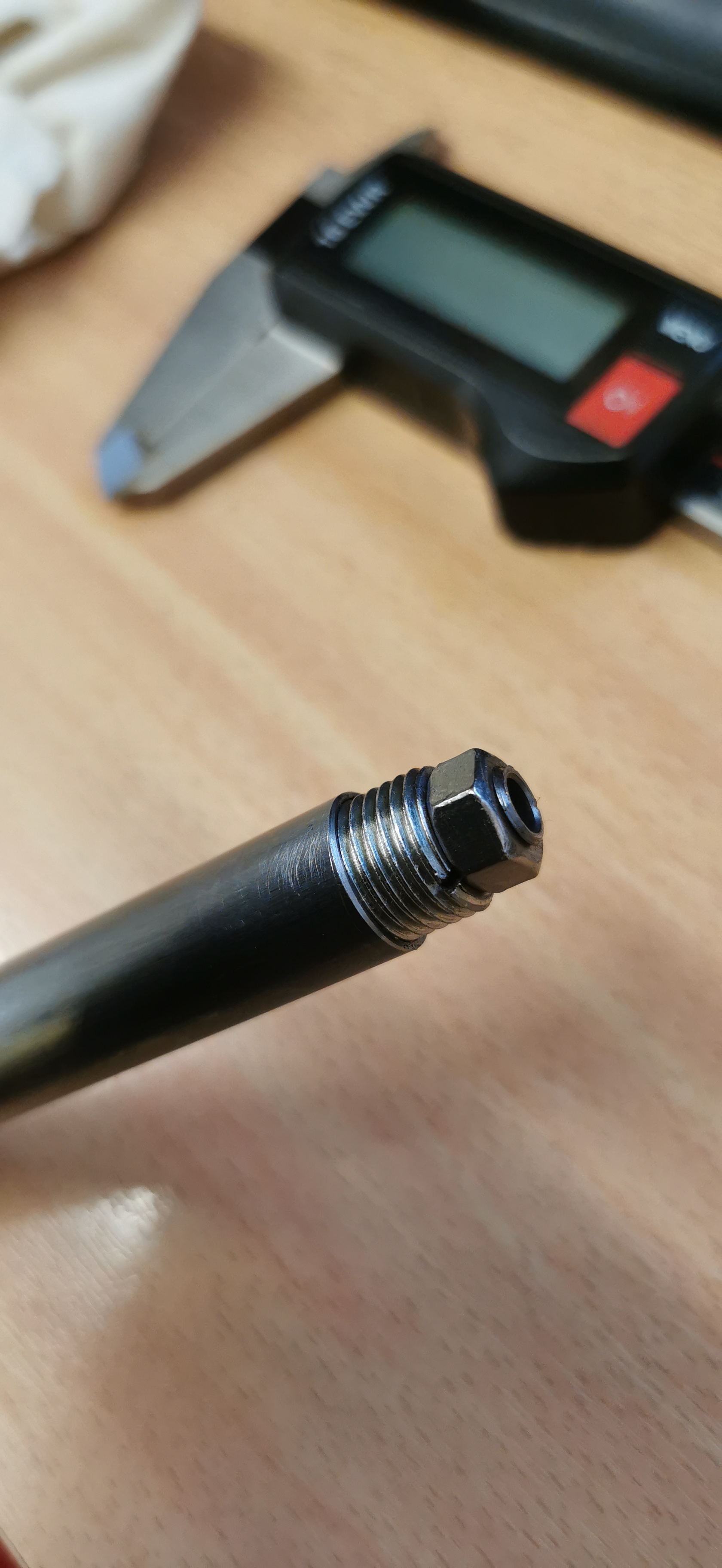

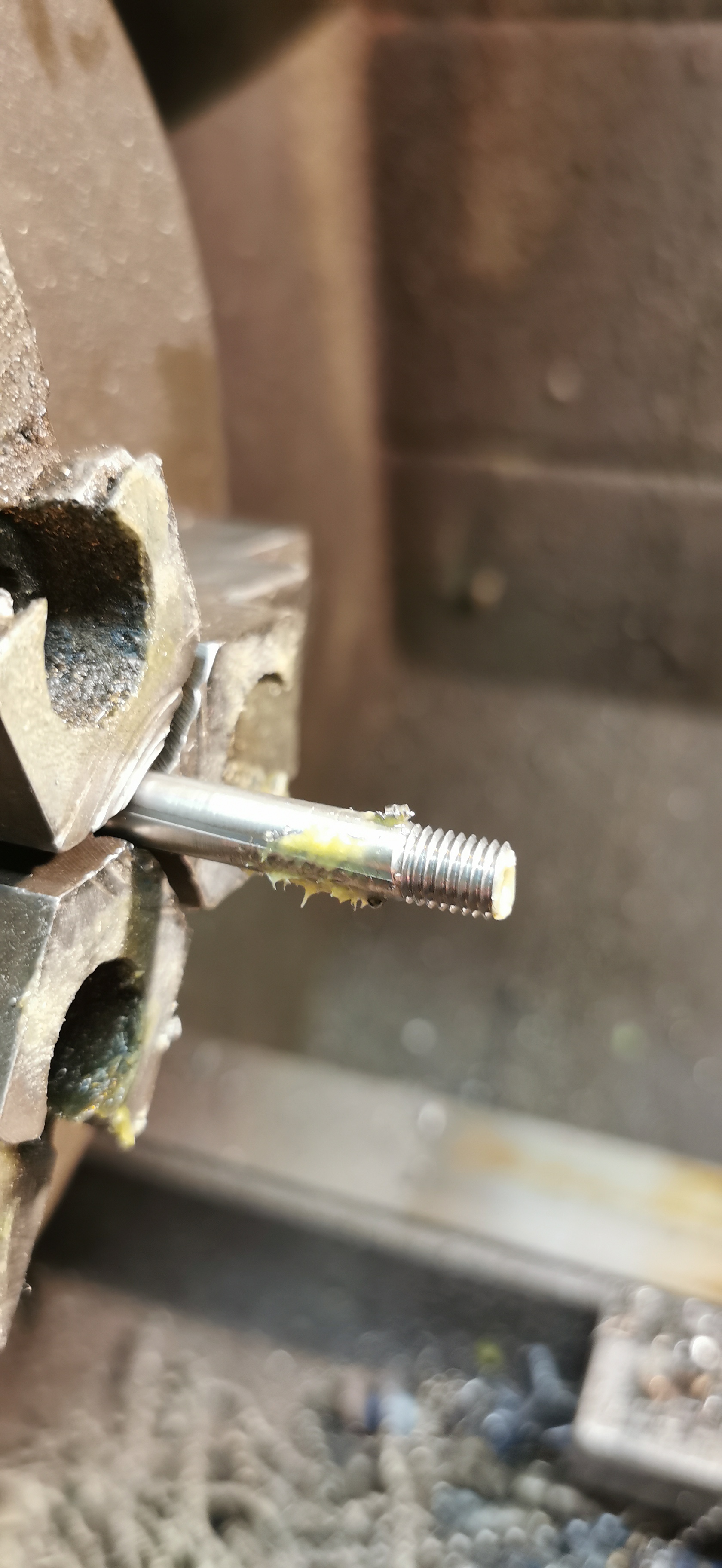

liner threeds for tennsion

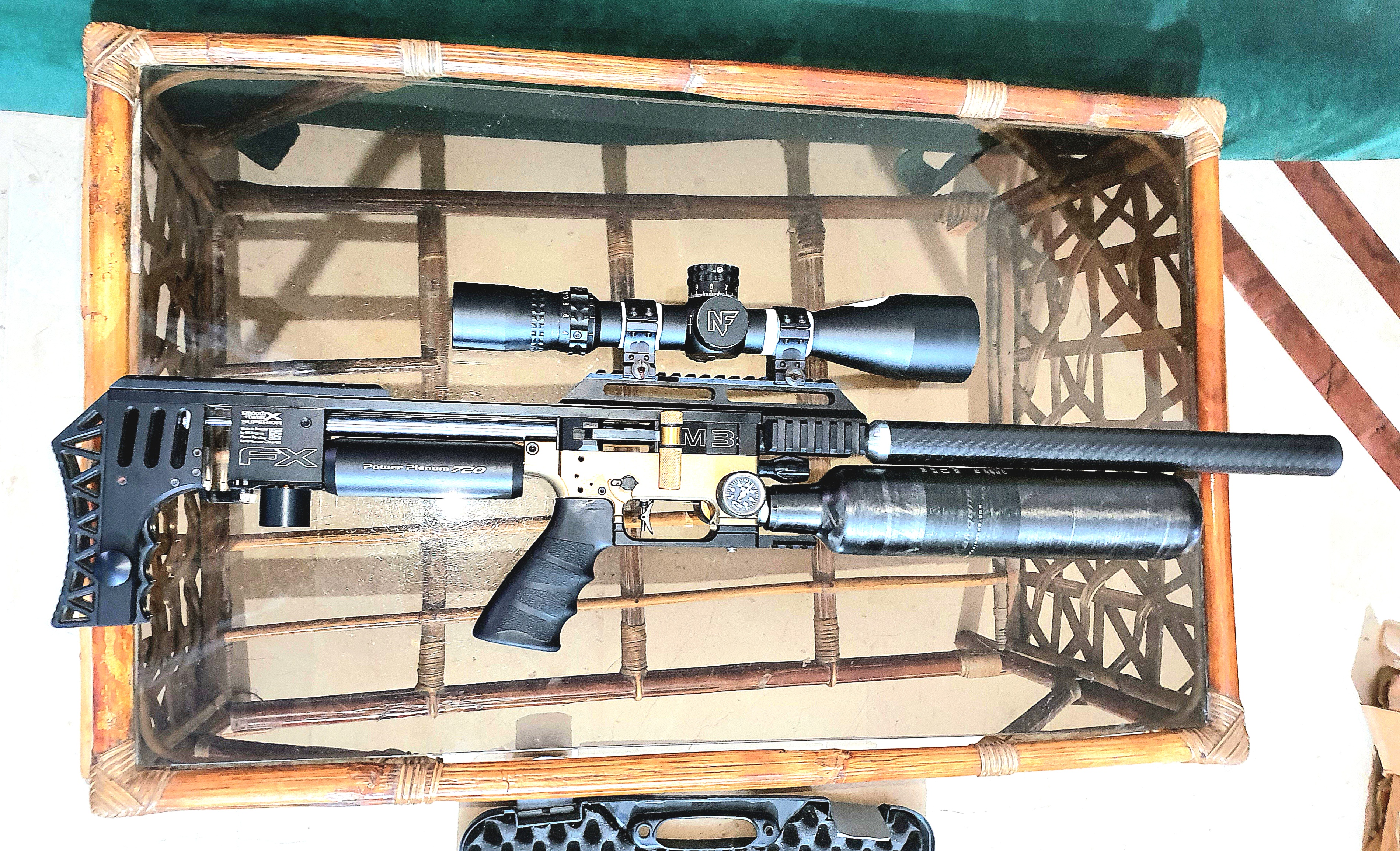

how looks after tennsioning & everything was put together
The tension of the liner is about 0.5mm....
I had to use o-rings inside housing because it sounded like a guitar
Upvote 0
As I wrote above, I do not want to reveal details for now.
I want to test it first at longer distances... More than 100m but unfortunately we have really poop weather.
I forgot inform :
it's Only .177 cal & 13.43grains knockout
Upvote 0
Agreed to all that its an over complicated barrel system which is inherently fragile.
I prefer solid barrel over this system. So I have .22 and .25 solid barrels machined for my M3 in addition to FX OEM barrels.
I prefer solid barrel over this system. So I have .22 and .25 solid barrels machined for my M3 in addition to FX OEM barrels.
