I'm looking for a source or a spec for the probe screw and the barrel screw on the Impact.
Especially the little probe screw, It's just a matter of time.
Especially the little probe screw, It's just a matter of time.
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
FX Impact Screws
- Thread starter Bogview
- Start date
https://fxairguns.com/wp-content/uploads/2020/07/Impact-MkII.pdf
https://fxairguns.com/support/
On the bottome right of the FX support page is the schematics.. Idk if that top link will work for you but if it does that is the schematic. Hopefully, that works for you
https://fxairguns.com/support/
On the bottome right of the FX support page is the schematics.. Idk if that top link will work for you but if it does that is the schematic. Hopefully, that works for you
Upvote 0
Try Home Depot and Lowe’s in the metric grub screw draws or your local hobby shop. Here is a set of M3, 4, 5 and 6 grub screws. https://www.amazon.com/200PCs-Socket-Stainless-Assortment-Storage/dp/B082F32H3S/ref=asc_df_B082F32H3S/?tag=hyprod-20&linkCode=df0&hvadid=475716026527&hvpos=&hvnetw=g&hvrand=6454835190437924943&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9012383&hvtargid=pla-1163028370231&psc=1
Upvote 0
Thanks for the help. Local sourcing seems like the way to go. I can measure them with a micrometer.
Is there a corrosion problem with dissimilar metals? An aluminum chassis and stainless or steel screws?
Is there a corrosion problem with dissimilar metals? An aluminum chassis and stainless or steel screws?
Upvote 0
Take your choice, steel or stainless steel. All grub screws including the ones FX uses are an iron metal.
Upvote 0
Cross referencing the Impact Parts Schematic with this website I was able to get the specs on any of the screws from the part #s.
The early Impacts only specifies M4 but not the length.
https://www.europeairguns.com/en/component/search/?searchword=19846&ordering=newest&searchphrase=all&limit=20
This should be correct.
-----------------------------------------------------------------------
Grub screw, Pellet probe, M4, FX Part #19643
from serial no.191084
Feedingpin screw M4
-------------------------------------------------------------------------
19748 Grub screw M3x7,
until ser.no. 191084
Grub screw M3x6
--------------------------------------------------------------------------------------
19846 Grubb screw M6x6. Barrel lock screw.
Grub Scruw M6x6
The early Impacts only specifies M4 but not the length.
https://www.europeairguns.com/en/component/search/?searchword=19846&ordering=newest&searchphrase=all&limit=20
This should be correct.
-----------------------------------------------------------------------
Grub screw, Pellet probe, M4, FX Part #19643
from serial no.191084
Feedingpin screw M4
-------------------------------------------------------------------------
19748 Grub screw M3x7,
until ser.no. 191084
Grub screw M3x6
--------------------------------------------------------------------------------------
19846 Grubb screw M6x6. Barrel lock screw.
Grub Scruw M6x6
Upvote 0

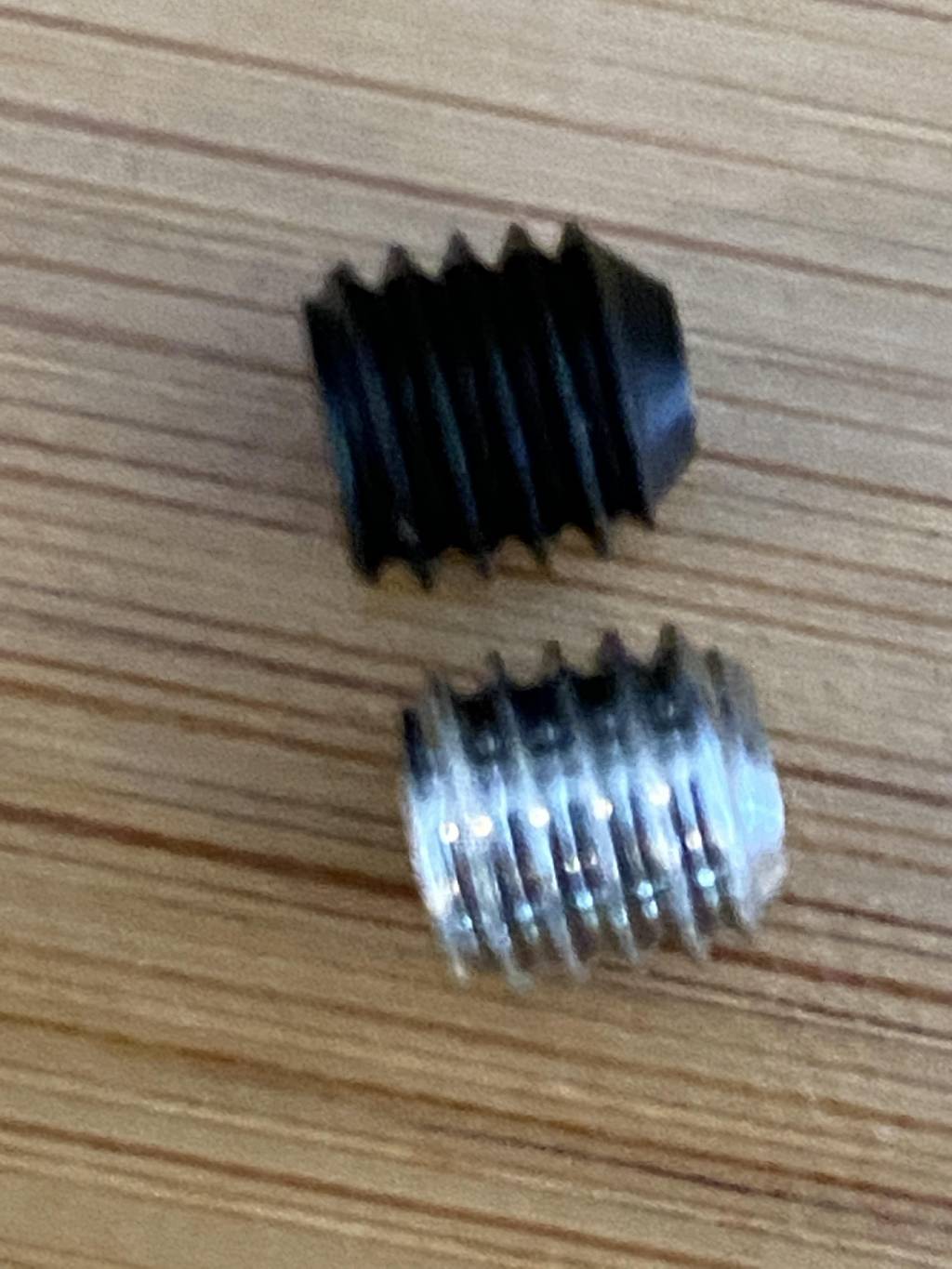

The Stainless 6*6 Barrel Lock screws look pretty close to OEM.

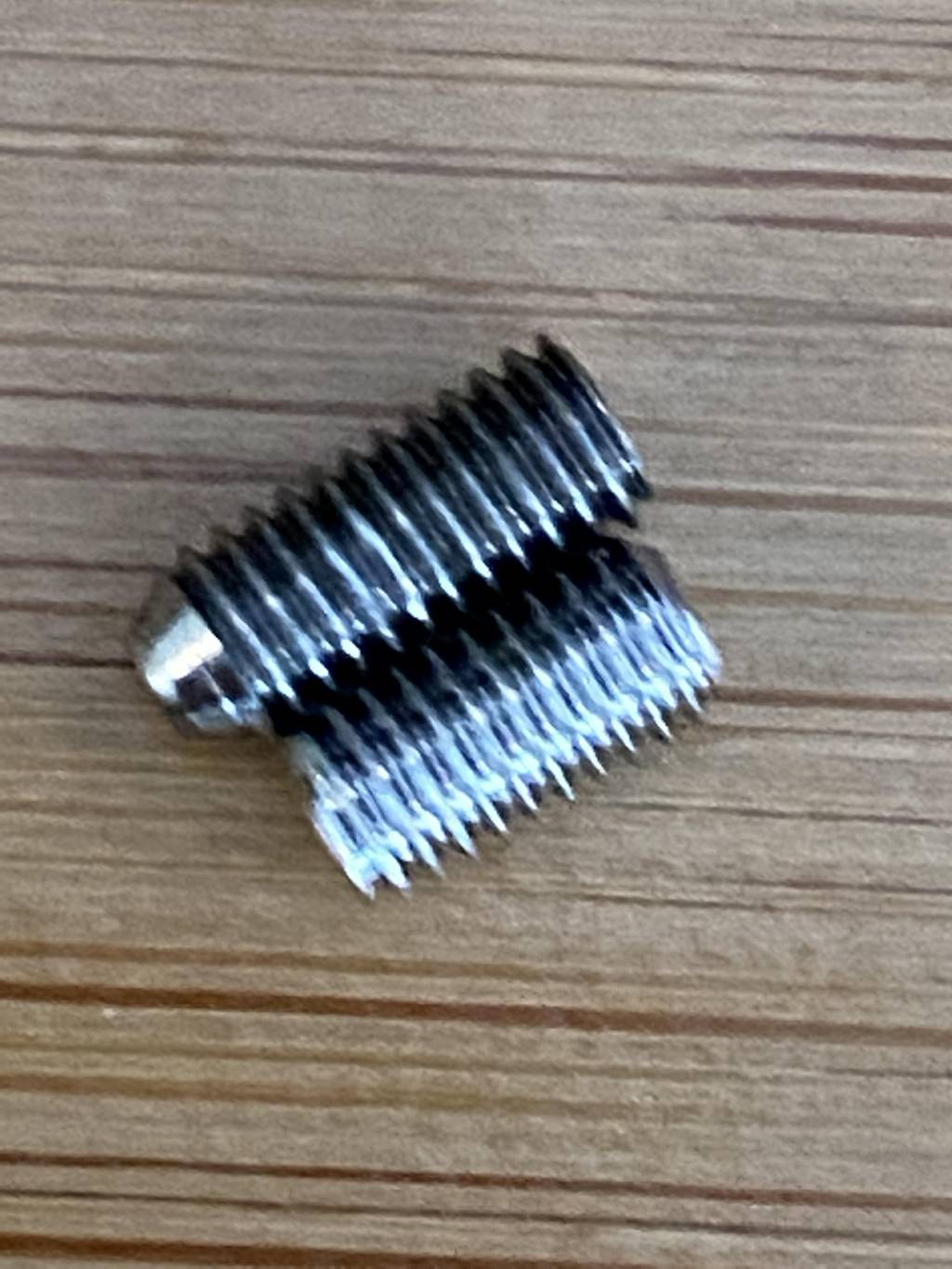

The stock 3*6 Probe Screw is slightly different than off the shelf.
The stock 3*6 Probe Screw is slightly different than off the shelf.
