FX Impact Schematic and list of orings.

[Gmg]

"Verve"From FX:

Inner
5,5 = 5.5x1.5 NBR 70
6,35 = 6.4x1.3 NBR 70
7,62 = 7.5x1.5 NBR 70

Outer
10x2 NBR 70

Can you give me any directions how to install the inner oring in a transfer port? Had A little accident with my impact and the inner oring in transferport has been shot out.... back with the pellet probe..... there is a little Space and dont want to mess something more.



[oscarnunez]

I just want to thank all of you guys for doing the hard work of finding the size and websites where to buy them
I bought my FX Impact second hand regulator O-Ring blew on me my fault a back it out to far
anyways AOA said is second hand FX warranty doesn't cover you soooo it will be anywhere from $150 to $250 to replace the O-rings on the gun plus shipping another $100+ I assume



[Drumsnguns]

Is it me or is the regulated air reservoir tube that runs under, and parallel to the barrel missing in the diagram?? where it attaches to the breech end, looks to have 3 o-rings but I have no way of knowing which three.

Looking again...would it be B30 and o-rings B-29? Just not sure



[DanCarey]

Updated schematic for the Impact. I didn't see a lot of differences, but I did notice the pressure gauge has a new square O ring instead of the plastic washer.
http://www.fxairguns.com/wp-content/uploads/2017/04/impact-view-Sammans%C3%A4ttning-04-21.pdf



[GQ]

"Verve"For $70, I have 7 complete sets of O-rings. Got 2 sets of NBR90 (more expensive) and 5 of NBR70. I doubt NBR90 set will be used as I've been told these don't seal as well as NBR70.

I have buy 50 of each orings for 38.00$ USD.



[BenGunn]

FX Impact Seal Kits for all calibers

Try this they ship same day:

O-Ring Kit For FX Impact - Complete Rebuild Kit includes every O-Ring (all 32)



[GQ]

"BenGunn"FX Impact Seal Kits for all calibers

Try this:

O-Ring Kit For FX Impact - Complete Rebuild Kit includes every O-Ring (all 32)

38.00$ this a joke.
50 kit for the same pricing



[BenGunn]

OK send me the link where I can buy this kit and whats actually in it?

What does 50 kit mean?



[GQ]

"BenGunn"OK send me the link where I can buy this kit and whats actually in it?

What does 50 kit mean?

50 of each rings in the list for the Impact.
they dont sell in kit.
you have to order each rings in the list in packages of 25-50-100 of each rings or more if you wish.
oringsandmore.com



[BenGunn]

Thanks

Economically perhaps it makes sense but I don't think it does.

From a logistics POV it certainly doesnt

Seals have a life limit and they grow brittle and usually have a 2 year shelf life. Thats why aircraft manufacturers require life limits on seals they deteriorate!

Additionally FX change their seal specs all the time so what do I do with all the seals now replaced by the new spec and what do I do with 25/50/100 seal for one location

I just used the $38 kit and fixed 3 small leaks.

I do note however that FX and others always neglect to mention to use a light amount of lube when installing some seals. They seat & seal much better

To each his own.



[GQ]

"BenGunn"Thanks

Economically perhaps it makes sense but I don't think it does.

From a logistics POV it certainly doesnt

Seals have a life limit and they grow brittle and usually have a 2 year shelf life. Thats why aircraft manufacturers require life limits on seals they deteriorate!

Additionally FX change their seal specs all the time so what do I do with all the seals now replaced by the new spec and what do I do with 25/50/100 seal for one location

I just used the $38 kit and fixed 3 small leaks.

I do note however that FX and others always neglect to mention to use a light amount of lube when installing some seals. They seat & seal much better

To each his own.

It's up to you.
In my case I prefer to have many of each when I travel with my Impact.
We never know what can happen.
And if you shoot a lot and regularely you will always need maintenance on any pcp air rifle.
It is the nature of the beast. LOL



[HavocX]

"DanCarey"Updated schematic for the Impact. I didn't see a lot of differences, but I did notice the pressure gauge has a new square O ring instead of the plastic washer.
http://www.fxairguns.com/wp-content/uploads/2017/04/impact-view-Sammans%C3%A4ttning-04-21.pdf

When did they update the schematic? Just ordered some o-rings few weeks back used the old one.



[HavocX]

Well I've run into a issue then.

I had a leak coming from the power wheel/hammer spring area and was suggest that it is likely the x-ring (quad o-ring) on the parts diagram B23 which is listed as 2,9x1,78.
Ordered a replacement. Took my rifle apart and yes there is a quad o-ring in there but larger in size. I just checked the new parts diagram that someone posted and they have B23 as o-ring size 2,84x2,62 and not even a x-ring like I removed.
What is going on?
I obviously did not have this size so I put a 3x2.5 o-ring and it leaks from same spot.



[GQ]

For $38.00 I have all those orings for the Impact.



[Dirte]

"GQ"For $38.00 I have all those orings for the Impact.

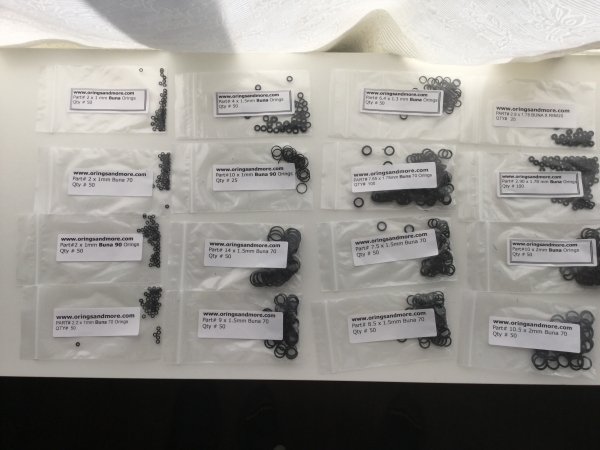

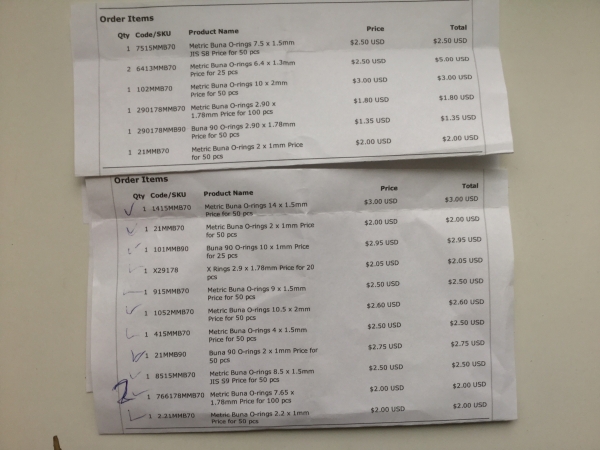

Where did you get that big kit GQ? I see Amazon has them for $38 but yours has a lot of each 0-ring.



[BenGunn]

I see 16 bags of seals. The Impact has 32 different seals



[gixxer3000]

"BenGunn"I see 16 bags of seals. The Impact has 32 different seals

No it does not have 32 different seals, some of them are the same size so 16 seems about right. There are however missing the seals for the Shroud and barrel orings for the 3 other calibers than the .25.

So all in all, above user seems covered if he ditched the extendable shroud...



[GQ]

"gixxer3000"

"BenGunn"I see 16 bags of seals. The Impact has 32 different seals

No it does not have 32 different seals, some of them are the same size so 16 seems about right. There are however missing the seals for the Shroud and barrel orings for the 3 other calibers than the .25.

So all in all, above user seems covered if he ditched the extendable shroud...

I do own fixed shroud.



[GQ]

"Dirte"

"GQ"For $38.00 I have all those orings for the Impact.

Where did you get that big kit GQ? I see Amazon has them for $38 but yours has a lot of each 0-ring.

www.oringsandmore.com



[GQ]

O-rings for extendable shroud are not on this list.
