Fx impact mk1

[Eddy1840]

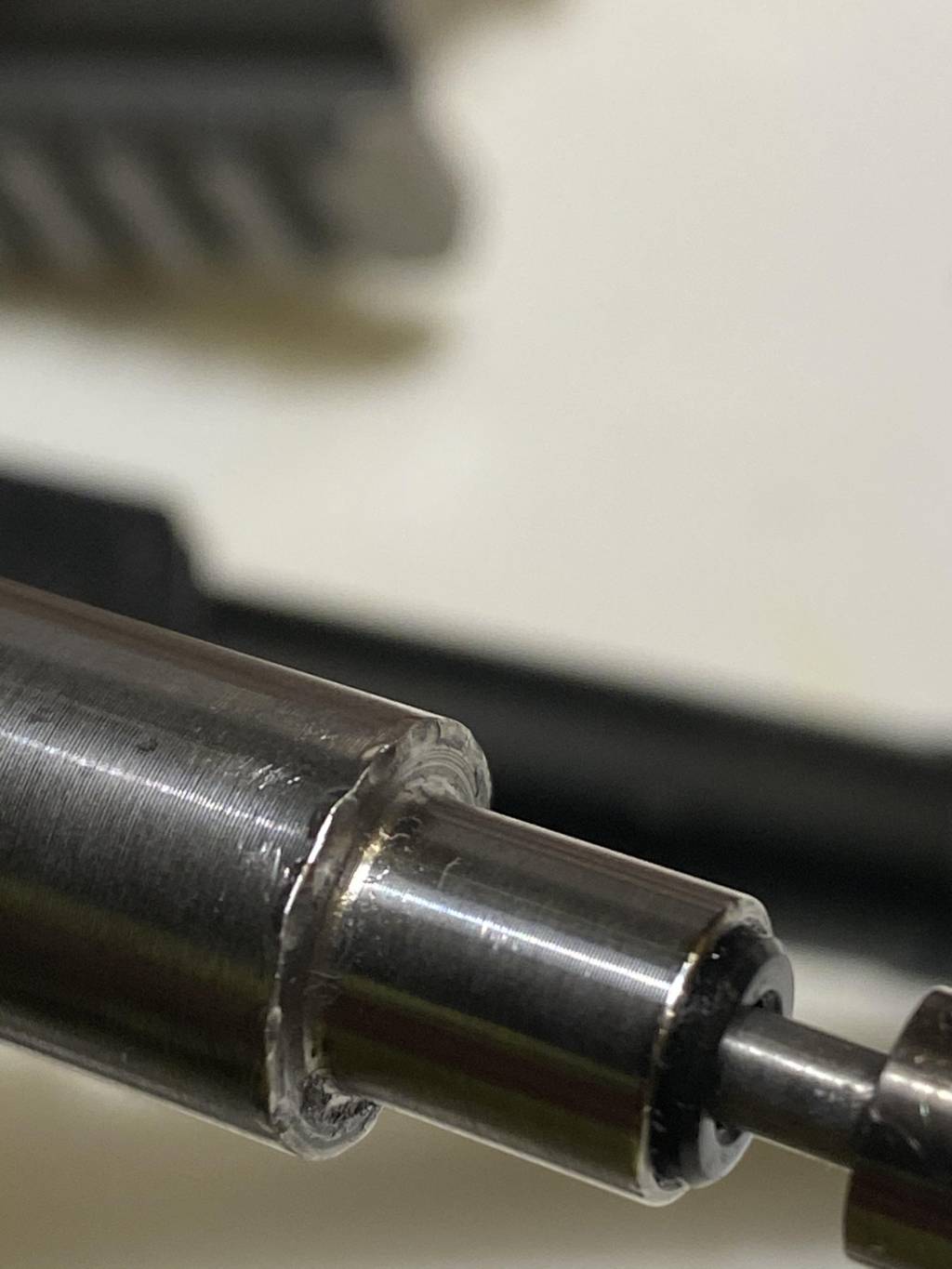

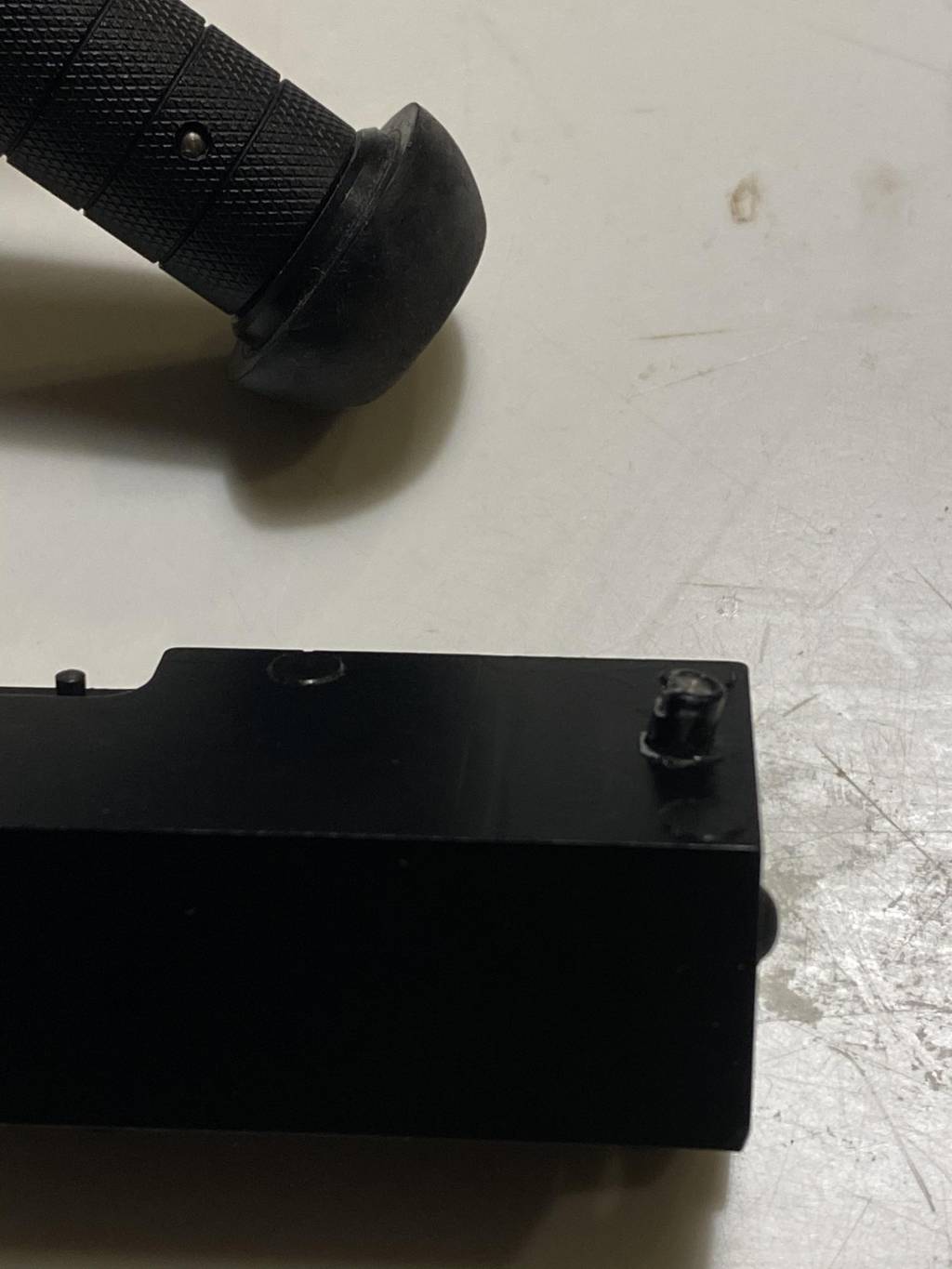

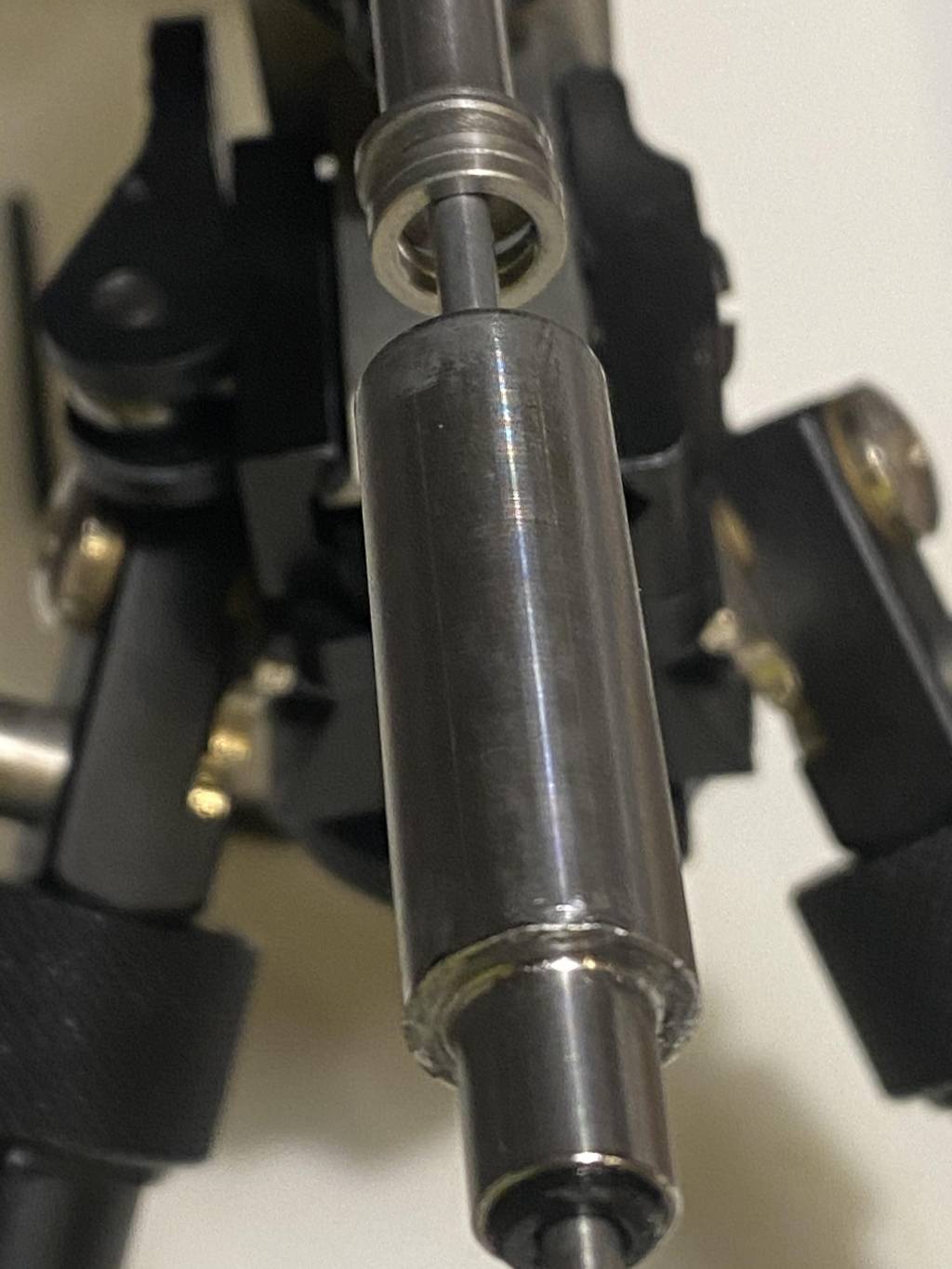

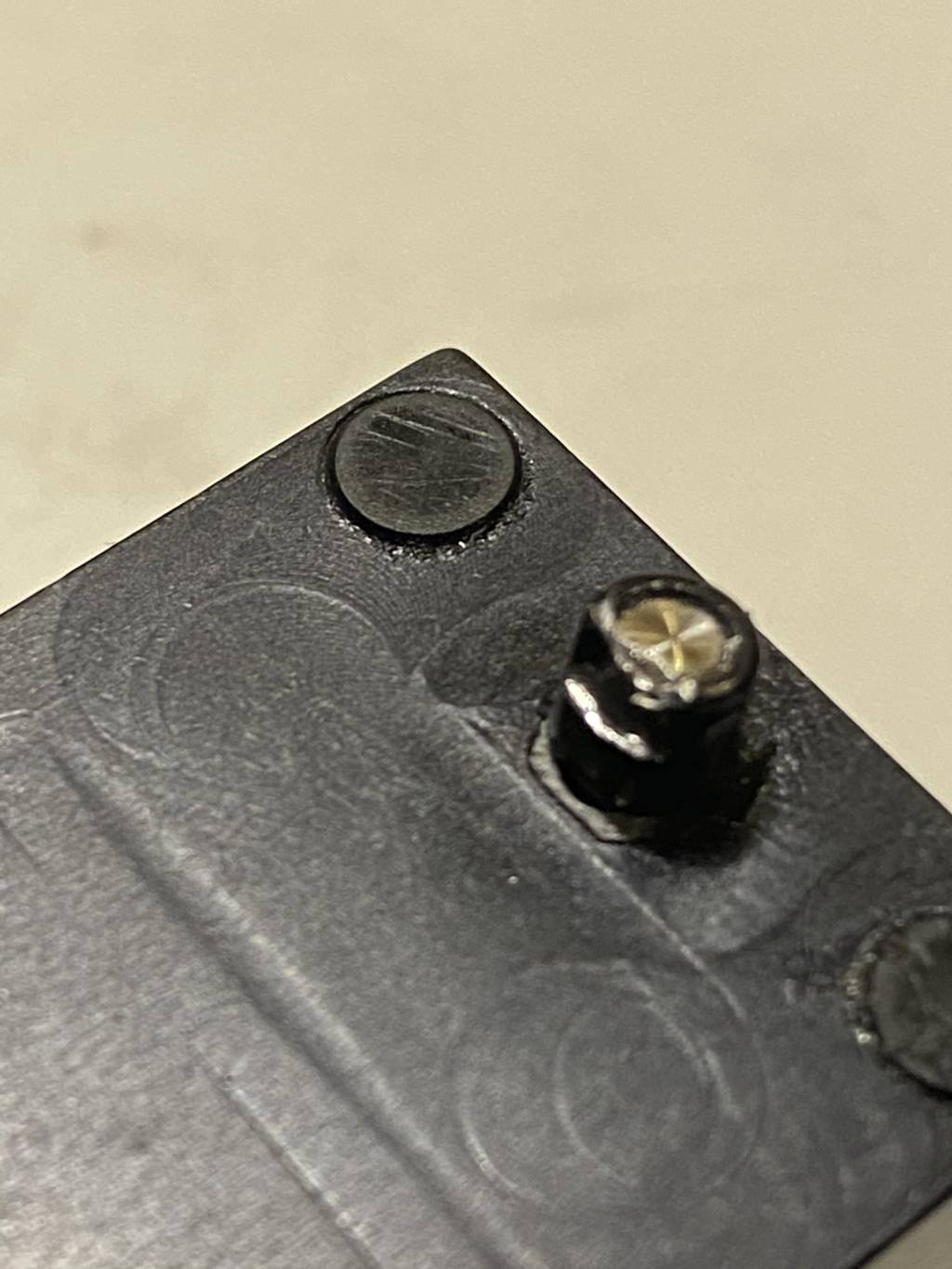

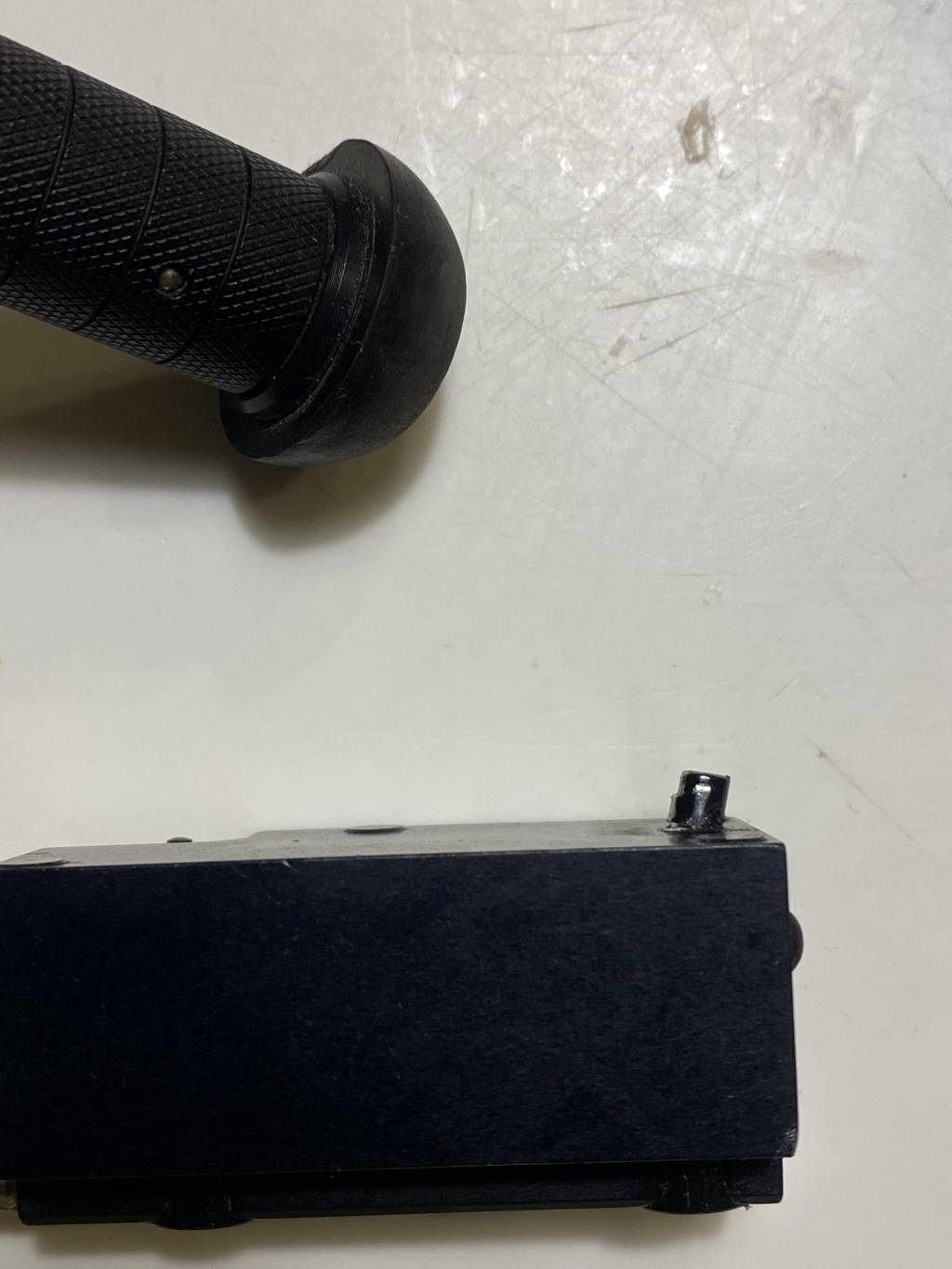

Hi quick question my impact is not cocking I already check the trigger adjustments and they are fine what I noticed was that the ping on the cocking block is bend and don’t bring the hammer all the way back to engage with the trigger also I saw some damage on the hammer I have the slug power kit installed and the power plenum.. before it was very consistent now I have some humps on the speed I know that is not my reg because it’s brand new and it’s not creeping. Any advice what should I remplace? Do you think the extra weight on the hammer is causing the damage, I’m shooting 25 gr at 970 FPS with the 700mm barrel and the Ernest Rowe transfer port.



[biohazardman]

That kind of damage usually occurs when the cocking lever is in the rear/open position when the gun is fired. It really messes things up when it slams home. Looks like you need a new pin and hammer. Possibly the linkage is damaged as well?



[Khornet]

Yep, I would pull the cocking lever and linkage and look a the holes for the pins in them. They are probably oval. Don't ask me how I know



[Eddy1840]

Thank you guys, I’ll order a new cocking block and polish the hammer..



[Eddy1840]

That kind of damage usually occurs when the cocking lever is in the rear/open position when the gun is fired. It really messes things up when it slams home. Looks like you need a new pin and hammer. Possibly the linkage is damaged as well?

You are right I was trying to improve my trigger also this rifle is 5 years old a lot o pellets and now slugs .. do you think that I can use the old hammer or I can use the same one just give it a nice polish



[Chris1973]

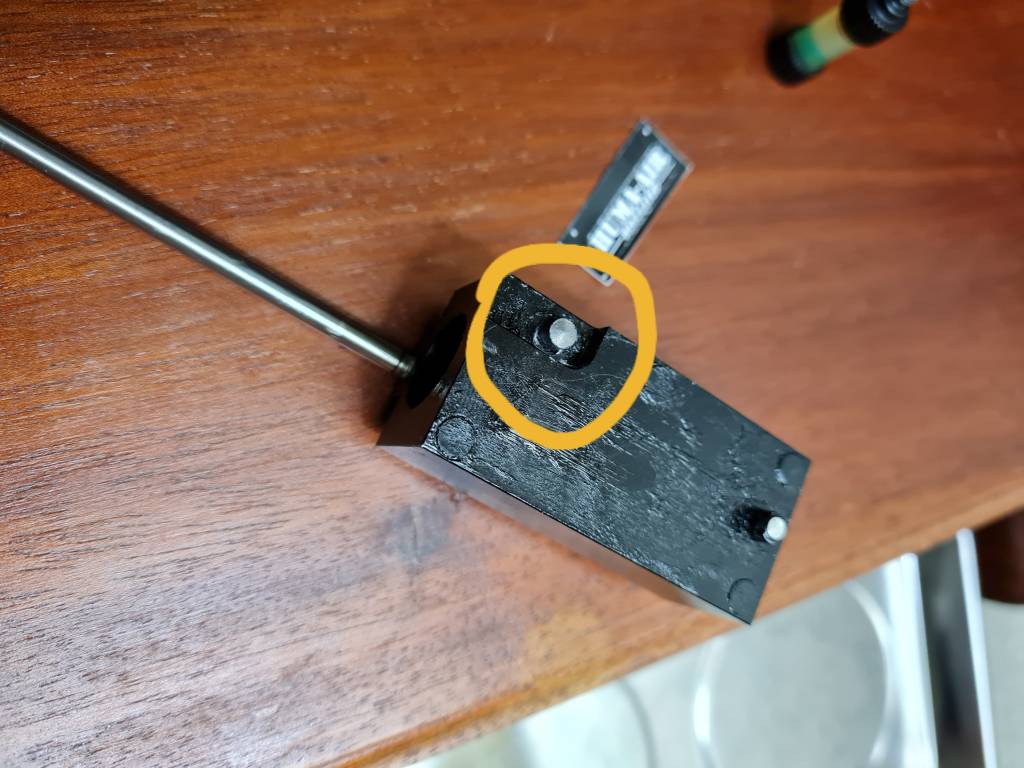

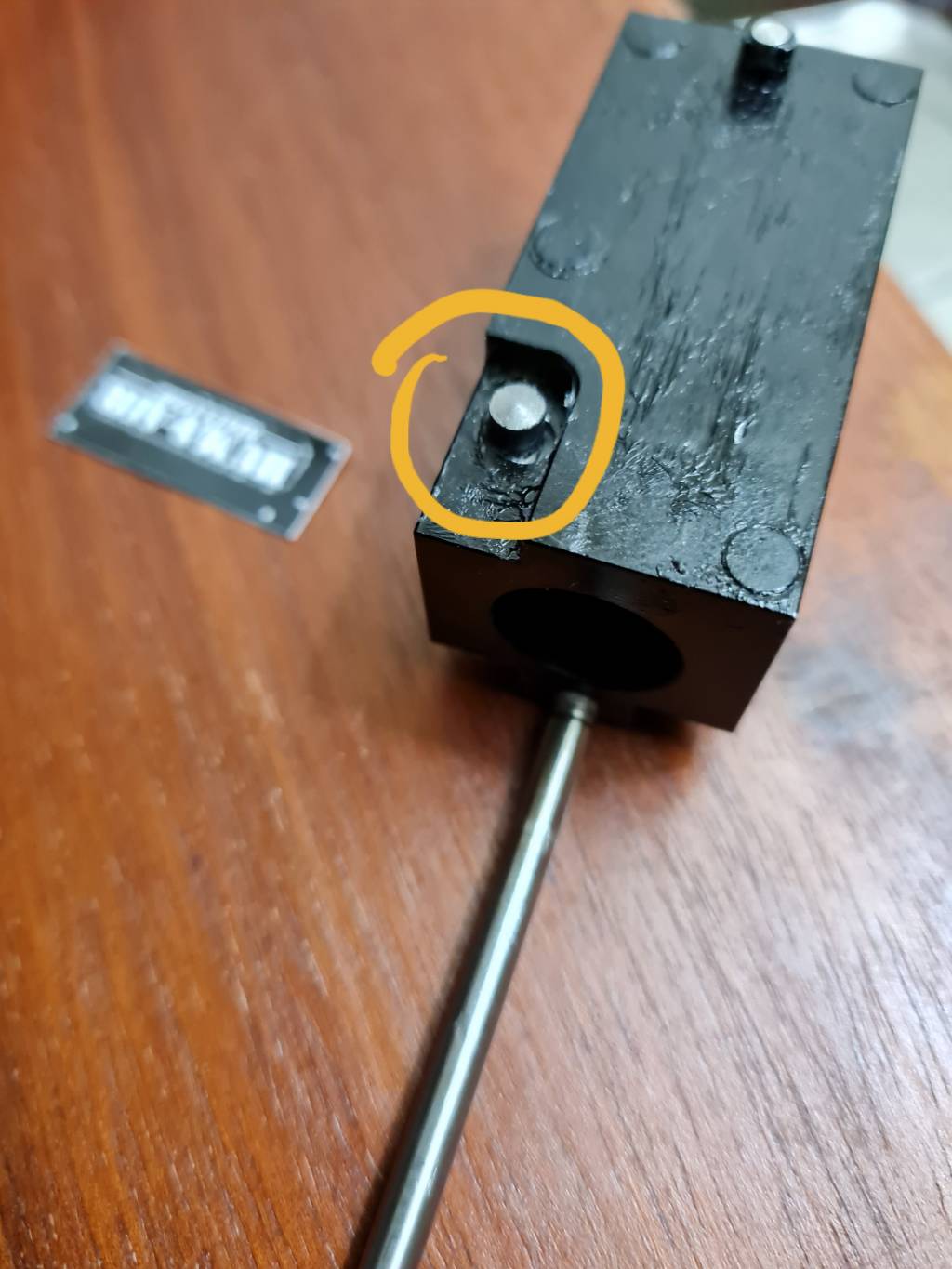

Eddy 1840 for sure you can polish your hammer like a new. After I broke 3 times the small pin wich is connected with the linkage plate I have been bored to wait a new one to reach.So in the last block I bought a covalt drill bit 4 mm I cutt it and with a hydraulic press I press it inside. I just opened a little and the hole in the plate to 4 mm( any way was a little damaged like oval shape). Since then is solid like a rock after around 12000 rounds.

In your case I think you need to replace the block since your central pin needs to be covered by derlin material to protect the hammer.If it was me and I could not wait long time for a new one I would insert a covalt pin by the same way and watch it if is making zny damage the hammer.



[biohazardman]

That kind of damage usually occurs when the cocking lever is in the rear/open position when the gun is fired. It really messes things up when it slams home. Looks like you need a new pin and hammer. Possibly the linkage is damaged as well?

You are right I was trying to improve my trigger also this rifle is 5 years old a lot o pellets and now slugs .. do you think that I can use the old hammer or I can use the same one just give it a nice polish

I turned mine down a few thousandths on my mini lathe and it is fine. So, you should be able to secure a drill lightly in a vice or similar device or spin it up in a drill press and hold a decent file or a block with some sandpaper to it to take it down the little that is needed.



[Eddy1840]

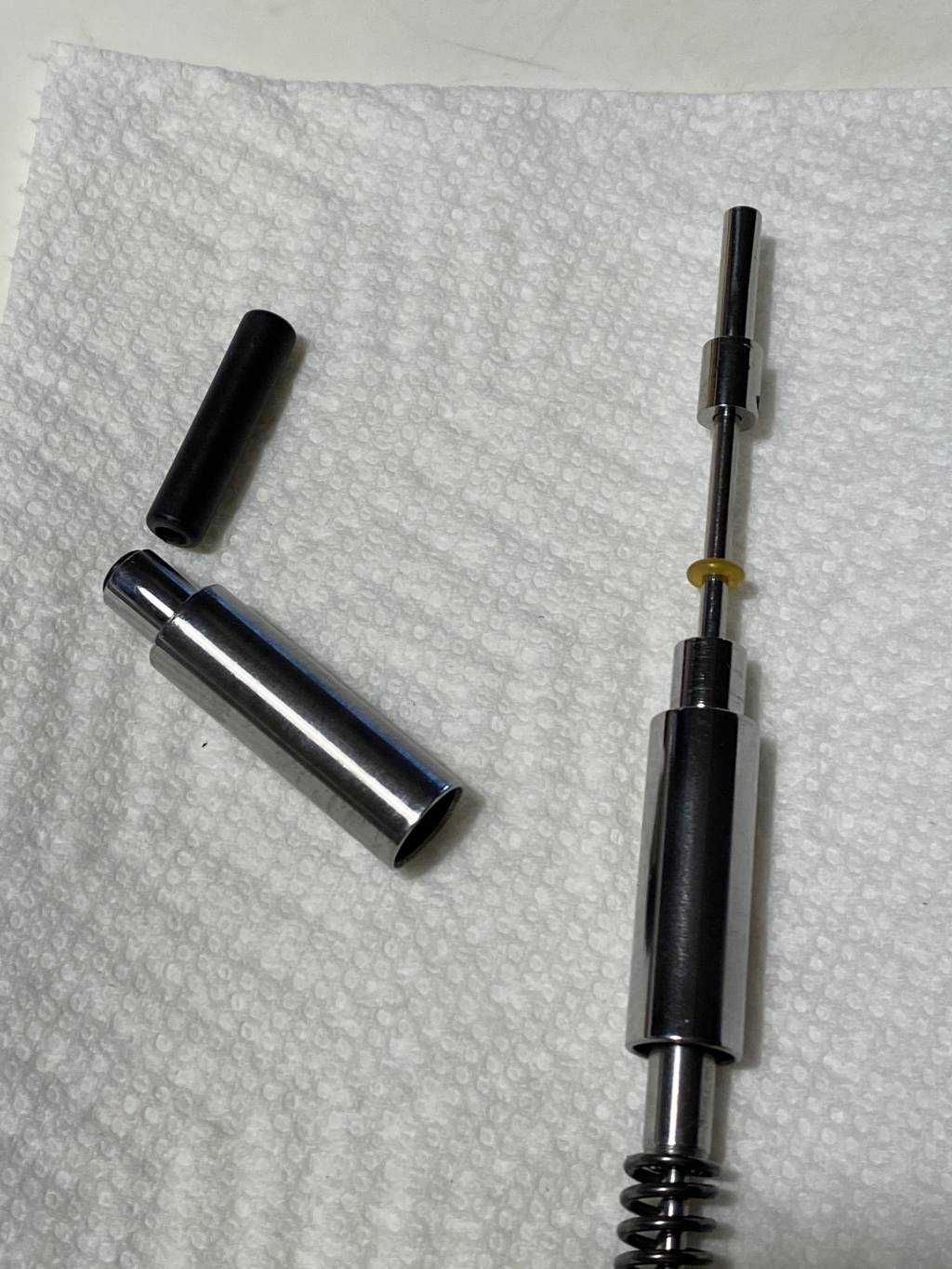

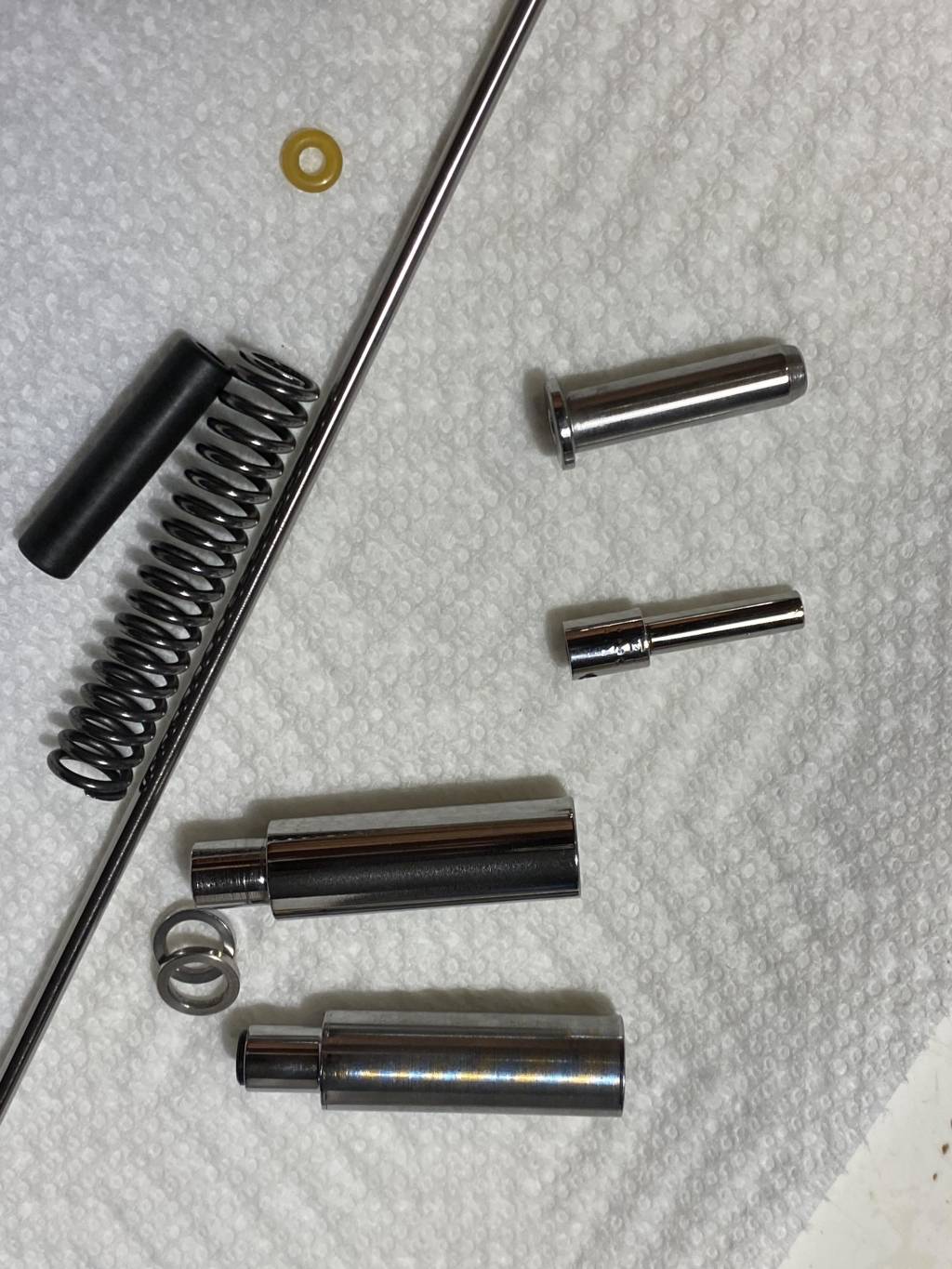

Today I polished the hammer and others components. Now I just have to wait for the cocking lever to arrive and put everything back together.
