Tuning FX Impact M3 1st regulator schematic diagram

[nerijus]

Hi, I am going to rebuild my 1st reg on Impact M3. But FX diagram is not provided for it.
How do you know what o-ring to order? Anybody has a list of all o-ring for this part?



[Airgunmann]

I think they are the same as the other amp regulators I know they both use exact same piston



[nerijus]

I think they are the same as the other amp regulators I know they both use exact same piston

Unfortunately not. I ordered a set for 2nd reg. Inernal rings on piston are the same, but the external ones are not.



[Airgunmann]

Unfortunately not. I ordered a set for 2nd reg. Inernal rings on piston are the same, but the external ones are not.

Good to know I guess I would contact fx then



[rc4fun]

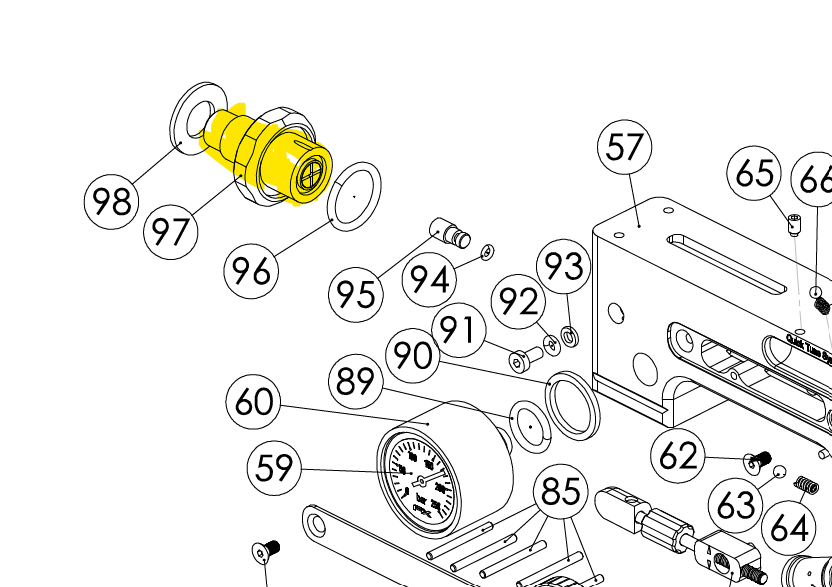

The diagram from FX shows the same o rings and parts for front and rear regulators. Look at the X2 parts.



[nerijus]

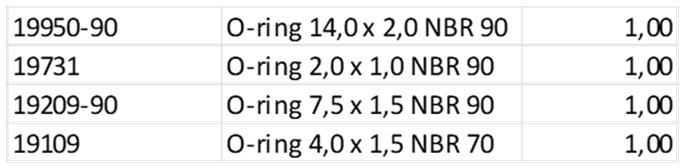

Got an answer from FX. Here is the list of o-rings for the 1st reg.
Like I said, they are not the same as second reg.



[rc4fun]

Thanks for letting us know.



[Shark1]

Legend thanx
