Fx impact air leakage through the barrel

[Vadimas]

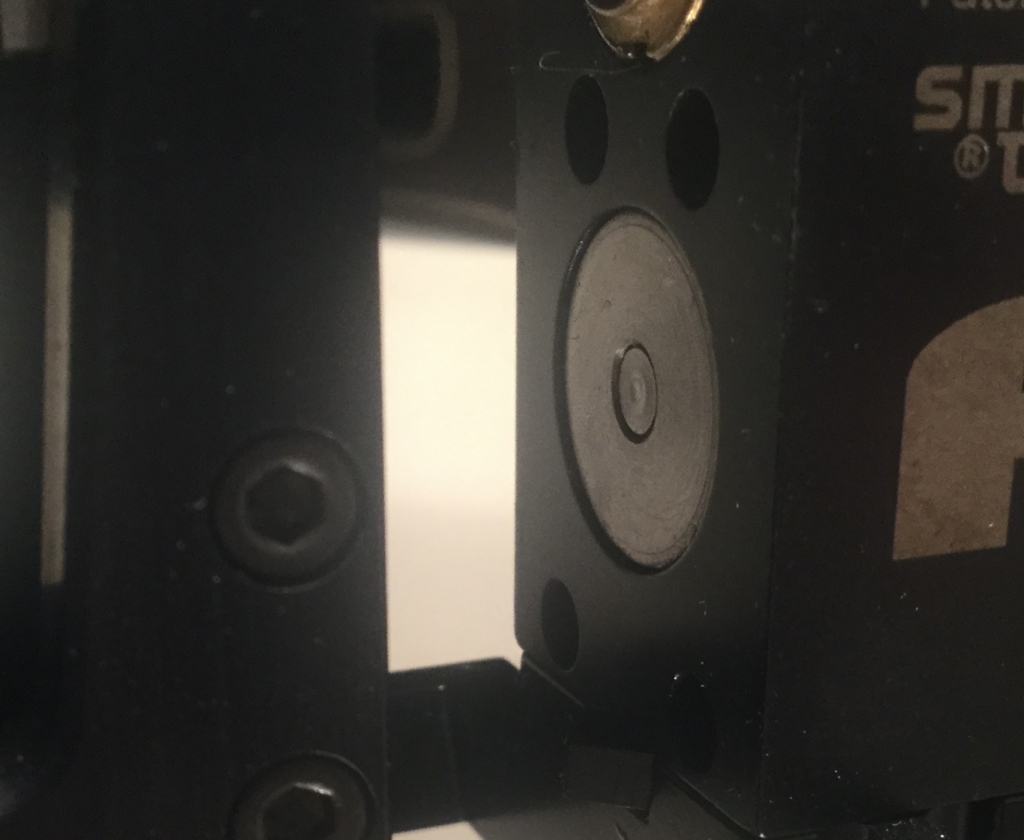

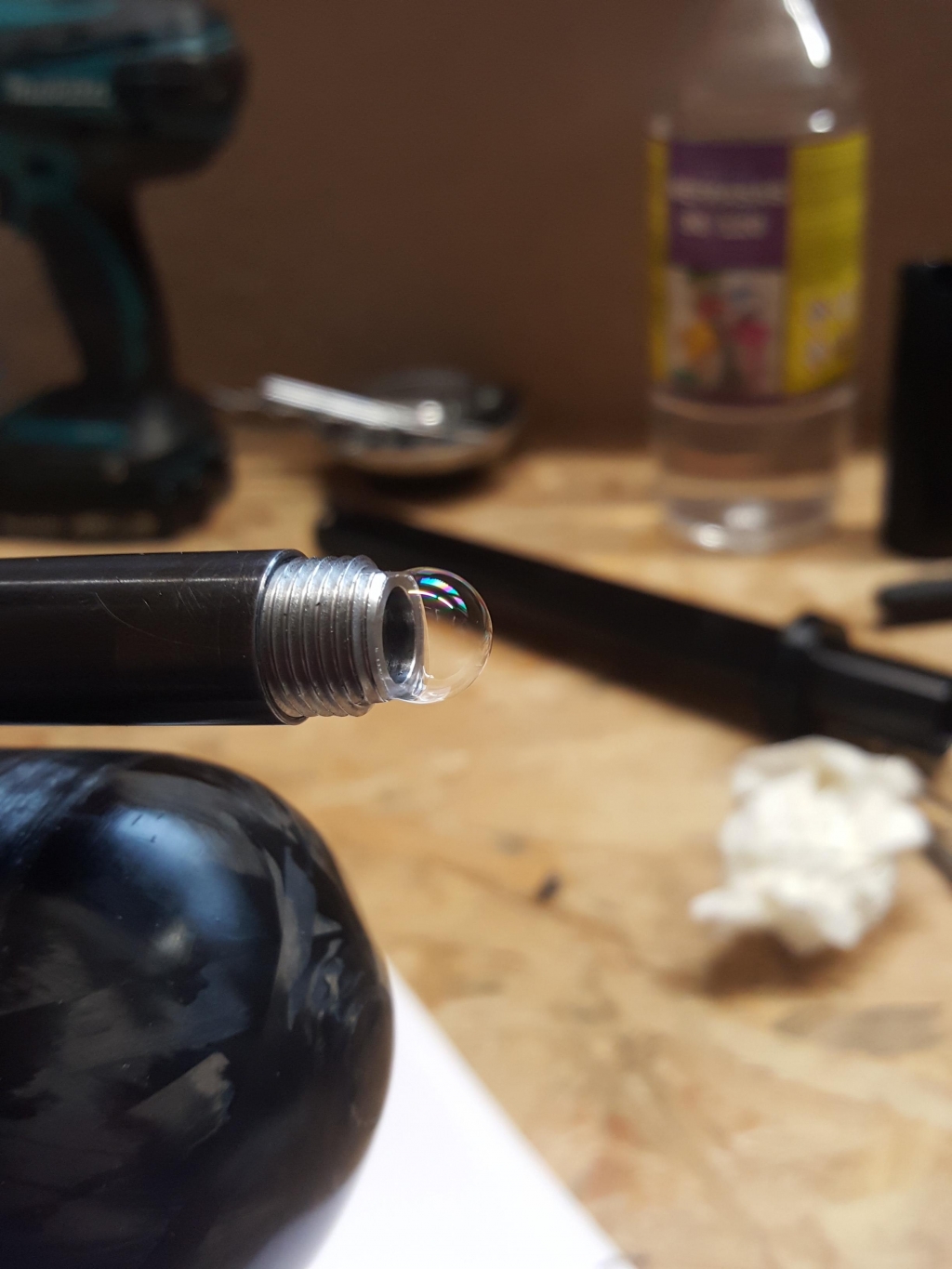

Today i found small air leaks through the impact barrel, the valve shows that it does not fit snugly into the seat.

This is a new set of power plenum.

Maybe there are people who already have this problem?



[GQ]

Mine does not fit deep inside the seat but there is no leak at all.



[Vadimas]

I know everything perfectly,just the valve does not close properly.



[GQ]

I know everything perfectly,just the valve does not close properly.

I know you know.

Why asking if you know everything perfectly ?

We never know at the end.

Is there a leak ?



[Vadimas]

I know everything perfectly,just the valve does not close properly.

I know you know.

Why asking if you know everything perfectly ?

We never know at the end.

Is there a leak ?

My dear friend, i'm not from Asia.

I understand everything you want to tell me.

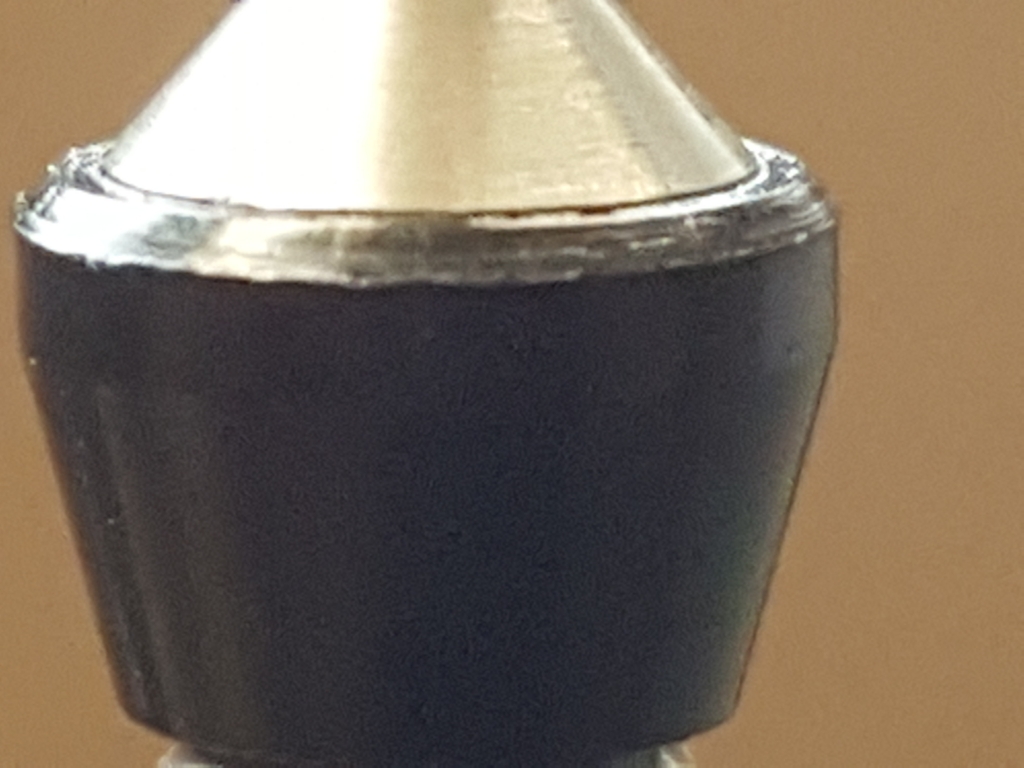

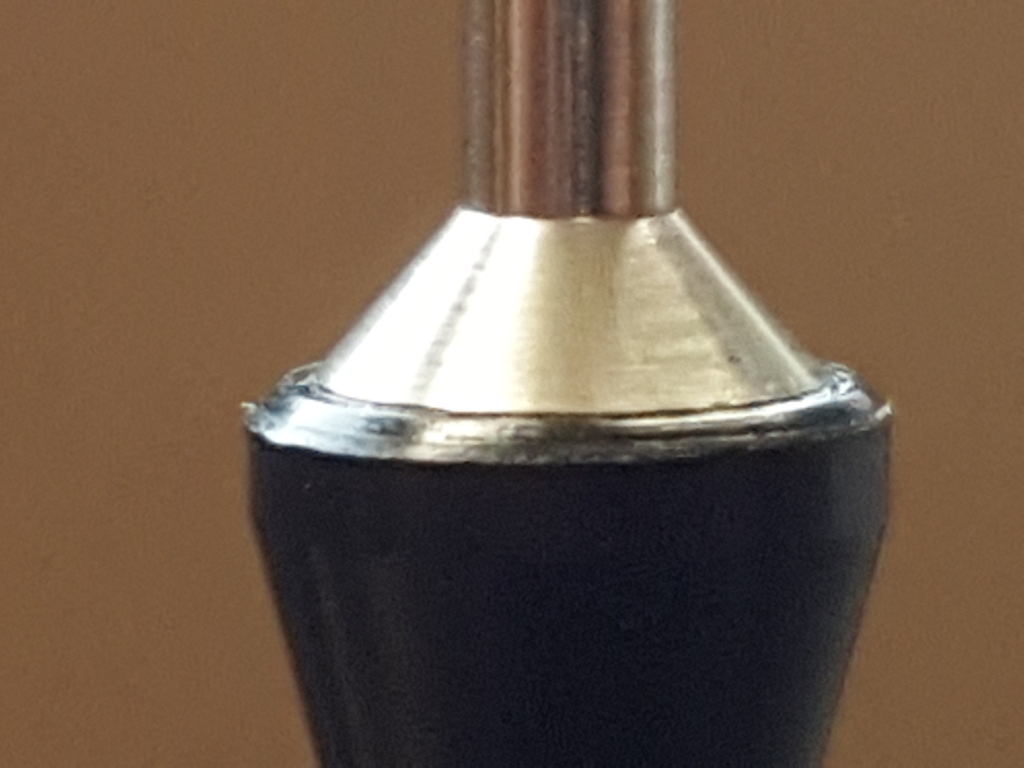

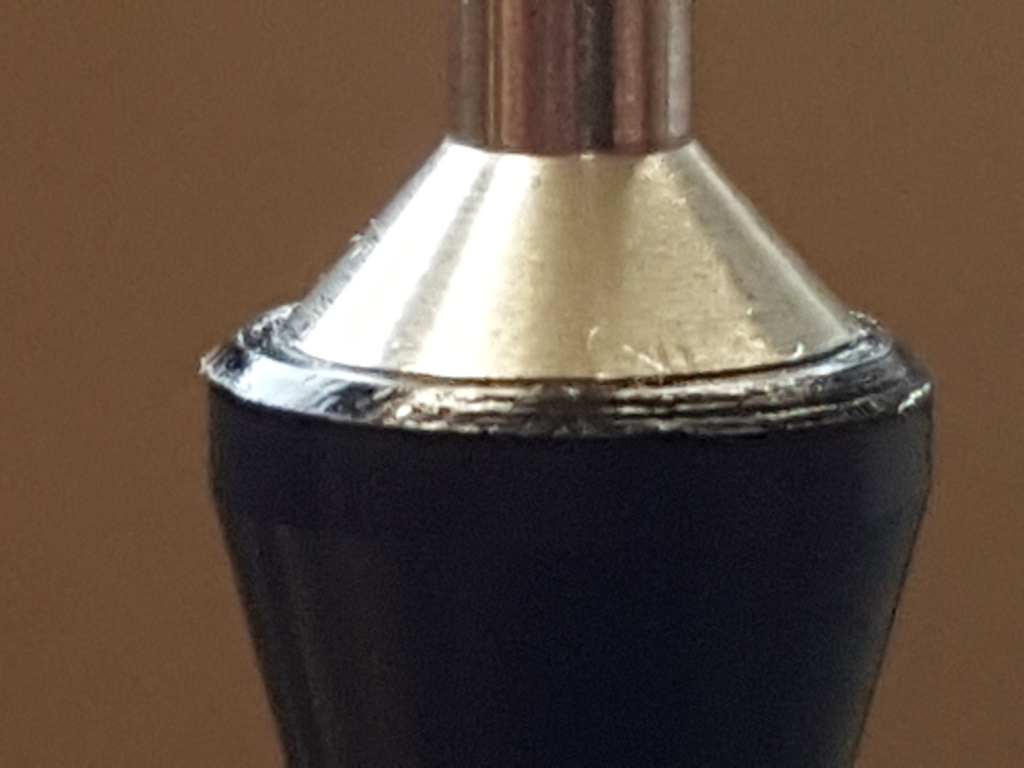

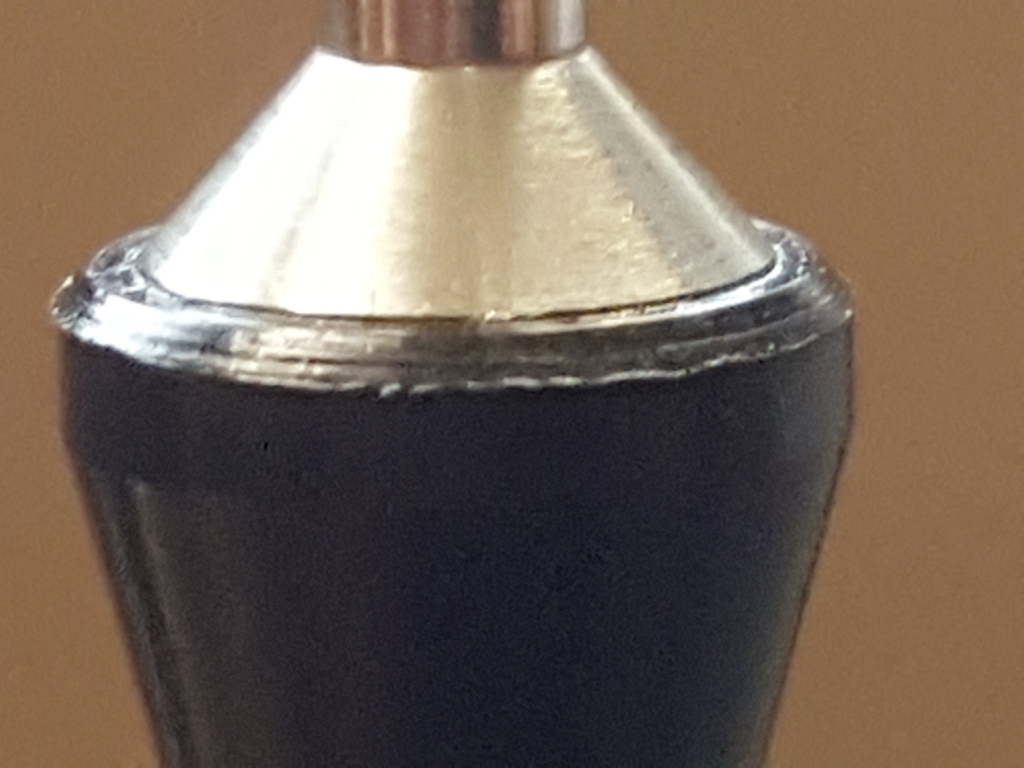

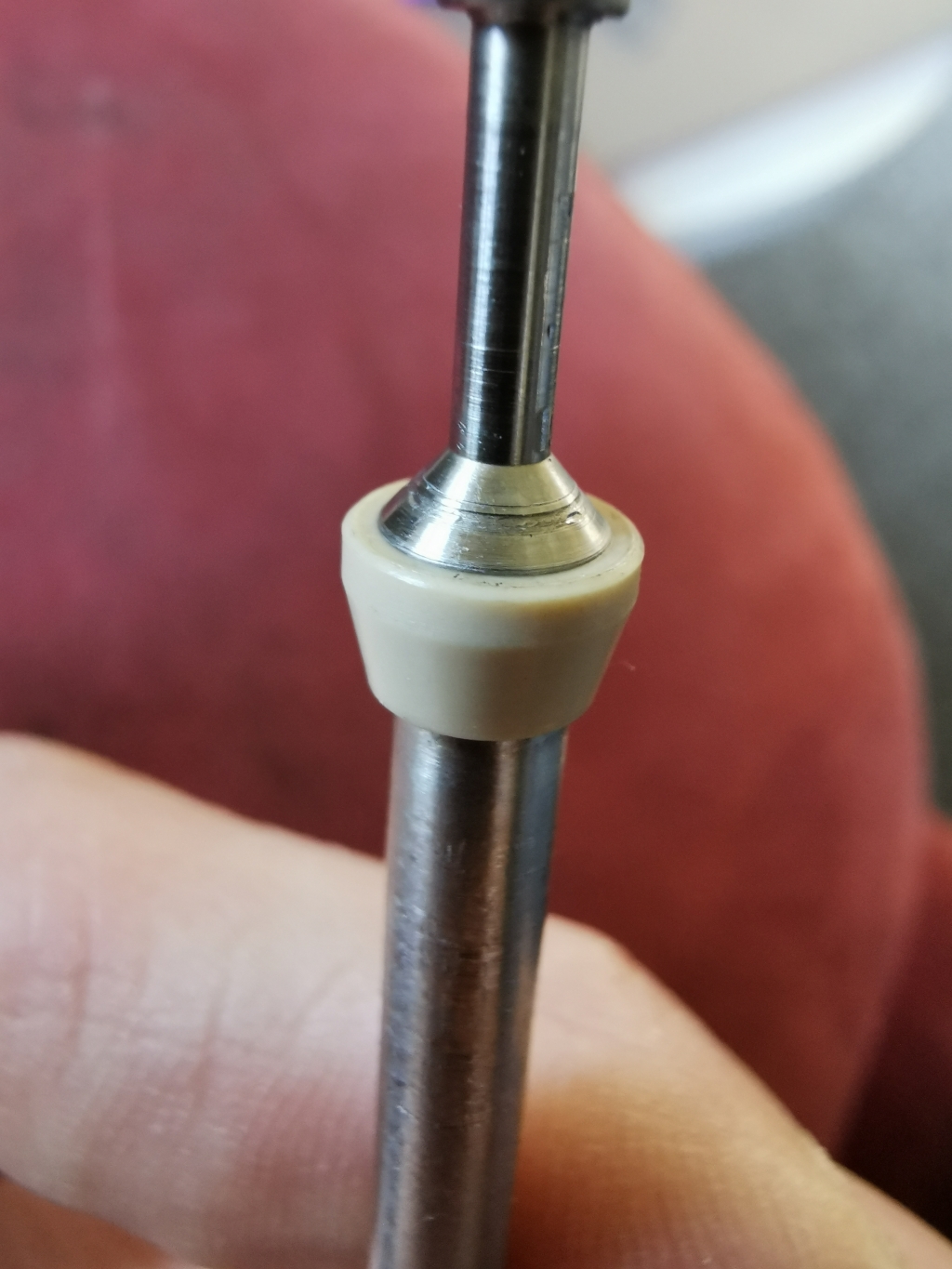

The plastic parts of the valve do not close properly, this problem occurred after about 1000 shot. Upon close inspection I noticed that the valve was not uniform on all sides,it has different deformations, it does not work equally on the part.



[Vadimas]

Just want to know if anyone else is having such a problem,this problem does not occur immediately.



[Vadimas]



[GQ]

Oh...My friend,,,,it does not look good. FX must see it a.s.a.p.

I am not from Asia by the way....LOL



[GQ]

Oh...My friend,,,,it does not look good. FX must see it a.s.a.p.

I am not from Asia by the way....LOL

Would like to see a picture.



[Vadimas]

It is very difficult to see it on the photo.

Believe what I say, I have no purpose in deceiving someone.



[Hatmike]

I had that problem.replaced delron on valve rod with 7.5 mm peek it stopped.



[Hatmike]

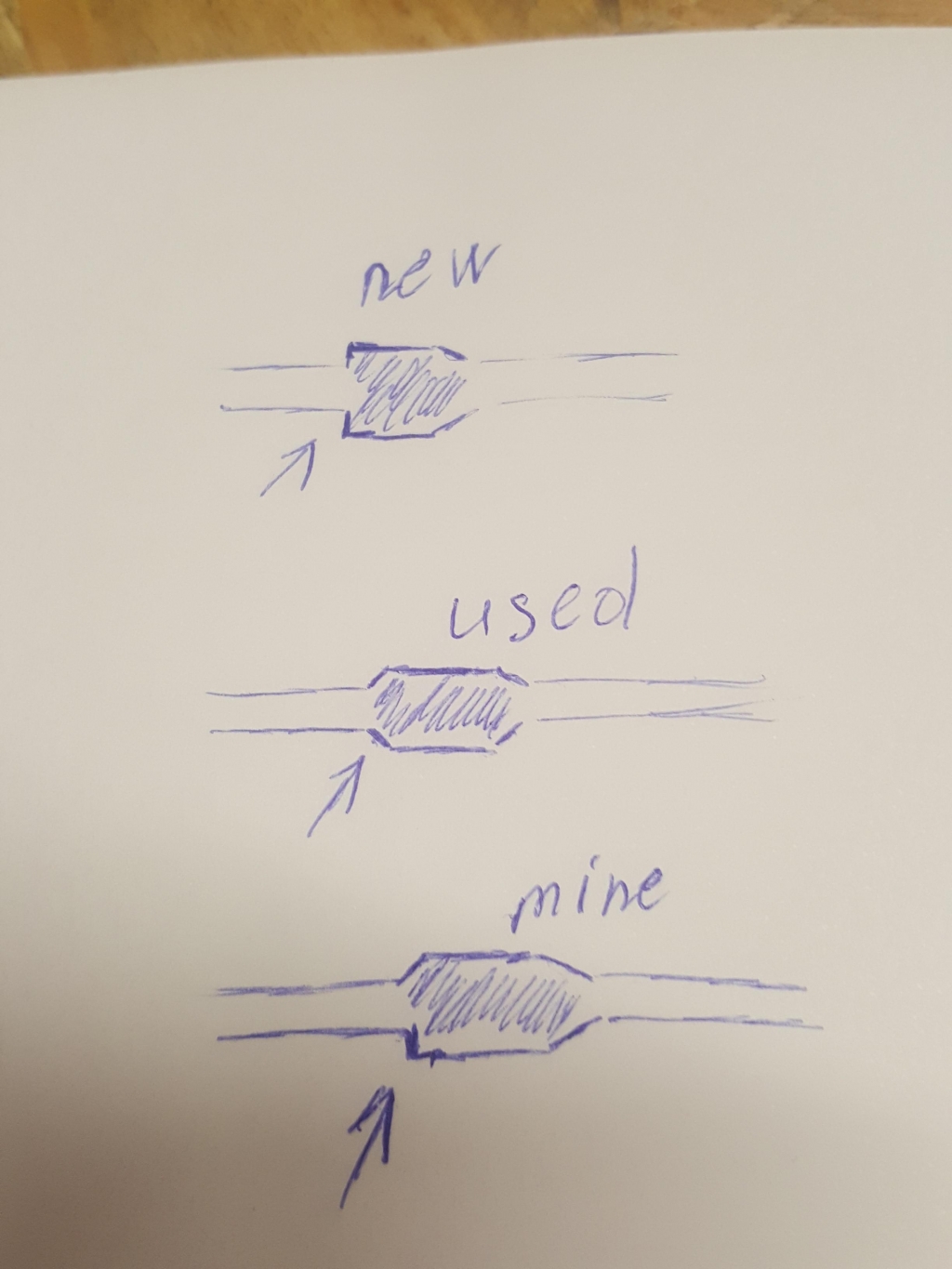

Vadimas. I went through 3 new valve rods.at first it won't leak.after about 200 shots very small leak. On part in your drawing that part got deformed would let air by .P m me if you need one or can't get it where you live. I'll send you a couple.



[Vadimas]



[weatherby]

I also used PEEK, way harder and stiffer than Delrin, and easy to machine.

This one will stays as it looks in the picture.



[weatherby]

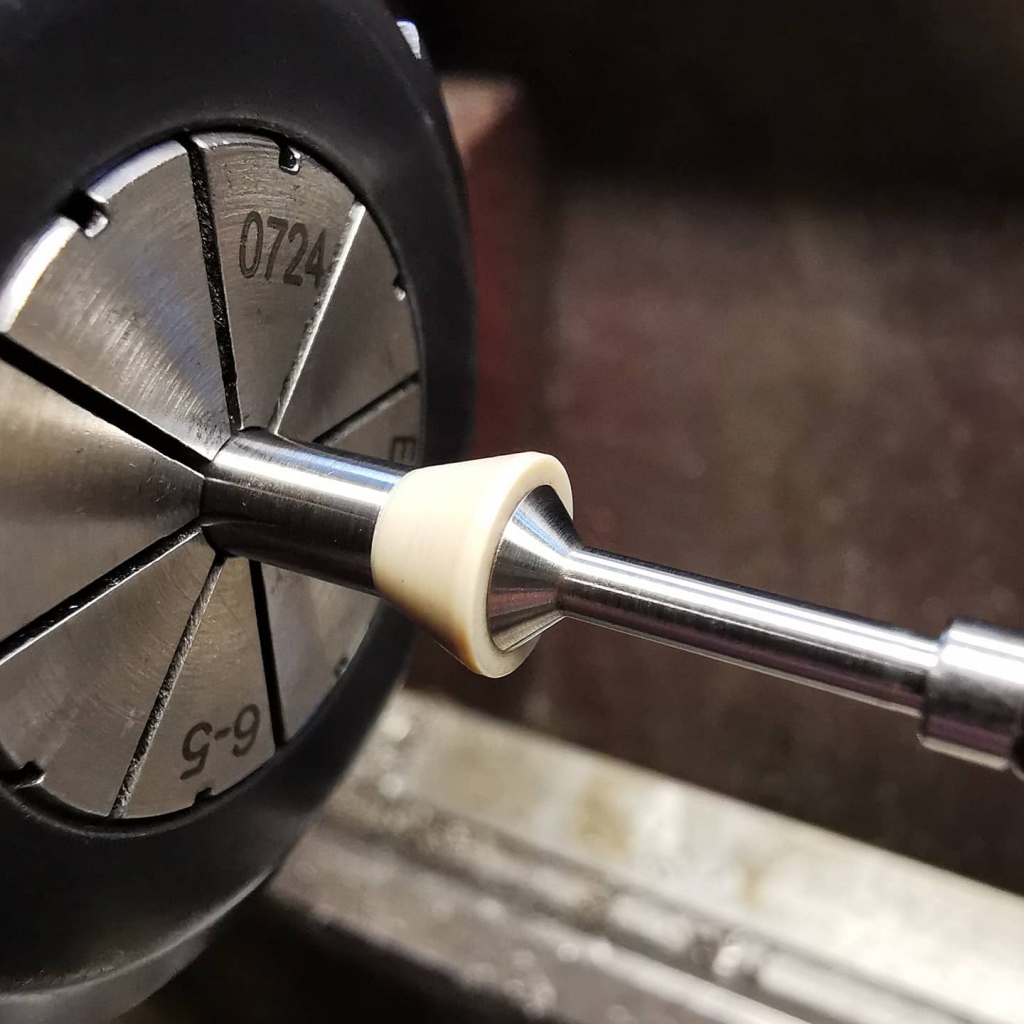

My PEEK prototype from the PP kit after 500+ shots

The valve stem is a bit scuffed from tinkering, but is 100% functional.

Didn't bother to clean it up a bit

The 45° sealing edge visible is the edge I made on it myself. It is still in the same shape, and looks like it hasn't been used at all.



[Scotaty]

How do you guys replace that part. I can't remove the delrin from the rod.



[Hatmike]

I used a heat gun and patance go slow.has lots of blue lock tight



[Vadimas]

I warmed up a bit and turned around.



[GQ]

Well this is not a good news for the Power Plenum kit to start with on the market place.

FX ? What is your plan to resolve this problem for all the Power Plenum kit owners installed ?



[weatherby]

How do you guys replace that part. I can't remove the delrin from the rod.

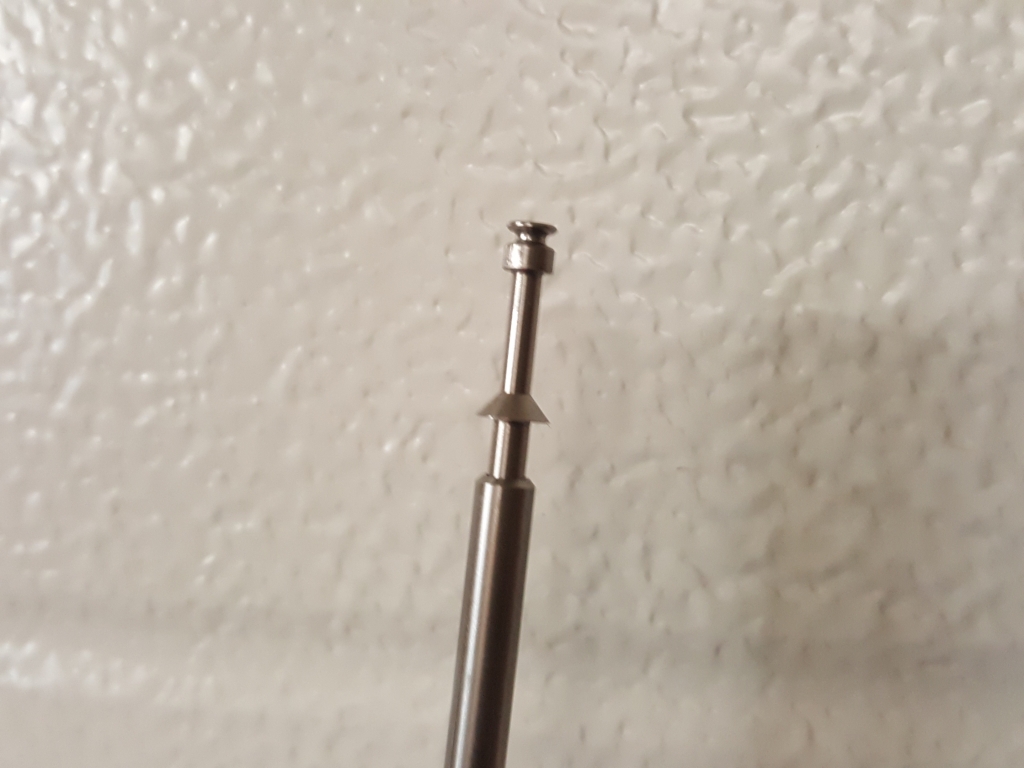

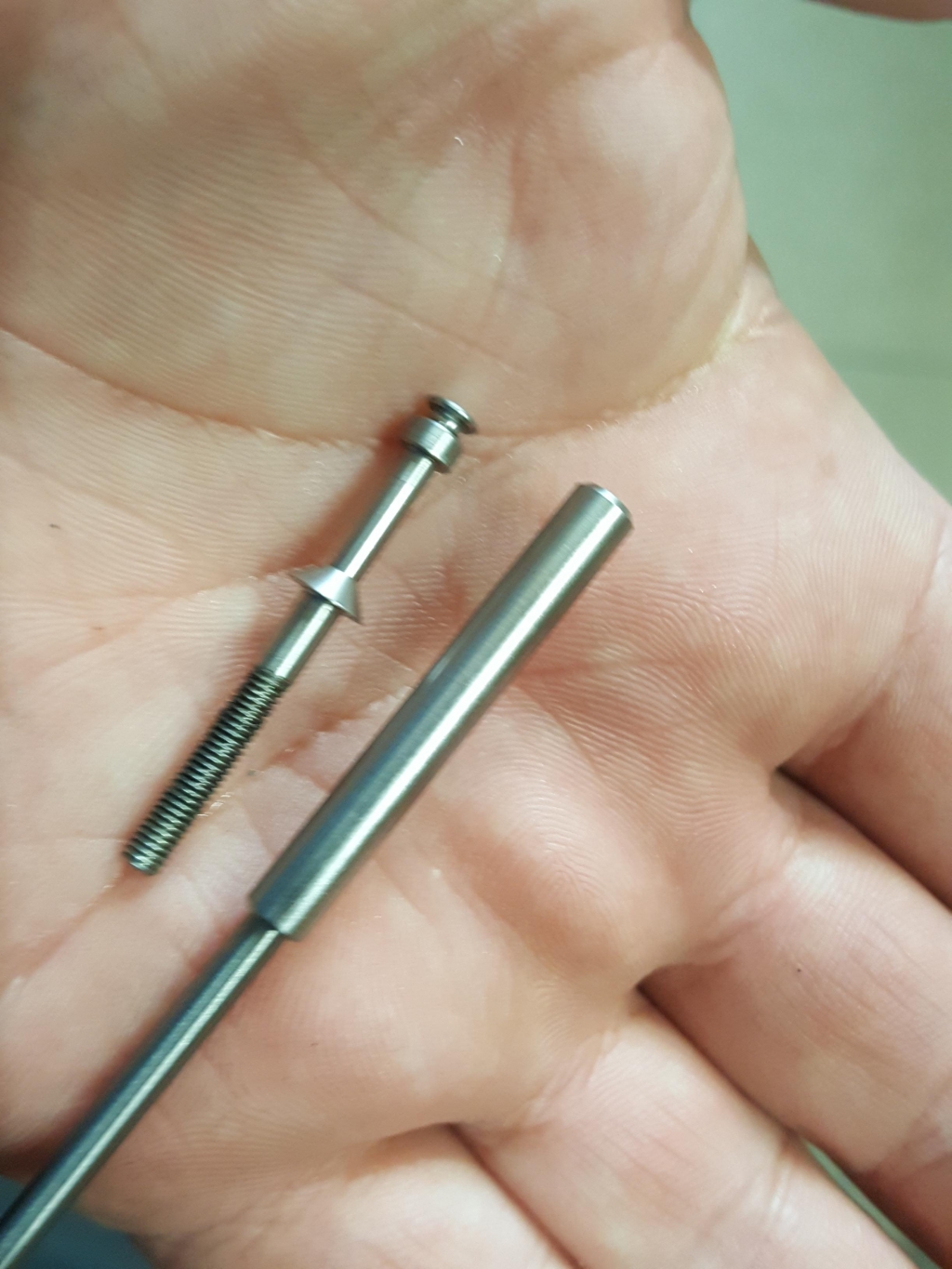

You are gonna laugh, I set the Delrin on fire, and let it burn up completely

After that, it can be loosened without effort. Don't inhale the fumes!
