Hi y'all
My buddy has a few(understatement of the year) larger caliber FX airguns, Impacts and mavericks. After hearing all about the larger calibers being awesome, I decided I would order a few parts from FX USA, and a .30cal liner from Utah air to turn my .25cal into a .30cal. Also met a few nice fellas on the forum and was able to trade for pellets and a moderator all in .30cal. I’m thinking “everything is coming up Milhouse!” …..until I went to assemble everything tonight….

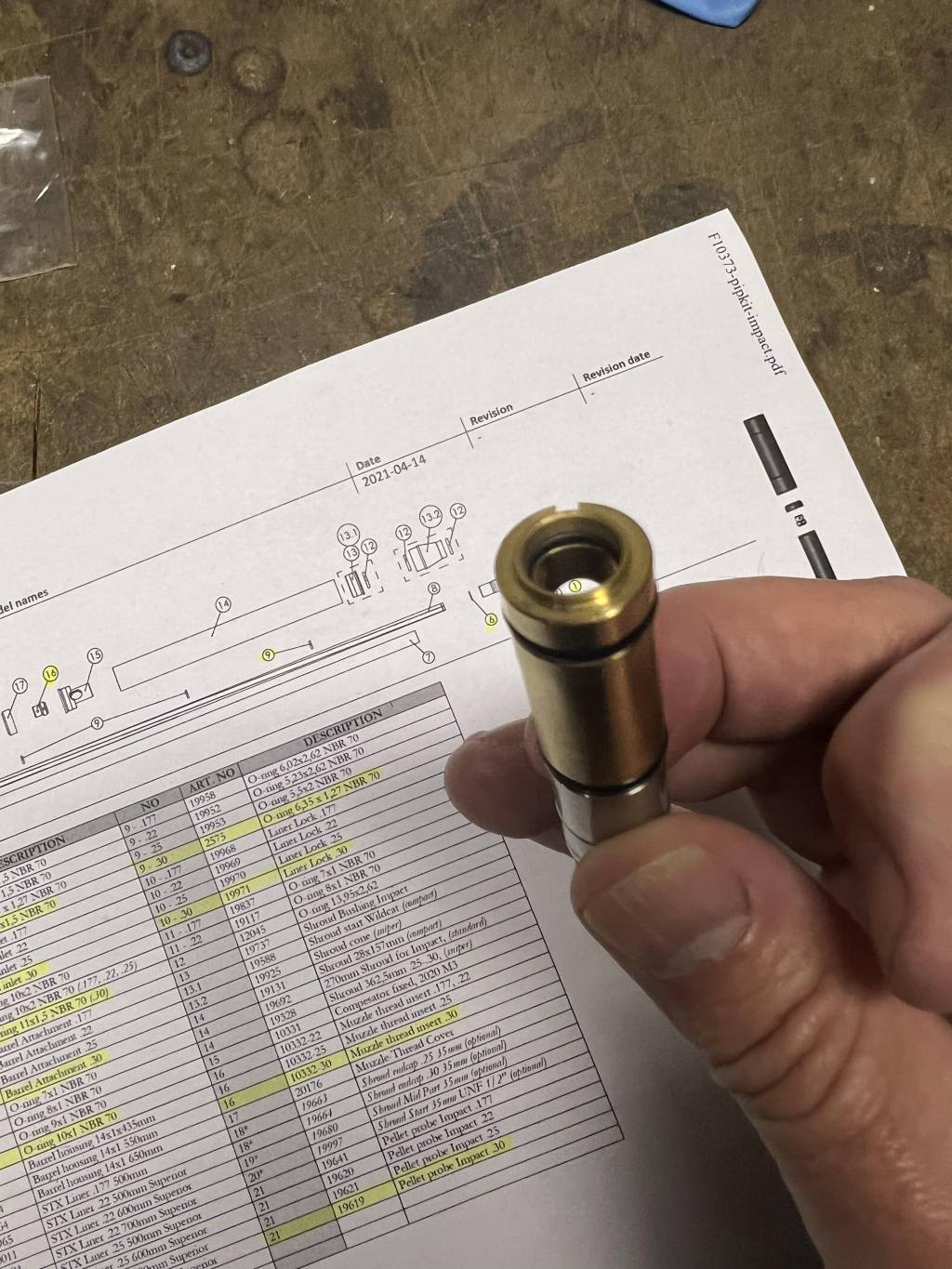

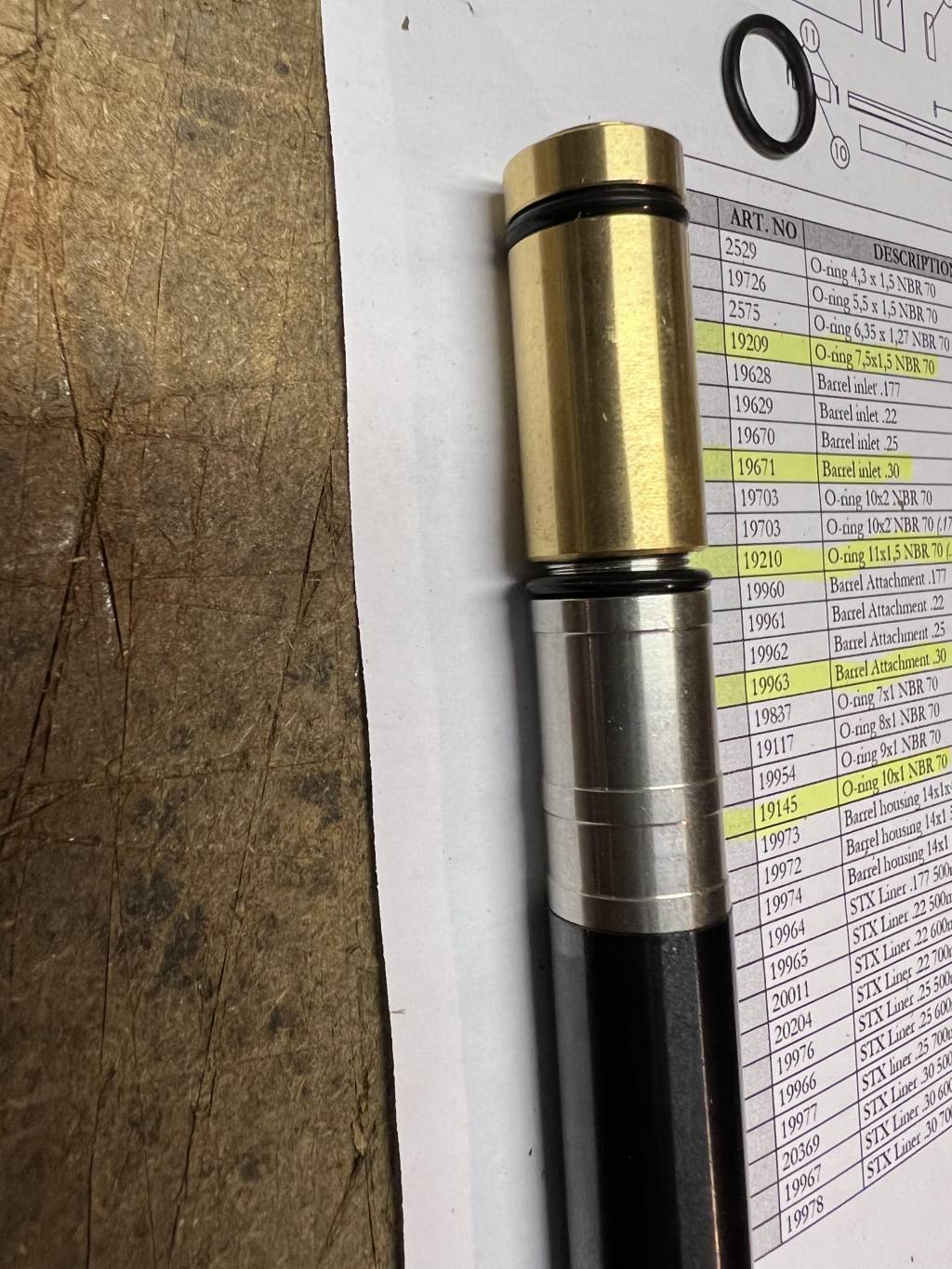

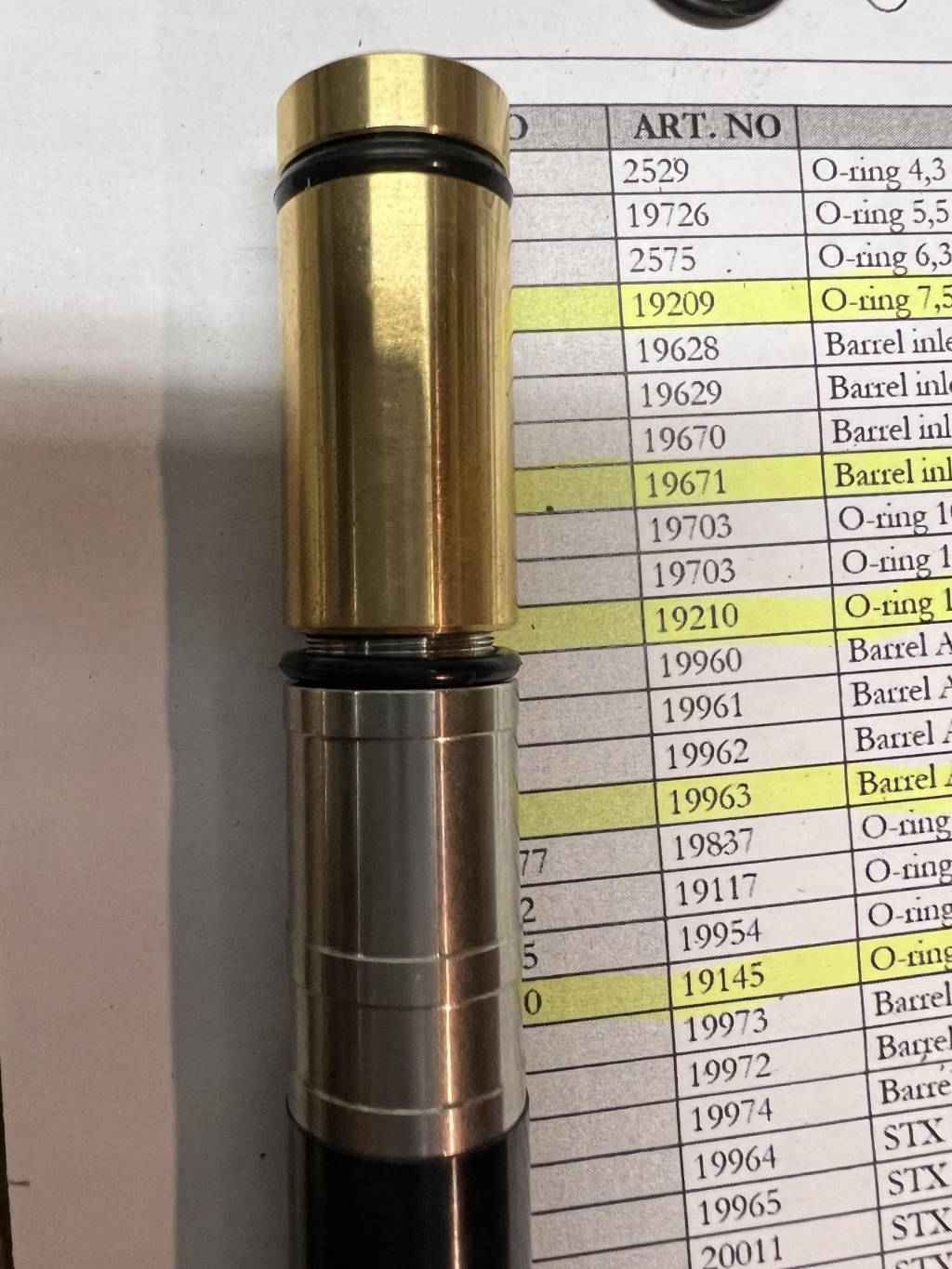

I noticed the gap between the brass transfer port and stainless steel barrel attachment was much wider than on my other barrels. Then I noticed the transfer port was not a dual hole pellet and slug side like my other barrels. Is this a feature only found on the .22cal and .25cal or did I get the incorrect part? I triple checked the diagrams and part numbers. Everything matches up. It is part #19671 brass inlet. I’m nervous about the barrel attachment also. Anyone else notice, experience, or see anything like this?
Please see the photos

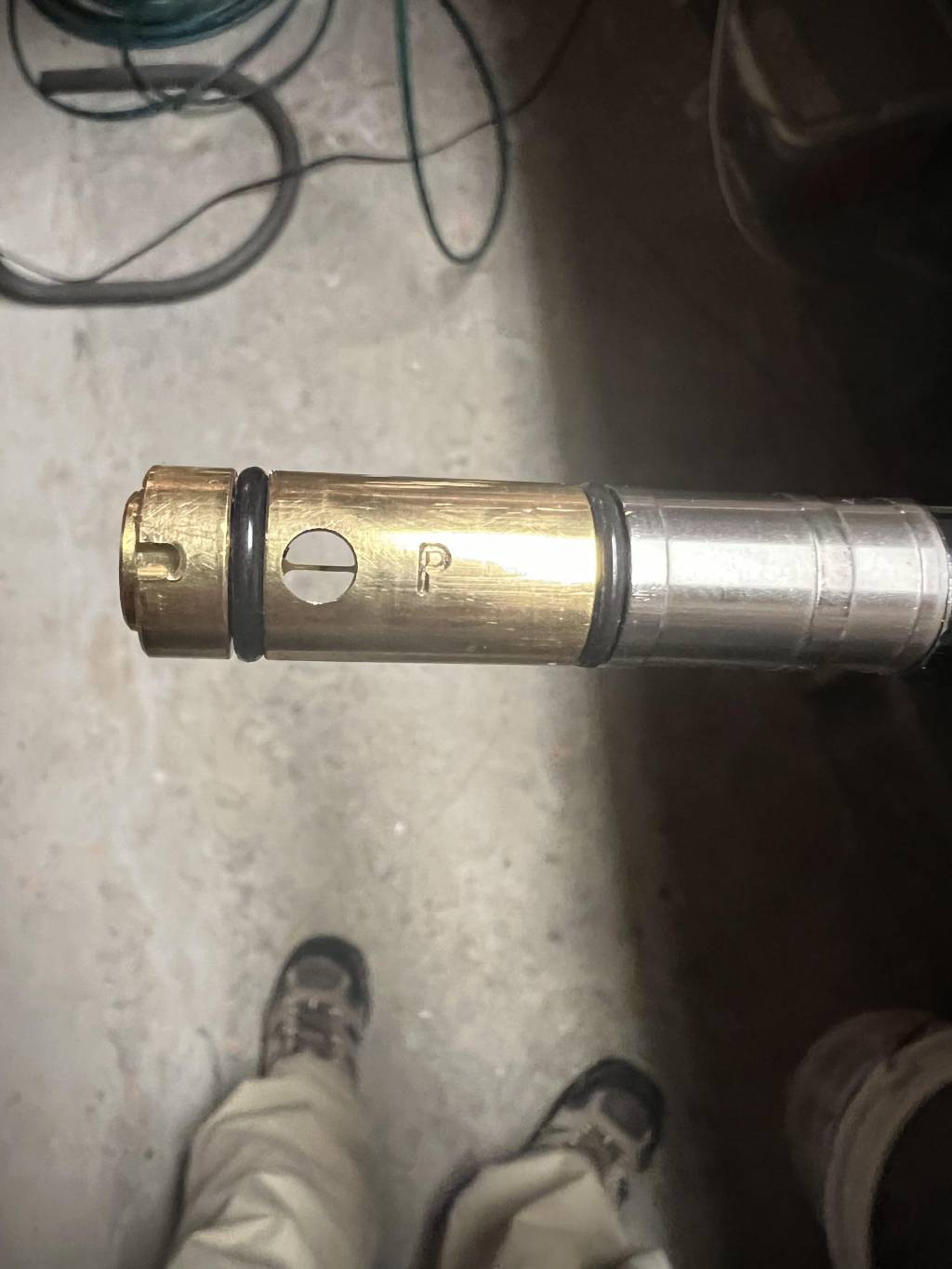

For reference this is what the .25cal barrel inlet assembly looks like with the dual hole/sided transfer port.
