FX Dreampup mystery screw help

[RobR]

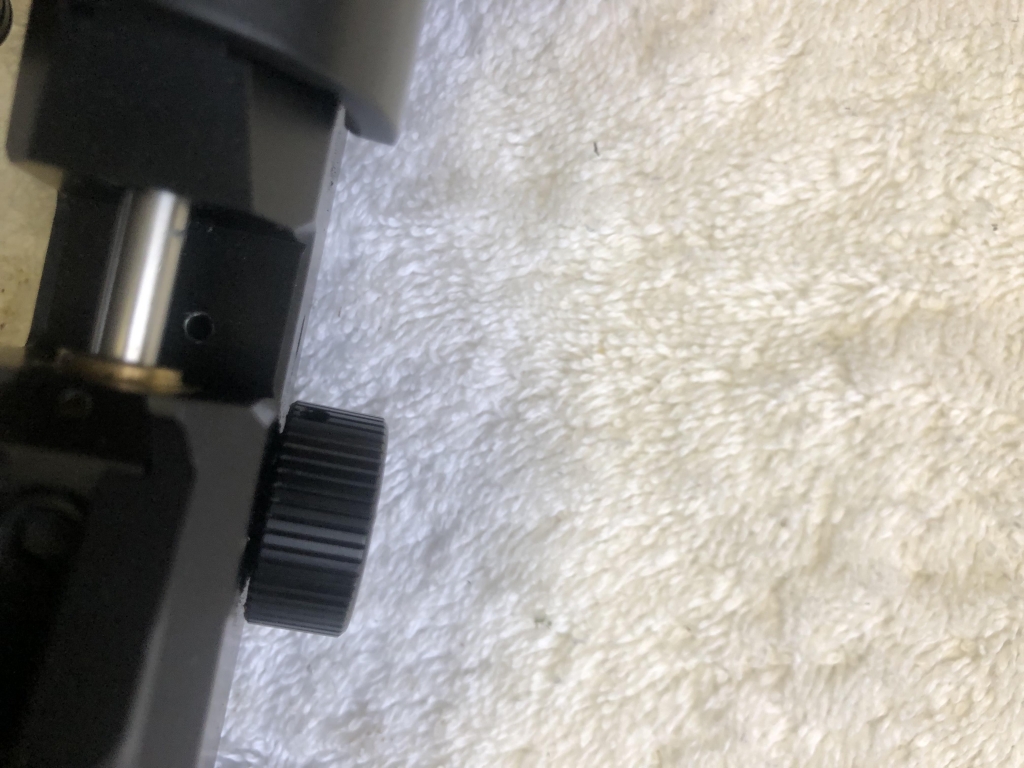

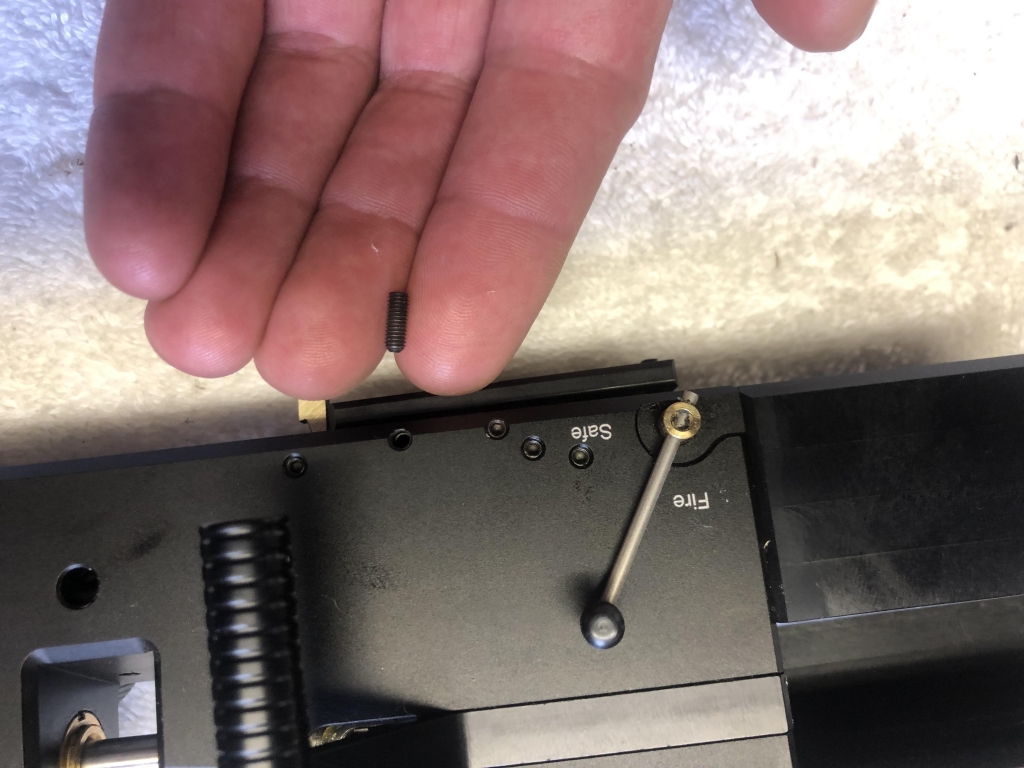

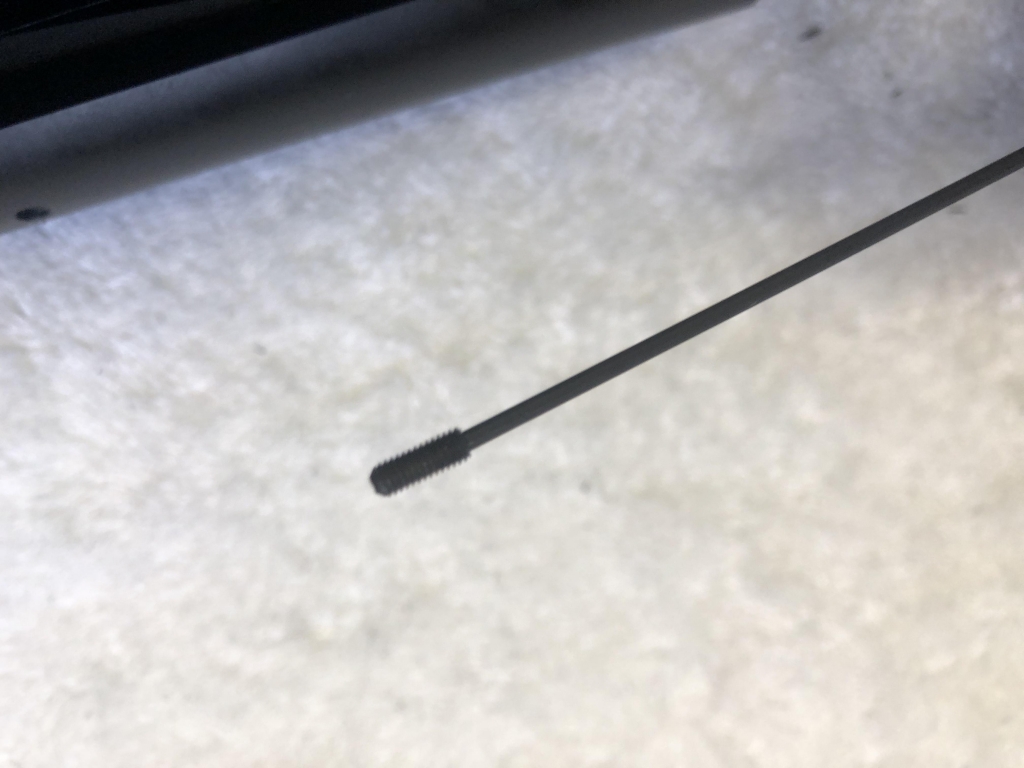

I removed the stock from my Dreampup and found a grub screw setting in the stock. I fired it once this morning and all was fine. There are only two places I can see that it can thread into and the second pic (under the magazine) is the only one that makes sense. The last pic is the correct thread size but in the online manual for the dreamline there doesn’t appear to be screw in that hole. Any help is greatly appreciated!



[Grim_Reaper]

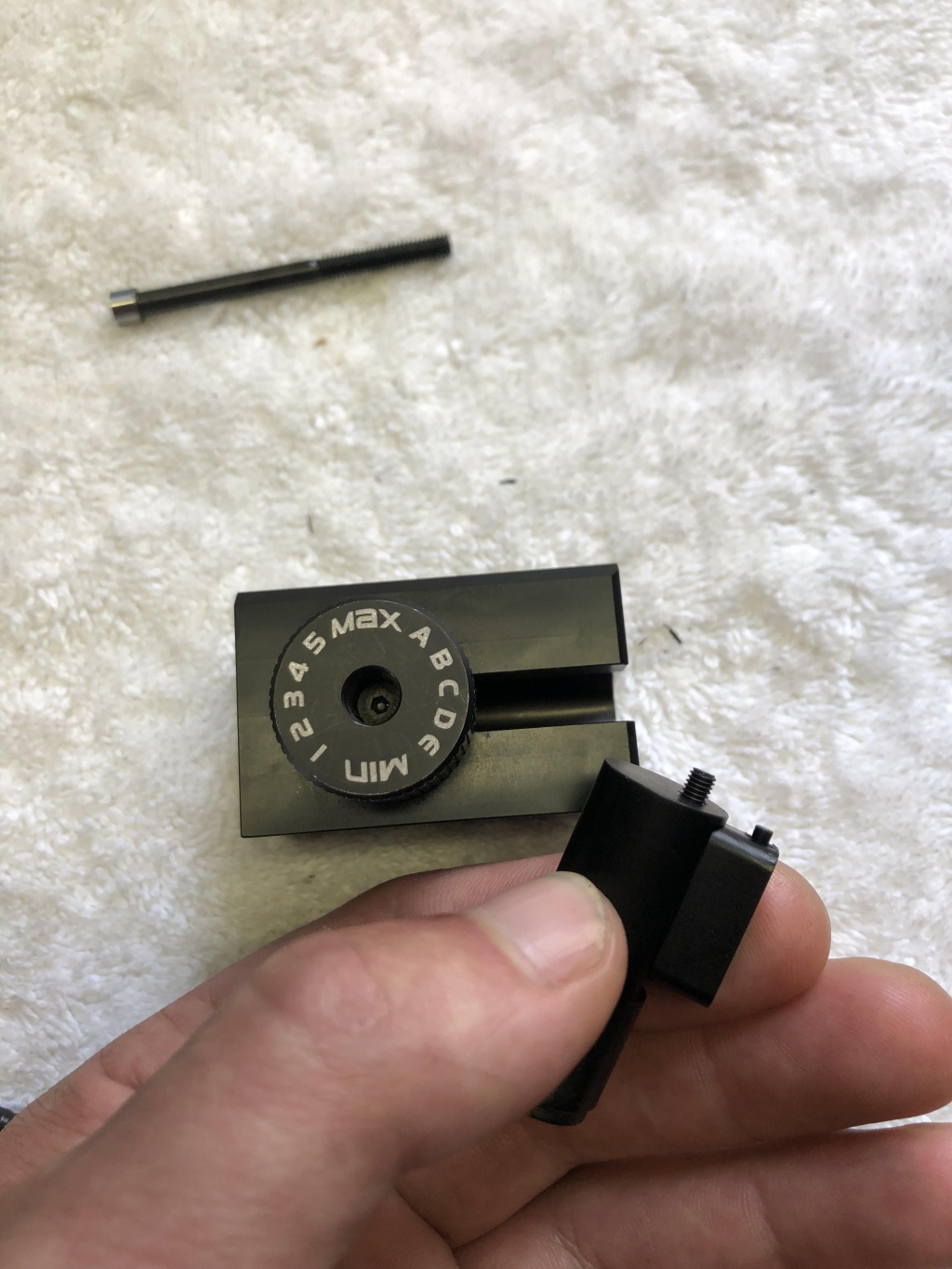

Any empty spots by the trigger adjustment plate? I checked mine and that hole under the mag is empty on mine too



[stoti]

Hopefully this will help you figure it out. I don't see any grub screws in the diagram that looks to be the length of yours, except in the trigger but you'd be able to clearly see if one of them had backed out. Good luck! Stoti

B7.1 maybe?



https://spares.bagnallandkirkwood.co.uk/wp-content/uploads/2019/07/Dreamline-Online.pdf



[Saltlake58]

same diagram as above, but directly from FX

https://fxairguns.com/wp-content/uploads/2019/08/F10057-base-eng.pdf

if it's not on that one, there are more diagrams in the library

https://fxairguns.com/support/





good luck



[RobR]

Back where it belongs with a dab of blue. Consider myself lucky to have not lost it. Thank you all for your responses!



[Bob_O]

Oh wow.....set screw for the slide bar!
