FWB 300S Match L?

[1BadDart]

In case it will help, here is a photo of the AHG 9758 sight mounted on an Anschutz having an 11.02mm wide dovetail. This is an 18mm diameter sight with a height from base to center of 22mm. The 22mm diameter sight would be a little taller. Gehmann and Centra advertise front sights to fit current FWB, but I don't know if they would fit your rifle or not. In any case if you can't find a stock sight to fit, I would think it possible to open up the dovetail on the 9758 to fit your rifle. I would remove the sight base from your rifle, and take it to a competent gunsmith along with the new sight and have him machine the sight to fit the base. This is bread and butter type work for a gunsmith, and should be able to be done for a reasonable price.

Thanks for the image and information. From the looks of the cut on the 9758 front sight I can modify it with a straight end mill in my small 30's era horizontal mill if needed. I'd like to stay with a 18mm sight as I have inserts already.



Justin



[Michigander]

What, you have a Haas? Joking. I haven't used a horizontal mill since around 1980. It was used for face milling of heads and such, slotting and keyways. Probably the same vintage as yours. Did a good job on the heavy work. Be sure to show us your new rifle once you get it all fixed up.



[1BadDart]

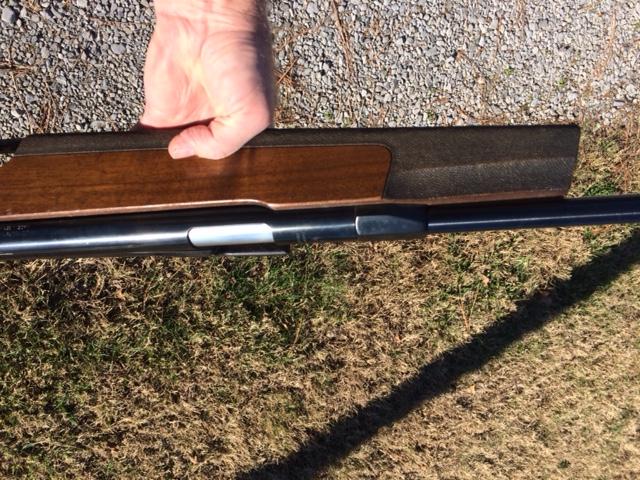

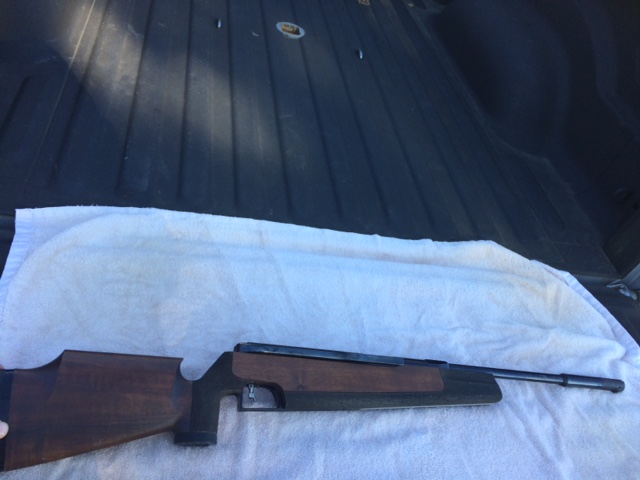

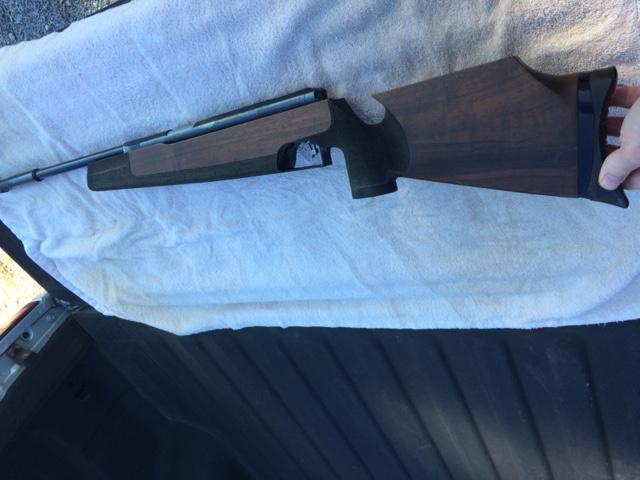

It's here! Not pristine but not bad either. It'll need to be taken apart cleaned and resealed, I have everything to rebuilt it, so no problems there.



The photo's aren't good, I'll try to get some more another day.



[1BadDart]

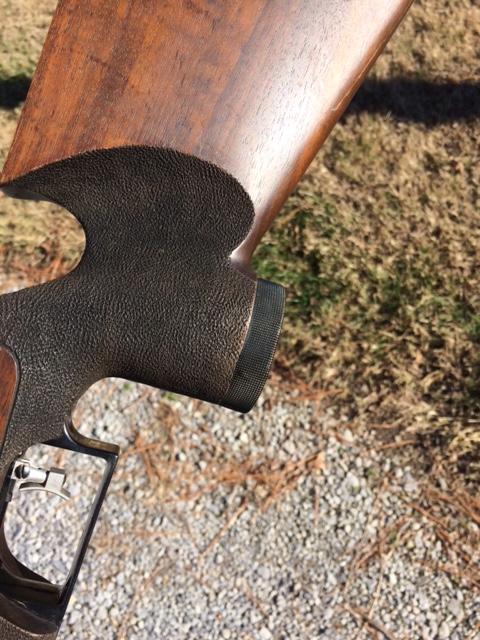

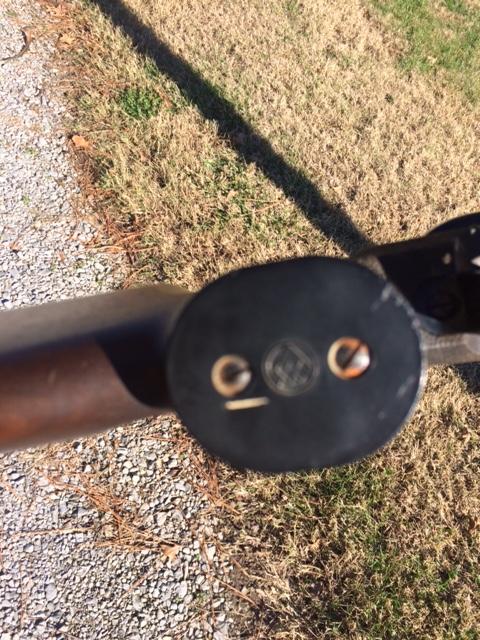

The grip cap is different from my other 300's.



[DualMagMike]

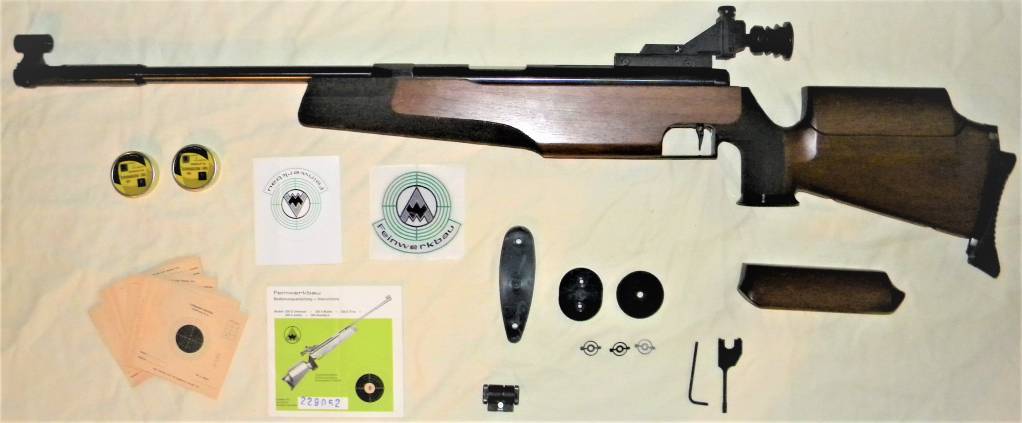

 2 different styles came with Universal v1.



[1BadDart]

Thanks. It makes me wonder if someone had this LH "L" stock and cannibalized a Universal to put in the stock.



[1BadDart]

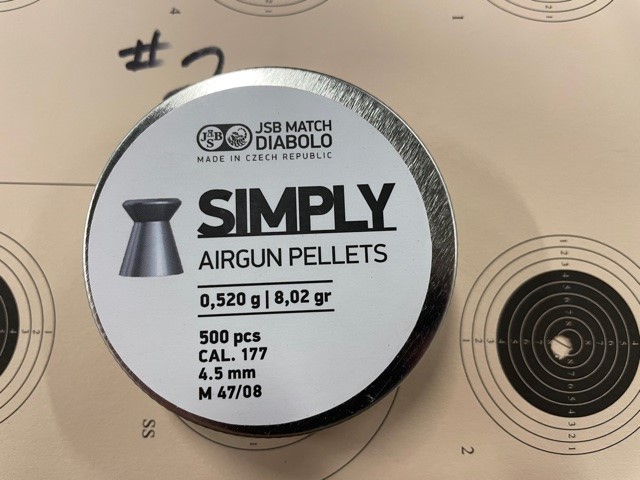

I found a front sight and springs, Neal Stepp had everything I needed. I installed the sights and springs this afternoon and after 12-15 shots I ran 10 shots over the chronograph. It averaged 576fps after the spring change, with the old springs it averaged 506fps with the same 8.02 grain pellets

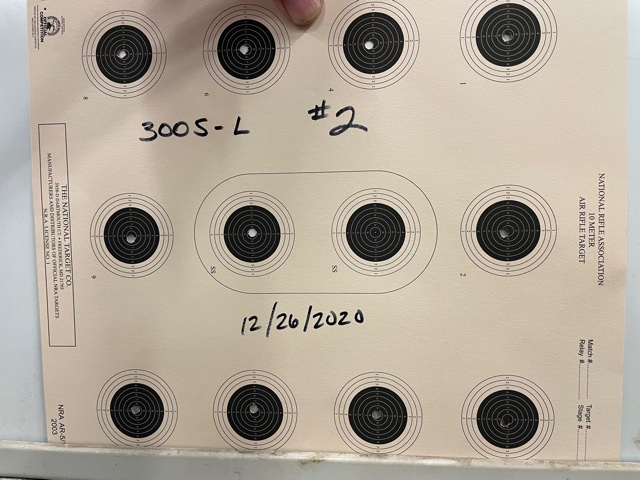

This afternoon I sat down and shot it at 10M, front rest and on my hand in the rear. At this point it has about 80 or so pellets through it. I think it's a keeper.





[Pneumatic-Addict]

I like it !
