Tuning first attempt in making a carbon liner housing for the dreamline

[Hubertus]

Hi,



it replaces the steel liner housing and the aluminium shroud but this first version is not a shroud:

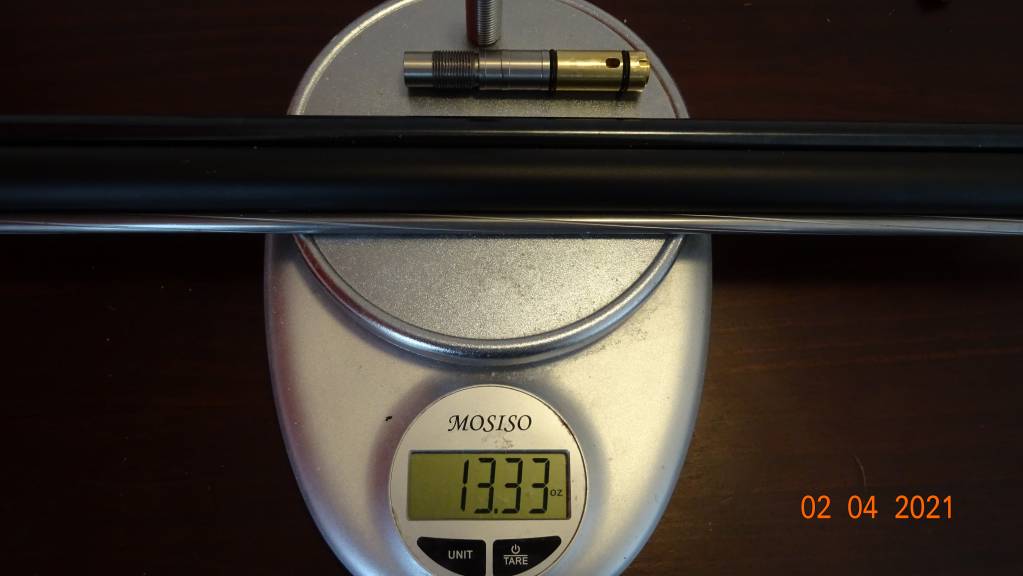

the factory steel barrel housing and aluminium shroud:

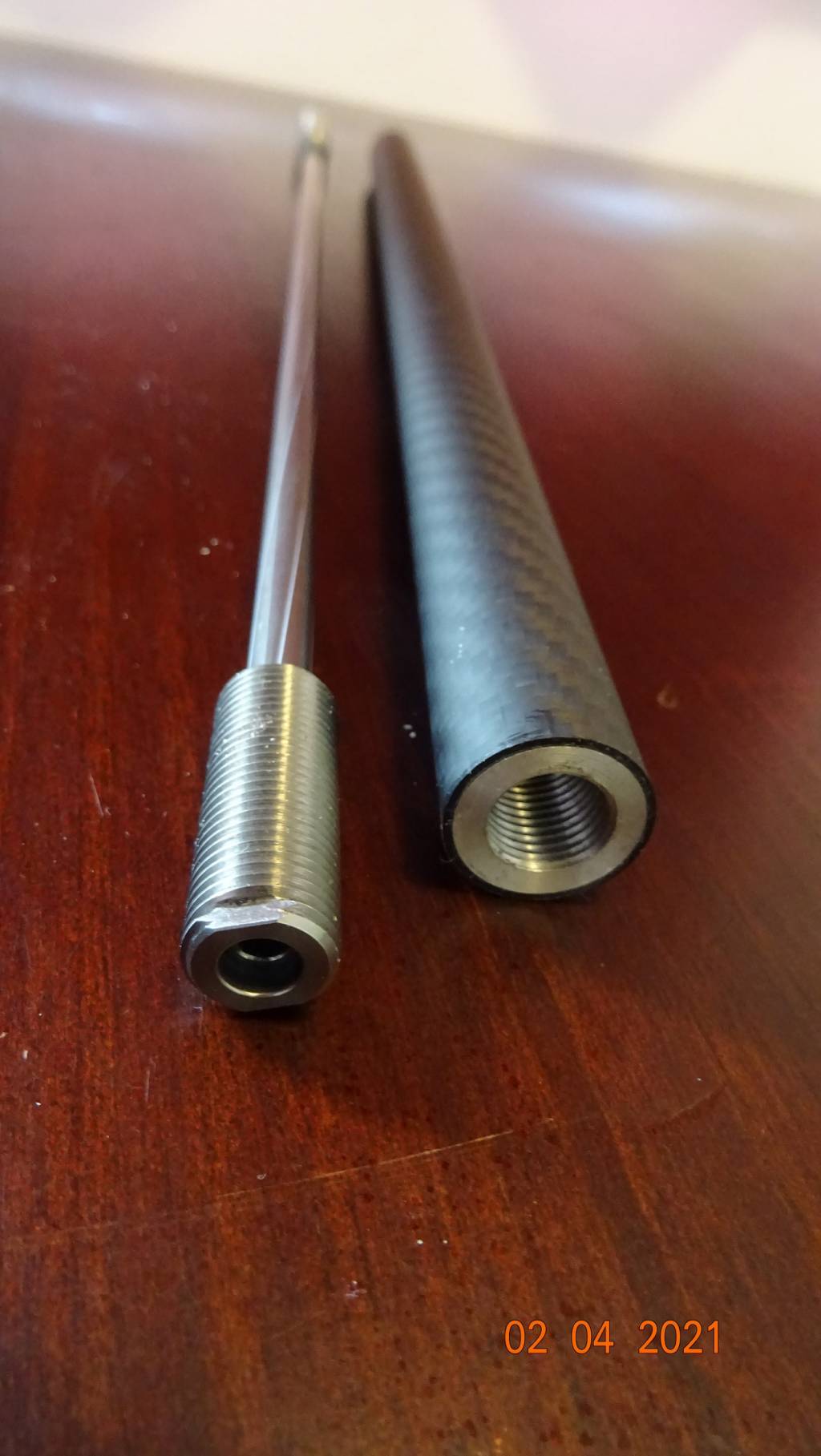

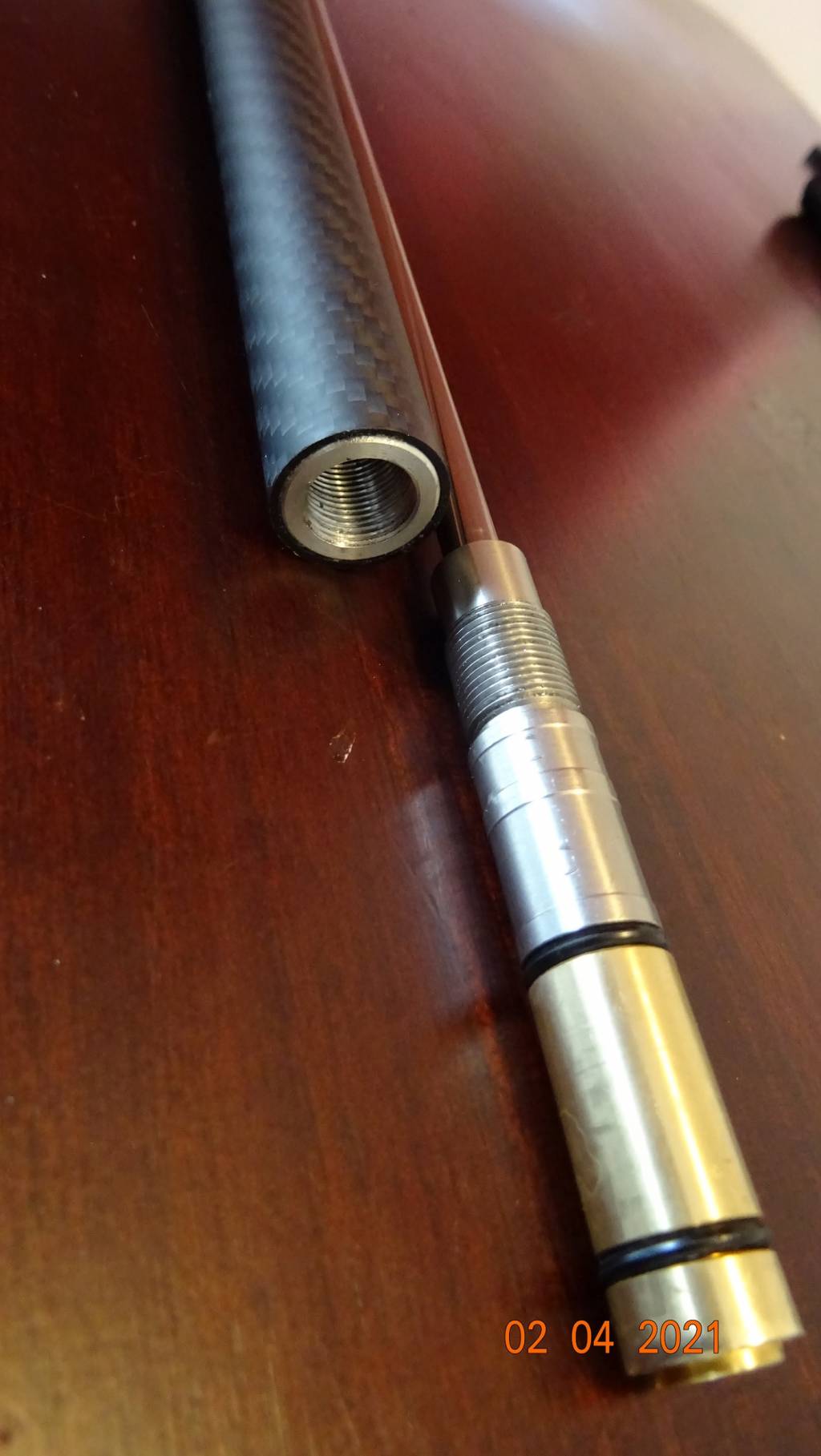

i made a sleeve / insert with 1/2" UNF threads glued it into the carbon barrel to use the original "barrel retaining nut".

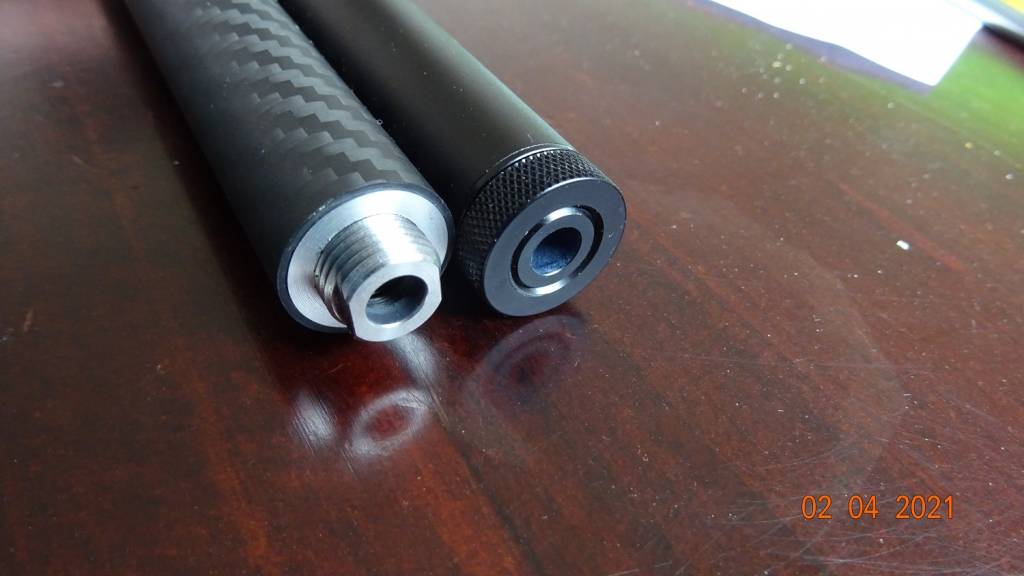

i also made a sleeve / insert mit M13x1 threats to match the factory parts

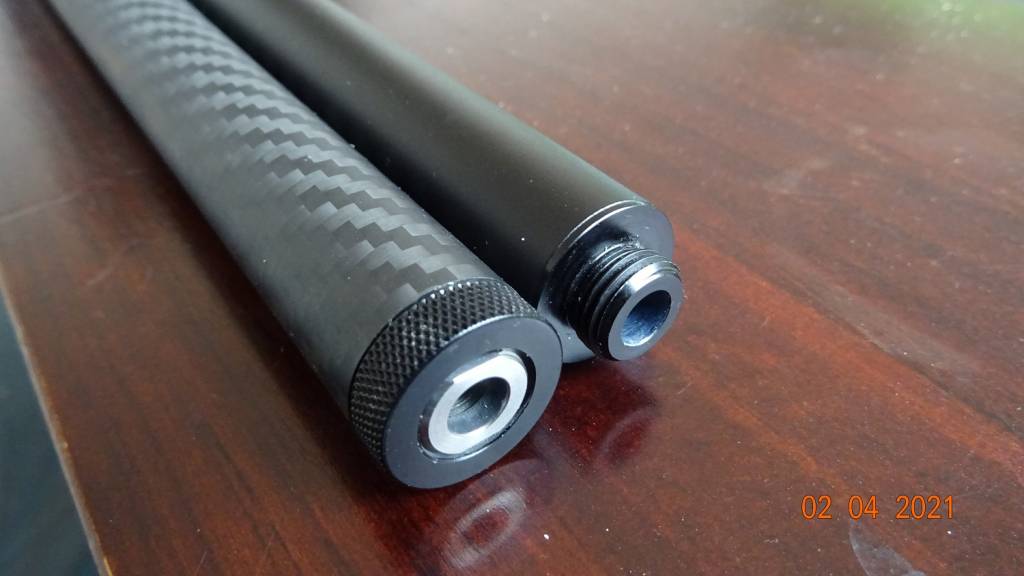

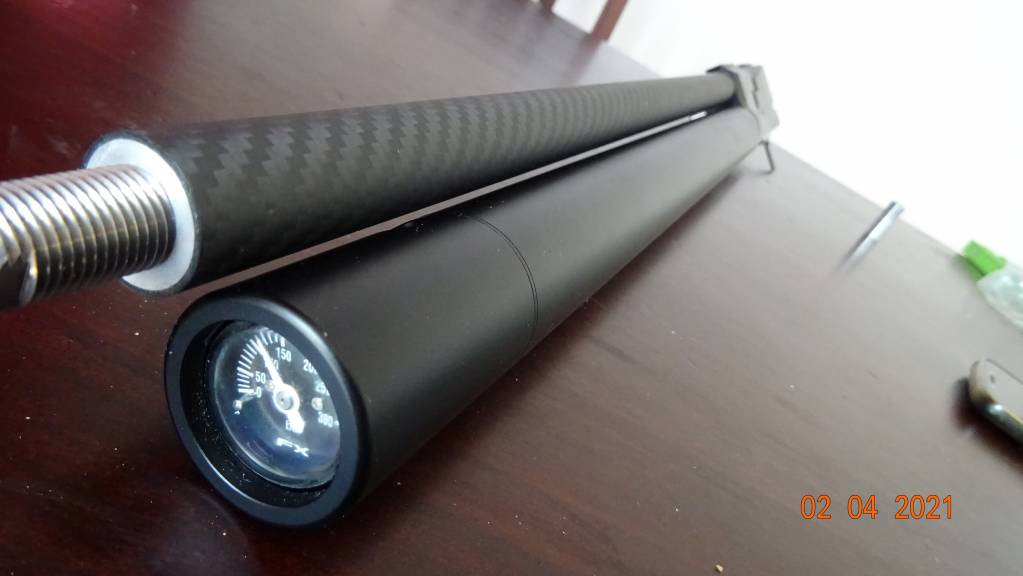

my carbon housing has the same outer diameter like the fx shroud 20mm

next step would be to make a version with some chambers for sound reduction



[jking]

Nice work. Will there be any liner support like the O-rings use to do between the liner and the ID of CF tube? Interesting...

jking



[OTmachine]

Impressive work! I just got my metric conversion gears for my lathe, (3D printed). Need to make a new mounting stud yet because the bushing bore is about .003” loose. I got some CF Tube that looks to be pretty straight and consistent measure. Keep up the good work.



[Hubertus]

Nice work. Will there be any liner support like the O-rings use to do between the liner and the ID of CF tube? Interesting...

jking

Yeah, i ordered some O-Rings. quite unusual sizes but i hope they will fit.

Liner 7mm OD, CF Housing 18mm ID

i also made an aluminium version for the 1/2" steel (heavy) barrel / liner clamping nut

its not yet finished because i have to make a tool for the lathe to cut the two o-ring groves inside the barrel nut. there are 2 o-rings placed inside.

if you ever got problems with accuracy i recommend to check these 2 o-rings. they are important for a correct centered liner!

some more pictures coming in a few days.

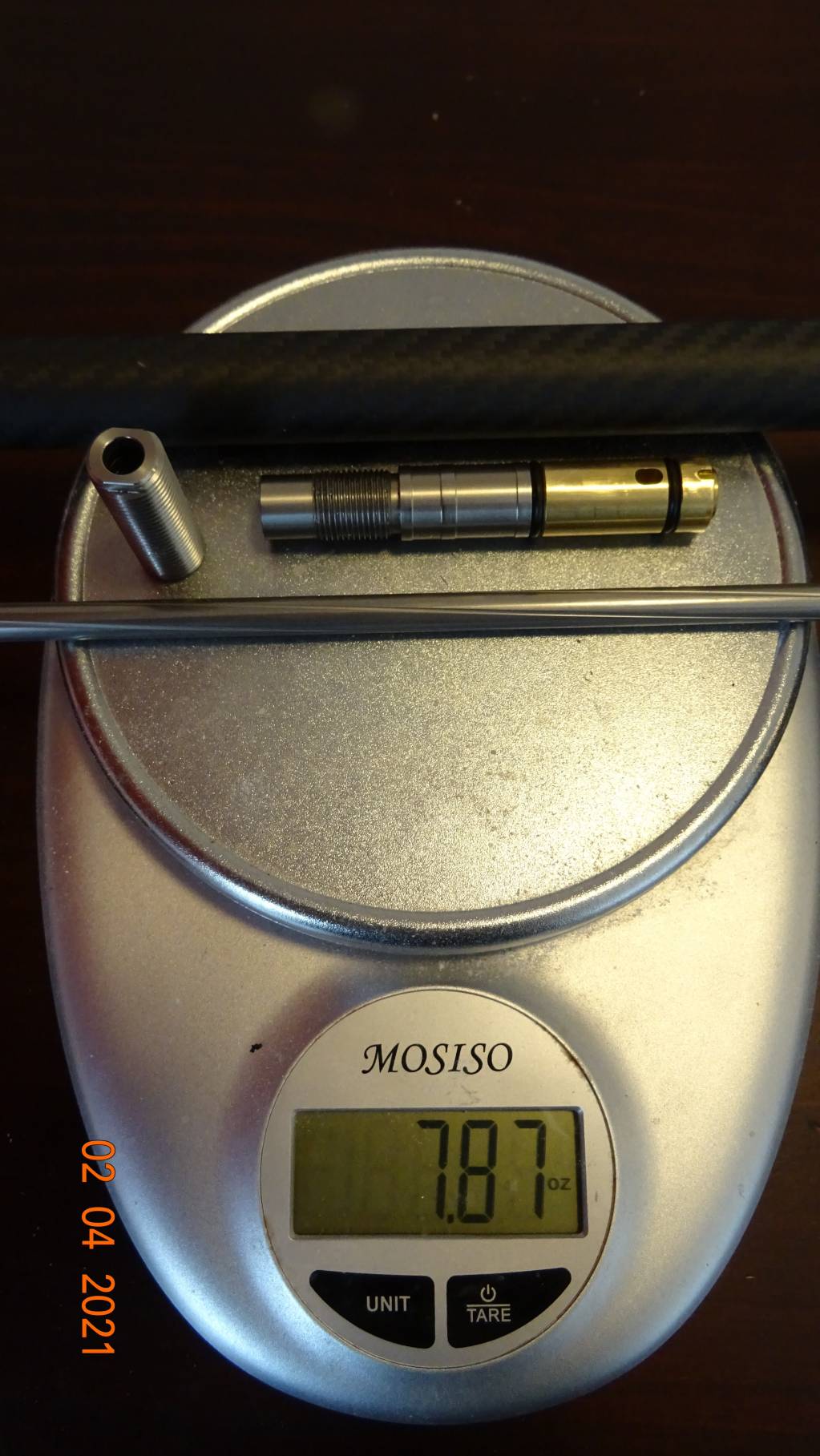

so far the weight reduction is very nice. the dreamline is allready a light weight rifle in my opionion and such a huge weight saving is really nice to have!



[Glem.Chally]

Clever idea and execution!



[caesar]

that is very cool. as i’m scrolling through the photos my questions were being answered. well done



[Hubertus]

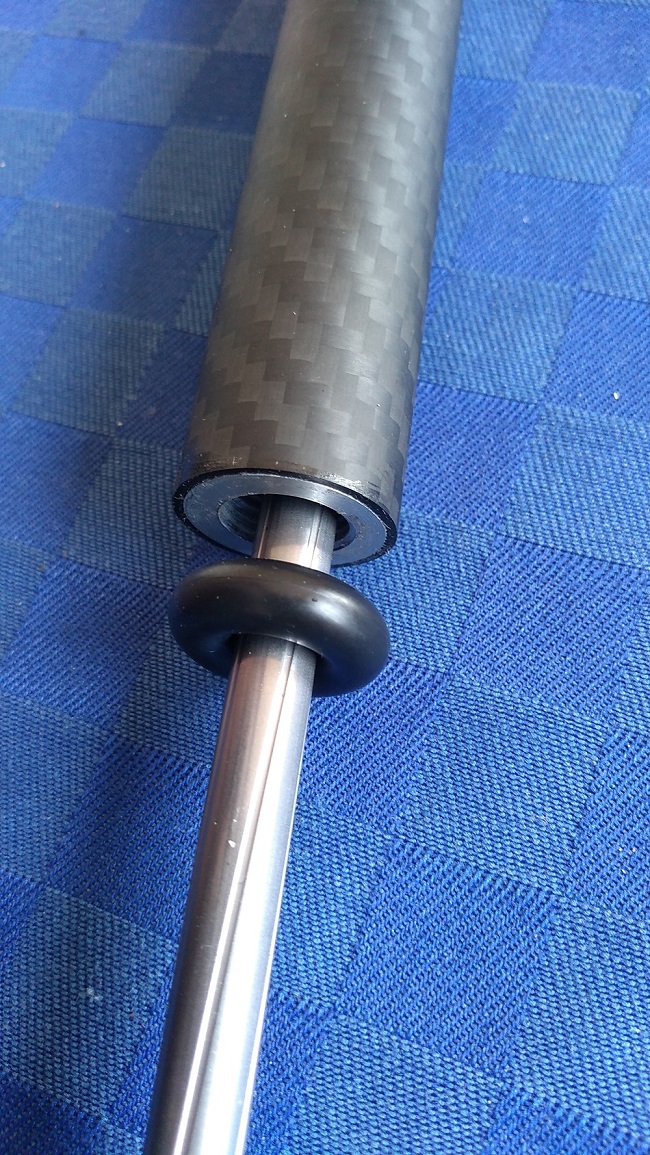

O-Rings arrived. they would fit perfect but i cant get them in. forget about how big they are

for now i have to use my liner housing without o-rings until i find a solution to fit them in.

when different length .177 will be availbe, i will be very happy to try them out without buying the expensive FX liner housings / shrouds.



[KatoKevin454]

O-Rings arrived. they would fit perfect but i cant get them in. forget about how big they are

for now i have to use my liner housing without o-rings until i find a solution to fit them in.

when different length .177 will be availbe, i will be very happy to try them out without buying the expensive FX liner housings / shrouds.

DOH, I hate when that happens
