Aloha fellow airgunners,

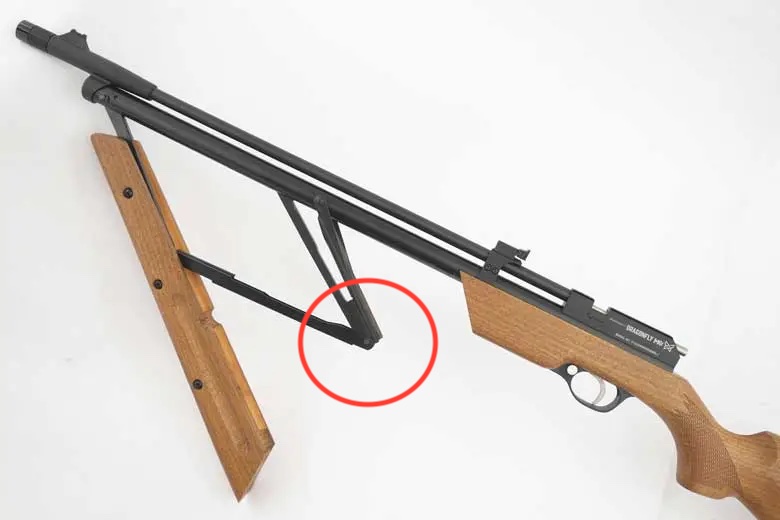

I've owned a Seneca Dragonfly Mk2 for a year a half. The connecting/hinge pin broke recently. The tech at Air Venturi told me it was cheaper to buy a brand new rifle instead of paying for the shipping from Hawaii to Ohio and back for them to repair it. He was nice enough to procure and send me replacement parts though. I want to install the parts myself before spending more money on a gunsmith (no airgun repair shops our here in Oahu). I have a parts schematic provided by pyramydair, but I am uncertain how the four washers are installed.
Can a fellow Dragonfly Mk2 owner please post some detailed photos of how the connecting pin, washers (4), and circlip are installed on their rifle?
I made the same request to Air Venturi, but they only sent me the same parts schematic that is found on the pyramydair website. THANK YOU!
