Tuning Daystate Programmer Wiring

[gh6airgunner]

I have lost the little pigtail that goes from the end of the programmer wire to PCB in my Red Wolf. I was hoping someone out there would know the connectors and pin outs so I could construct a new one. I know the wire is a 4 pin connector and the PCB is a 5 pin connector. Outside of that I don't have a clue.

Any help would be very much appreciated.

Glenn



[Odoyle]

Call AOA you may get a replacement from Santa.



[TMH]

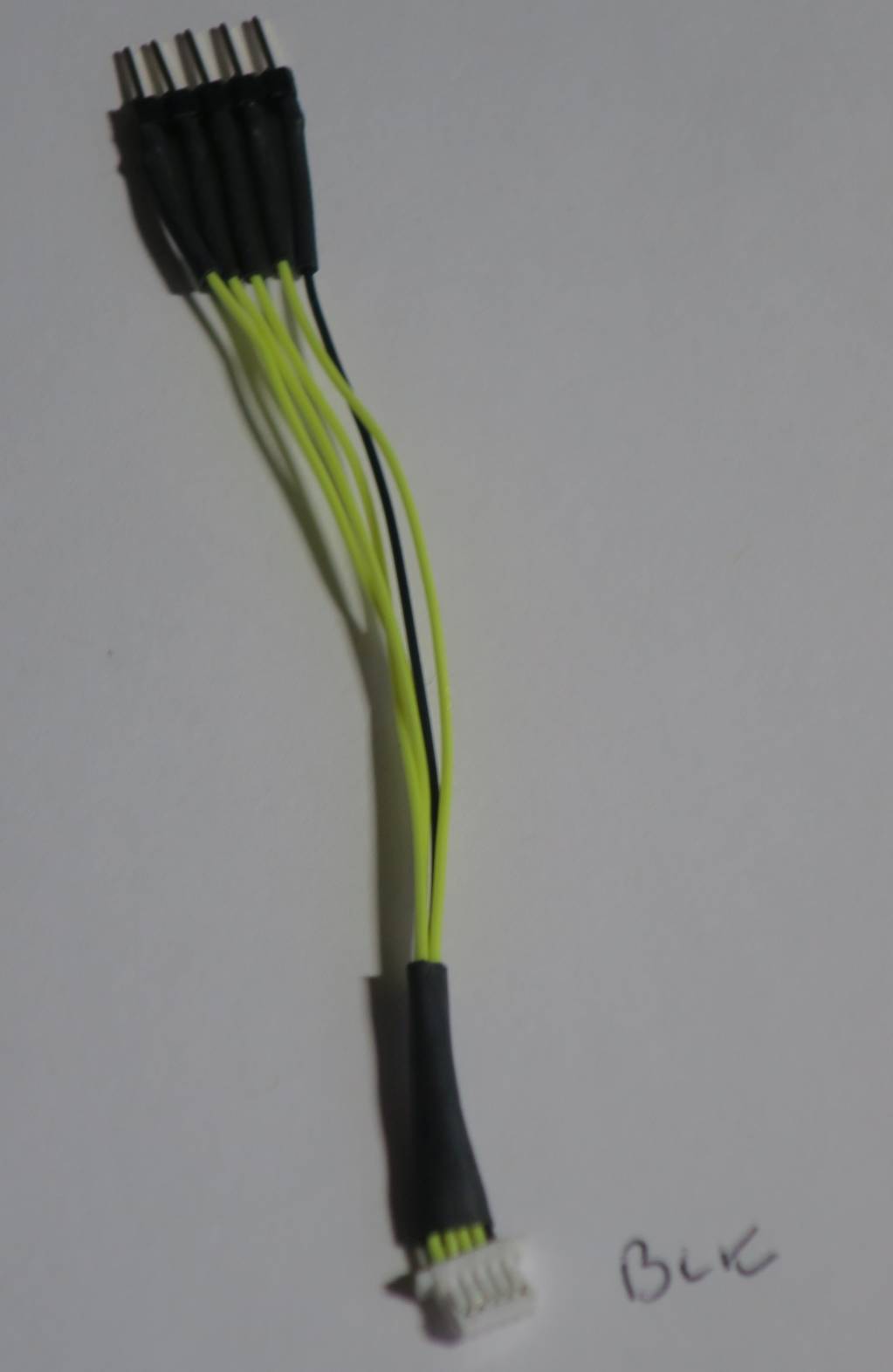

Well, I thought someone else may have done this in the past, but I guess not. So here is how my cables pin out.

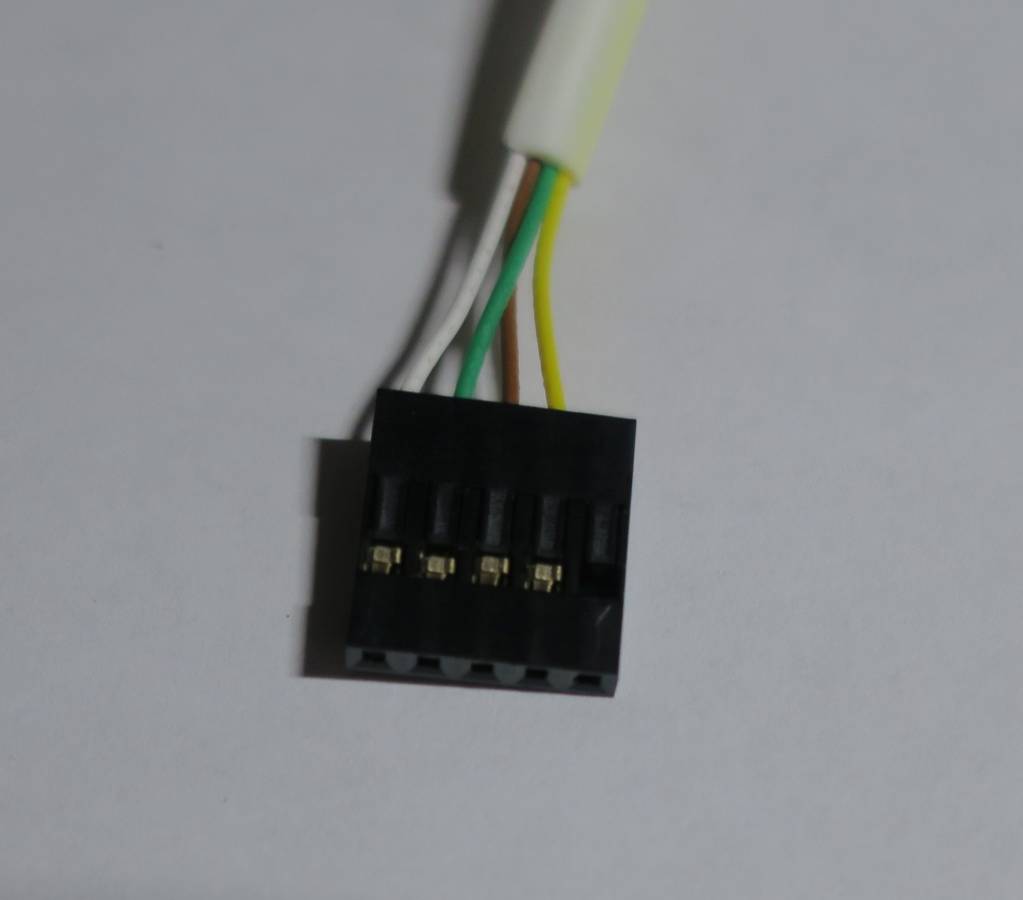

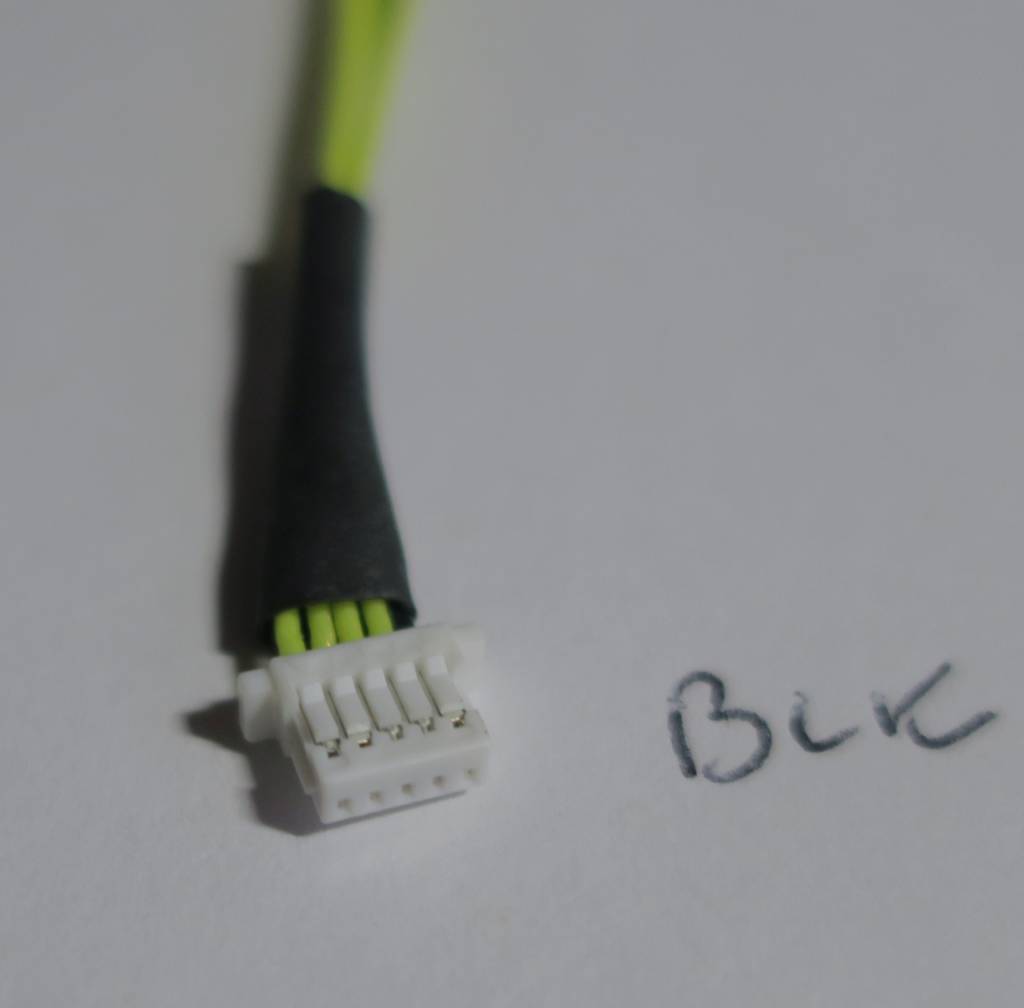

The little yellow jumper just goes straight across. If the little plastic tabs on the small connector are facing 'up', the black wire is on the far right.

So if #5 is black, #1 male yellow = #1 female yellow, #2 male yellow = #2 female yellow... #5 male black = #5 female black. Nothing fancy.

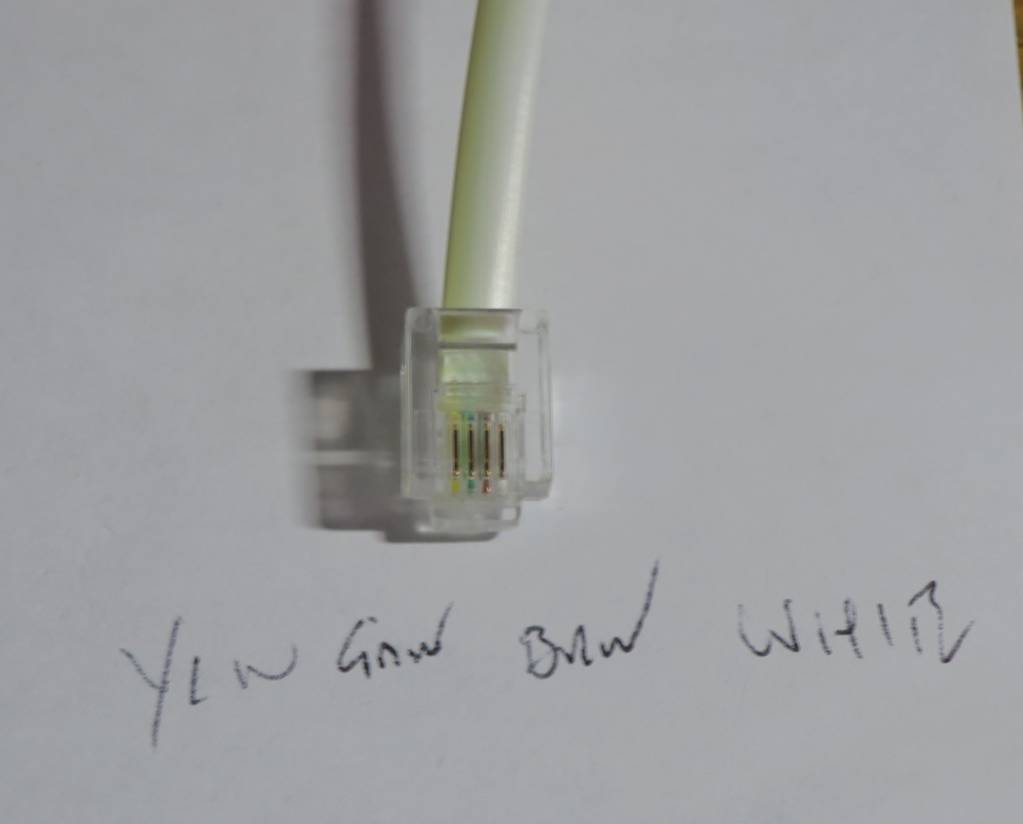

I think that telephone cables are pretty standard in their wire color configuration. So the standard 'clip in' end of the phone cable should be as it comes from the store, and here is the end you will have to make.

You can actually see the wire colors through the standard phone cable end.

Hope this helps.



[gh6airgunner]

Many Thanks............. I will get to work on it.
