Daystate LC-110, 12 hours, Coalescing/Condensate Tower Picture

Jump to latest Follow Reply
G

Guest

Guest
Hi all, not sure there is any significance, but I at least wanted to share. This is how my condensate/coalescing tower looks after 12 hours of use. My use is 2 minutes of run time, 5 minutes or less of top-off of a 90cu-in tank, 2 minutes cool down. The following day the compressor is run for 2 minutes to blow out any collected moisture. Oil was changed at 5 hours and will be changed again at 15 hours. I have/will only use Coltri CE-750. What looks like "particles" is actually bubbles both large and small because the compressor was ran before this image was taken.

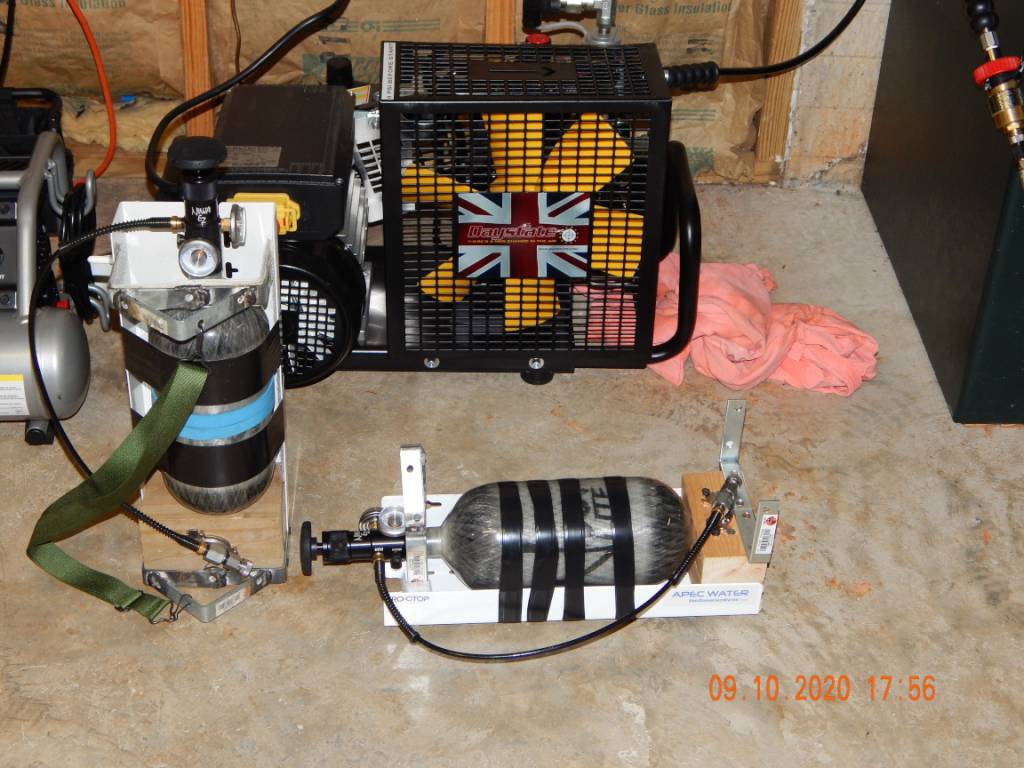

The setup, in my conditioned basement, on the unfinished side -- I gave my father one of the Ninja 90 cu-in tanks (the one laying flat):



I top off from ~3,000 PSI to 4,500 PSI on my Ninja 90 cu-in tank. It takes about 5 minutes or less depending on tank/ambient temperature. I don't use a run meter I just use a hash mark on my 66 & 110 punch block cabinet that I use like a dry-erase board with a dry-erase marker to indicate 10 minutes. I figure ~2 minutes run time, ~5 minutes top-off, ~2 minutes run-time adds up to a "fuzzy" run time of ~10 minutes which means I'll end up replacing the oil probably an hour sooner than I would if I were accurately tracking true runtime.

Upvote 0
90 cu-in from 3000 - 3500 PSI is usually 5 to 7 minutes, depending. I'm not trying to trick anyone or anything, it's why I just do my ~10 minute approx hash mark. Good enough for me and the ~2 minutes warm up (approx), ~5-7 minutes (approx) fill, and ~2 minutes cool down.

I don't really shoot tethered so when I can no longer fill to above 200 bar it's time to fill the tank. Sometimes I'll top-off at 3500 PSI.

Every time I have timed it is 5 to 7 minutes to top off. *shrugs*

My bottle is 90 cubic inches, not 90 cubic feet in case it was misread.

Upvote 0
How do you top off a tank in 5 minutes?
As to your picture. It appears to be dark which might be oil residue. It also looks like there are pits or chips which I would have no clue as to how that would occur. What are your thoughts.
Click to expand...

Honey-looking stuff is the CE-750, so the tower is doing it's job as an oil and water separator.

"Pits/chips" are an optical illusion from the camera, it's actually bubbles both large and small, that formed and did not yet pop in the oil and water sheen. I had ran the compressor before taking the top off and taking a picture. It's super smooth in there and I can see my reflection on the sides and bottom. No actual surface damage anywhere. I used a flash on the camera and it's illuminating the bubbles at different angles making it look like there are gouges but it's 100% smooth.

If you look closely you'll see the bottom is actually being reflected off the sides of the cylinder like a mirror.

Upvote 0
Ok. Some how I got the idea you were filling from 3000 to 4500 psi. Not to 3500. That makes sense.
I think if you use your compressor as you have out lined you should be fine. I ran mine to 4000 I think it’s the last 500 psi that kills those compressors. I’m not even certain I’ll run my Alkin to 4500. No need to just fill a little more often

Upvote 0
LMNOP, your coalescing tower looks to be in excellent condition. If you wipe it out with a paper towel it will look like new. The few oil and droplets at the bottom mean it's doing it's job. Your 5 minute run time is correct for a 90 cubic inch tank. My Daystate LC-110 took about 25 minutes to top off my 6.8 liter tank from 3 to 4.5K psi. Someone might be thinking your 90 cubic inch tank is a 9 liter tank? A 9 liter tank is 550 cubic inches inside volume. My 6.8 liter tank is 415 cubic inches, which is why it takes 25 minutes to top off with the LC-110.

Upvote 0
