Do i have to remove the top body cover to merely the barrel support bands to finally free the fill probe or valve and then check IT for any o ring damage etc.my pcp is leaking from the fill probe only
Upvote 0
I take it you're referring to the front valve fill assembly with the male "Foster" style fill port. I never had a leak there before but recall some info from pass research. Here's a couple videos which should be helpful. If it's not the 2 o-rings around the front valve body assembly that need to be replaced, check the piston o-ring. Also check Airguns of Arizona (AOA) if they still have the Huntsman o-ring kits for sale and if they will ship to India.Hi ,my daystate huntsman classic 177 cal FAC has a fill probe leak.where to get the o ring kit for this fill probe from..pl help.i will have to import to India.

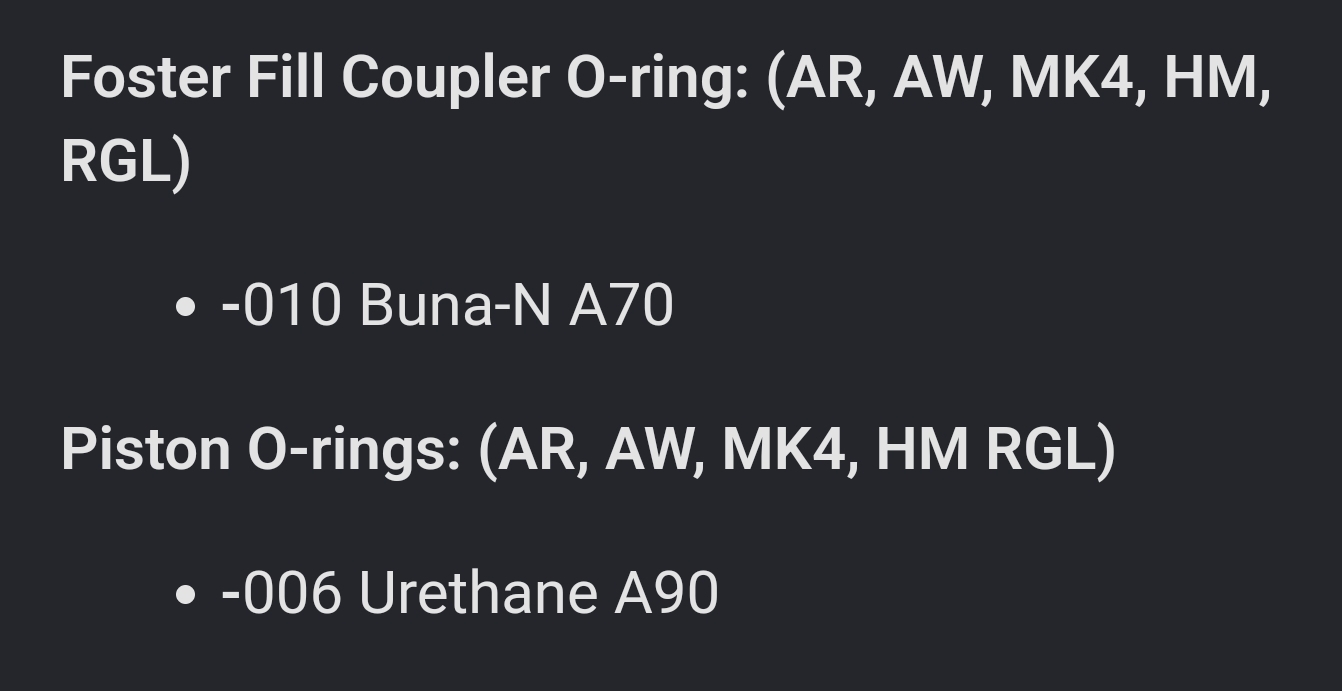

There might be 3 sizes of o-rings which might be damaged. I would just get all three or better yet, just get the repair kit because they have the dowty seals.1.Foster Fill Coupler O-ring: (AR, AW, MK4, HM, RGL)
- -010 Buna-N A70
2. FAC Valve Stem O-rings: (AR, AW, MK4, HM, RGL)
- -007 Buna-N A70
Are any of these two o rings refereed above the ones inside that fill port male probe?any idea?MH would mean Huntsman..am i right?
You're welcome. Hope you get yours up and running. I wish that I picked up a Huntsman Classic back when they were available. Especially the sub 12 FPE version.thanks a lot

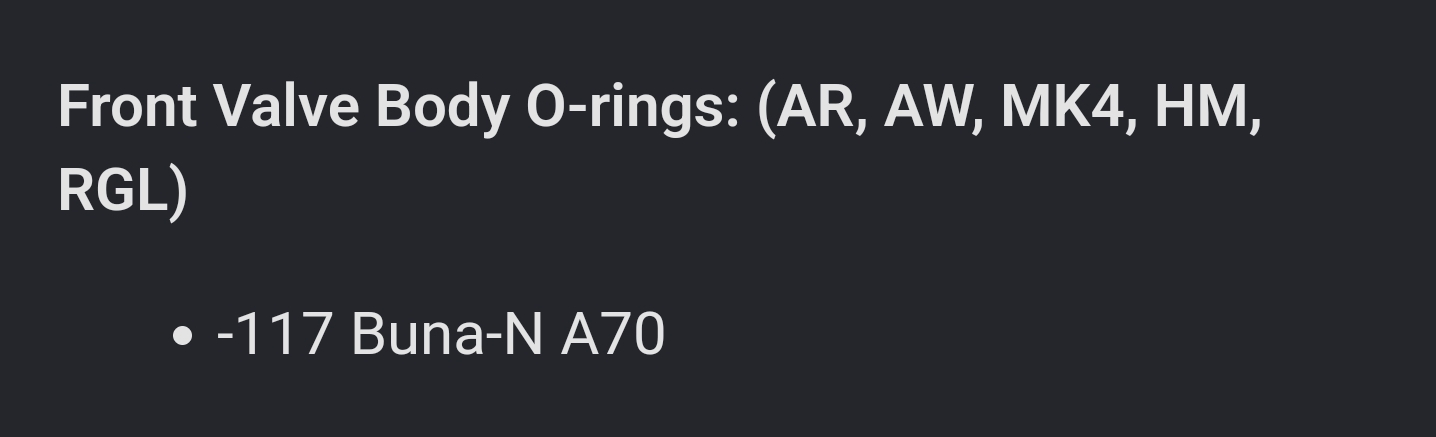

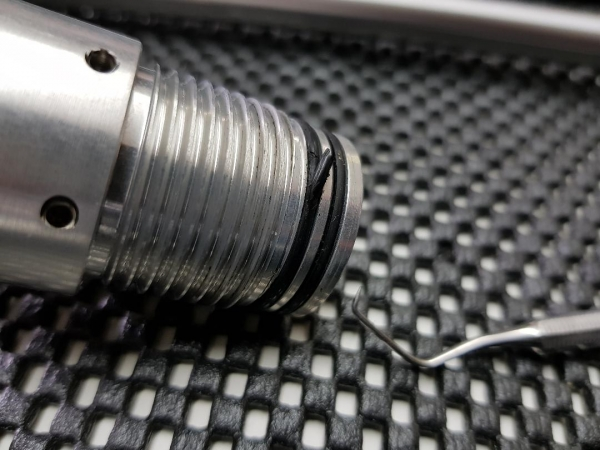

I can only assume those are the correct sizes going off the old o-ring list I posted. O-rings are cheap. It doesn't hurt to pick up a few. Did you try getting a hold of AoA for an o-ring repair kit? You could also try another Daystate dealer in your area.Valve Housing Group Assembly ..the 2 orings shown in this photo(1 of which was bad)..are these size 117?anyone who can confirm
View attachment 322783

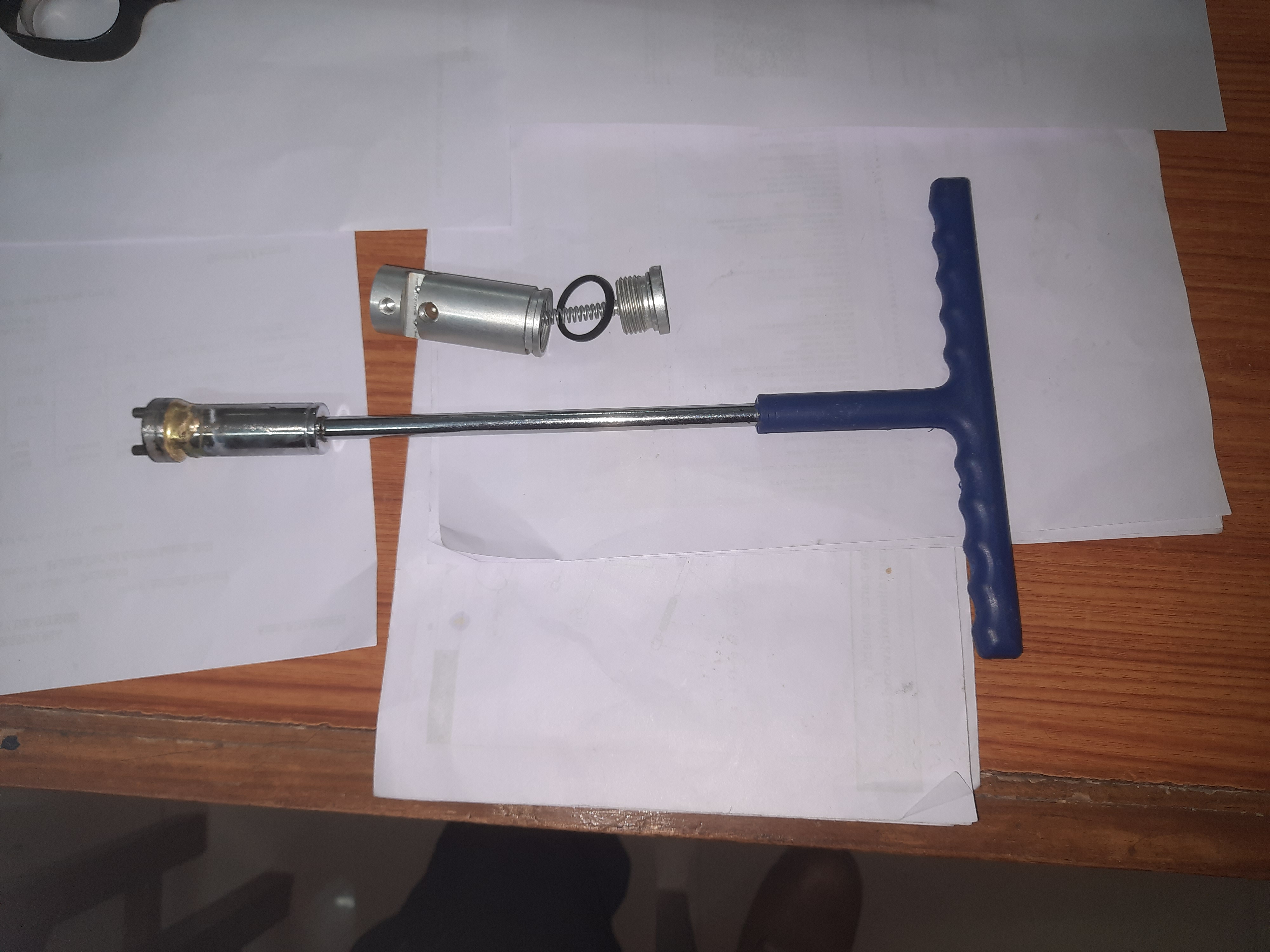

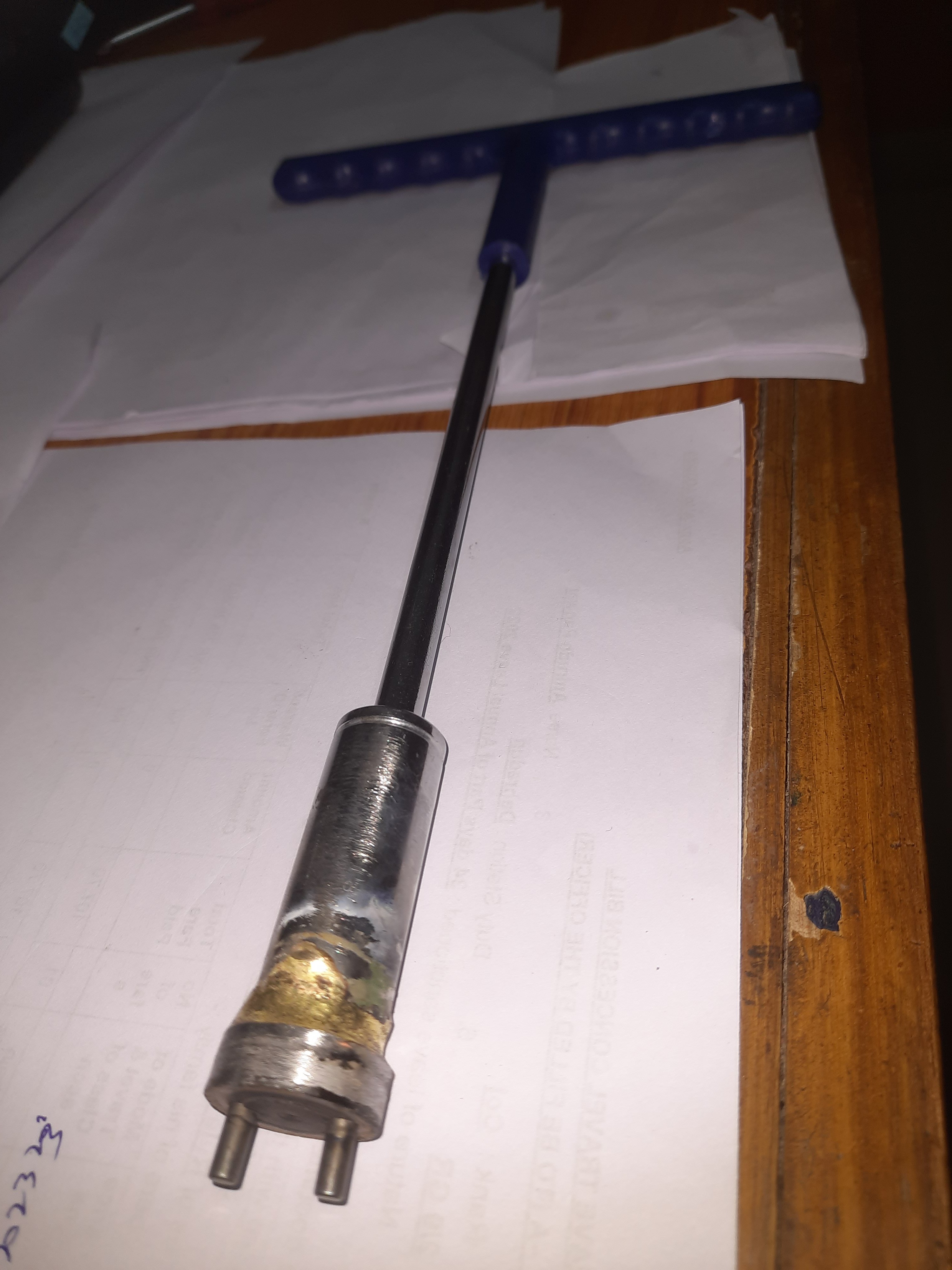

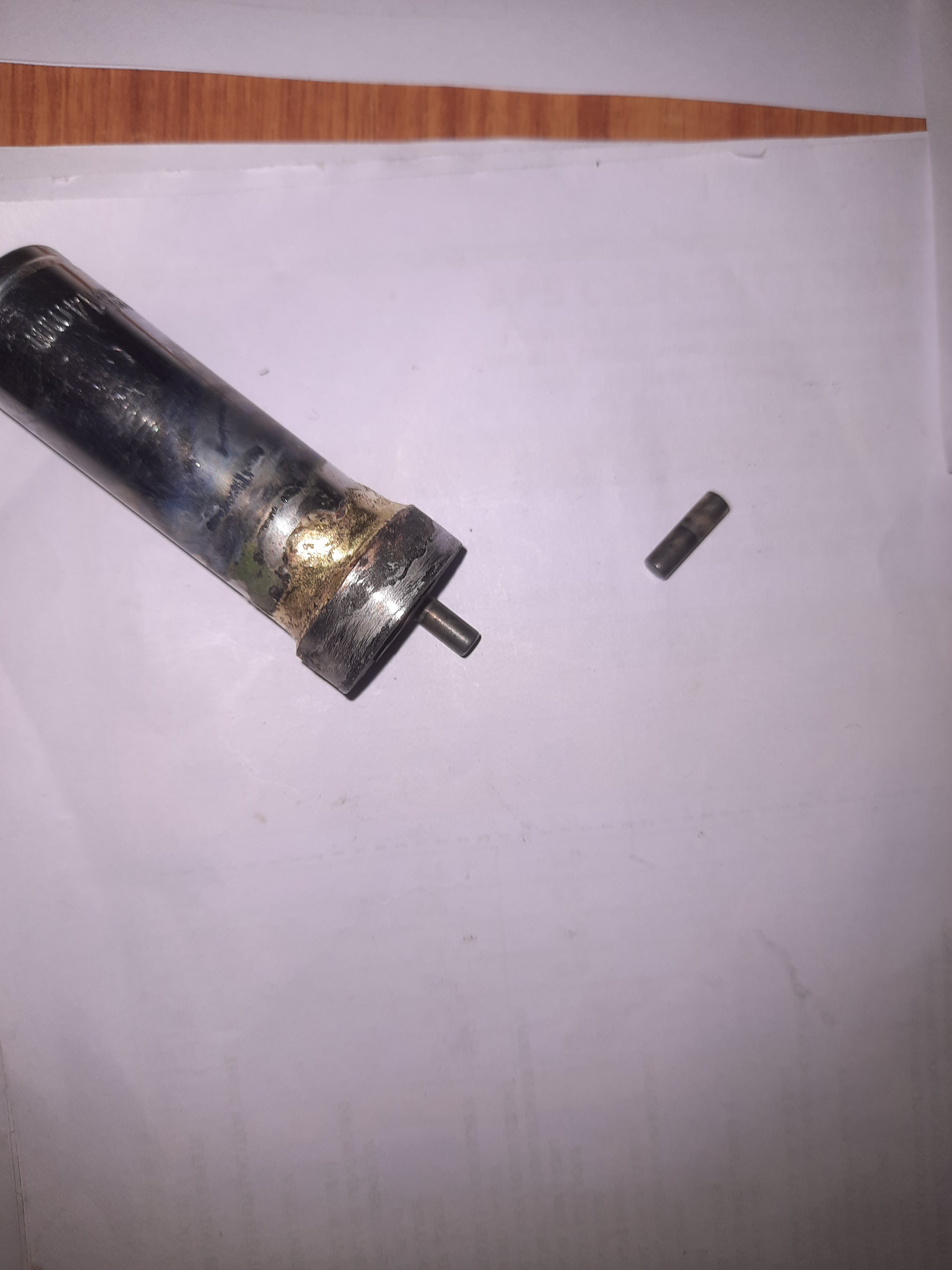

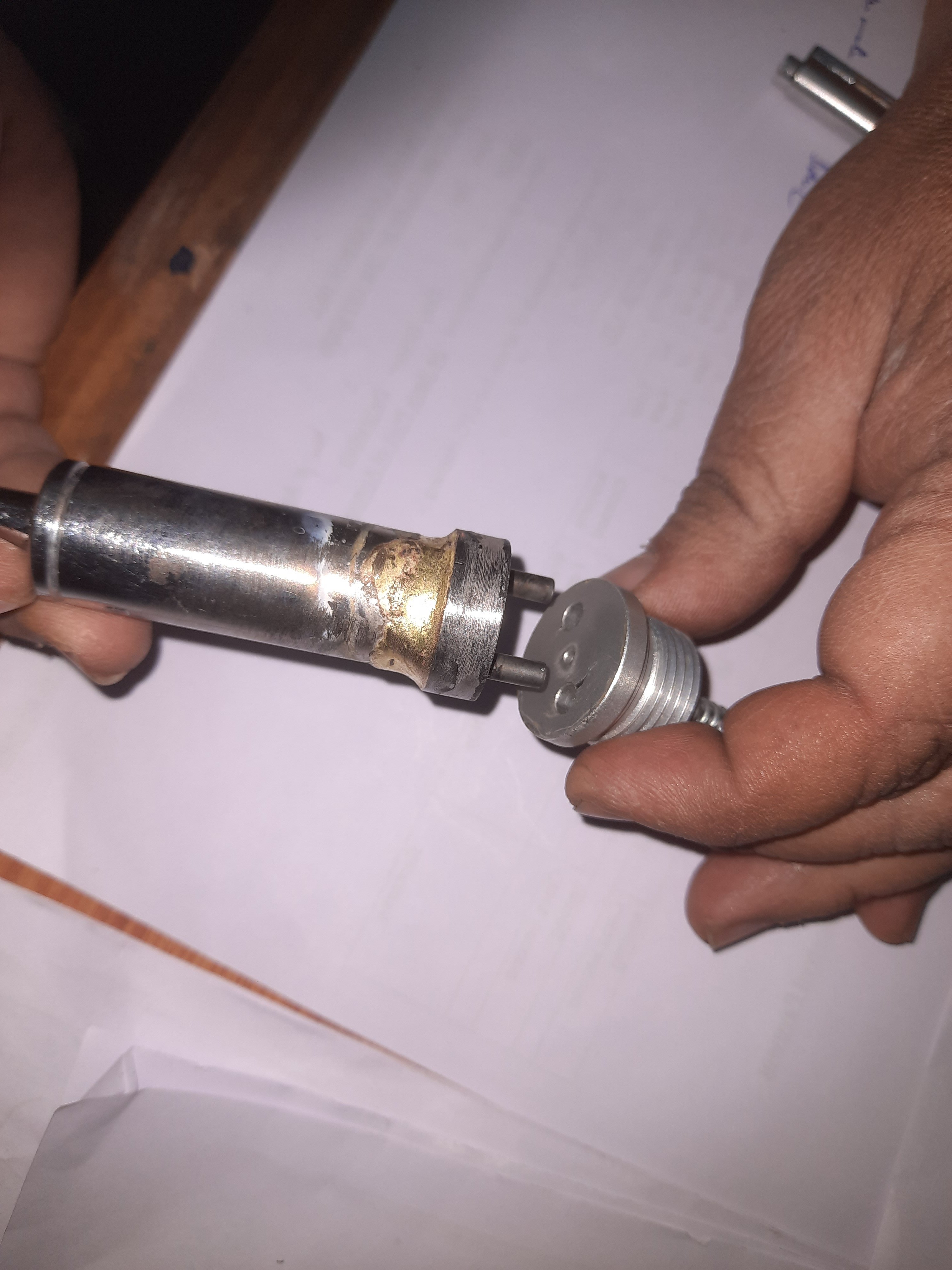

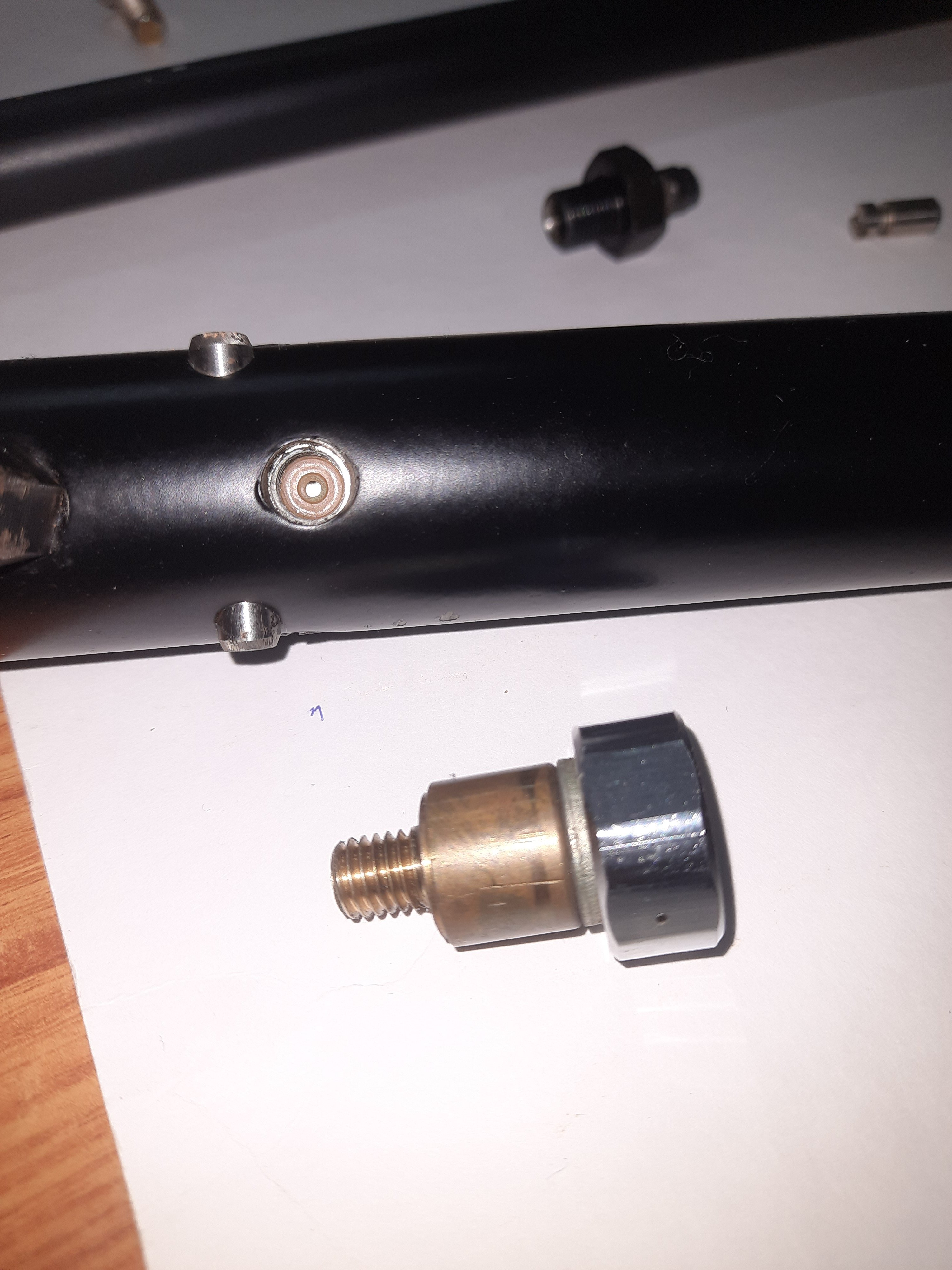

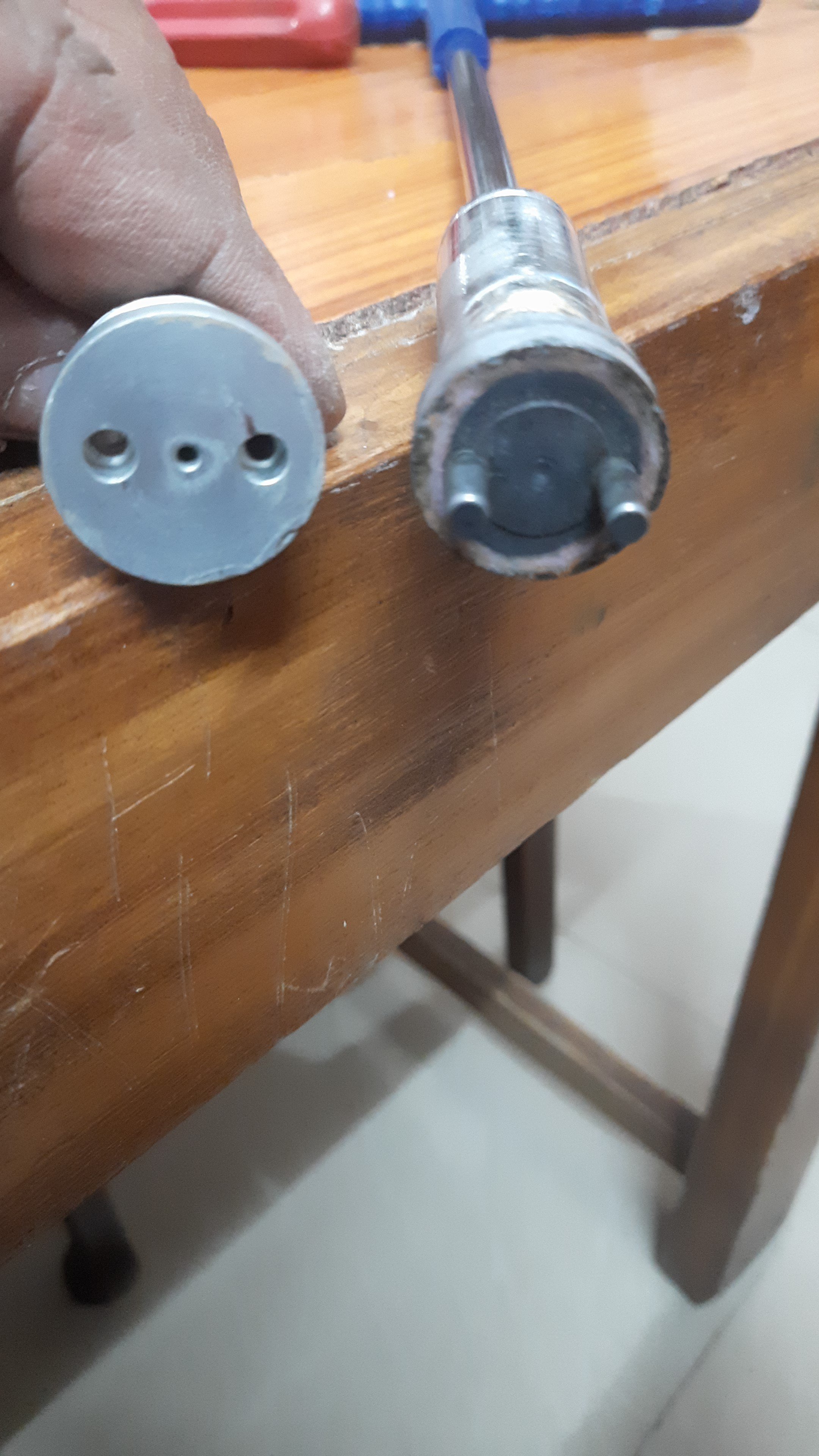

got o rings from some dealers etc...also today only was finally able to remove the internal valve assy using a special tool which i had to get made...both visible in attached photosI can only assume those are the correct sizes going off the old o-ring list I posted. O-rings are cheap. It doesn't hurt to pick up a few. Did you try getting a hold of AoA for an o-ring repair kit? You could also try another Daystate dealer in your area.
