Tuning Carbon sleeve FX Crown.

[Revoman]

danny5692 --=--

Was able to take the Crown for a test drive on Friday and the spacers/carbon fiber sleeve performed very well. The Crown was a decent shooter before this but this set up put it over the top.

Again, thank you for allowing me to get better performance outta my Crown MKII

mike



[barr]

danny5692:

Thank you so much for sharing the stl files for this design. I was wondering whether you would consider creating a repository or shared folder that contains the stl files for all the designs that you have shared, and from which one can download all these files. As an example, I am hoping to download the design file for the FX crown power adjuster wheel, so that I can 3d print it.

Thank you again!



[3DAirgunWorks]

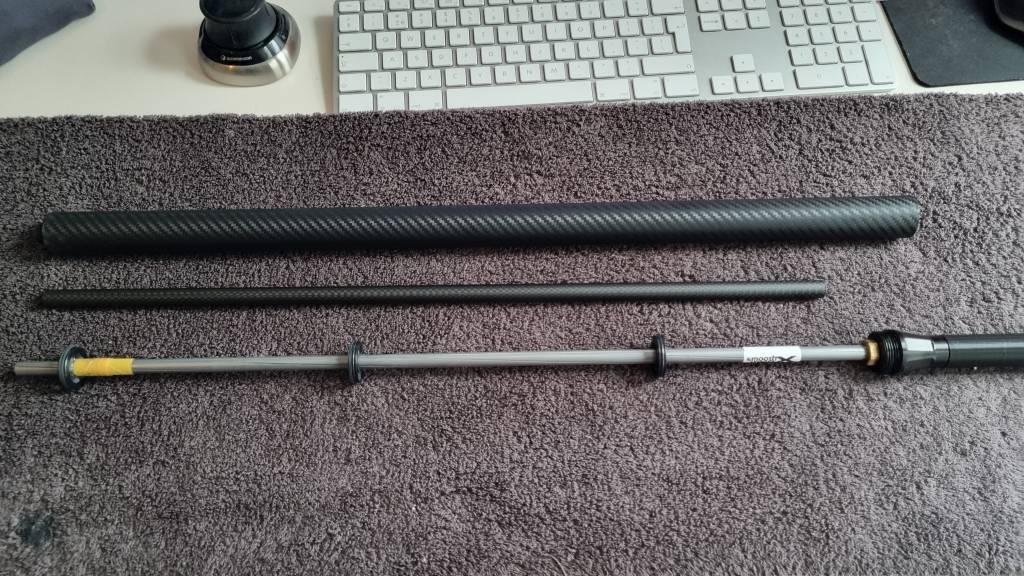

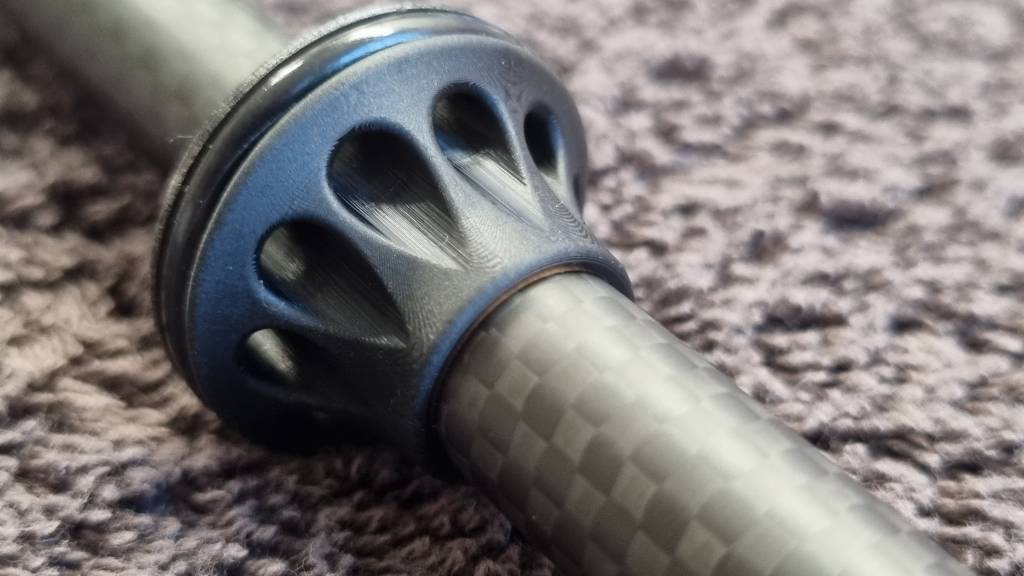

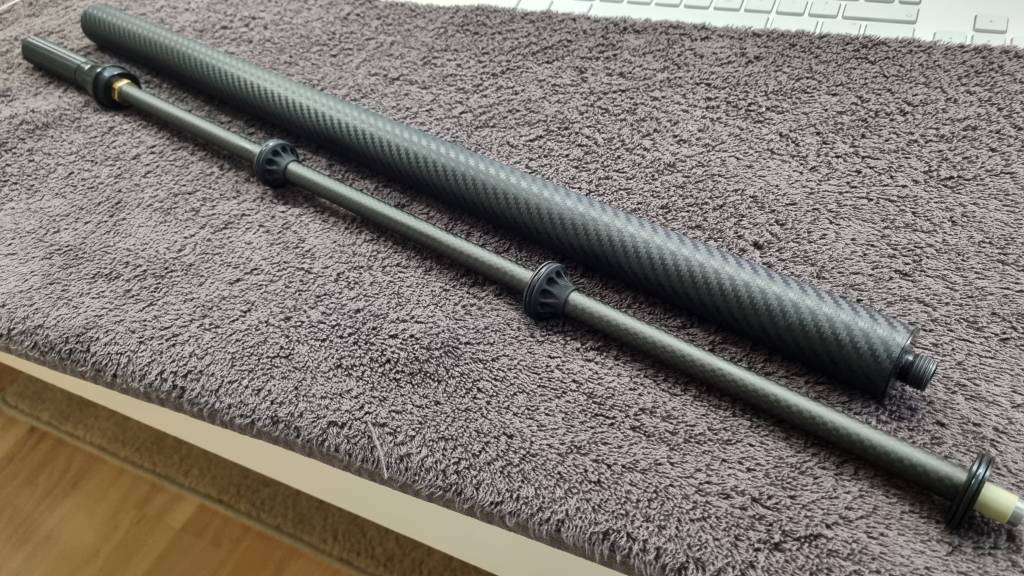

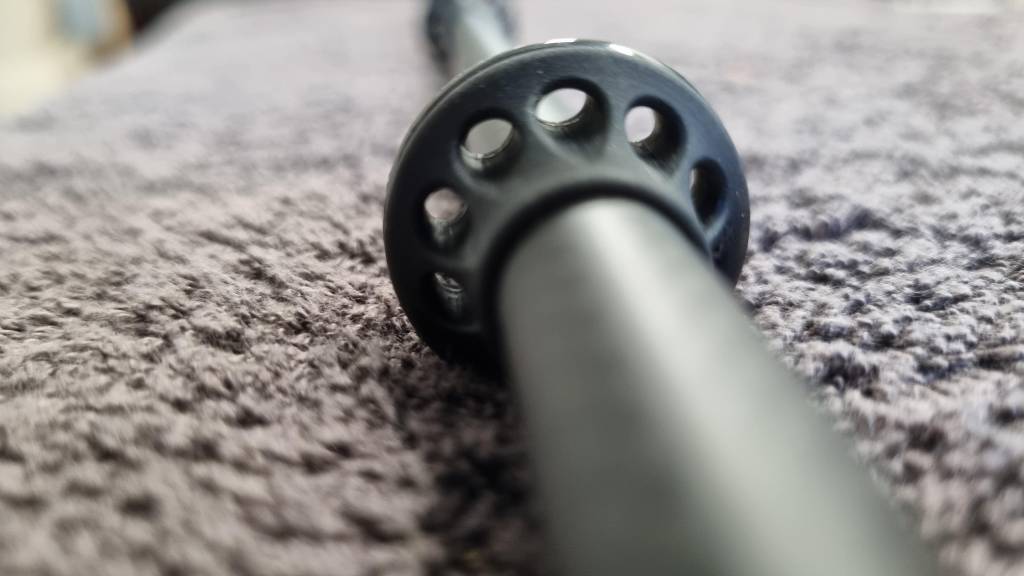

I have had some good results with the carbon sleeve on my M3. So I've made the same sleeve on my FX Crown. It took two new spacers over the carbon part. These are printed parts that I have drawn this morning.

Fits like a glove.

thank you for sharing. I printed it and works great.



[tibor]

any news if any for sale..would like a set for 25 cal.

thank u



[bd2021]

Nice job



[bd2021]

oops nevermind



[bd2021]

Long story short, I bought an FX CF barrel sleeve from Talon Tunes before I saw this thread. When I disassembled the gun, the spacers between the barrel and the shroud obviously would not fit. So I called Talon Tunes and Tony told me they weren't necessary just toss them. So I did, and I fired the gun after reassembly, with a DonnyFL on the end. Well, obvious to me now, the shot caused significant damage to the DonnyFL. That sucks. Lesson learned. Fortunately that was it.

Then I found this thread, printed up the RTL, but the design did not turn out because I have a normal FDM printer not a resin printer.

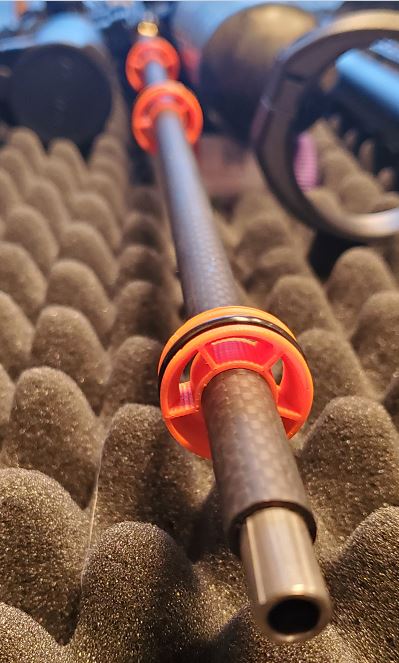

So I designed my own version.

I have printed some extra so if anybody in the U.S. needs them check out the classified. Rigid, high temperature and strong ABS plastic that won't warp if left in a car on a hot summer day. (I wouldn't use PLA for these unless you're sure you'll never leave your gun in a car or truck on a hot summer day). They are for 0.25, but if you have a .177, .22, or .30 FX Crown get me the outside diameter of the CF sleeve and I can print some up for you to test. Check out the classifieds.



[bd2021]

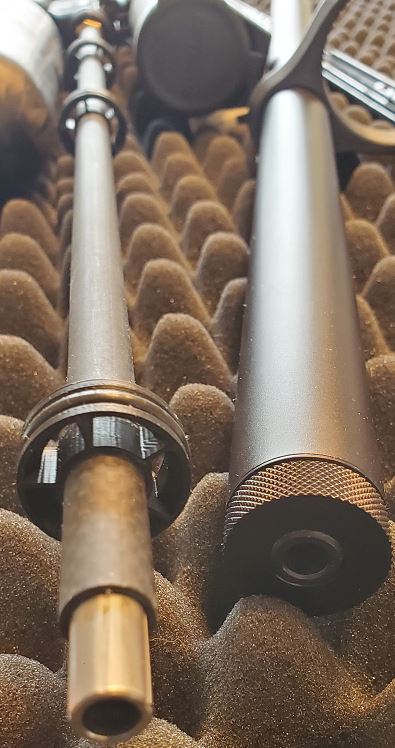

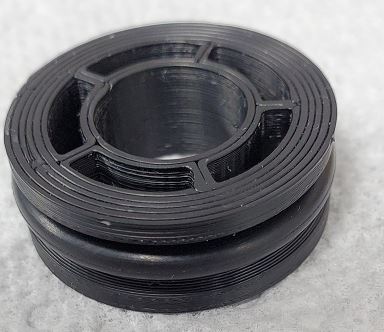

I have some black ones now.



[Goldwing]

The new AN sight sucks with lost all of my accuracy points and ALL messages and contacts
I found after trying multiple O rings a 16mmx20mmx2mm works on the new 25 cal yellow spacers you sent
I can't figure out how to message you on the new sucky sight setup



[JH2024]

I am very interested in buying four of the "spacers over carbon fiber sleeve" that several of you have designed for the new Superlite barrel on the FX Crown MKII- 25 cal. . Please reach out to me and I will send the cost. Black would be preferred.



[Bodacious]

Any updates or test finding on your design?



[TexaPatagonia]

View attachment 188825I have had some good results with the carbon sleeve on my M3. So I've made the same sleeve on my FX Crown. It took two new spacers over the carbon part. These are printed parts that I have drawn this morning.

Fits like a glove.View attachment 188831View attachment 188836View attachment 188841

Danny is the same for 22 and 25 or I have to ask to the printer shop to modify some value for .22?



[Scotty1]

Danny is the same for 22 and 25 or I have to ask to the printer shop to modify some value for .22?

I believe the .22 and .25 are the same, at least it was in my case.



[TexaPatagonia]

I believe the .22 and .25 are the same, at least it was in my case.

Thanks, Scotty!



[rat-buster]

View attachment 188825I have had some good results with the carbon sleeve on my M3. So I've made the same sleeve on my FX Crown. It took two new spacers over the carbon part. These are printed parts that I have drawn this morning.

Fits like a glove.View attachment 188831View attachment 188836Hallo View attachment 188841



[rat-buster]

Hallo Danny, is het mogelijk dat jij er voor mij 3 print , tegen vergoeding uiteraard. Bij voorbaat dank voor je antwoord.
