BSA scorpion pellet probe o-ring size

[Dr. Kralenstein]

Anyone know the size of the probe o-ring on the 22 model?

Need to get some, mine got stuck in the mag and shredded it.



[HogKiller]

I'll bet it's a
O-ring 5,5 x 1,5 NBR 70

Standard size for .22 air guns. Global O-ring, where ever you get them from get 1% tolerance, anything else may leak with the tolerance stack.



[Dr. Kralenstein]

I'll bet it's a
O-ring 5,5 x 1,5 NBR 70

Standard size for .22 air guns. Global O-ring, where ever you get them from get 1% tolerance, anything else may leak with the tolerance stack.

Not too sure, I tried a 22 crosman o-ring and it was too big.



[joe9090]

Did you ever figure out the size of the oring needed?



[orangeokie]

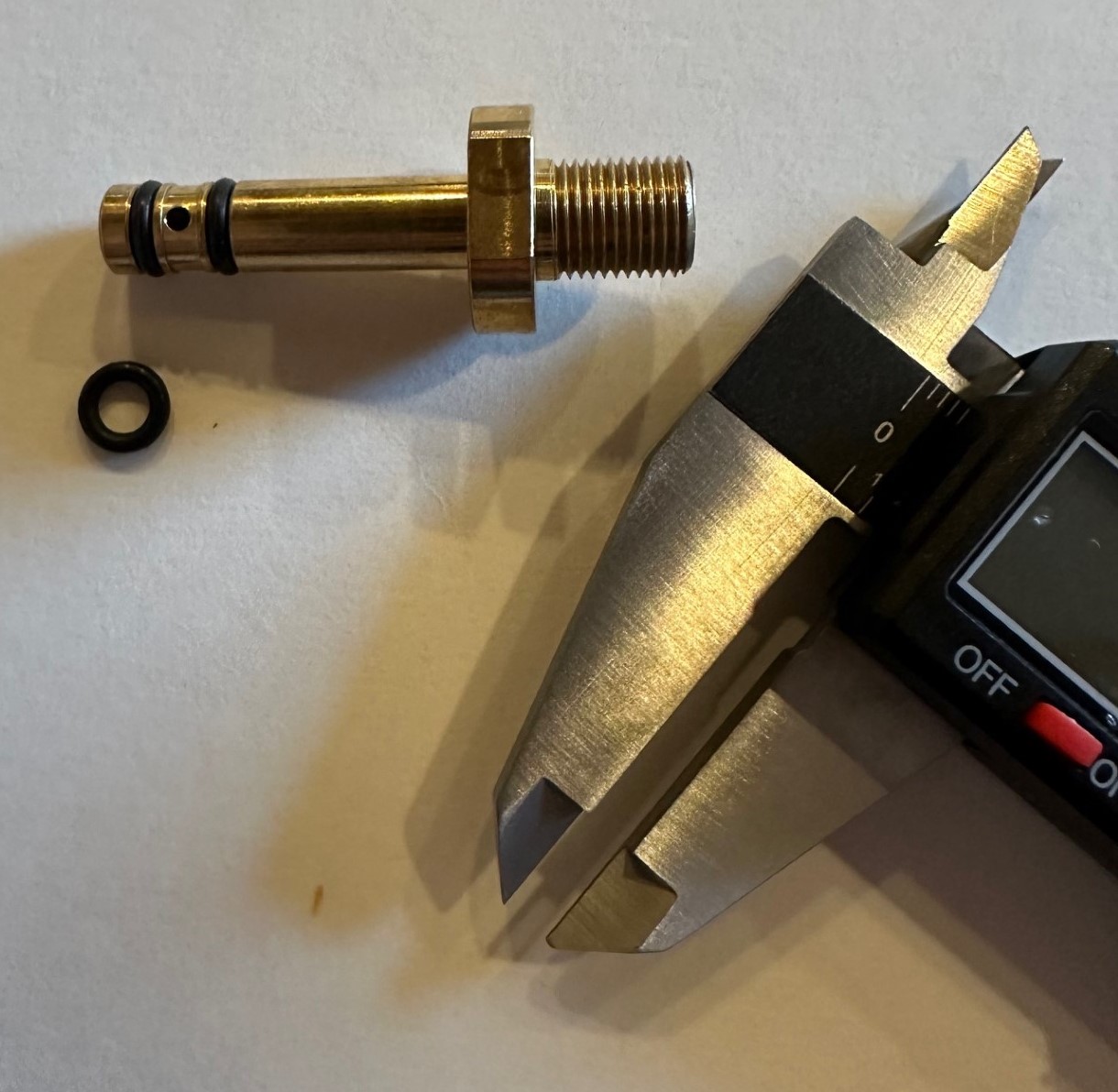

I measured the o-ring for my .22 Scorpion. It is 7mm outer diameter, 4mm inner diameter and 1.5 mm thick.



[joe9090]

Is this for pellet probe or the fill probe? Im looking for pellet probe oring?



[orangeokie]

Is this for pellet probe or the fill probe? Im looking for pellet probe oring?

No. I misread the OP. This is for the Filler probe.



[Dr. Kralenstein]

Is this for pellet probe or the fill probe? Im looking for pellet probe oring?

3mmx6mmx1.5mm CS Buna 70 o-rings

That's for 22 caliber



[joe9090]

3mmx6mmx1.5mm CS Buna 70 o-rings

That's for 22 caliber

Thank you very much
