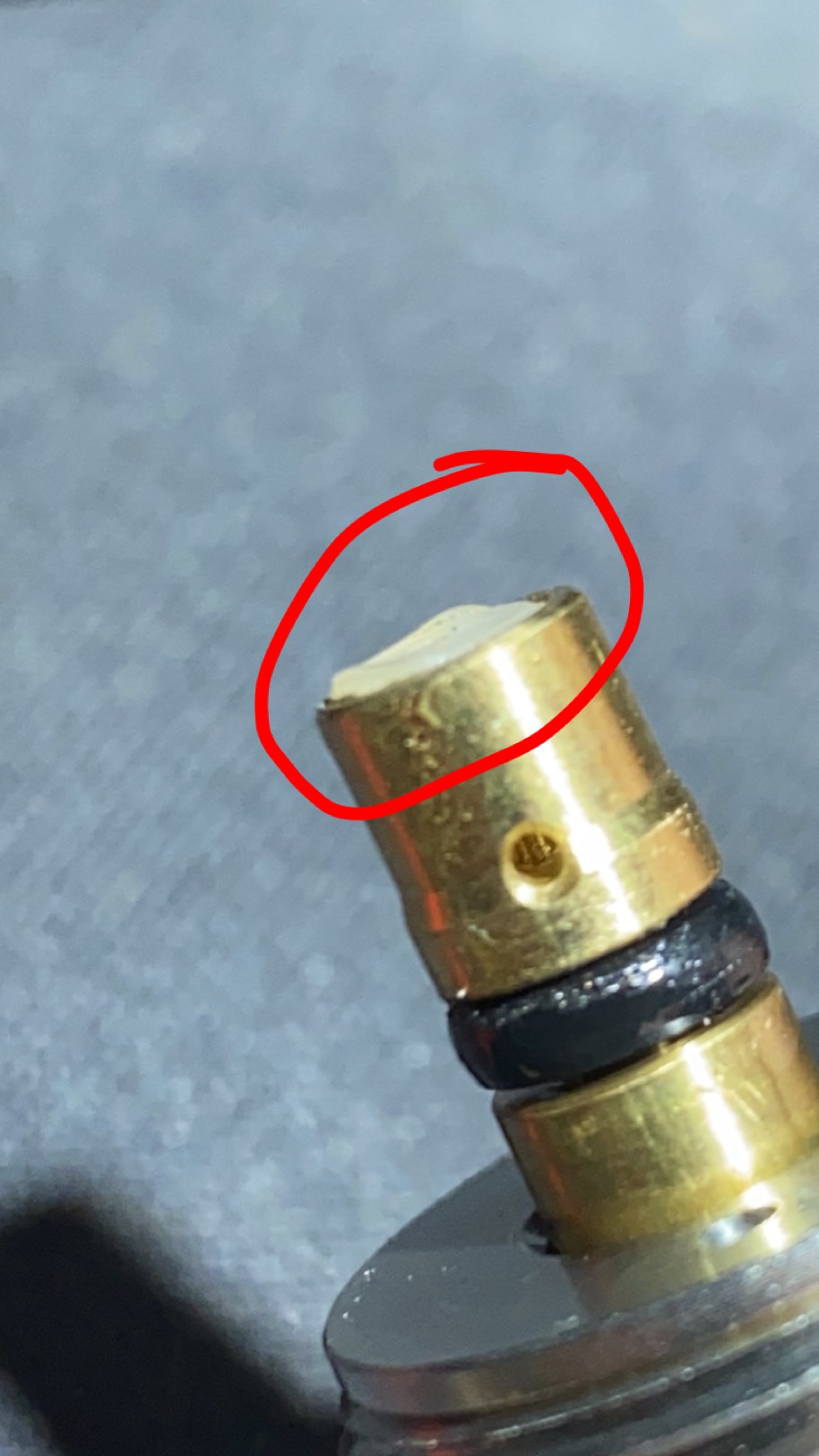

Finally took my reg out to look at it for the first time and believe I found the reason it creeps 400-500 psi in a 10 minute span.I emailed pyramid air to see what they could do, now I’m just waiting for a response Monday. Pictures below.
Avenge-x bad regulator creep
- Thread starter ThisIsHard
- Start date
Trying to figure out what could cause the piston face insert to get so distorted.... All I can think of is factory defect during installation.
Good pictures by the way with decent focus and good lighting. You can tell that that o-ring needs to be replaced because of its flattened profile - no longer circular cross-section. Probably all the other o-rings as well.
Hope they get it fixed for you, looks like you've done some good footwork.
Feinwerk
Good pictures by the way with decent focus and good lighting. You can tell that that o-ring needs to be replaced because of its flattened profile - no longer circular cross-section. Probably all the other o-rings as well.
Hope they get it fixed for you, looks like you've done some good footwork.
Feinwerk
Upvote 0
Adjusting the reg to lower pressure with the gun pressurized, repeatedly, will for sure cause that also
Upvote 0
100% true, but I can assure you that I degassed the gun completely whenever I have to lower the reg. Which has only been three times, this time being the third.
Upvote 0
My guess is also factory defect cause the problem has been consistent from the 1st pellet to the 2000th pellet. Never worse never better.
Upvote 0
Pyramid air basically said they can’t do anything because it’s out of the 30 day Window. So they redirected me to air Venturi, now I’m waiting on them. Starting to get bummed out.
Upvote 0

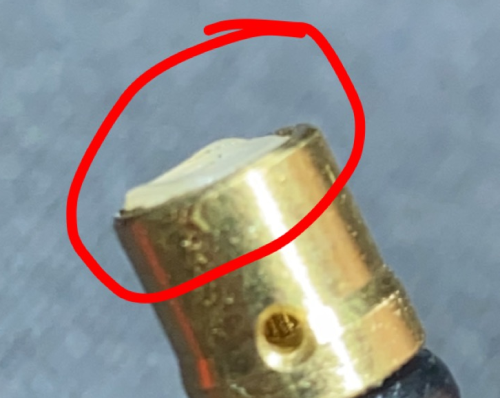

You know, now that I look at that very first photo that shows the face of the seating surface, It appears that the polymer plug may have been glued in place rather than press fit into the socket of the end of the piston. Is that just excess glue on the surface? Perhaps you can just scrape it and very lightly hone it on some 400 grit wet or dry sandpaper and restore a nice flat face.
GL,
Feinwerk
GL,
Feinwerk
Upvote 0
Factory defect or bottoming it out to hard after degassing. It doesn’t take much tension to do that.
Upvote 0
All is well so far folks, air Venturi got back to me fairly quickly and is sending me a new reg no questions asked. I must say I’m very happy and pleased with how they handled this.
Upvote 0
Good deal - hope it comes with all new o-rings. Certainly the interior piston o-rings showing in your pictures above but I mean the external o-rings on the outer body of the whole regulator. You will want to get the sizes for these and makeup a repair kit for the future. At least you already know how to get it apart to check things out.
Upvote 0
I was also redirected to AV for a part. I left a detailed message of what I needed and they located the part from a gunsmith (as it was not something they stock). The part was better than the original. I was very impressed with their service!!
I’m sure that the stock “regs” it should not be a problem at all. I hope that they get in contact with you soon.
Upvote 0
