AV Avenger sear assembly?

[dow4hurst]

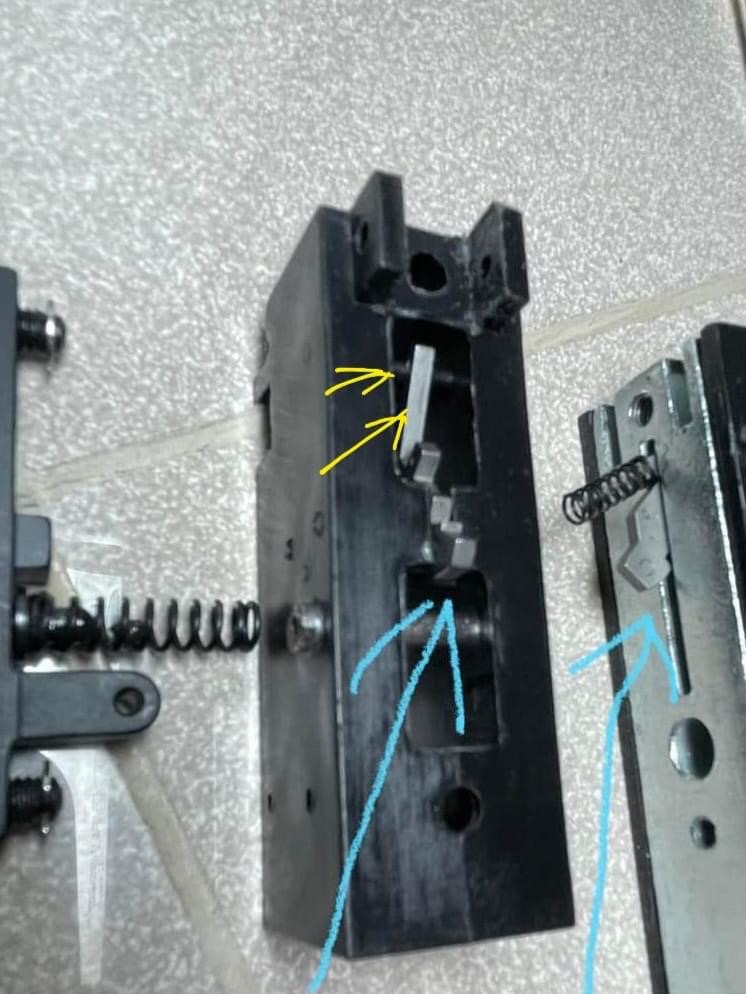

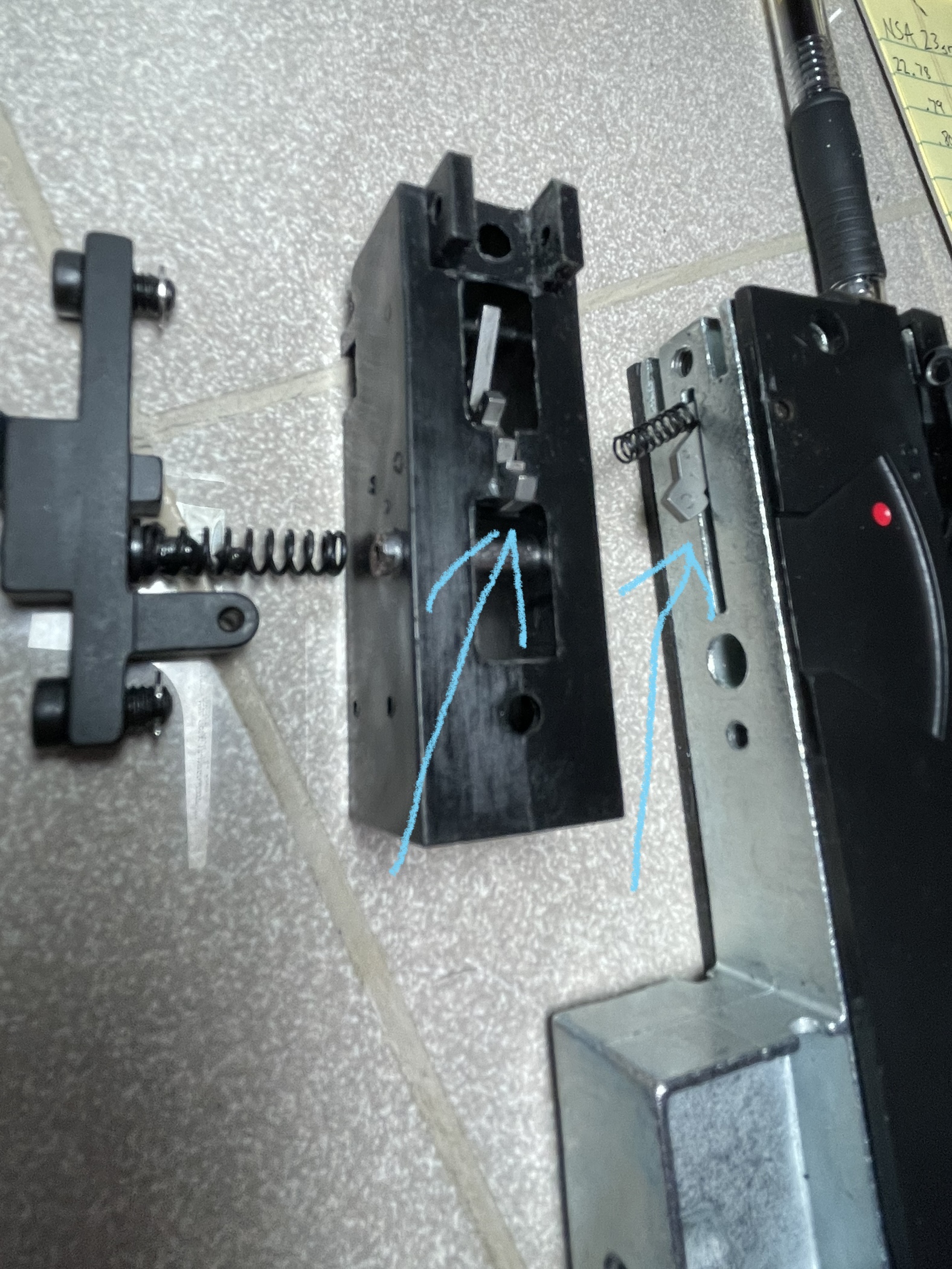

What is the correct arrangement of the sear assembly in the avenger? I’m having trouble re-assembling the trigger and sear parts. The exploded parts diagrams on Pyramyd air led me to this arrangement, but I am sure this isn’t correct as the trigger doesn’t engage any part of the sear assembly. Thanks for any advice on arranging the sear parts correctly and any caveats to be aware during reassembly.
Dow



[dow4hurst]

Got an answer from Wayne Reid in the air venturi Facebook/Meta group. The rocker on the left needs the long arm to be under the pin. Removing pins is the easiest way to position the rocker correctly.



[DesertSilver]

I've always left the 2 parts connected by the spring together. BTW, that's the same trigger assembly as the liberty, Aspen, and freedom.
