Ataman Ataman Moderator Baffles 3D Print

[PNW1985]

My Ataman M2R has some pretty crappy baffles in the stock moderator. The current baffle stack is 22mmX132mm. I was wondering if anyone had a 1 piece baffle stl. file in that dimension I could buy. I'm pretty new to this 3D printer, so I am not able to make one myself yet.



[Xolotl]

If you have the dimensions, I can model one for you.



[PNW1985]

22mmX132mm. .25 pellet travel opening



[Xolotl]

22mmX132mm. .25 pellet travel opening

Do dimensions are internal o external? do you want baffle or monocore?



[PNW1985]

Those are the dimensions of the current “baffle” stack. Monocore would be best



[Xolotl]

Those are the dimensions of the current “baffle” stack. Monocore would be best

Something in mind?



[PNW1985]

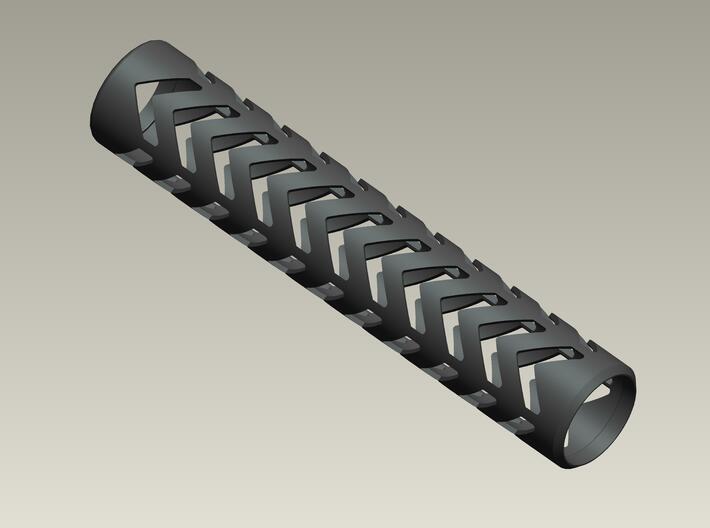

Something like this?



[Xolotl]

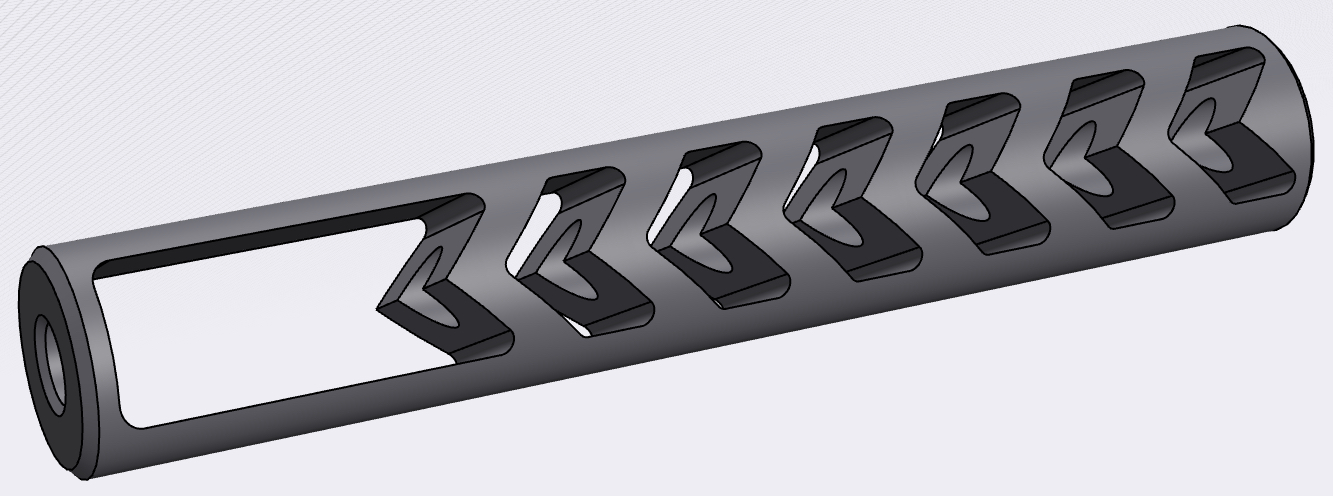

Do you like it?



[PNW1985]

That is amazing!



[Xolotl]

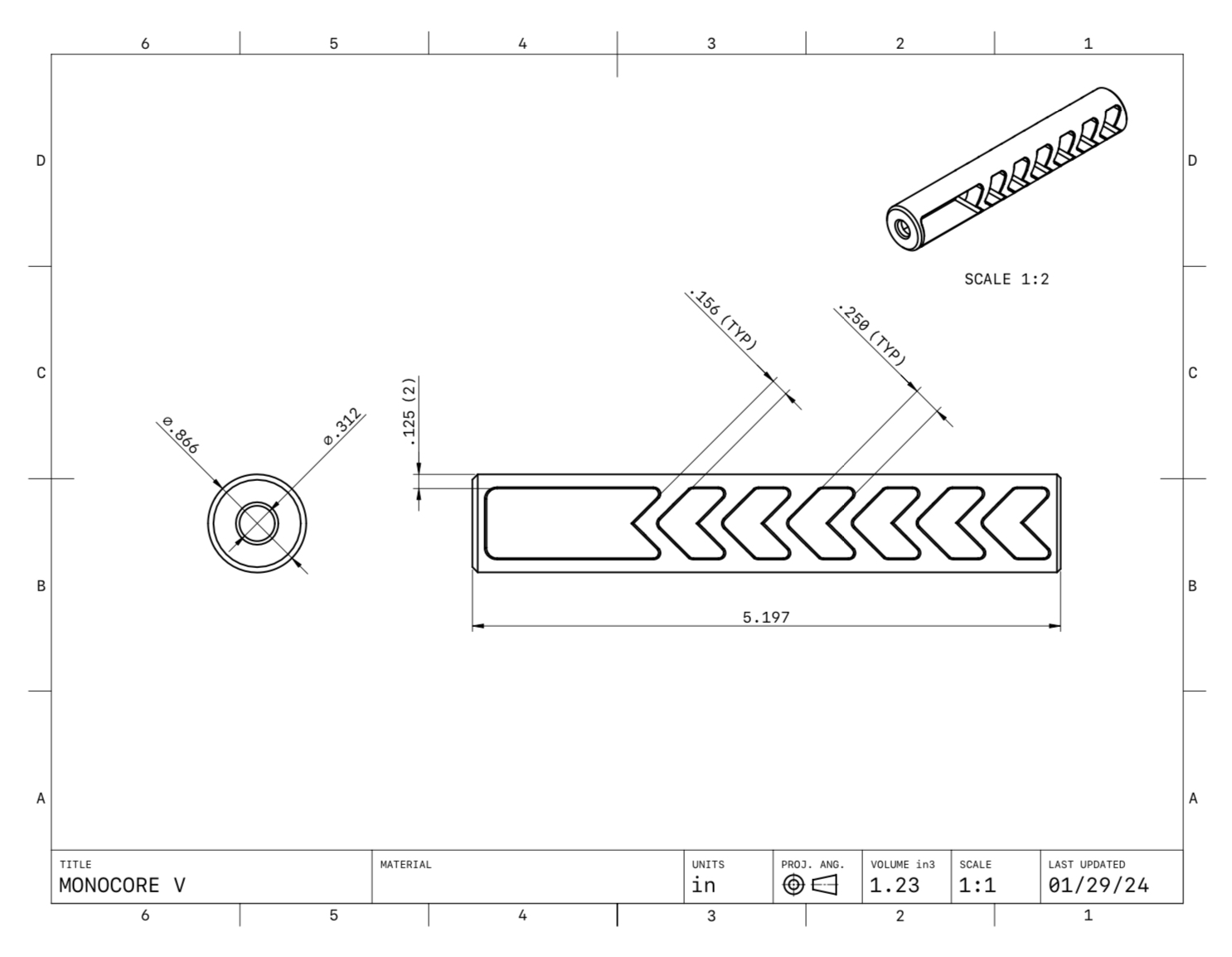

Please take a look and confirm is everything is ok. If you want some change let me know.



[PNW1985]

I think that looks really good. The bore diameter is .312?



[Xolotl]

I think that looks really good. The bore diameter is .312?

Yes, I decided use this diameter to avoid the pellet touch the walls if there is some misalignment.



[PNW1985]

Perfect!



[Xolotl]

Send to you a private message
