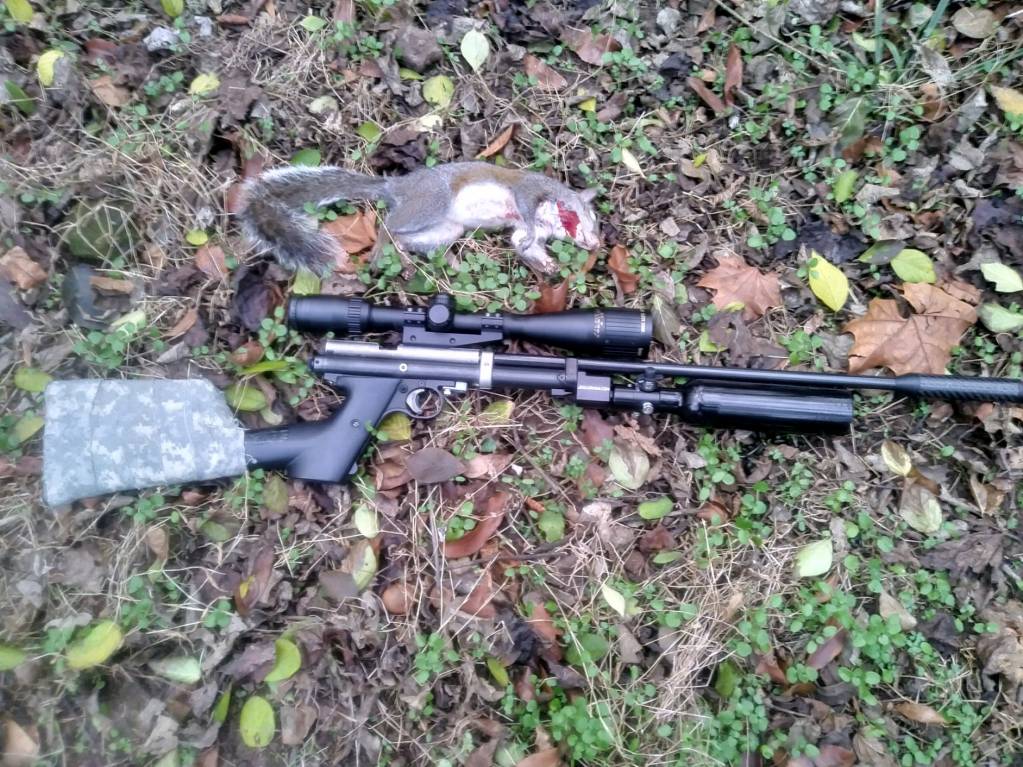

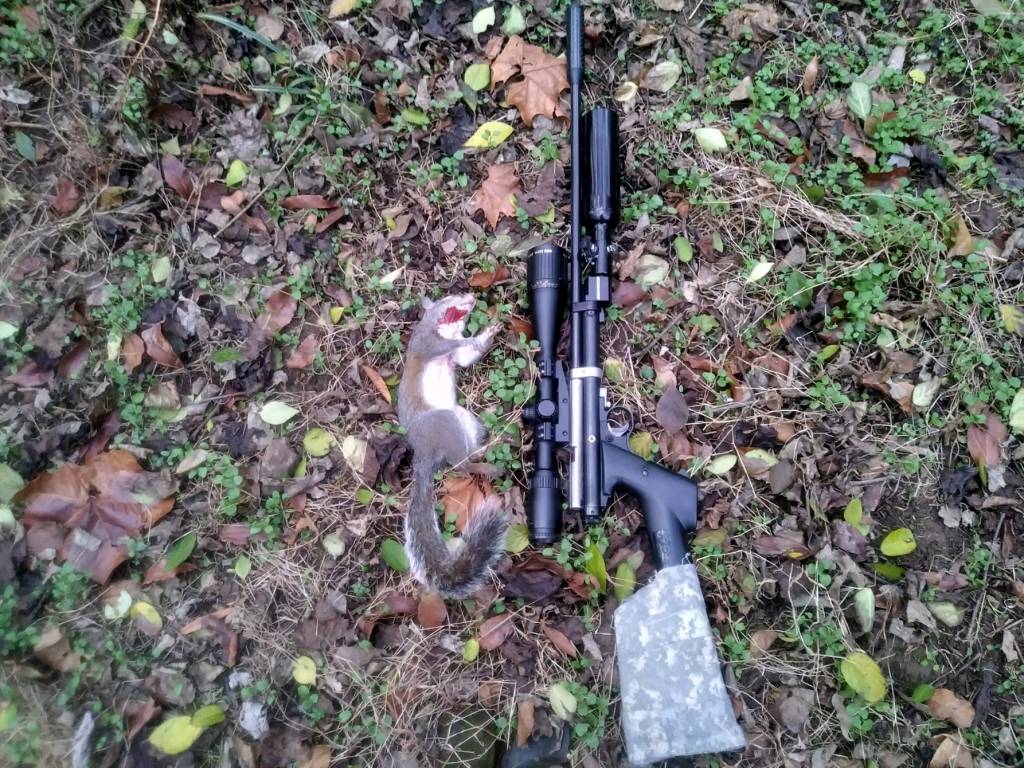

Another one succumbs to the .177 bottle build -

[SteveV]

Need to get another Tom West stock for this little carbine, but other than that, no complaints.

Of the pellets I have on hand, it prefers H&N FT 8.64 gr

Shooting them in the low 900's for close to 17 fpe - does the trick -

From not quite 40 yards -



[Odoyle]

Any availability on QB78 regulated Bottle conversions that you know of?



[SteveV]

Maybe Mountainair Custom Airguns?

http://mountainaircustomairguns.com/our-gallery/

I have one of the QB 78S that you posted the bargain link on, got it this time last year in fact. Bought a bottle adapter from Archer Airguns, but it won't work lol!, wrong dimensions/spacing, not sure of what version of the QB the adapter was made to work with - would you have an idea?



[nervoustrig]

Nice shot!

I cobbled together a similar build a few years ago. Started with a 2240 pistol and converted it to .177. Used a QB tank block, added a telescoping buttstock so the kids can use it too. Pretty satisfying build.

O’doyle, a Gauntlet tank block is the best buy for QB78 conversions but Umarex has been out of stock for a while.

Archer wants $37 for the QB79 version which is absurd, plus the location of the retention screws is not as good in terms of safety margin.



[Odoyle]

Cross posting THIS thread onto the other heads up cheap QB78A thread for those interested on HPA conversion thanks!



[SteveV]

HOLD ON GANG!!!

The two of you aren't quite done solving QB issues -

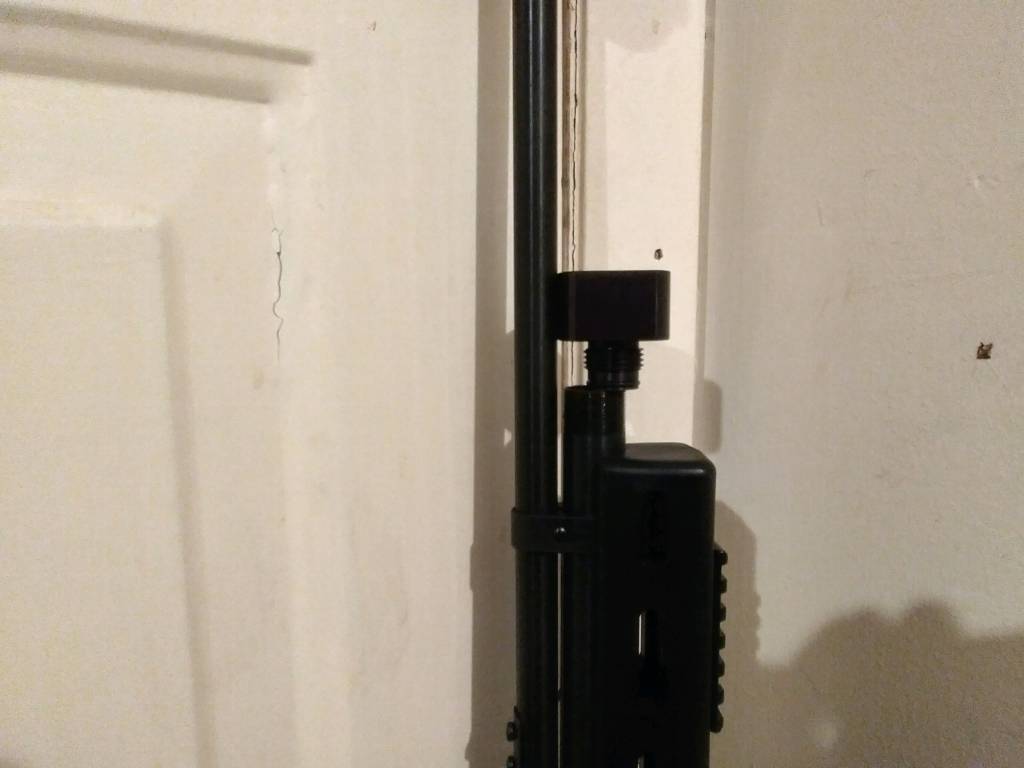

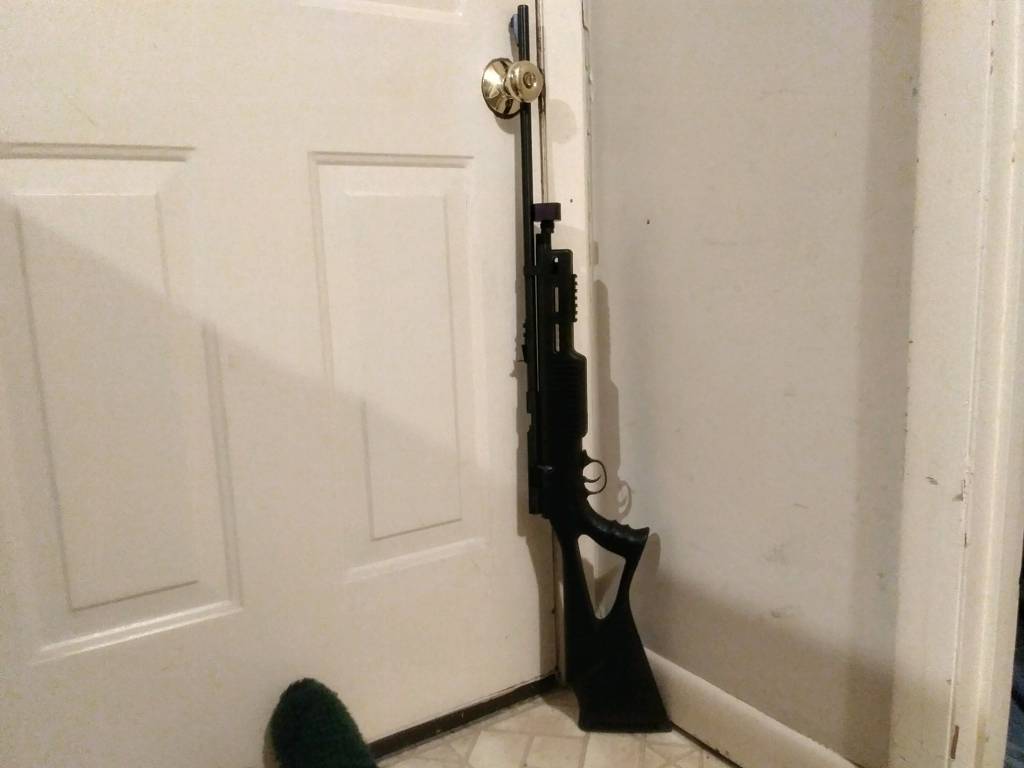

This is a pic of my QB 78S and my Archer tank block adapter -

WTF?



[Odoyle]

LOOKS LIKE YOU GOT SOME SERIOUS BREECH SHIMMING TO DO! Wonder how the bolts gonna cock the hammer though?



[SteveV]

I ain't shimming squat - this is the wrong part, or there isn't one made for this version, I'm just not QB hip enough to know -

Maybe this is best answered by Mr. Stephen Archer.

No worries, just a pellet gun lol -

BUT - if anyone cares to enlighten me, I'm all ears -



[nervoustrig]

That’s a different adapter. The one you’d need for a bottle conversion is the QB79 block shown below or the Gauntlet version (better).


https://www.archerairguns.com/QB79-Tank-Block-Kit-p/aaqb79tckitoldmodel.htm



[SteveV]

It's the one Archer Airguns sold as a QB bottle adapter -

Yep, the one in your pic is the right one. Wo to me lol



[John "spysir" Blount]

Steve, been to long.

You might want to call umarex (times change eh?) for a gauntlet drop down. Think crosman prices! Naturally not for everyone but you'll be able to cut & drill your tube also it is a better design than say a qb79. Did I mention price? Found this link on this forum somewhere, you'll want the 6-1.

John

https://onedrive.live.com/?authkey=%21AI%2DRIXk1wy6klNQ&cid=E9266565E6FD290F&id=E9266565E6FD290F%212974&parId=root&o=OneUp



[mrbulk]

Beautiful shot, beautiful gun!



[SteveV]

Good morning John -

Turned off the 'puter before I saw your reply -

Yeah, looks like I could have saved some $ if I had purchased the drop blocks elsewhere, but we live & learn -

Thanks for the link, sent you a PM, hope all is well on your end - will talk this evening.



[SteveV]

Beautiful shot, beautiful gun!

Thank you Mr. Bulk!
