Aeon 10-40x56 Trajectory

[HaYnMoGLi]

This is the scope I have and information that was provided on website. http://www.aeonscopes.com/aeon-scopes/classic-model-10-40-x-56-trajectory/

The manual was very basic and didn't give information I needed. I need some of this information for the shooting app I have downloaded to help me when I hunt.

What is the power the reticle was calibrated for? (couldn’t find on their website)When shooting at 100 yds what magnification do you use? (I heard 30 is a good magnification just wondering what others use)Do you have a focus wheel you use for the parallax knob? (which wheel do you guys find works well with this scope)

Any other information about what each line means on the trajectory reticle would also be appreciated, obviously I know some of them are for mil spacing but there are some that I don't quite understand. Thanks for the help



[AirgunBill]

I have the Aeon 6-24x50 with the 'Trajectory Reticle' and the beginning hash marks work okay at 12x or 24x for generic mil dots. After that they do not line up with continued mil dots with the hash marks. For most of my pellet rifles when shooting out to 100 yards you need to hold over 4 plus mil dots. This scope reticle makes it hard to do that.

I calibrated my scope at fifty yards using this chart with parallel lines spaced at 1.8"



Mil Dots @ 24x

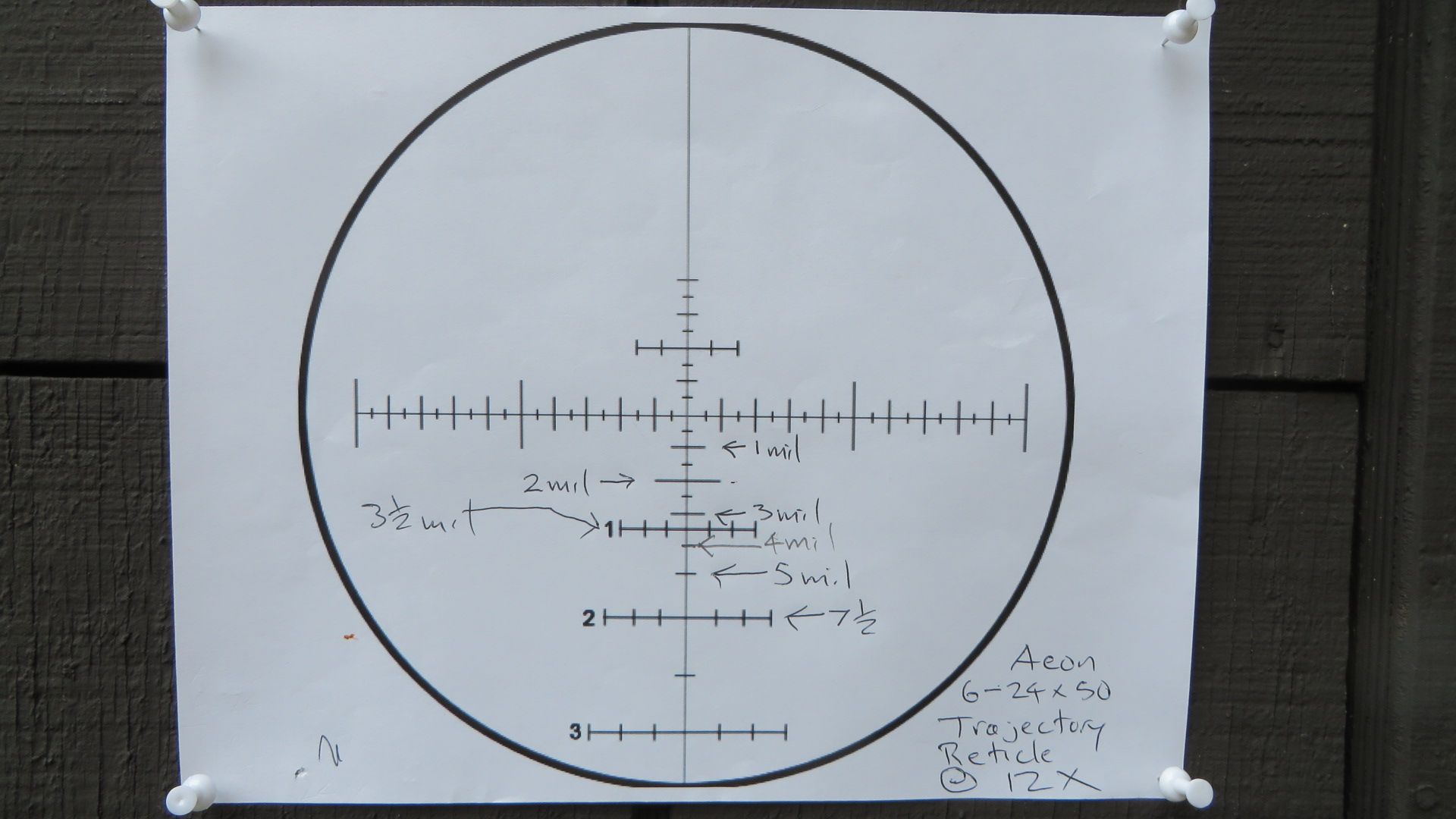

Mil Dots @ 12x



[HaYnMoGLi]

Thanks for the help airgunbill helps a lot. I am also make a chart the optic at the different distances to see where my scope will land.



[AirgunBill]

Made up my chart with 1.8" spacing for more precisely checking my whole reticle at 50 yards. Bill





[HaYnMoGLi]

Thanks this picture worked
