Adding weights to rifle’s forend to increase stability.

[Kgphotos]

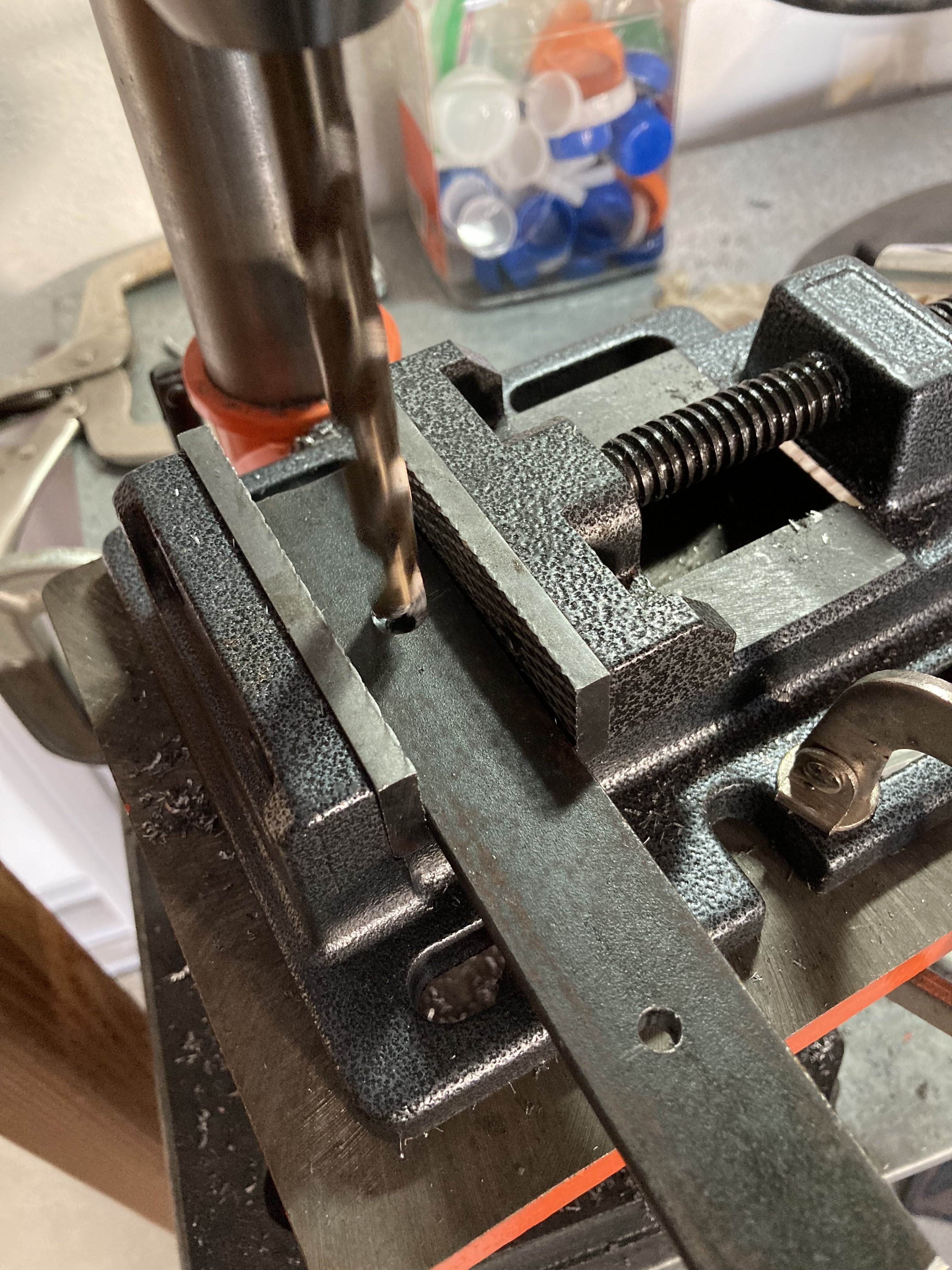

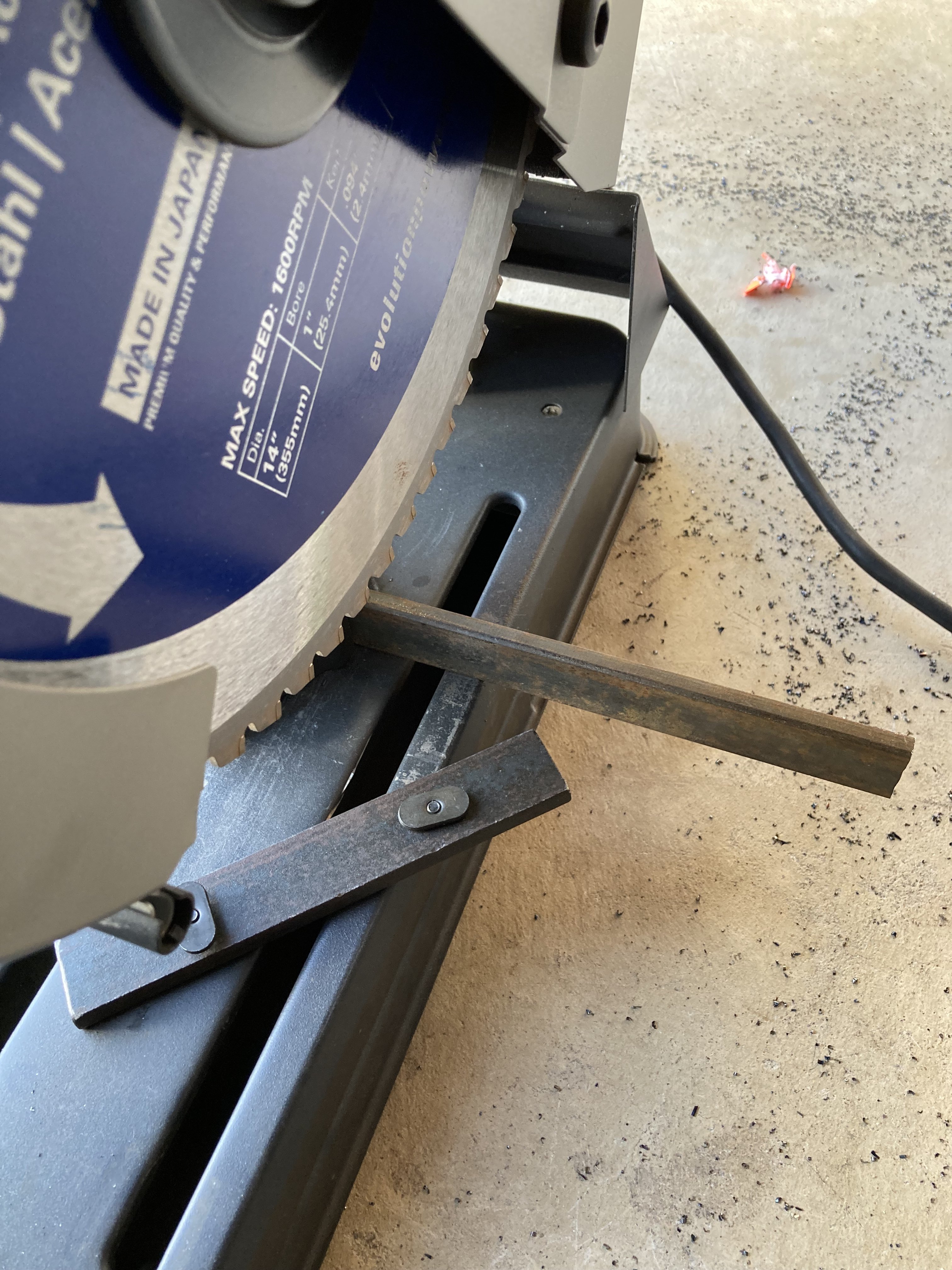

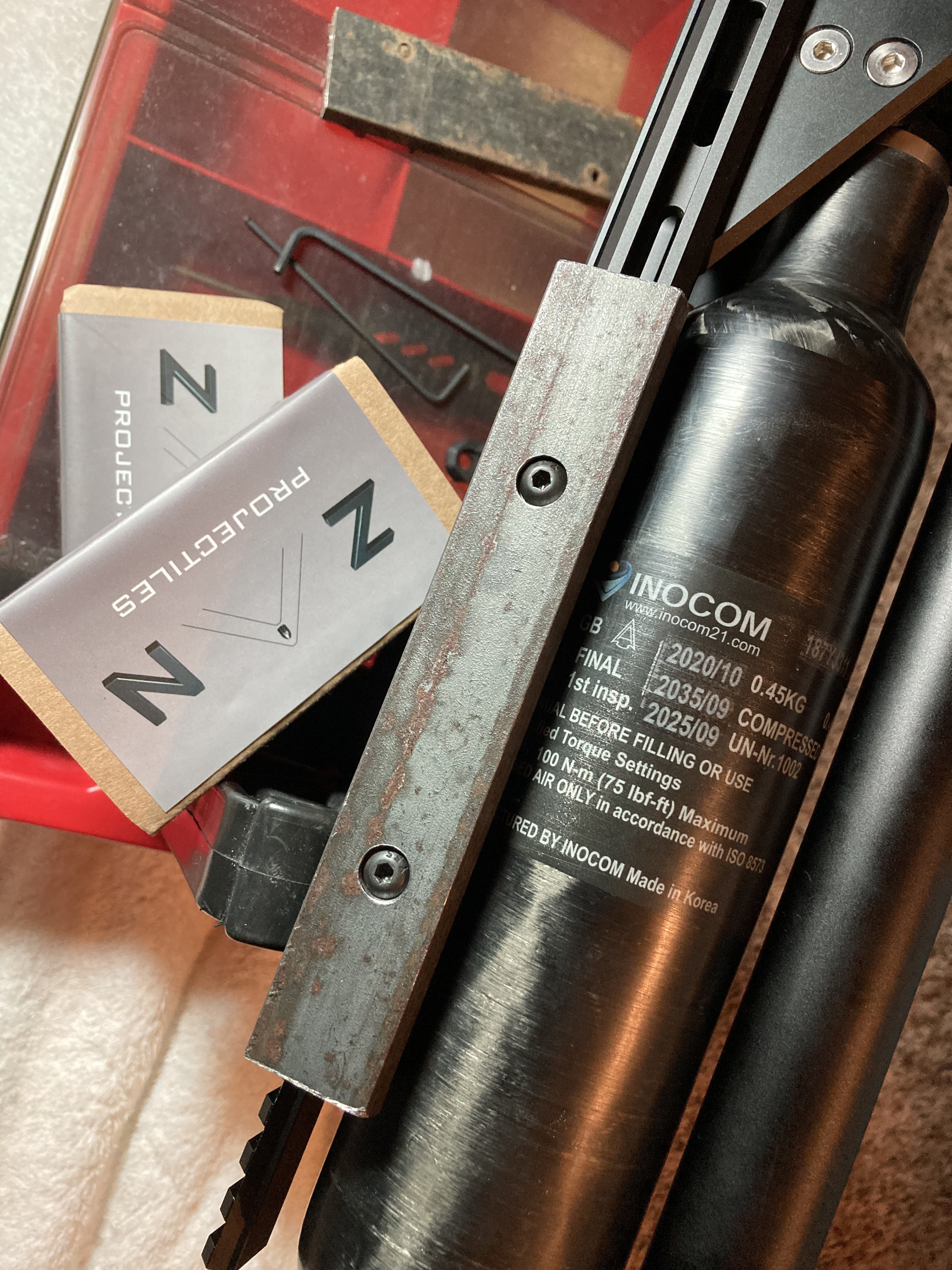

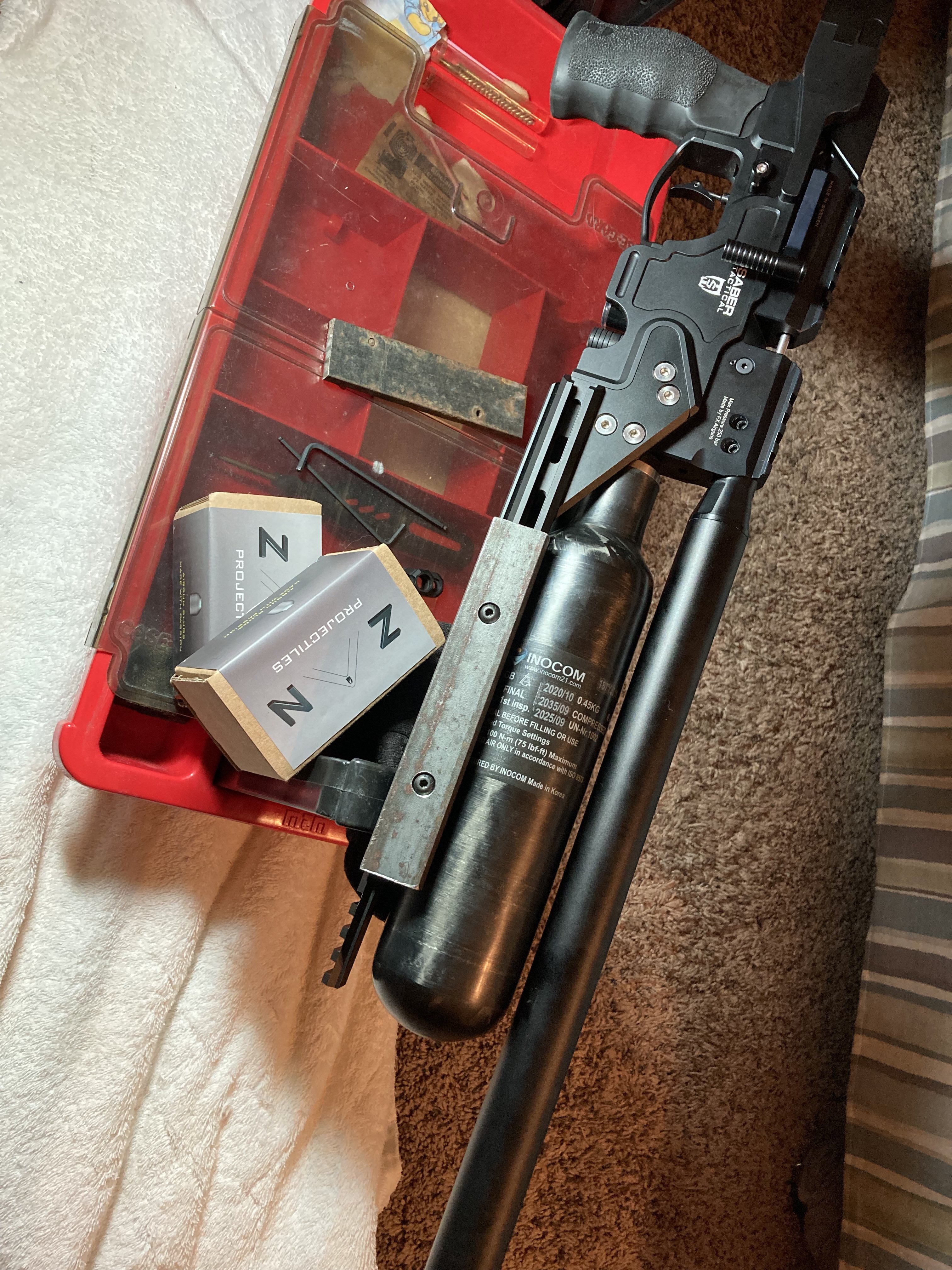

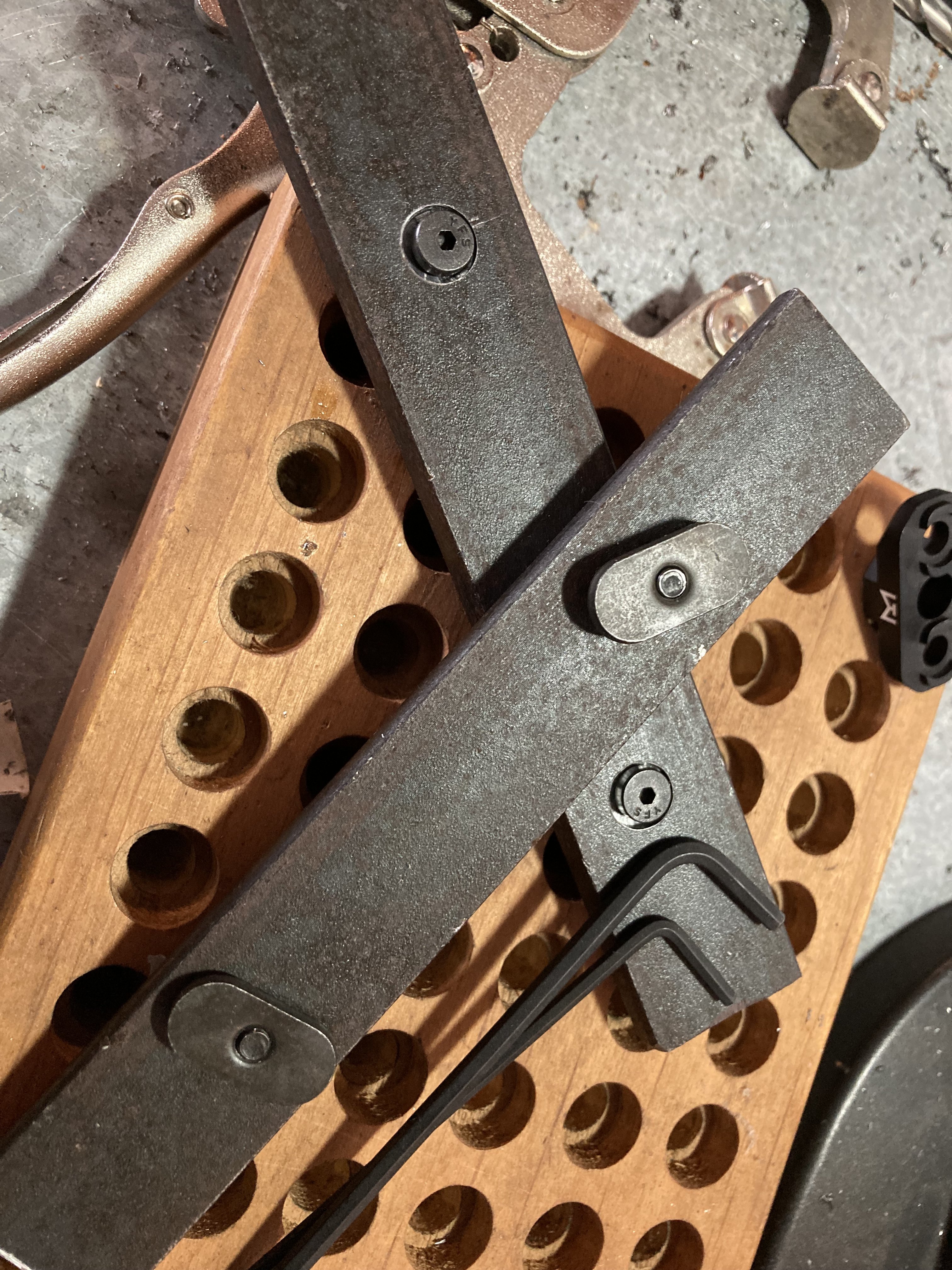

I have been wanting to try adding some weights to the Saber Tactical chassis on my Crown MK2. I thought it might make the rifle a little more stable on the bags. The chassis has M LOK slots available for this purpose. The weights I found online were all more expensive than I expected. I just wanted to try out the weights and see if there was any difference in stability. So I decided to make my own weights. I used the screws and back plates from some M LOK accessories that I already had. Then I cut some scrap steel from the local metal scrap yard. This piece is 5/16” thick and 1 inch tall. I cut two lengths that are 6 inches each. I drilled the holes and then counter sunk them to keep the screw heads flush. The combined total of the two weights is 16.8 ounces. The two weights also add more than half an inch to the width of the forearm which should also be more stable on the bag. I’m going out tomorrow to my parents home where I have room to shoot at longer range than my backyard. I’ll report back if I find any significant difference in my shooting with the added weight.
Kenny



[bdzjlz]

Nice project. Hope you are doing well!



[MikeVV]

Yes...

I shoot offhand. In doing so, I've found that the heavier rifles are MUCH easier to hold steady while aiming, even in my 72 year old hands.
I've found that a light hand hold, like the gun just resting "on" support hand, rather than "in" my support hand, and being gripped tightly, is also easier to hit the center of the target.

I'm guessing that your weights...should help...

Mike



[Kgphotos]

Nice project. Hope you are doing well!

Thank you. Yes, I am doing well. It's mid February and it'll be sunny and the mid 60s to day so I can't complain. I'm going to do a little shooting this afternoon before a family dinner. How are you?
Kenny



[Kgphotos]

Thank you Mike. I always appreciate shooting tips from my fellow forum members.
Kenny



[Healthservices]

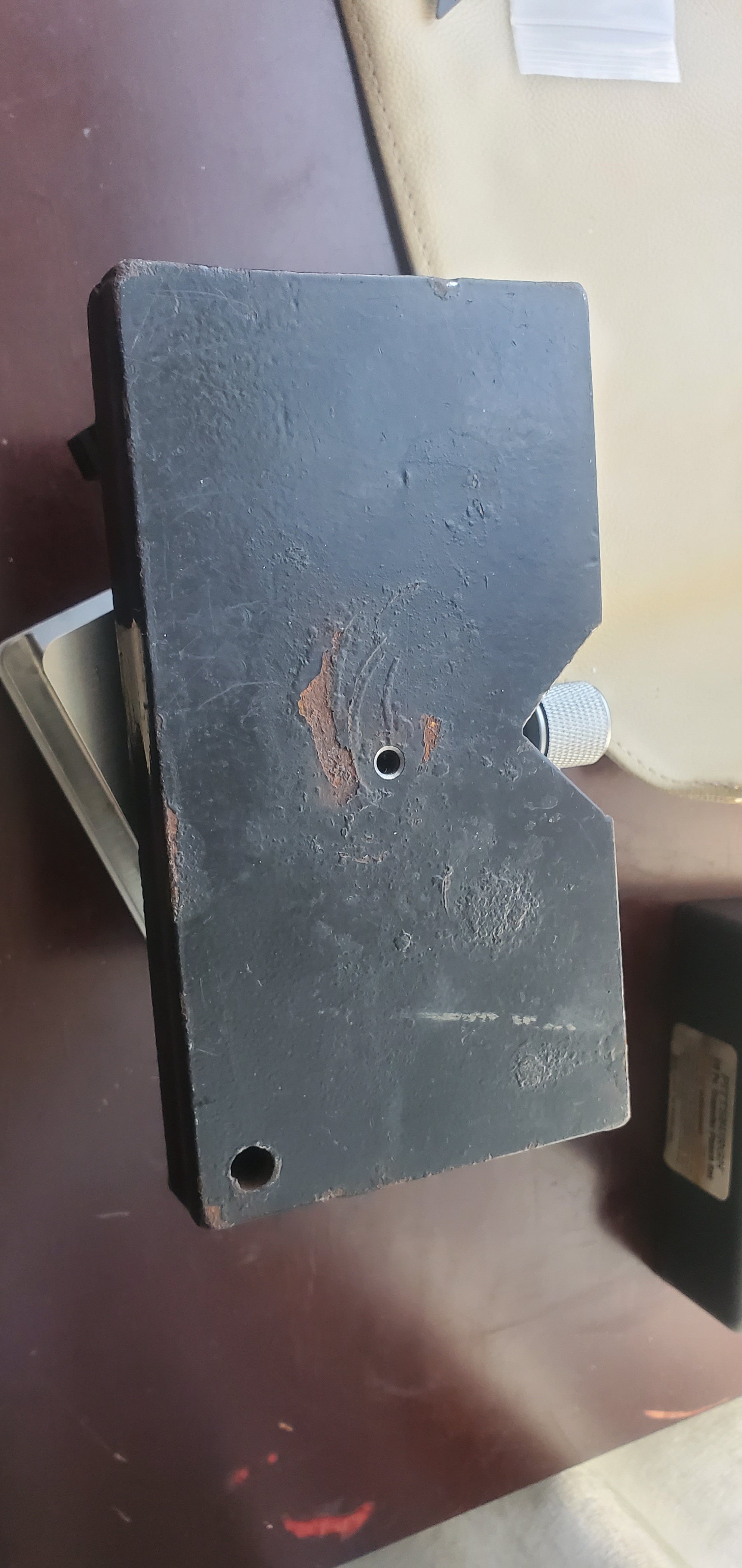

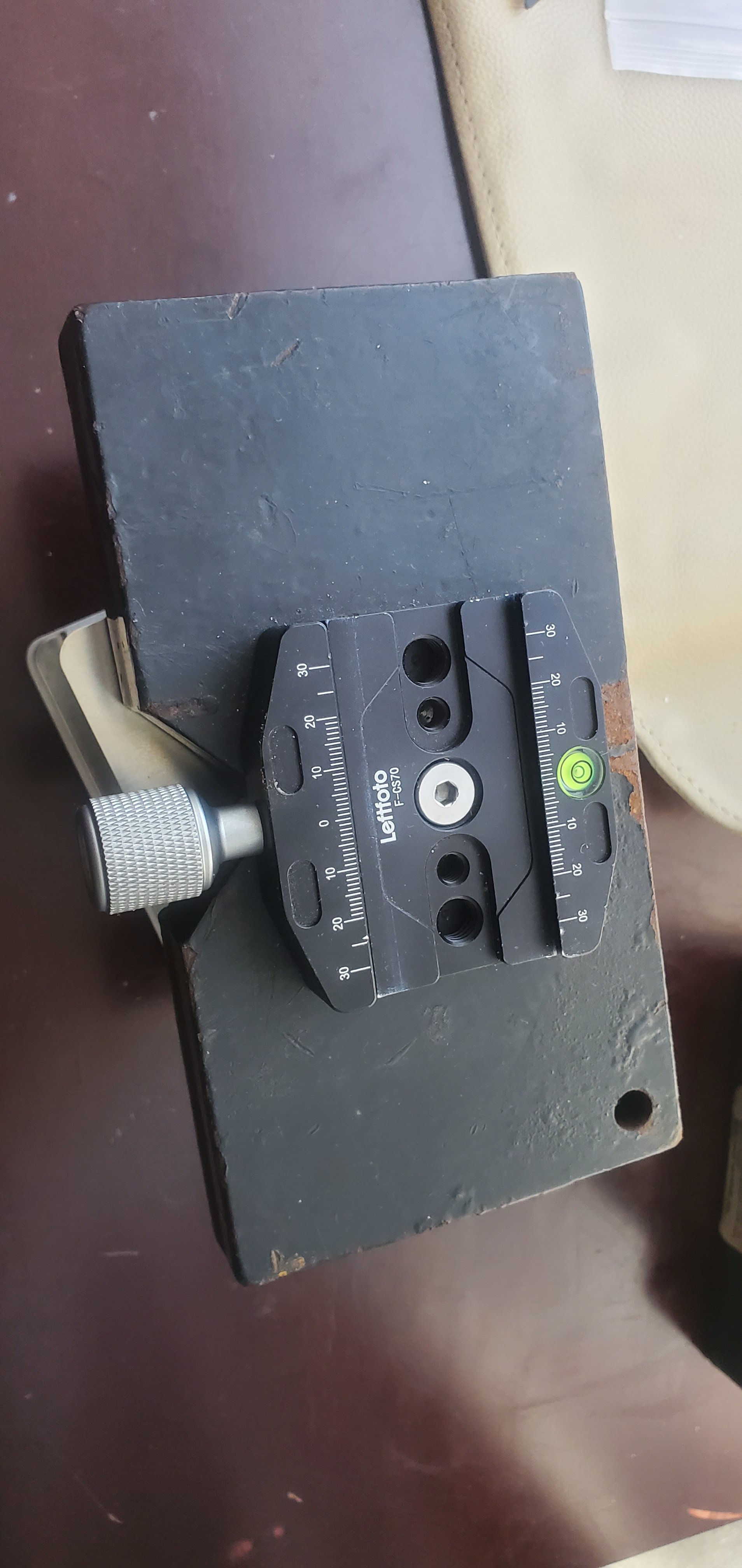

I've used weights on my impact with good success. Although crude, I just grabbed a couple of heavy plates from my 20 ton press and bolted it to a ARCA mount,

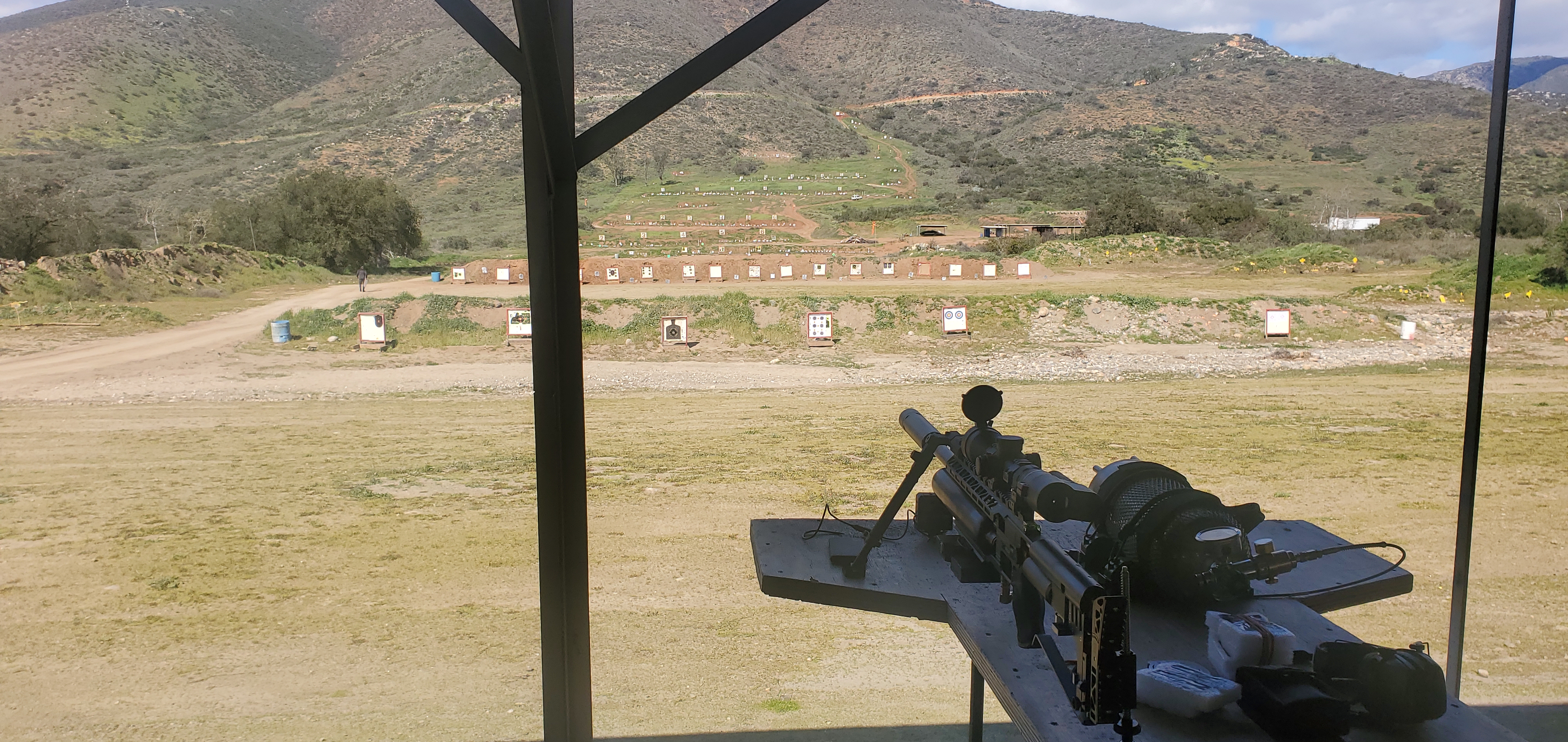

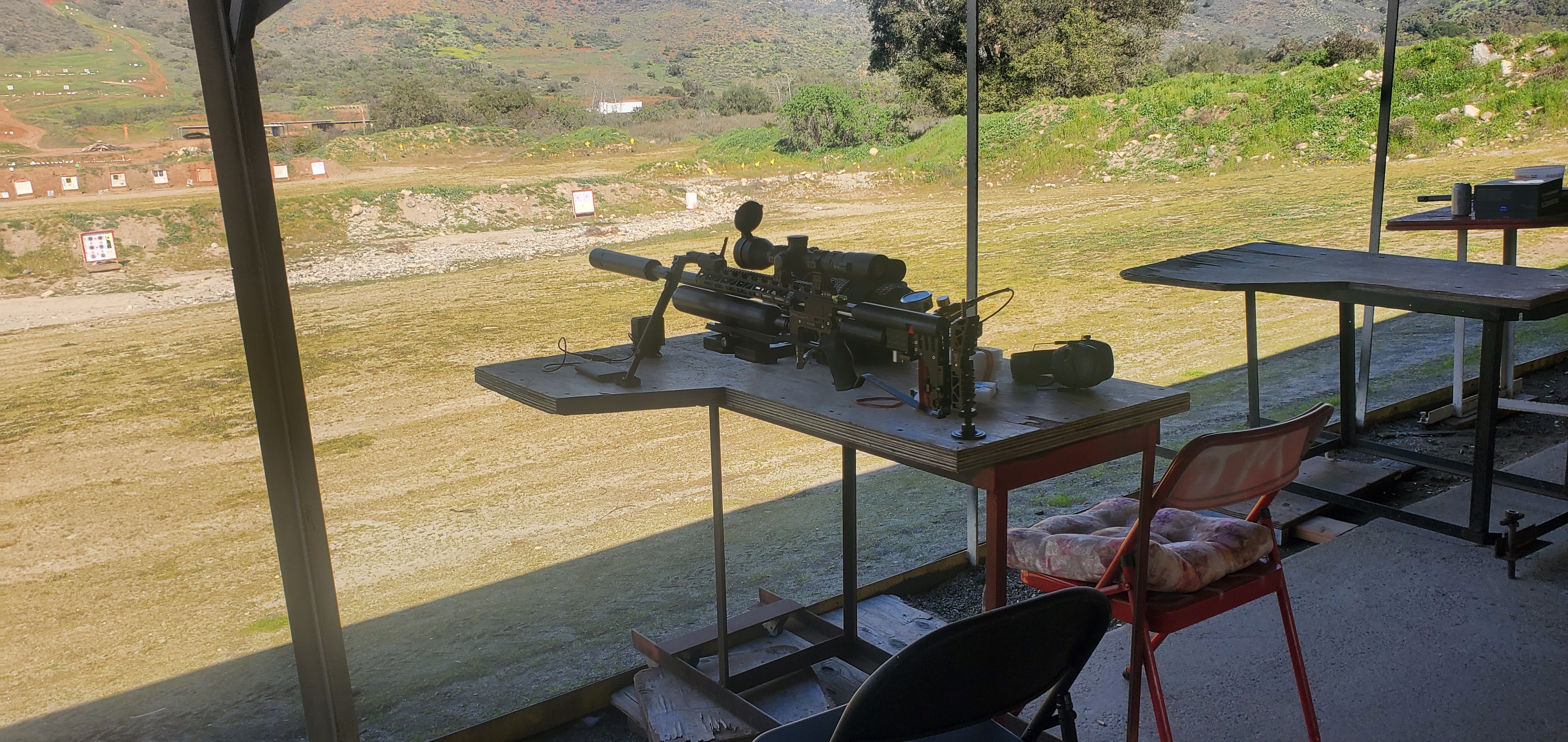

and mounted it onto the front. Firing heavy projectiles thru 800mm long barrels will cause a lot of movement and the weights do help.

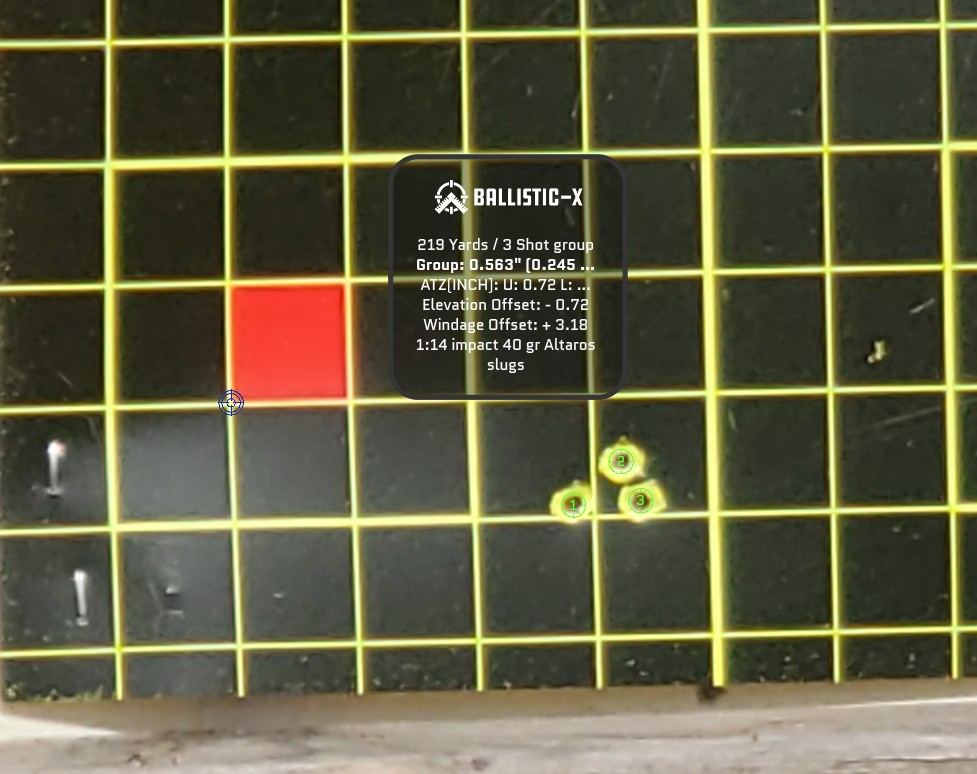

This target is at 219 yards, look at the amount of movement on vid.

It also helps on overly short lightweight guns as well. I hope it makes the same positive improvements on your setup!


Allen



[Kgphotos]

Wow. What a fantastic group at 219 yards. Thanks for sharing. Hopefully my new weights give me that same magic.
Kenny



[.JuanSevenSeven]

The benefits of the carbon are not without drawbacks, how about a metal bottle?



[Healthservices]

Sometimes it really makes you wonder if there is some type of magic involve!

Allen



[Healthservices]

The benefits of the carbon are not without drawbacks, how about a metal bottle?

Sometimes these benefits are hidden. It also means you can put the weight where you want it hopefully making a better ballance setup.

Allen



[beerthief]

I have been wanting to try adding some weights to the Saber Tactical chassis on my Crown MK2. I thought it might make the rifle a little more stable on the bags. The chassis has M LOK slots available for this purpose. The weights I found online were all more expensive than I expected. I just wanted to try out the weights and see if there was any difference in stability. So I decided to make my own weights. I used the screws and back plates from some M LOK accessories that I already had. Then I cut some scrap steel from the local metal scrap yard. This piece is 5/16” thick and 1 inch tall. I cut two lengths that are 6 inches each. I drilled the holes and then counter sunk them to keep the screw heads flush. The combined total of the two weights is 16.8 ounces. The two weights also add more than half an inch to the width of the forearm which should also be more stable on the bag. I’m going out tomorrow to my parents home where I have room to shoot at longer range than my backyard. I’ll report back if I find any significant difference in my shooting with the added weight.
Kenny

View attachment 333535

View attachment 333536

View attachment 333537

View attachment 333538

View attachment 333539

a little file work ,some sanding and paint your good to go . maybe powder coating ? easy to do .



[Kgphotos]

a little file work ,some sanding and paint your good to go . maybe powder coating ? easy to do .

Definitely! As soon as I try them out later today and determine that they are good to go I will file the edges, sand off some of that rust and then paint them.
Kenny
