Adding an inline silencer to a FX Crown Superlight barrel

[Firerail]

I own a FX DreamTac compact in .22 with the mk I & II 28mm shroud.
To facilitate the fitting of a powerplenum with the 28mm shroud, I made some custom cones for the superlight barrel.

I already made an internal silencer for a .25 liner with a longer shroud, see this reply.

Recently I've bought a .177 FX Crown barrel kit to fit on my DreamTac using the custom cone.
I purchased the Huma air high flow TP and probe for this kit.
Initially I wasn't planning on adding an inline silencer.
On assembly of the parts I saw, even with the original shroud there is an internal space in the shroud of 85mm.

So next step will be designing and printing an inline silencer for this barrel kit.
I will use the same K-baffle design as the internal .25 silencer I've made.

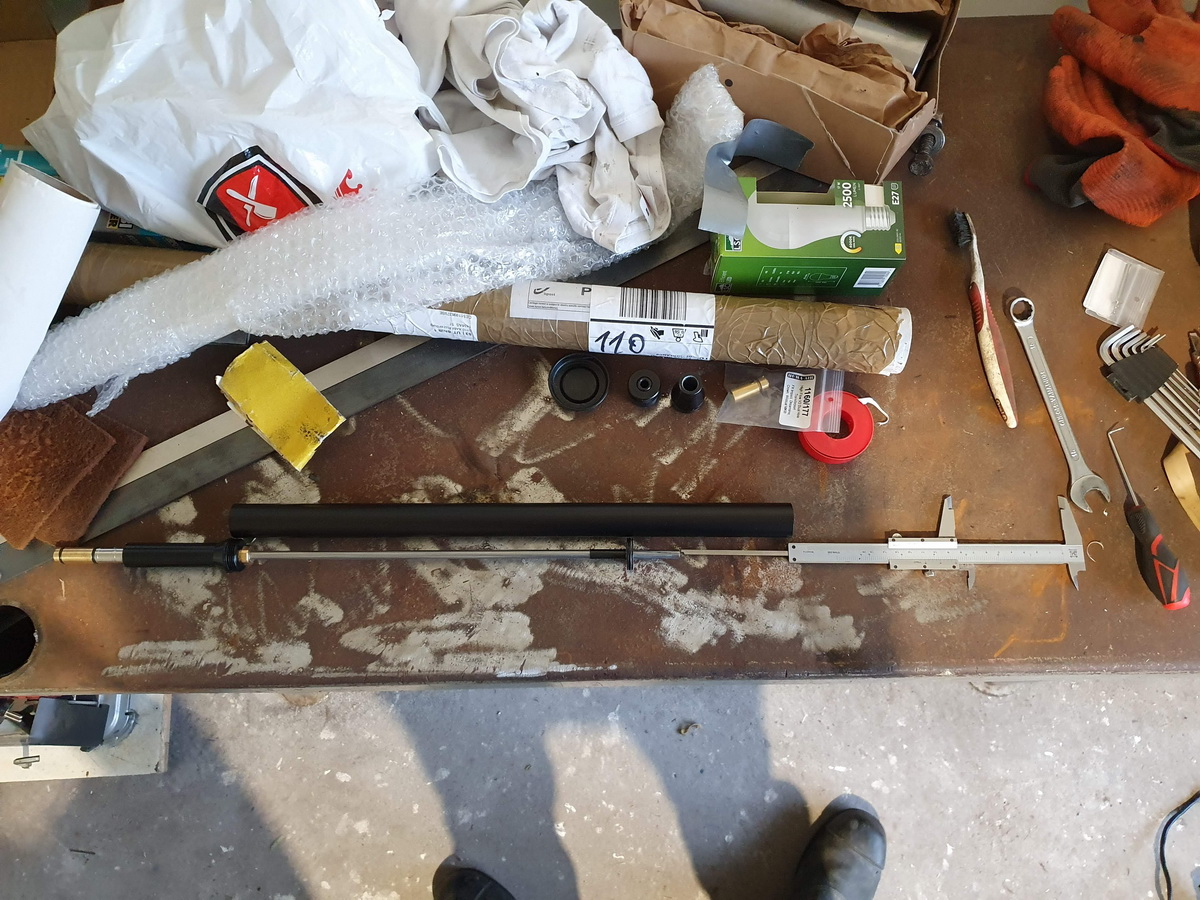

Overview of the setup

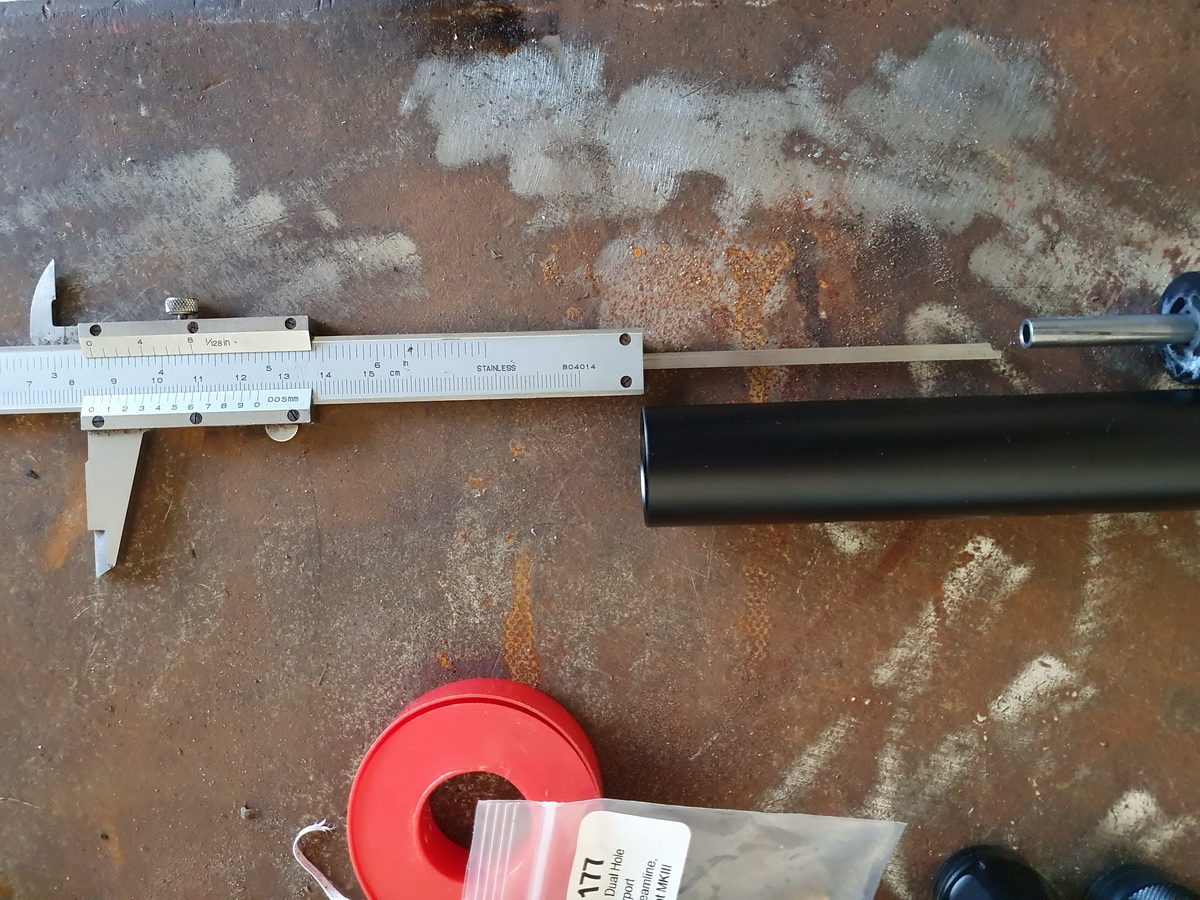

Room for internal silencer

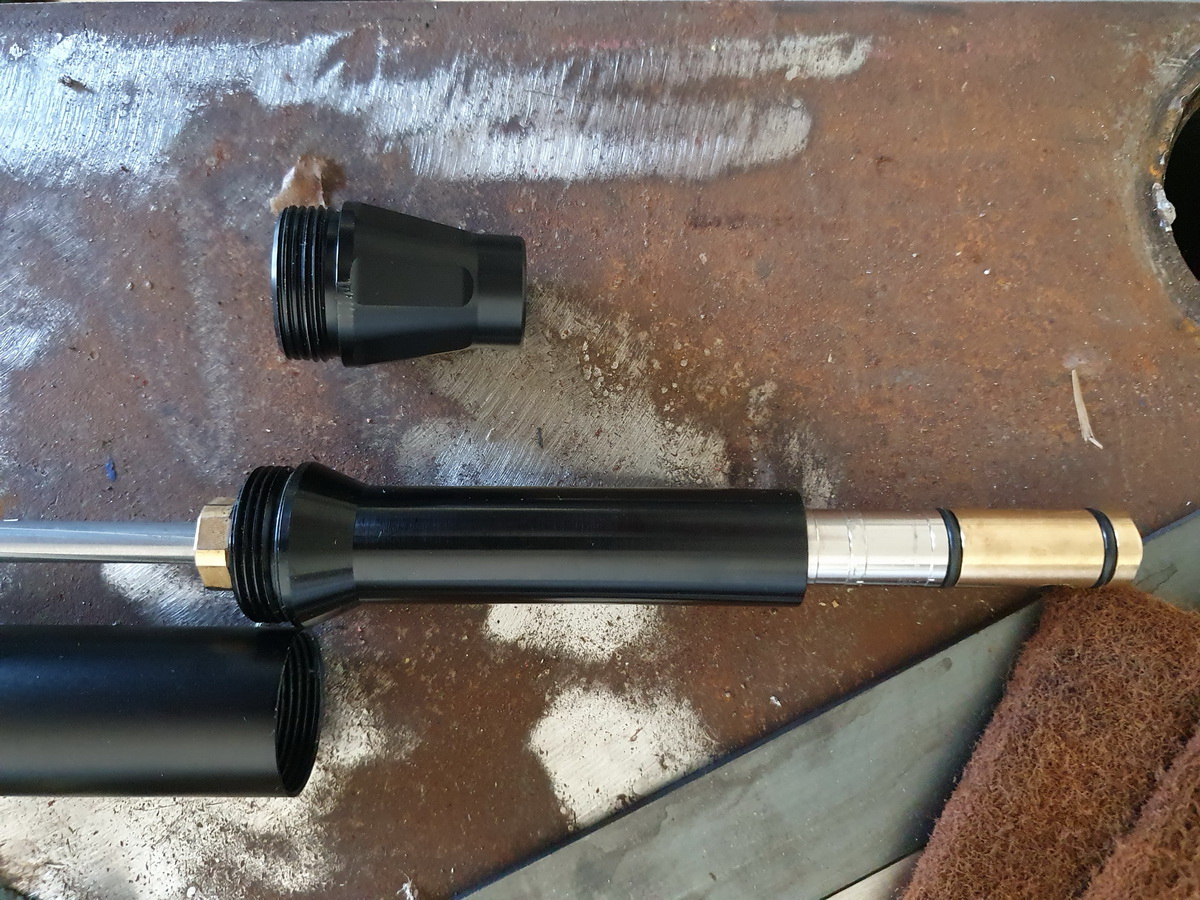

Difference between original FX Crown cone and custom cone.



[madeintheuk]

This will be nice to see. adding a moderator to the end makes a long gun even longer. Having a properly functioning shroud would be awesome!



[Firerail]

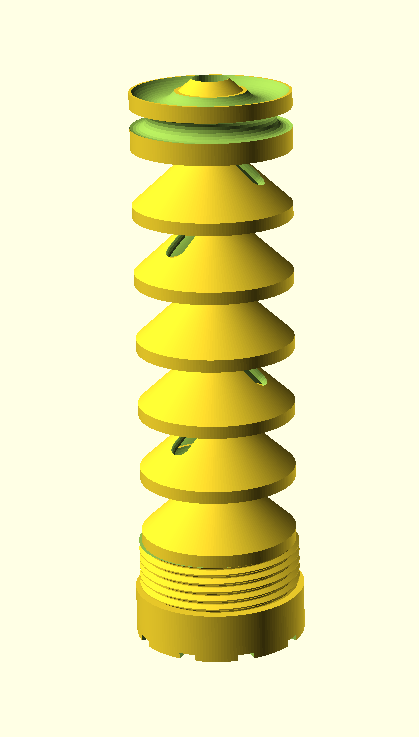

Did a little bit of designing and I will make something like this.

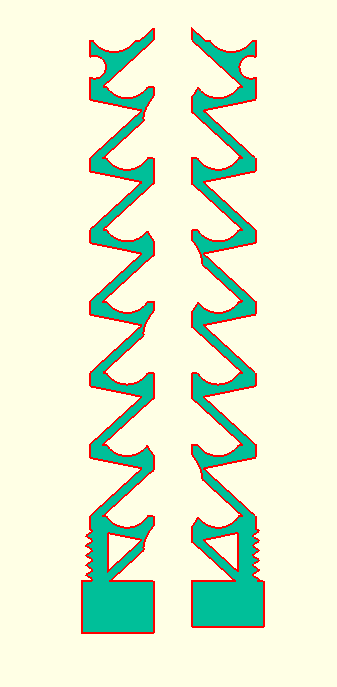

Same design as my .25 silencer, which I've tested to 85 Joules, a bit shorter 8 instead of 14 baffles.
