4500psi Regulator for very low pressure (non airgun) usage?

[dgeesaman]

Been looking at inflatable kayaks and it occurred to me that if there is a regulator device that steps down to very low pressure, it would be super easy and handy to use.

Might also work well with car tires and bike tires.

Obviously this kind of device should not be some half-as*ed contraption - I expect it would cost a little money to be truly safe and reliable - but does it exist?



[jarmstrong]

I use an air bubble, I installed a tee with a foster male that has the internal check valve to fill my bubble and then use the bubble to fill my low pressure tires and such

be sure to turn red valve to "ON" for filling tank



[jarmstrong]



[Scotty1]



[elwoodblues]

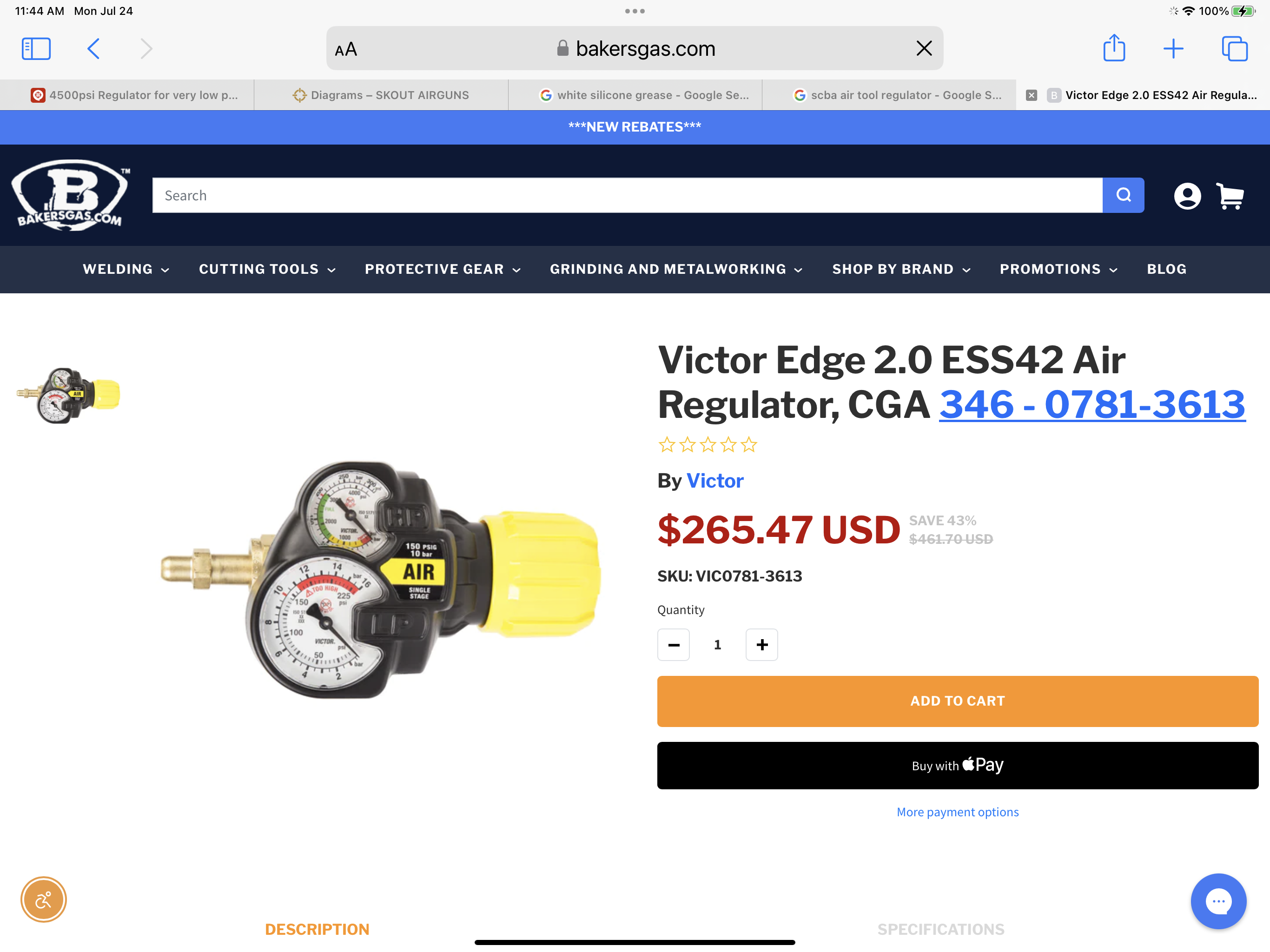

That regulator is NOT rated for 4500 psi only 3000 w.p.

I know this as a fact as I used to be a mfg rep for Thermandyne /victor



[peebrainz]

20V MAX* Corded/Cordless Air Inflator

Our 20V MAX* Corded/Cordless Air Inflator can run on any one of three power sources** for maximum versatility: 20V MAX* battery, 12V DC, or 110V AC. Use it on the jobsite, or on the go. It features a high-pressure rubber hose for durability. The threaded chuck and included onboard accessories...

www.dewalt.com



[dgeesaman]

I use an air bubble, I installed a tee with a foster male that has the internal check valve to fill my bubble and then use the bubble to fill my low pressure tires and such

be sure to turn red valve to "ON" for filling tank

So in layman's terms, an "air bubble" is a secondary / lower pressure tank?

Why is there a fitting marked "150 psi" in this rig? Seems to me you'd need 4500psi rating all over.



[dgeesaman]

20V MAX* Corded/Cordless Air Inflator

Our 20V MAX* Corded/Cordless Air Inflator can run on any one of three power sources** for maximum versatility: 20V MAX* battery, 12V DC, or 110V AC. Use it on the jobsite, or on the go. It features a high-pressure rubber hose for durability. The threaded chuck and included onboard accessories...

www.dewalt.com

Ha! I already own one of these. It takes about a minute to raise a car tire about 5psi.

It might take forever to fill a high volume like a kayak but I will explore it.



[rcs9250]

Aqua Environment makes the regulator you want. It ain’t cheap though.

415 Reducing Regulators On Aqua Environment Co., Inc.

Browse 415 Reducing Regulators in the Aqua Environment Co., Inc. catalog including Item #,Special Features,Maximum Rated Pressure,Inlet Port Size,Outlet Port Size,Flow Coefficient (Cv),List Price

valvesandregulators.aquaenvironment.com



[RM.510bigbore]

For what you are doing the Scott 4500psi tanks with the breathing regulator. They take the 4500 psi to low pressure. Check EBay probably buy a tank and back pack whole deal for $100.00. They are usually CGA347 valve. Hope this helps



[jarmstrong]

dgeesaman,​

I assumed you were going from a compressor, that was short sighted of me, to not consider you might have a bottle, that you want to step down from

I do fill my air bubble from my Coltri mch6, it never gets past 135 psi, I DO NOT LET IT , and takes a couple of minutes or so to reach that pressure,,, I stand right there and watch the entire time,,, easy as can be

I call them bubbles but aka air tanks

https://www.amazon.com/dp/B000FW7W54?th=1&psc=1&language=en_US



[rcs9250]

And whatever connection method you end up with, you probably won’t need a flow restrictor in the set up.



[Ca_Varminter]

Why do think you need a Regulator or flow restrictor???
I have using my 88 cu ft 4500 psi tank fill my tires and inflatables for years......
It called Valve control....
I just crack open the valve slightly to get the air flowing.... and adjust the flow from there.....
But you can't just walk away.... you must monitor the filling....
BTW I just use my Fosters QD socket as my fill nozzle!!
Just push the schrader stem against the O-ring in the Foster Socket!!!
EZ
