$335 for a 9mm SPA/Artemis/Snowpeak M25

[Picard]

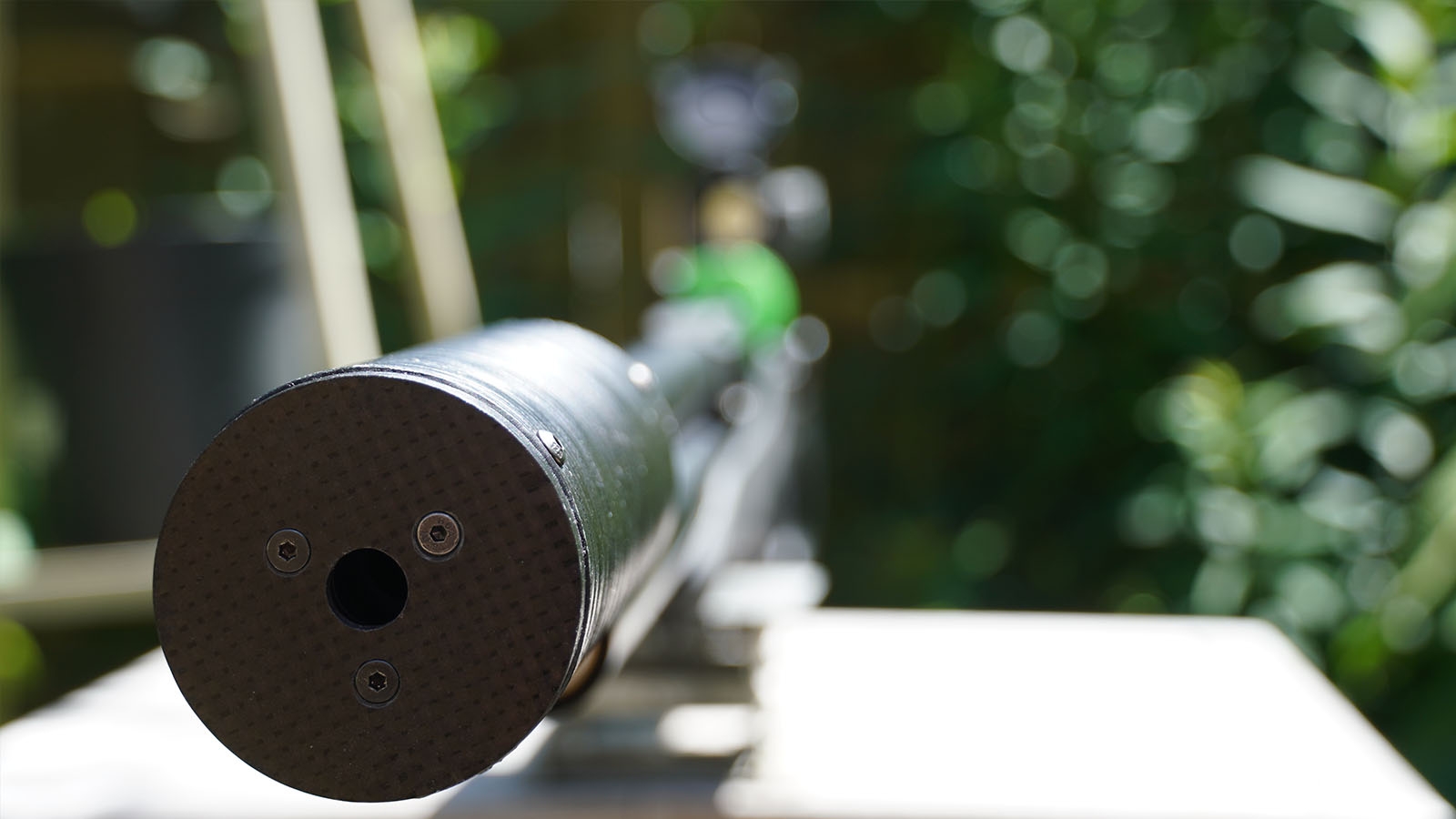

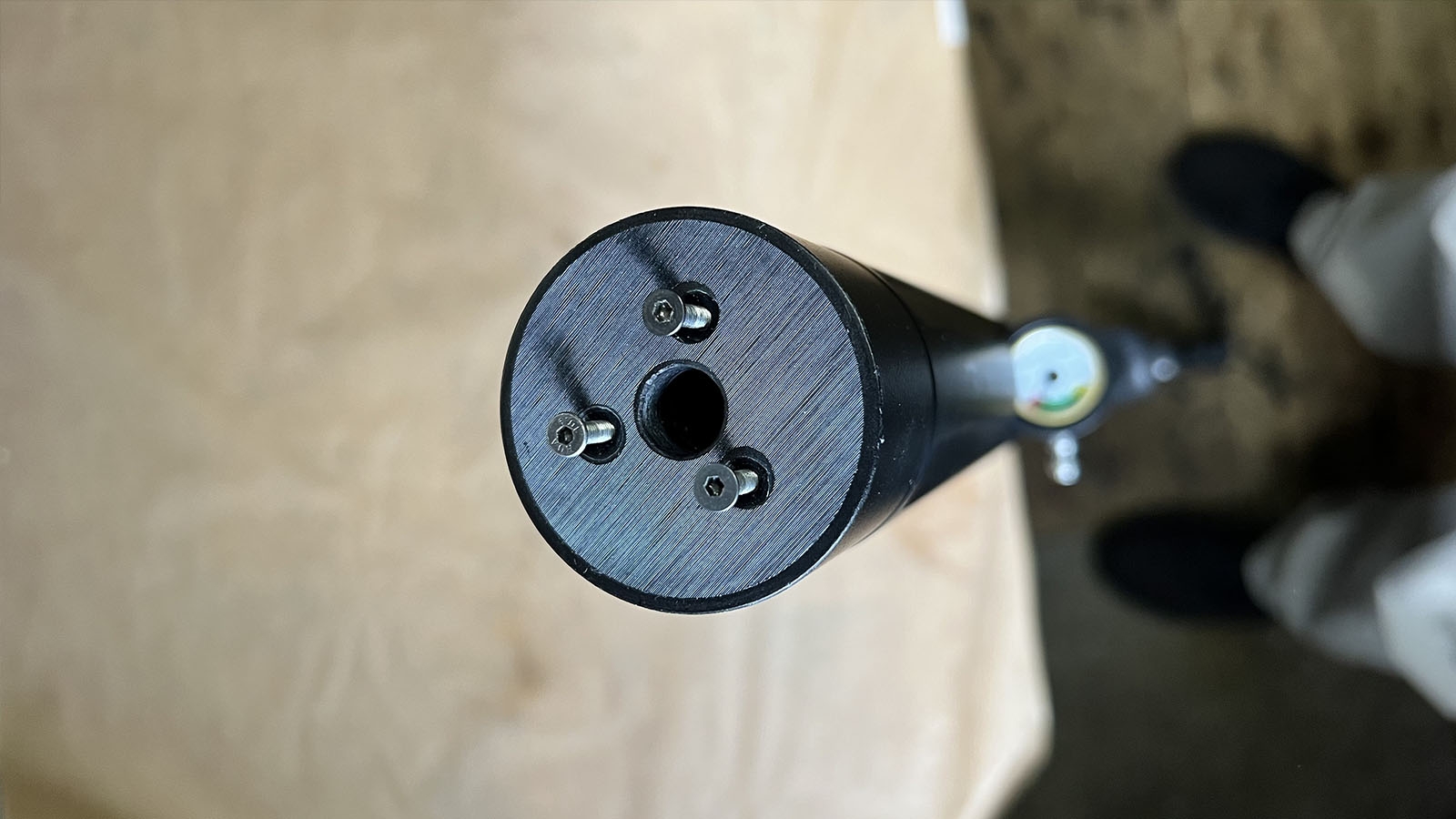

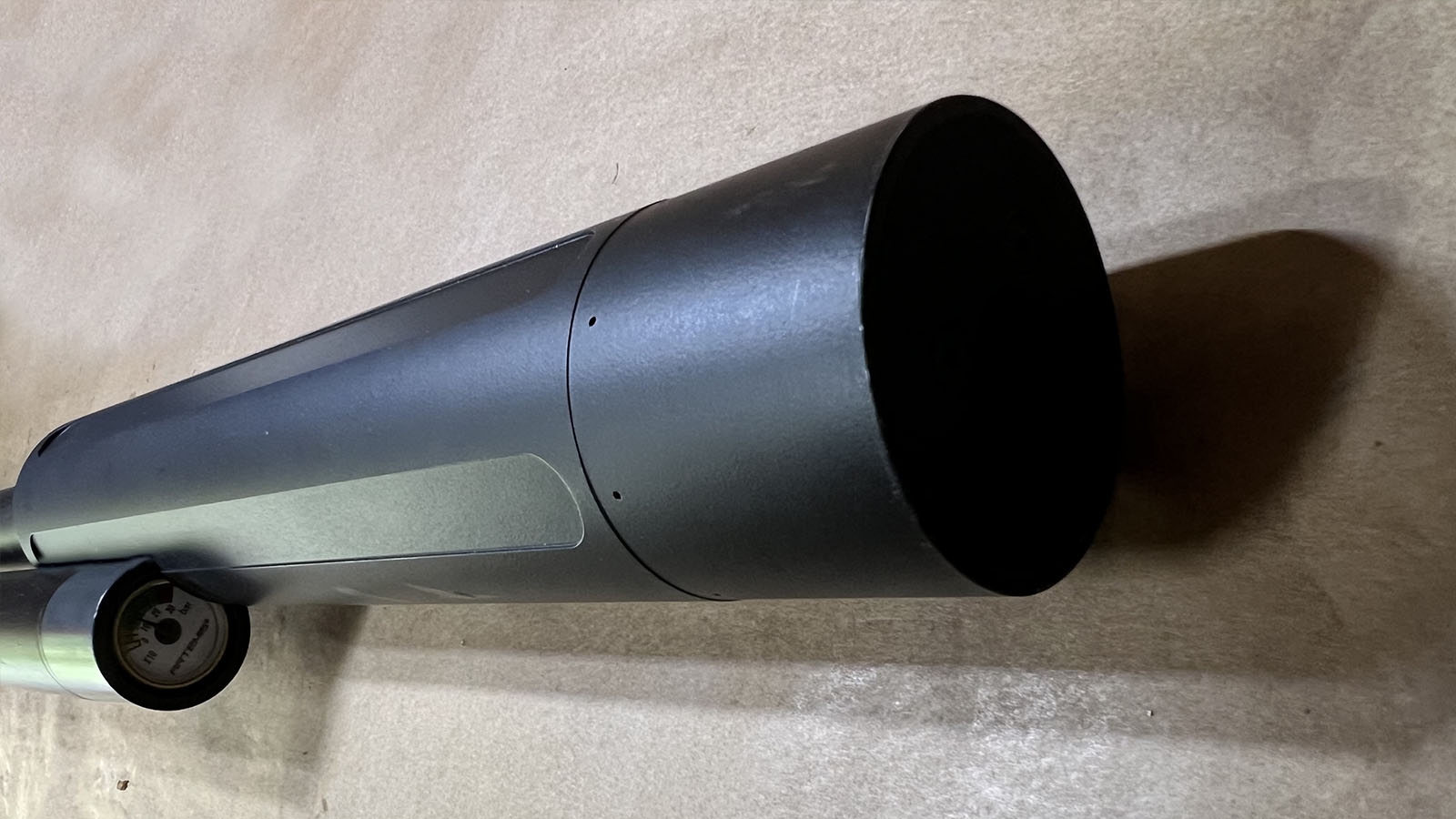

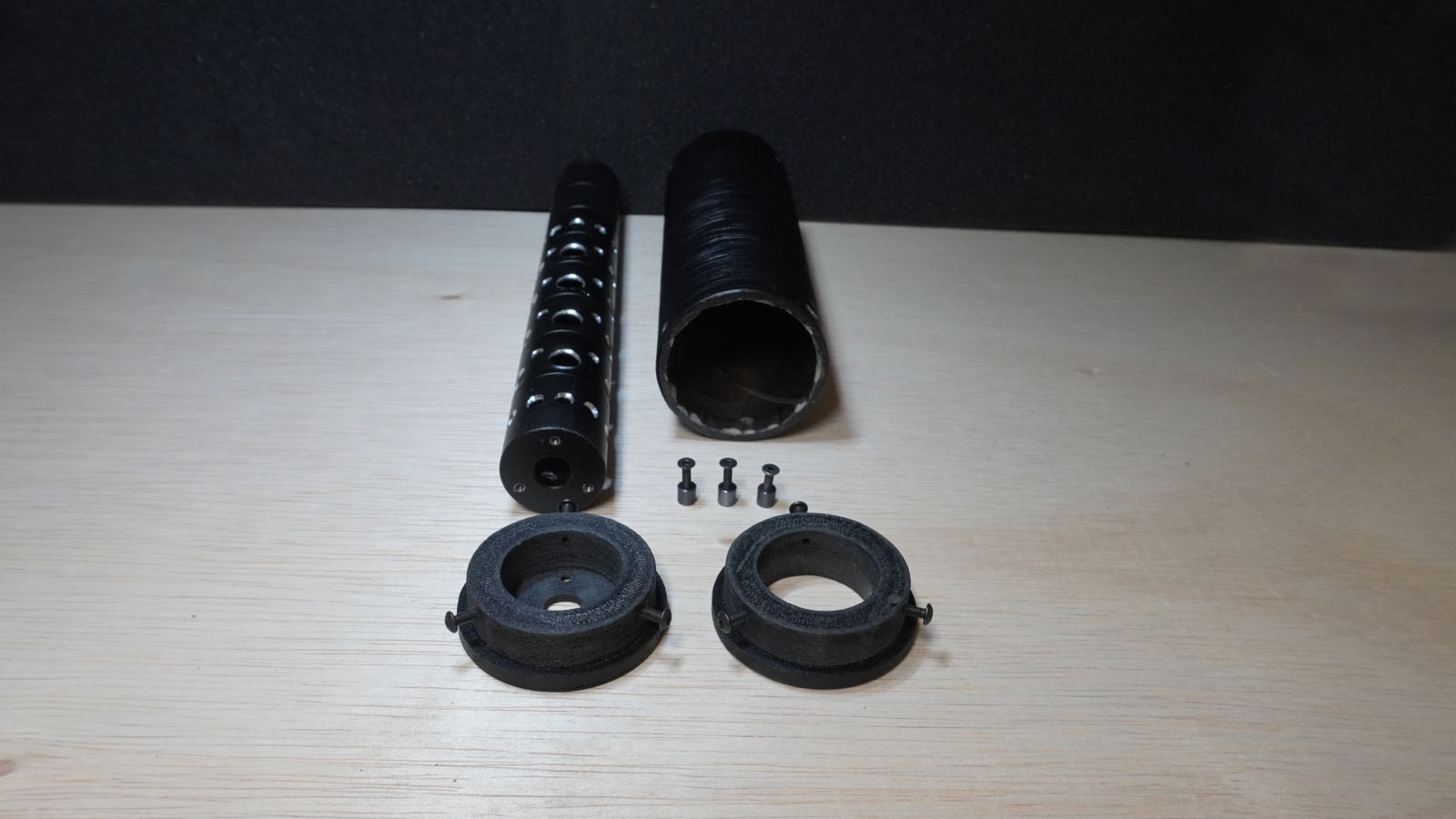

My m25 also has 3d printed parts to make a bigger supp work. The first try was a short fat can the second was a customized donnyfl emperor. Both are basically a sleeve over the original supp that has holes drilled in it, funny enough this works pretty well!



[gizmo1974]

that is cool as poop how you did that i was wounting to put i like donnly fl ronan on my 357 but its got metrick m16x 1.5 threads



[dj0000ro]

i am building my 357 in to a carbean factory barrle length is 24 inchs cuting mine down to 18 barrle length and cuting down air tube also it will look like carbean i got in pict any way you could 3d print a larger o/d ldc that would thread right on to the 16mm male threads sticking out

This is looking nice, what will be the shot count when you shorten the air cylinder?



[dj0000ro]

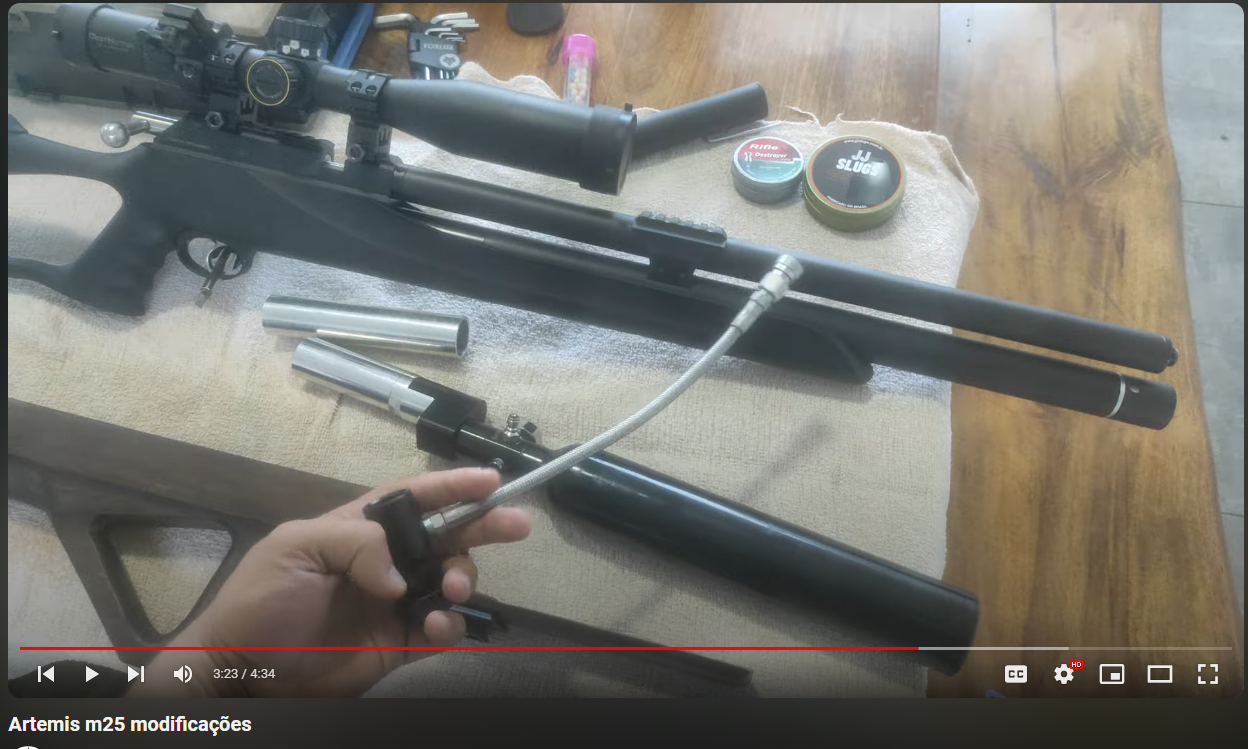

Did anyone tried to do the bootle swap?



[gizmo1974]

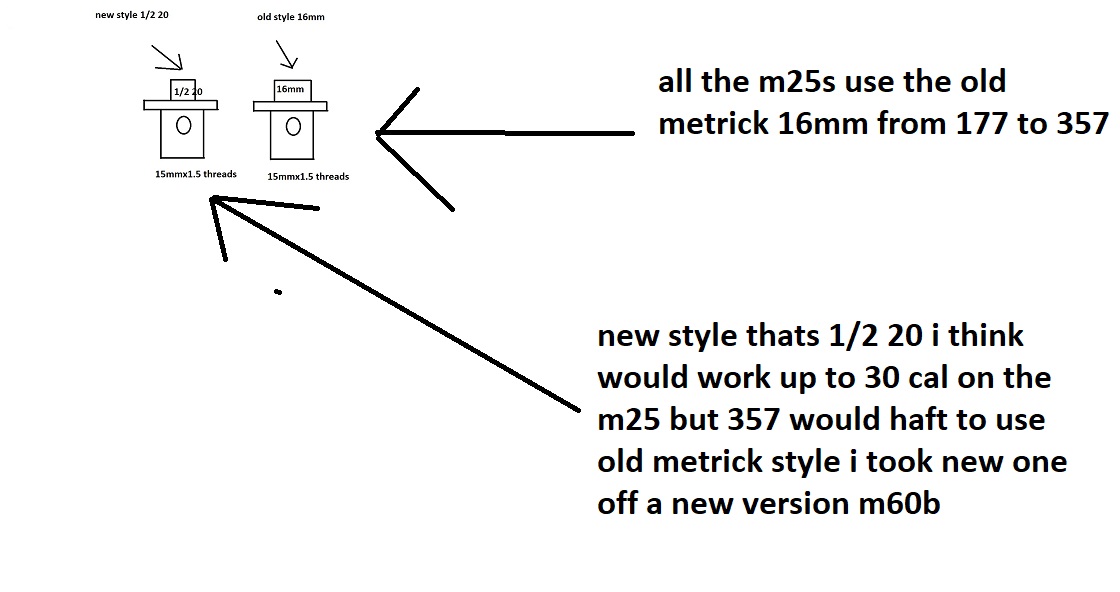

not shure on count i removed the pendum tube it was 7 inchs long on the 30 and 357 m 25s they have lot larger length tube the 177 and 22 and 25 use the short tube like in your pict i just removed the 7 inch long tube and removed reg then put long air tube back on but then took it off to run moded air tube took 3.5 inchs off long tube length then took 6 .5 inchs off barrle will post pict when my machine guy get them fixed up any of you guys that would wount to run the new style adapter i got one i would trade to the one that comes factory on all of the m25s its got male 16mmx1.5 threads sticking out haft to run this size for shure on the 30 and 357 but on 25 cal down on the m25s can run my new adapter its 1/2 20 male sticking out so you can run the reagular ldcs that are 1/2 20



[gizmo1974]

not shure on count i removed the pendum tube it was 7 inchs long on the 30 and 357 m 25s they have lot larger length tube the 177 and 22 and 25 use the short tube like in your pict i just removed the 7 inch long tube and removed reg then put long air tube back on but then took it off to run moded air tube took 3.5 inchs off long tube length then took 6 .5 inchs off barrle will post pict when my machine guy get them fixed up any of you guys that would wount to run the new style adapter i got one i would trade to the one that comes factory on all of the m25s its got male 16mmx1.5 threads sticking out haft to run this size for shure on the 30 and 357 but on 25 cal down on the m25s can run my new adapter its 1/2 20 male sticking out so you can run the reagular ldcs that are 1/2 20



[thanos89]

Well im currently working on a folding stock (thanks Piccard!) maybe with an FX compact barrel and carbon bottle rig....! ill keep u informed



[dj0000ro]

How did you solve the problem of the bolt coming up after shooting?



[thanos89]

How did you solve the problem of the bolt coming up after shooting?View attachment 428869

id like to know too!



[dj0000ro]

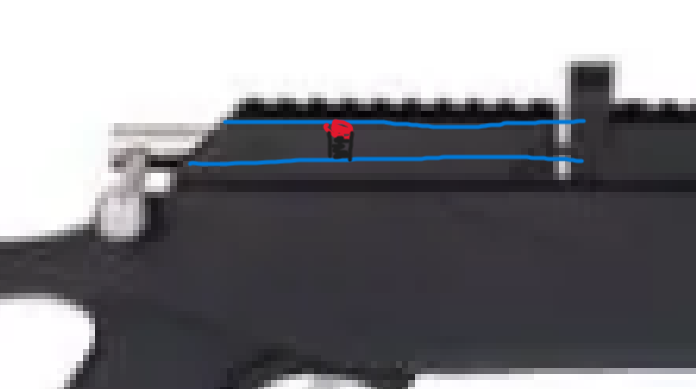

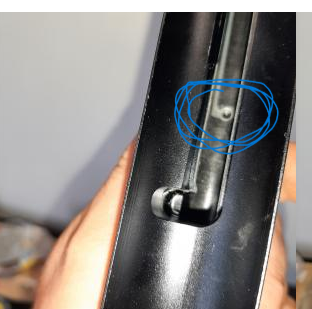

I have disasembled the rifle to see how its operating, in the bolt there is a steel ball with a spring that become loose after time . You can access it from the bottom of the upper reciver and you just need to tighten this screw and maybe put some treadlocker or put the same screw behind the first one so it stay in place.



[Pepo]

Hello. My name is Pepo and I am new to this forum.

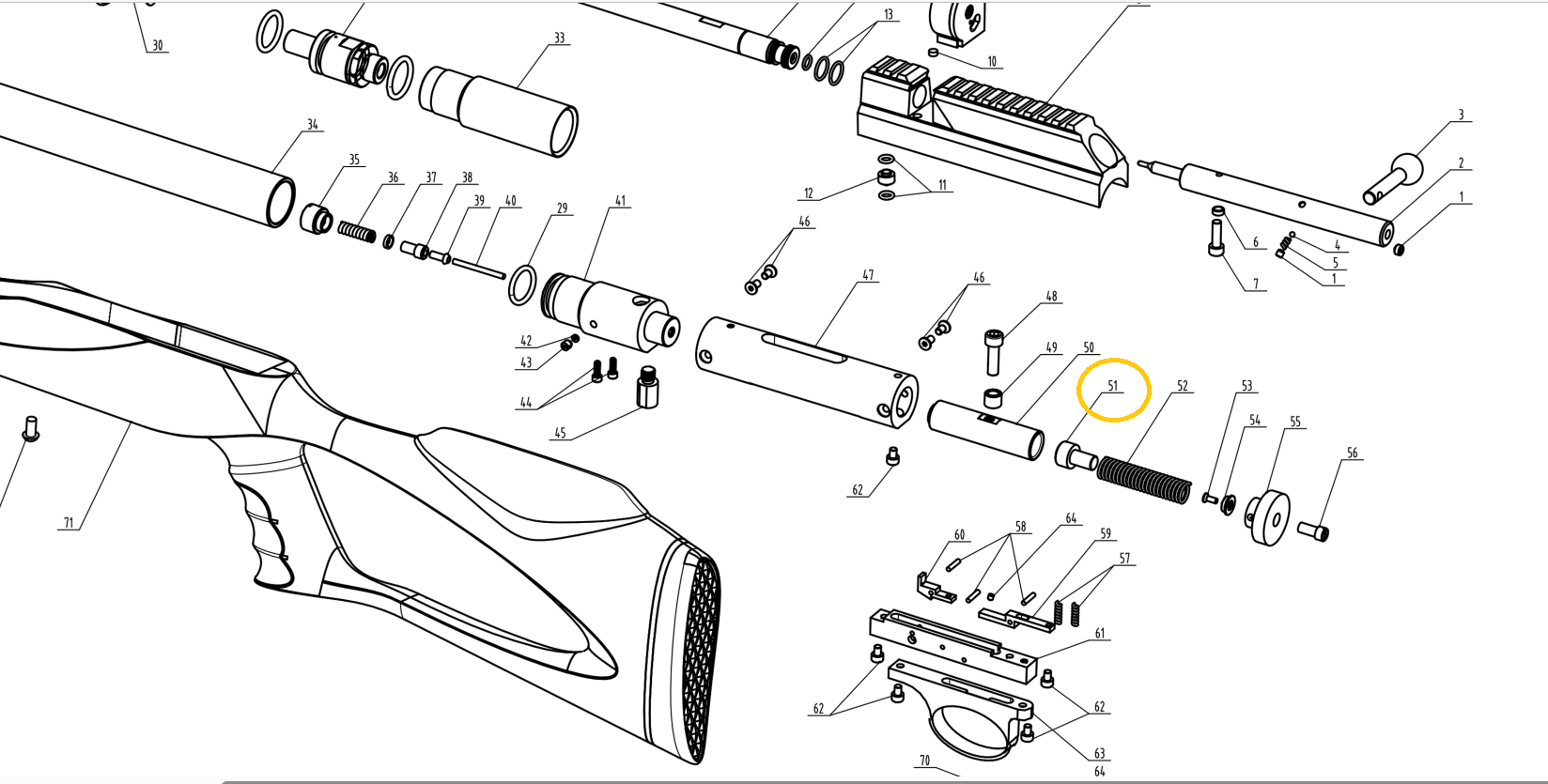

I recently purchased a Snowpeak M25 cal. 7.62 and I have a question. Should this caliber have part number 51 in the image? The 4.5, 5.5 and 6.32 calibers do have it, but mine does not. I think maybe only calibers smaller than 7.62 have it.
Can someone solve my doubt?
Thank you



[dj0000ro]

Hello. My name is Pepo and I am new to this forum.
I recently purchased a Snowpeak M25 cal. 7.62 and I have a question. Should this caliber have part number 51 in the image? The 4.5, 5.5 and 6.32 calibers do have it, but mine does not. I think maybe only calibers smaller than 7.62 have it.
Can someone solve my doubt?
Thank you

View attachment 437096

Larger calibers 7,62 and 9 mm doesnt have parts 51, 53, 54 and 56



[Pepo]

Larger calibers 7,62 and 9 mm doesnt have parts 51, 53, 54 and 56

Tank you



[nervoustrig]

I’m confused. Part 51 is the hammer so how can it be omitted?



[dj0000ro]

I’m confused. Part 51 is the hammer so how can it be omitted?

50 is hammer



[nervoustrig]

50 is hammer

Ah yes, thank you. It looked so large and monolithic that I thought it was a tube the hammer slides within. I didn’t realize it’s the actual hammer but it makes sense now.



[Pepo]

Yes, of course, I thought that the drawing I showed was for all calibers, but I was wrong, it is only for 4.5, 5.5 and 6.32mm.
Does anyone have the exploded view drawing of the 7.62 and 9mm calibers of the M25?

50 is hammer



[Pepo]

Thanks..Picard...I really enjoy shooting simpler gun .like that one and the airforce line..is more fun to be able to do things myself...

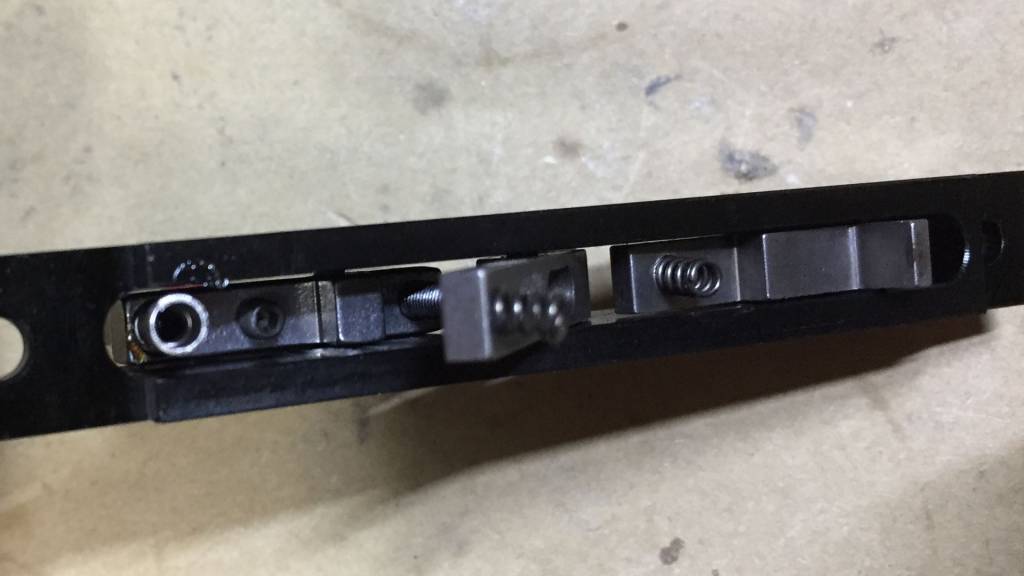

JSB 81g are getting 807fps 117fpe with the reg around 135bar it has no reg gauge because it's located inside the tank so its not easy to adjust. A 102g slug is getting around 740fps124fpe. It's a great gun for a project its easy to disassemble and tune (bigger transfer ports, spring tension etc) the trigger unit is pretty good a simple design and adjustable. The barrel transfer ports needed some work!



View attachment 175416

View attachment 175426

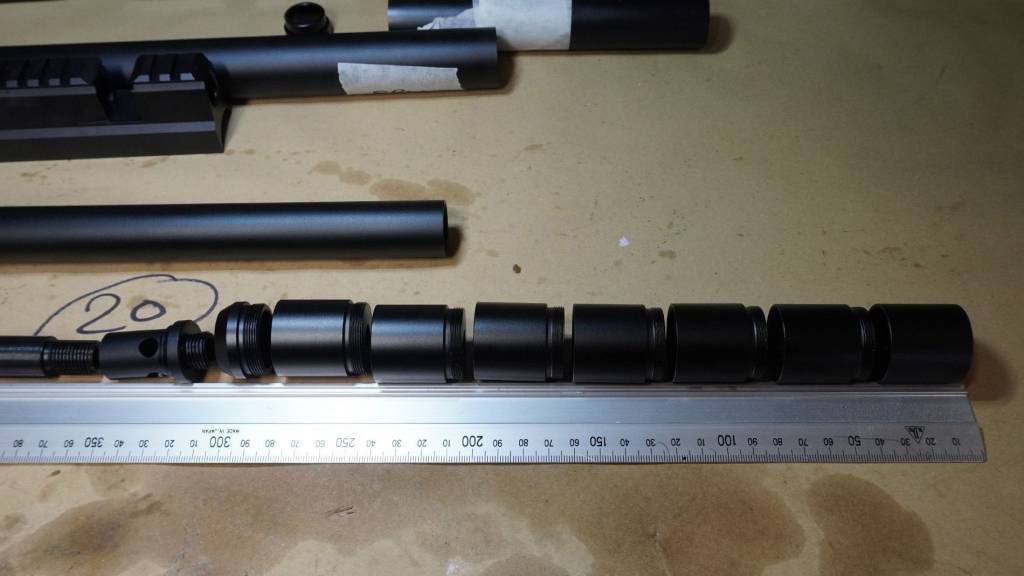

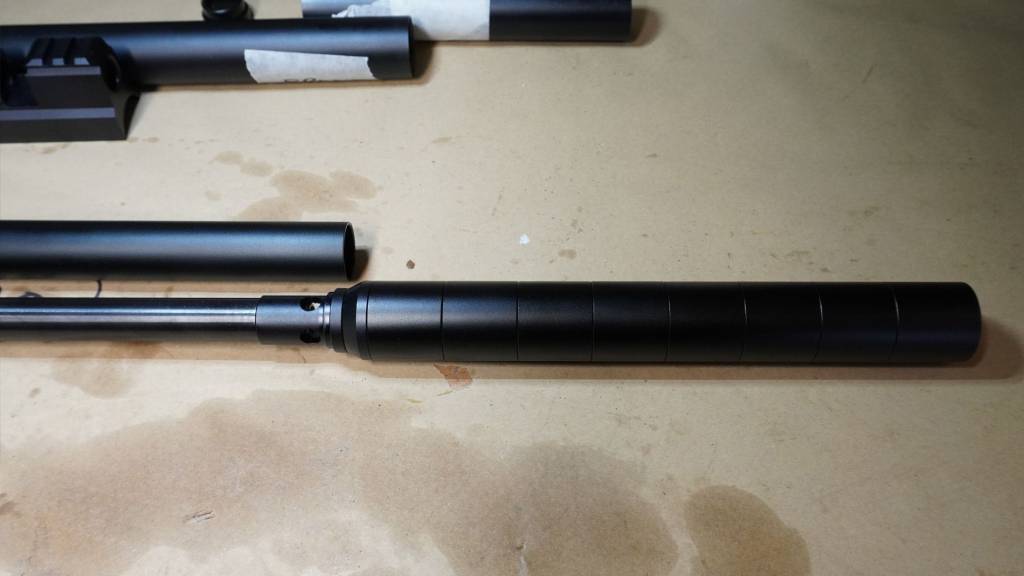

The supp is a bit thin for a .35 but it has some length to it, the barrel is fully shrouded

View attachment 175431

View attachment 175437

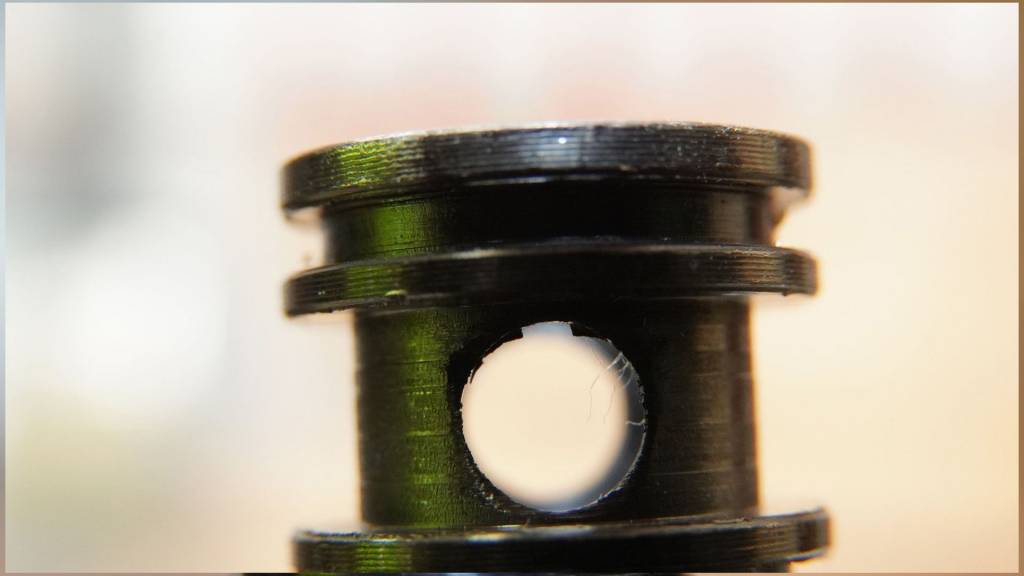

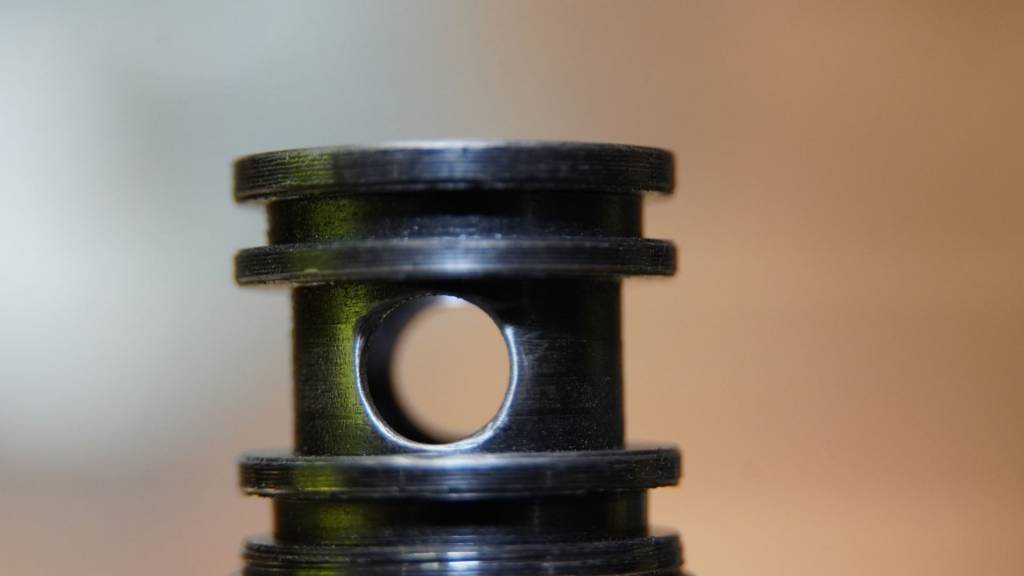

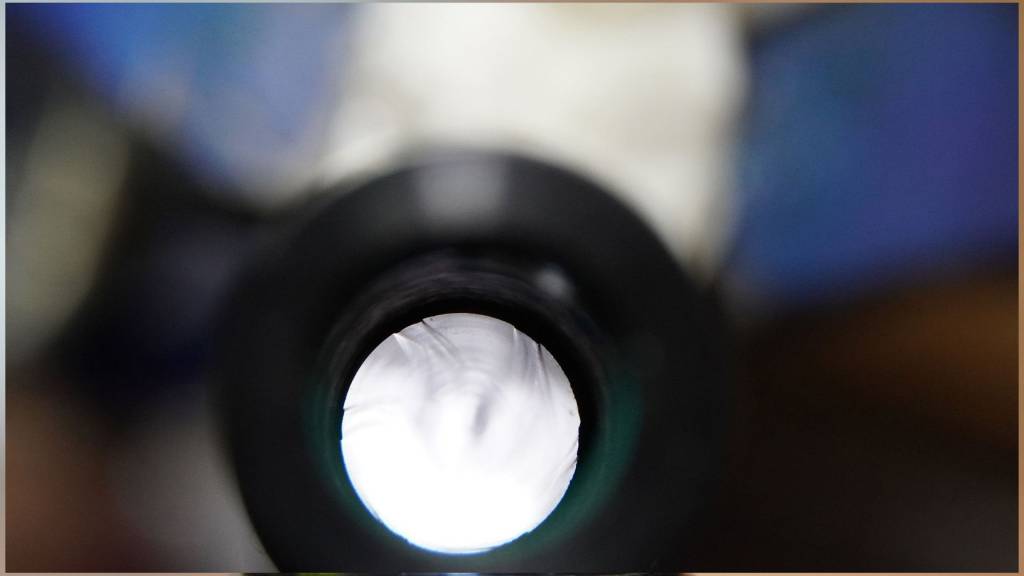

The crunchy barrel ports, some elbow grease and a Dremel tool did it good

View attachment 175448

View attachment 175457

View attachment 175467

Hello Picard.
Nice work!
Did you have problems removing the barrel?
I do have one, I can unscrew it one and a half turns and it locks. I think maybe the o ring prevents it from continuing to unscrew. Any recommendation?



[keesbo]

Mine was quite easy to unscrew. Just keep on turning with a spanner I supose?



[Pepo]

Mine was quite easy to unscrew. Just keep on turning with a spanner I supose?

Solved! There were small particles of aluminum in the thread that prevented rotation. It seems that the person who assembled it was not very careful.
Thank you.
