Joe, congratulations on your mkiii! It’s a beaut and shoots like a dream with FX’s new barrel! Enjoy all of your guns now with the new barrels!
Upvote 0
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
3 Weeks With the FX Wildcat MKIII Sniper .25 Accessories, Mods, Tune, & Accuracy
- Thread starter JoeKool
- Start date
Thanks Ranchibi!
Owning a WC MKII, I really notice the improvement in this MKIII model Wildcat. The omission of the previous magazine system really improved the cocking smoothness, there is just less gadgetry going on in the breech. I also notice that FX has greatly improved the tolerances of the way all the parts seem to fit, it’s very solidly put together (no rattling). Almost too easy to tune as well.
The only negative IMO was the regulator gauge which has bar pressure markings every 50 bar. From 0, 50, 100, 150, 200, to 250 bar? I can’t precisely set my AMP regulator with those increments. With a gap from 100 to 150 bar you can’t really know where it is set, it would only be a guess. So, I replaced them with better marked and better quality gauges.
Upvote 0
Just one question, where did you find your single shot tray? I haven't seen one that I was sure would work in my gun yet, and the dealer had no idea when one would be available for this gun.
Thanks in advance!
Thanks in advance!
Upvote 0

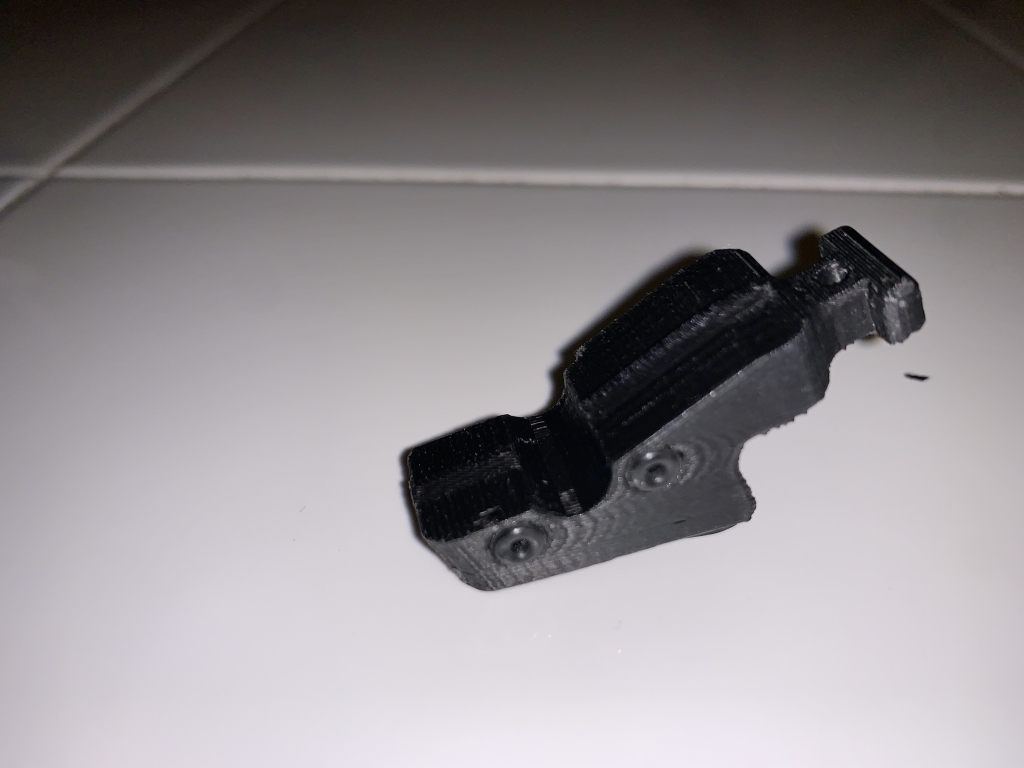

The eBay special, the single shot tray is from a good guy on eBay who 3D prints and sells them. It is actually for the FX Crown or Dreamline. I helped him develop them back in 2017 for the original FX Crown. They fit and work flawlessly. Luckily the New WC MKIII and the Crown and Dreamline’s side-shot magazine are the same, so they are interchangeable but caliber specific.. I have them for all of my FX’s. For target shooting I almost exclusively use a SST.
https://www.ebay.com/itm/192546390608
Upvote 0
I was just about to ask if you used the superior standard liner. Quiet impressive you was able to get that good group with the NSA 33 grain, in the same liner. Guess in the past you needed a slug liner to achieve that. It looks close to a tie at 100 yards between the JSB heavy, and the 33 grain NSA
Upvote 0
Thanks a lot for that! Ordered it just now in .25 yellow. I only shoot bench, so the loading of the mags is not necessary for me either.
Upvote 0
Another way of measuring the "reg pressure" is to measure the max speed of a pellet with a certain weight. So if your gauge shows 110 bar, or 130, it really does not matter, as if you use the max speed as a measurement, you are measuring the result of your reg pressure instead. But it requires to adjust the hammer until the gun starts to waste air. Usually most gauges will show the increments right, even they may be off on the actual readout. So adjusting up or down 5 bar will usually be close enough on a unpresice gauge. But I agree there should be at least 10 bar increments on the scale
Upvote 0
I was just about to ask if you used the superior standard liner. Quiet impressive you was able to get that good group with the NSA 33 grain, in the same liner. Guess in the past you needed a slug liner to achieve that. It looks close to a tie at 100 yards between the JSB heavy, and the 33 grain NSA
When these barrels are more readily available and more air-gunners try them.. Watch the aftermath?..
They’re good!
Another way of measuring the "reg pressure" is to measure the max speed of a pellet with a certain weight. So if your gauge shows 110 bar, or 130, it really does not matter, as if you use the max speed as a measurement, you are measuring the result of your reg pressure instead. But it requires to adjust the hammer until the gun starts to waste air. Usually most gauges will show the increments right, even they may be off on the actual readout. So adjusting up or down 5 bar will usually be close enough on a unpresice gauge. But I agree there should be at least 10 bar increments on the scale
That is exactly the way I tune. On the max power setting I want the max velocity, without air waste. Every other lower setting will fall where they fall. Efficiency, harmony, & balance utilizing the full range or span of the high to low settings using just enough air and HST to reach your desired velocity. A precise gauge is just icing on the cake!
Upvote 0
The 33.9 JSB's are really shooting well out of the Superior liner. What shot count are you getting at the 905 fps velocity?
Upvote 0
At the high power HS setting # 7, from 230 down to 130 bar, 48 shots. Which is three 16 shot magazines. Lower settings yield more shots, but I haven’t tried or counted all of the various combinations.
Upvote 0
Hey joekool my .22 sniper is on order can you post a pic of the gun in the case? I hope I have enough room for everything in the case. Keep posting everything you find and learn I'm very interested. Tim
Upvote 0

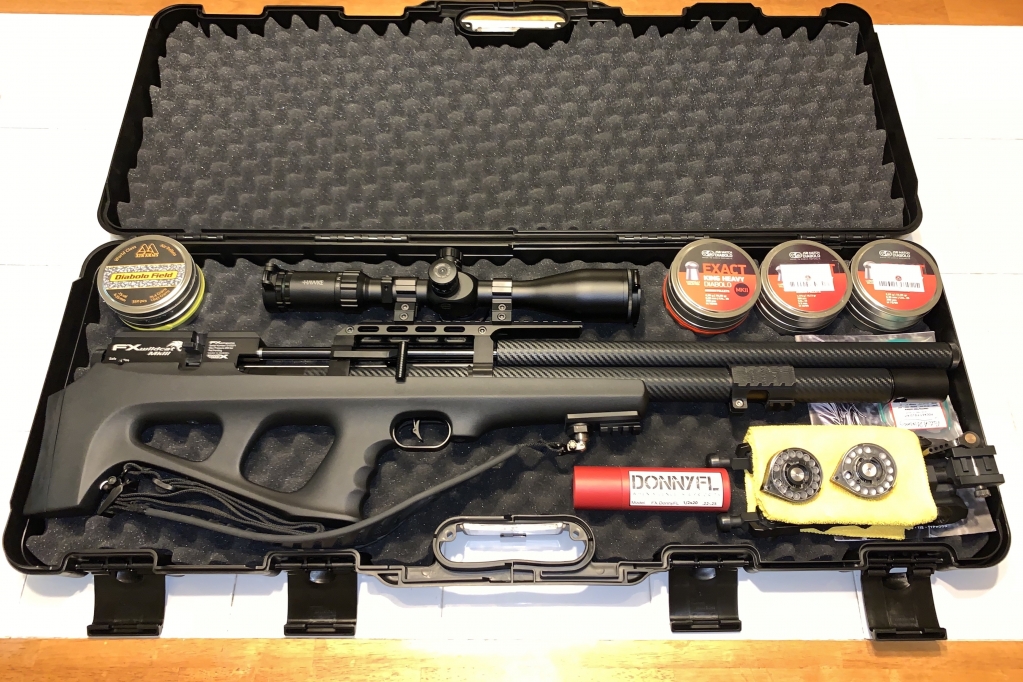

Placing the WC MKIII Sniper in the case the way I have it in the below picture. I am able to fit the airgun, (8x) large tins of pellets and slugs, my Accu-tac bipod, my DonnyFL in its container (not on the WC), (2x) 16 shot side-shot magazines, FX operators manual, and my patch-worm barrel cleaning kit.
Other Findings and Discoveries:

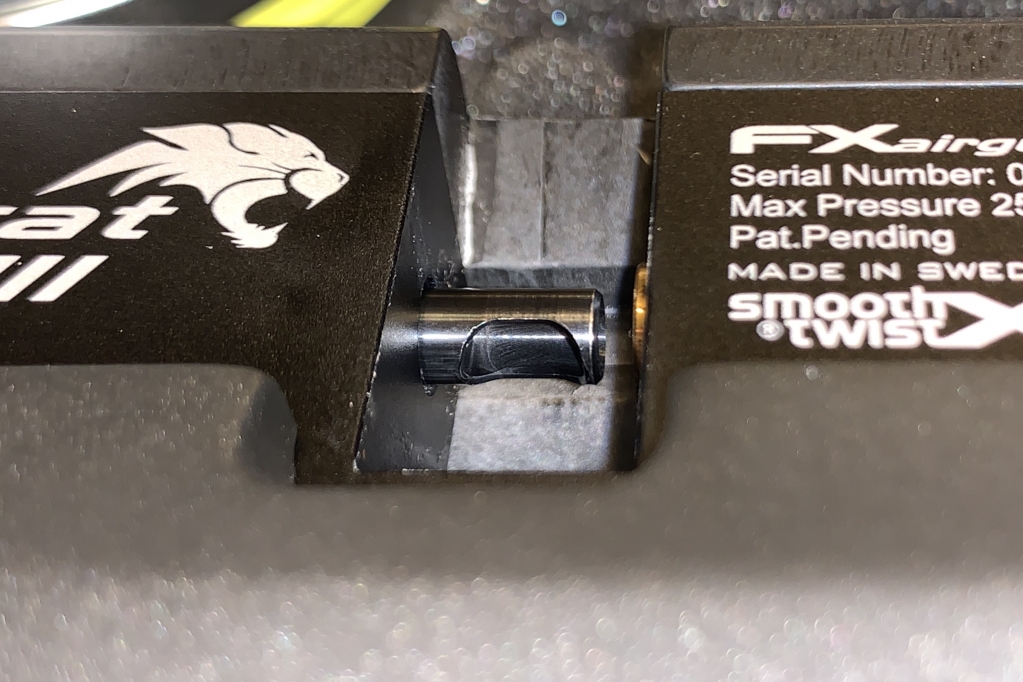

Look how large the factory transfer port hole is on the Wildcat MKIII’s pellet probe?(from the factory!)
Hmmmm?

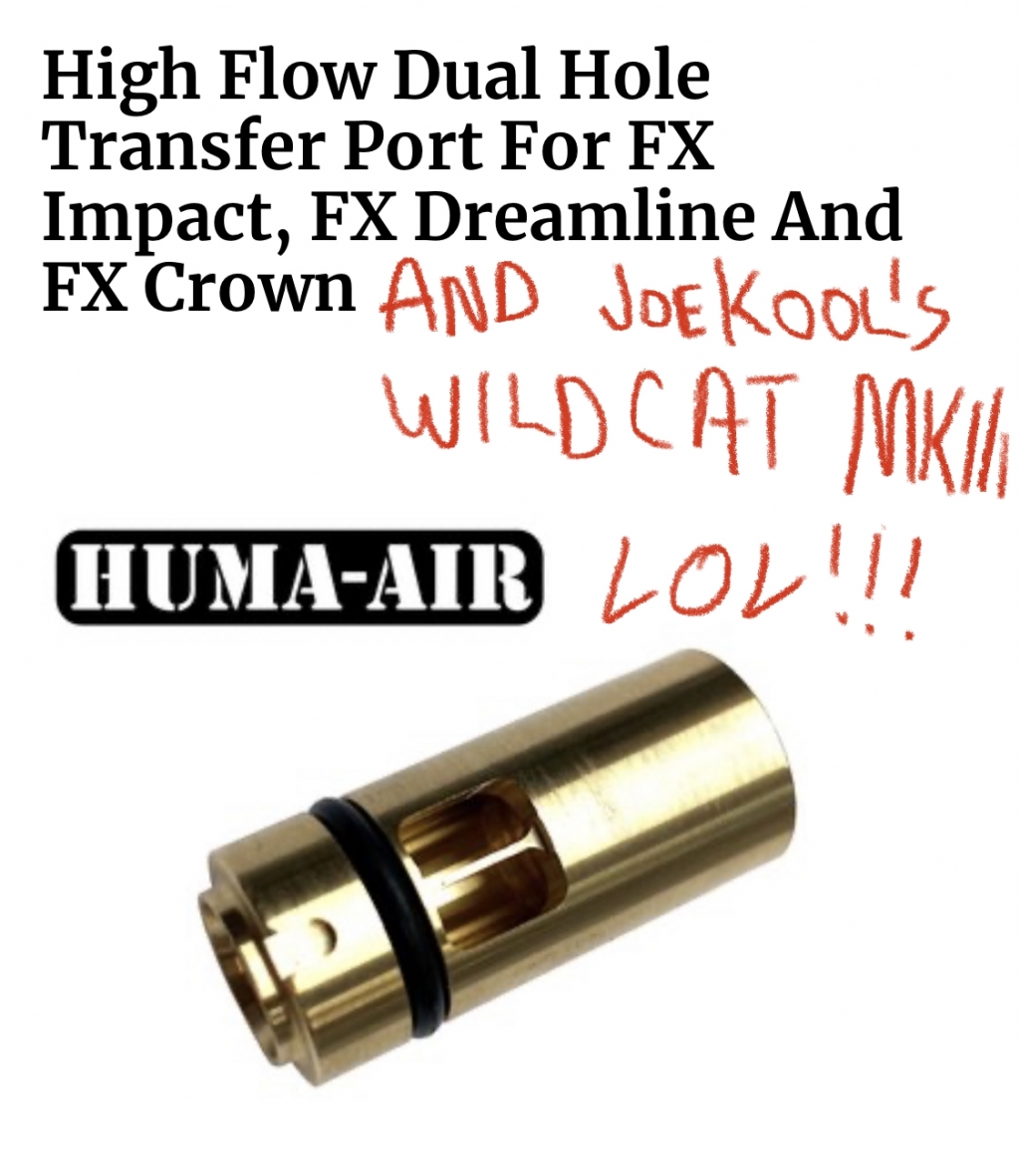

One of these will be in my mailbox in a couple days!!
Oops! Wait a second, is that two stacked Dreamline external plenum extensions?
Stay tuned... They’ll be a whole new thread/post on this. I’ll just say now that this Wildcat MKIII .25 is really deserving of the title, “SNIPER” !!
Awesome!
Upvote 0
JoeKool, STOP! I beg you STOP! This testing of my willpower with the alluring ways of your wicked temptress will only end with me breaking my devotion to my beloved WC mkI. I try to remain strong but the path to the dark side calls to me....
Upvote 0
New tune, she’s @ 135 bar now and with a additional half round increase on the HST allen screw micro adjuster. With the (2x) stacked DL external plenums.
Dual transfer port will be in Monday.
(Not yet installed)

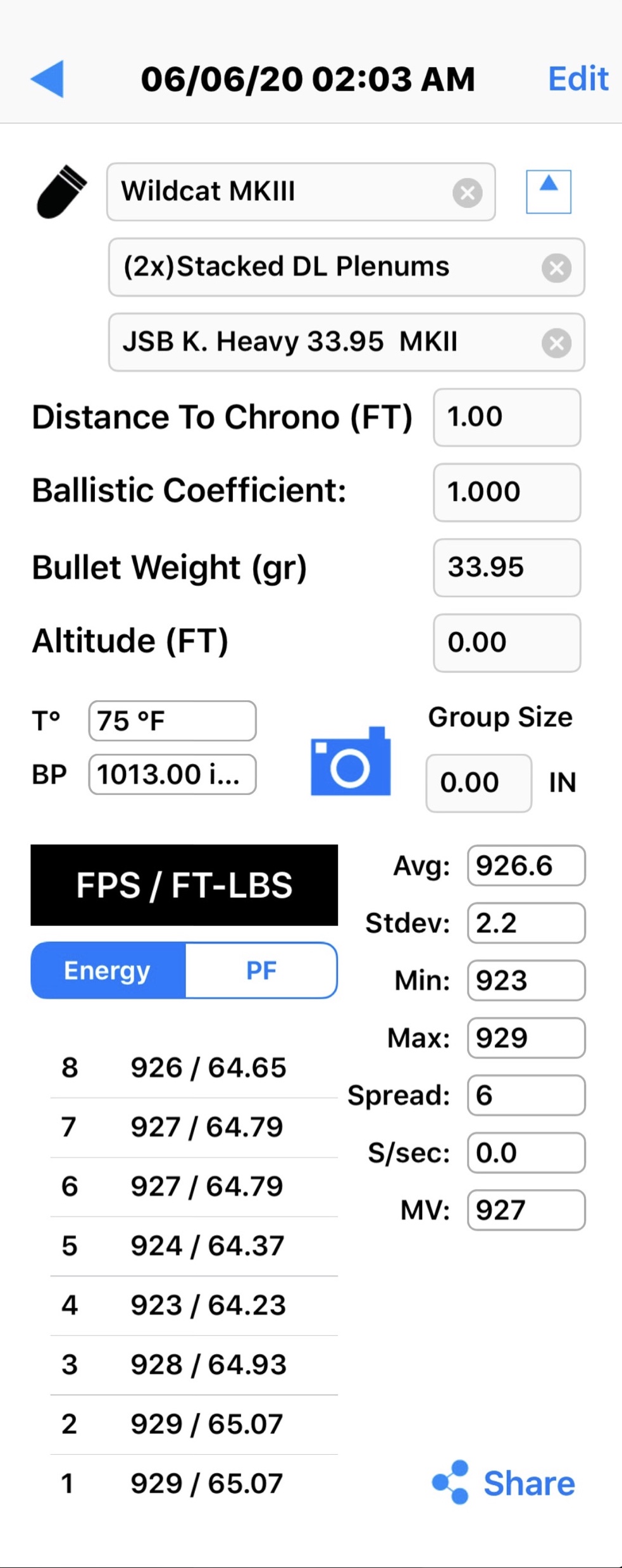

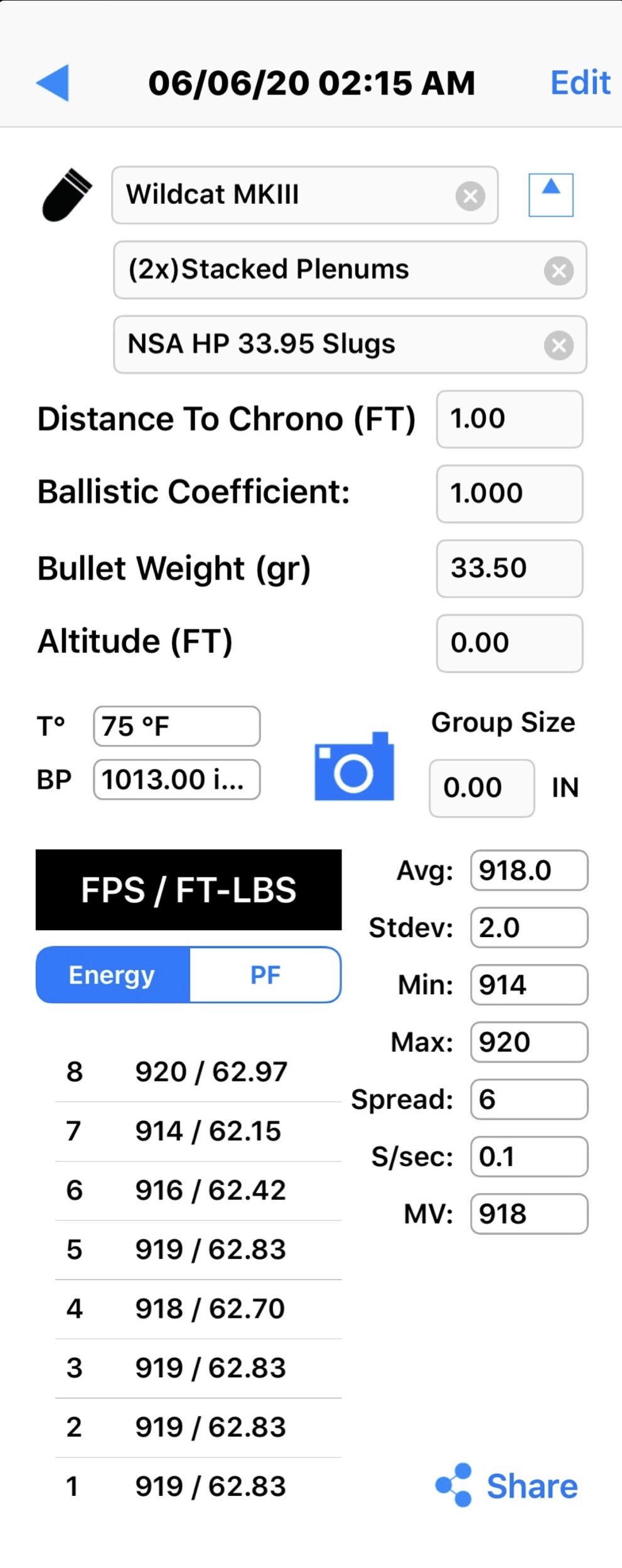

Chronograph numbers:
JSB KING HEAVY MKII 33.95 grain
Nielsen Specialty Ammo HP 33.5 grain slugs
Dual transfer port will be in Monday.
(Not yet installed)
Chronograph numbers:
JSB KING HEAVY MKII 33.95 grain
Nielsen Specialty Ammo HP 33.5 grain slugs
Upvote 0
