Hello AGN:
I recently had to get some A27 x-rings to fix a leak under the air gauge on my 0.25 caliber Impact M3 so ended up ordering all the relevant o-rings I could find from
http://www.oringsandmore.com using this thread:
https://www.airgunnation.com/topic/impact-o-ring-list-corrected-with-links/ The minimum orders for each size is way more than I'll ever need (hopefully) so I have a ton of extras for other Impact owners and can hopefully save them the time and effort. I don't think this is a comprehensive set but it should cover most of the common o-rings that you'll need to replace over time. Based on the above thread, these should fit the original Impact, Impact X, MkII and also the M3 – but please review sizes listed below and do your own research to make sure you're getting the specific sizes you're looking for (some o-rings are for specific calibers, production dates, etc).

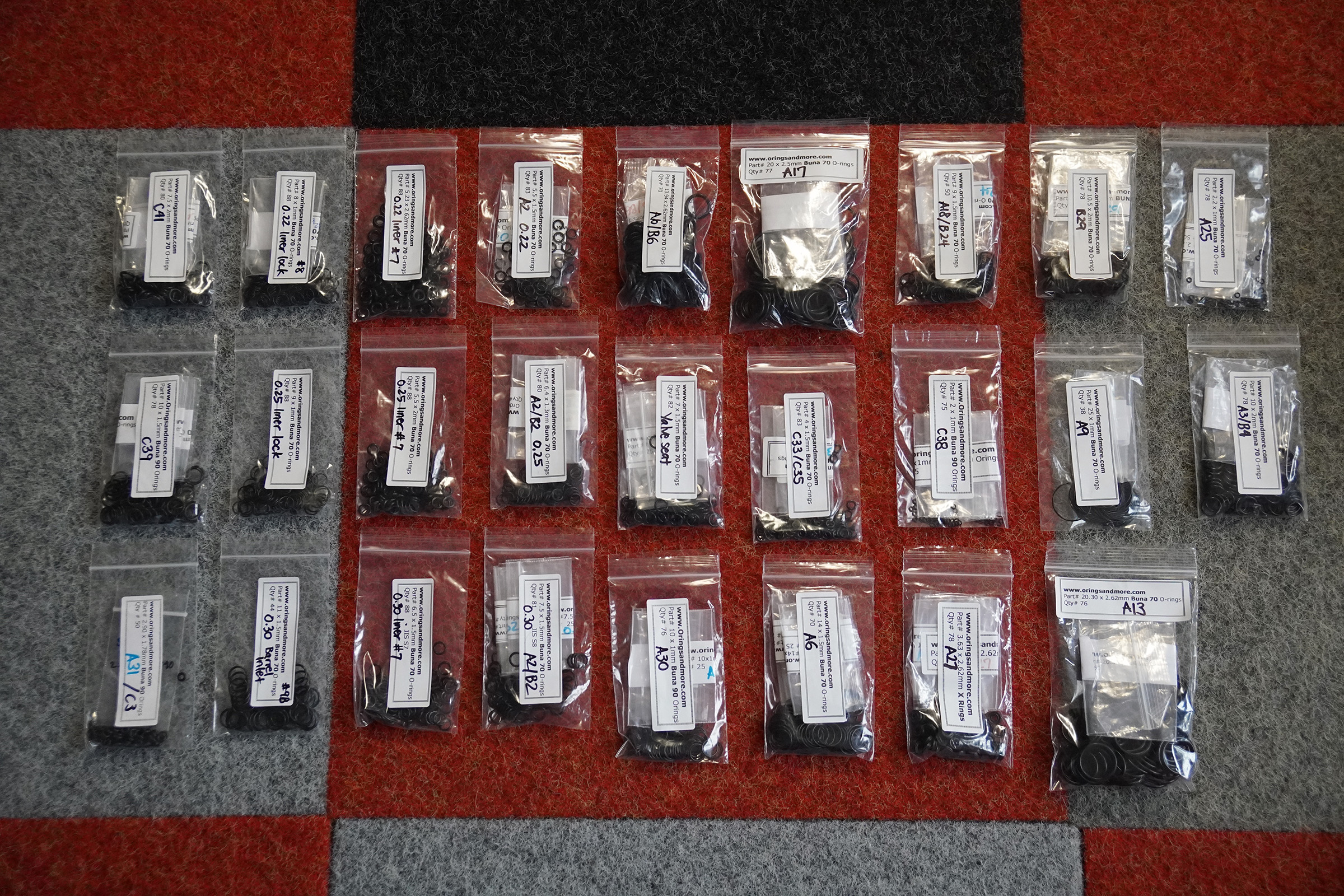

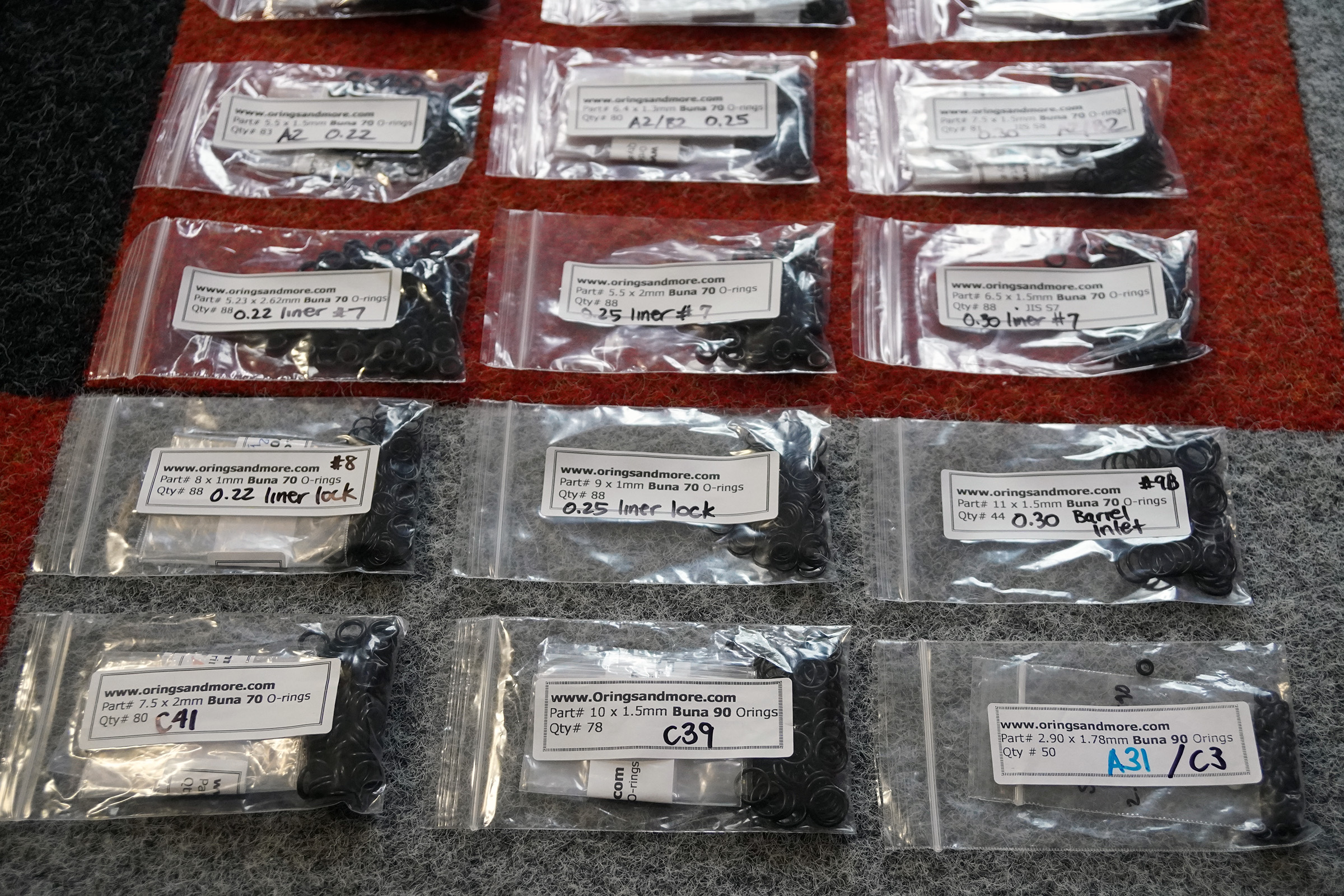

Here's what's included in each kit (o-rings will be separated into ziploc bags and properly labeled):
[quantity – size – hardness rating – FX schematic part #]
For barrel/shroud: (4) 10x2mm Buna 70 (barrel/shroud A3/B4)
(4) 13.94×2.62mm Buna 70 (barrel/shroud A6/B6)
(2) 25x1mm Buna 70 (barrel/shroud A9)
(4) 20.3×2.62mm Buna 70 (barrel/shroud A13)
(4) 20×2.5mm Buna 70 (barrel/shroud A17)
(4) 5.5×1.5mm Buna 70 (barrel/shroud A2 – 0.22 caliber breech)
(4) 5.23×2.62mm Buna 70 (0.22 x-barrel liner outside o-ring; x-barrel #7)
(4) 8x1mm Buna 70 (0.22 x-barrel liner lock o-ring; x-barrel #8) (4) 6.4×1.3mm Buna 70 (barrel/shroud B2/A2 – 0.25 caliber breech)
(4) 5.5x2mm Buna 70 (0.25 x-barrel liner outside o-ring; x-barrel #7)
(4) 9x1mm Buna 70 (0.25 x-barrel liner lock o-ring; x-barrel #8) (4) 7.5×1.5mm Buna 70 (barrel/shroud A2 – 0.30 caliber breech)
(4) 6.5×1.5mm Buna 70 (0.30 x-barrel liner outside o-ring; x-barrel #7)
(2) 11×1.5mm Buna 70 (0.30 x-barrel inlet o-ring; x-barrel #9B) For action: (4) 14×1.5mm Buna 70 (action A6)
(4) 9×1.5mm Buna 70 (action A18/B24)
(4) 2.2x1mm Buna 70 (action A25)
(4) 3.63×2.62mm X-rings (action A27 – goes under the air gauges)
(4) 10x1mm Buna 90 (action A30)
(4) 10.5x2mm Buna 70 (action B29)
(4) 2x1mm Buna 90 (action C38)
(4) 4×1.5mm Buna 70 (action C33/C35)
(4) 10×1.5mm Buna 90 (action C39 – for serial #’s after 183534)
(4) 7.5x2mm Buna 70 (action C41 – for serial #’s after 183534)
(2) 2.9×1.78mm Buna 90 (action C3 / A31) PRICE: $23.00 shipped (each kit)
