Kral Arms Kral fill adaptor - need o'ring

[JimNM]

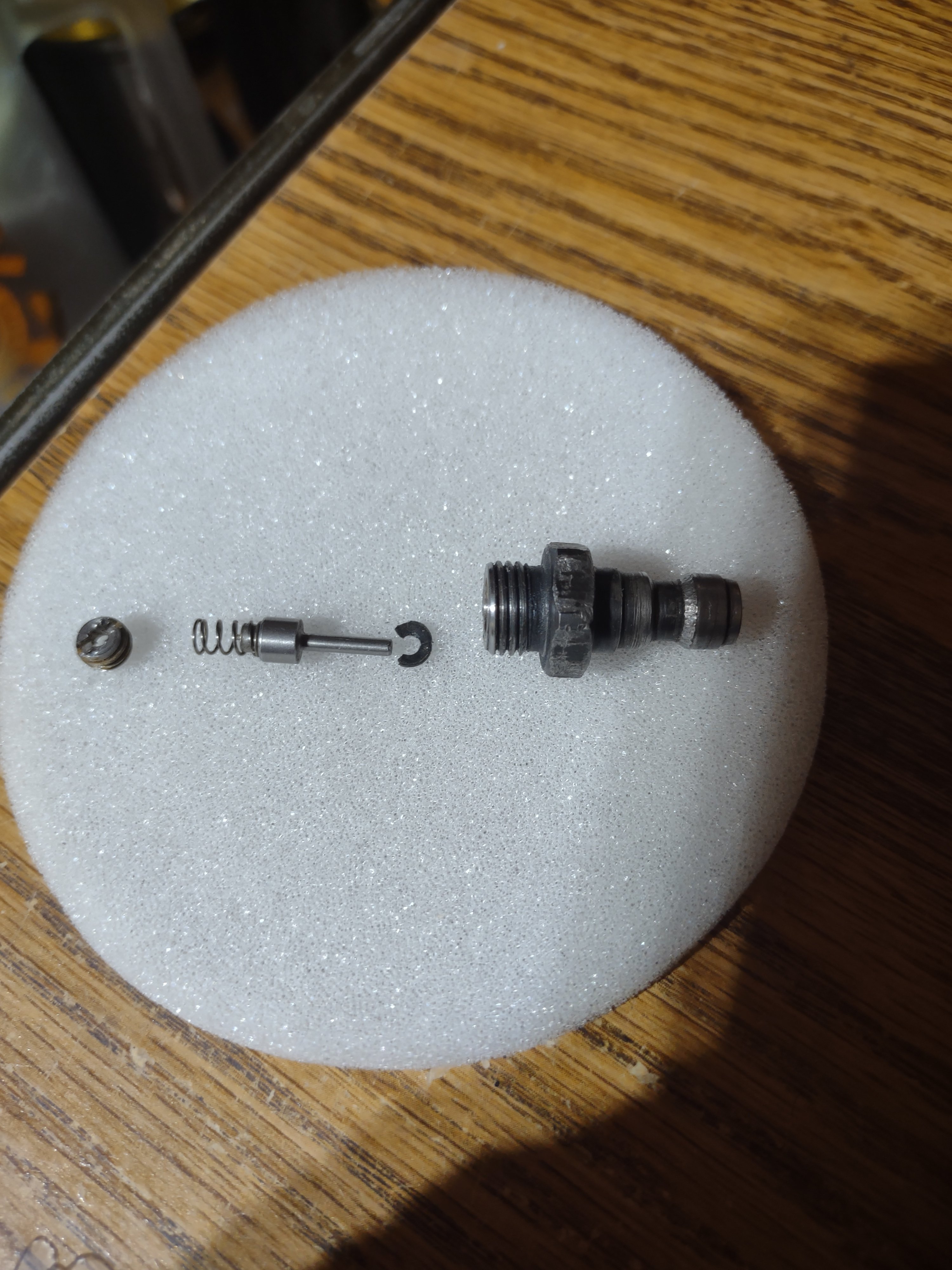

Brethren of the Kral Clan, I am in need of your help locating a valve seat for my beloved Kral guns. The 2nd gen Kral Knight has an odball sized male fill valve that I cannot find a source for replacement.

I filled my bottle too fast, too many times and I have blown the valve seat gasket. It is a flat gasket that is approximately .375mm thick, 2mm id and 5mm od. Do y'all have a known part number - Kral RC26 is what I have cross referenced on exploded diagrams, or even better, a direct source for that little piece of rubber mischief?

Thanks to all -
Shoot'em good



[kayaker]

Did you try Bagnall and Kirkwood Airgun Spares..... sometimes they can source parts good luck.



[JimNM]

Yep - that is where I deduced the RC26 part number. They are out of stock on the assembly - at 26.99 British pounds - I would prefer to rebuild over replace. But desperate air gun enthusiasts will do silly things to keep their guns running.



[JimNM]



[kayaker]

How about Canada Shooting Supplies ? They have a fill valve up grade that might fit but $$$$ maybe they have that gasket. Bet Mcmaster-Carr has something like that under square profile o-ring. Does the diagram show a flat o-ring ?



[JimNM]

Thanks for the ideas. MC has a few, but none are that thin. I ordered some square and some round. May try to cut them down with a razor. I need to go back to Canada shooting supply from my PC. Their interface is not easy on the phone.

I appreciate your time and efforts. Thank you.



[kayaker]

Your welcome, Jim If your on GTA maybe some one else knows or the Air Venturi tech team at P.A



[JimNM]

Well, Canadashootingsupply.ca has something that looks like it might work. For 30.00 its worth a try. Thanks again for the ideas.



[JimNM]

Well Heck YEAH!

1.5x2 id BN70 square orings did the trick. I have the new fill nipple on order from CAshootingsupply, but turns out the square profile oring from M/C was a drop in fit. I have 4 extras too and 100 of the same size in round profile for good measure.

Thanks for helping me find a solution.
