Hw35 leather seal replacement

[Rioshooter]

I've been searching all over, and couldn't find anything​ about replacing the leather seal of a HW 35, have any of you guys done this before? Thanks in advance!



[EMrider]

http://vortekproducts.com/ourstore/Seals-Tuning-Parts?product_id=133



I think this is what you need.



R



[JohnL57]

Leather seals are not used in modern airguns much (if at all) but are worth replacing IMO. Here are a couple articles I found with a Google search"DIY leather piston seal"

https://www.pyramydair.com/blog/2007/12/how-to-make-a-leather-piston-seal/

https://www.airgunnation.com/topic/diy-leather-piston-seals/

http://www.airgunhome.com/agforum/viewtopic.php?t=9929

Good luck with your HW!

John



[Rioshooter]

I'm sorry, maybe I didn't explain myself right, what I needed to know is "how to take the old one off to replace it for a new leather seal, thanks guys



[JohnL57]

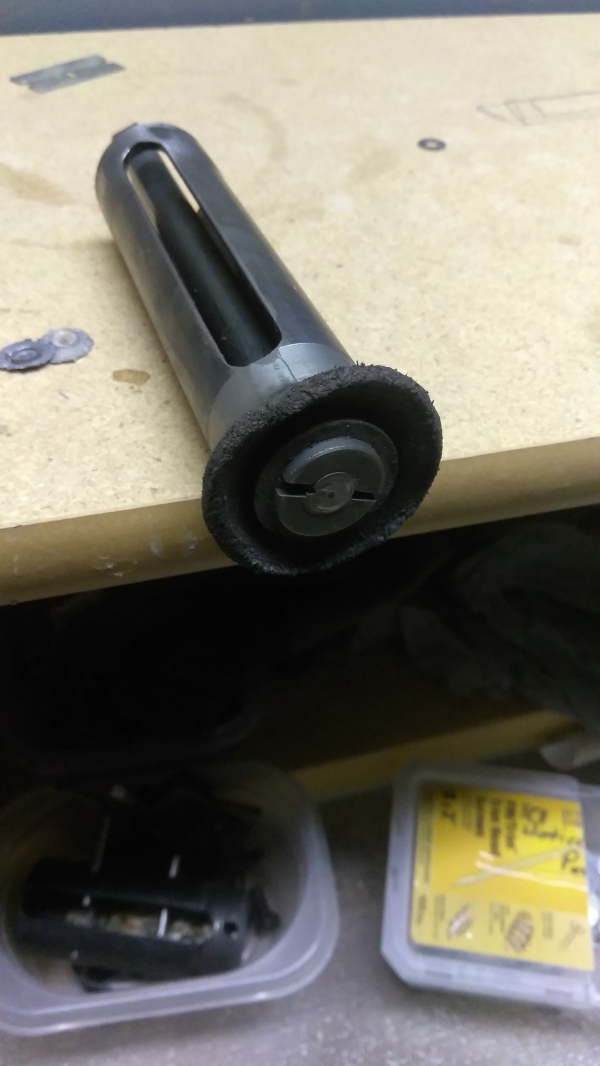

I looked at your earlier post-from what I see it appears that the slotted disc is threaded to the piston. The post in the center has male threads and the slotted nut female. Try grinding a notch in the widest screwdriver you can find to make a tool to unscrew the slotted nut. You'll likely need to gently clamp the piston in a padded vise-use as little clamping pressure as needed to keep the piston from turning, you don't want to crush it.



[Rioshooter]

Thanks John, yes I tried that at first, but nothing happened and didn't want to break it if I was doing it wrong. But now you said it I'll give it a try again to see what happens. Thanks



[scrane]

Leather seals are pretty hard to kill. If you continue having problems replacing the old one try soaking it in neetsfoot oil and call it good.
