FX Wildcat MK1 .22 Hammer Springer Adjuster Mod

[Paio]

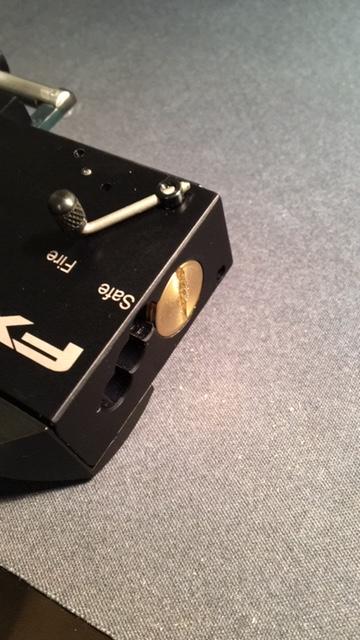

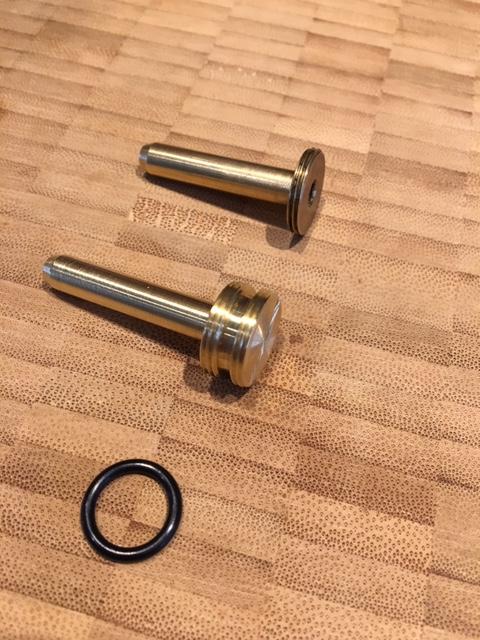

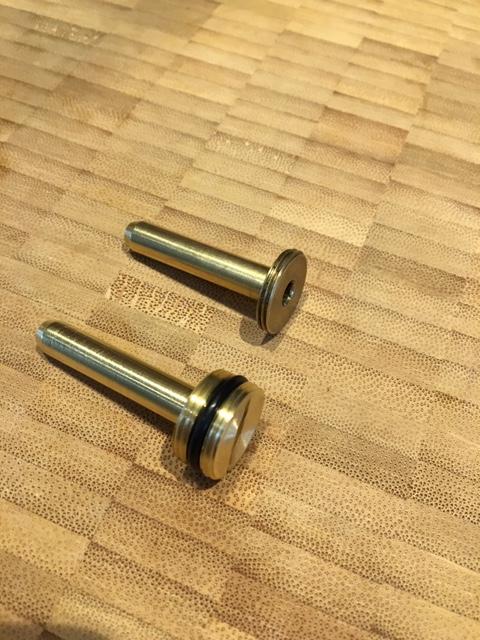

It was not holding on the position even with thread lockers. I increased thread length (added 5mm in my case) to be flush with the block with initial velocity around 780fps. Had a groove made and inserted an o'ring to act as a locknut. It is working well. JSB 18.13 optimal velocity after adjustment is 860fps.



[Bob_O]

Very nice Paio!!



[n2stuff]

WOW, that is great work. I need one for my MKII. I've tried all but red thread lock and they all come loose with shooting.



[Wiseguy]

Clever!



[Phildog59]

Nice you may want to market that I think you could make a killing. I’ll take 1 for my streamline.



[n2stuff]

Nice you may want to market that I think you could make a killing. I’ll take 1 for my streamline.

My thoughts exactly. I've seen a few different ways of keeping it in place but this way is definitely a winner. Put me down for one if it works with my MKII. This is something that FX should have done a long time ago.



[tsmith]

Shouldn’t it only be the nut? Won’t that interfere with the hammer weight?



[Paio]

Nice you may want to market that I think you could make a killing. I’ll take 1 for my streamline.

Since I am not in the USA it makes a bit harder to help my fellow airgunners. Also, I have no access to other airguns other than mines. Hopefully the pictures I am sharing can help the community when sourcing from a local machinist. The issue with this adjuster was the spec M16 X1 which is not easy to find the proper tools. We had to make a nut in a lathe to use it later to calibrate the thread's adjuster.



[Paio]

Shouldn’t it only be the nut? Won’t that interfere with the hammer weight?

I didn't understand the question. However, this mod does not interfere with the hammer in anyway.



[Rj]

Shouldn’t it only be the nut? Won’t that interfere with the hammer weight?

Must be how the 12 ft lbs ones are set up. No hammer weight.



[n2stuff]

Nice you may want to market that I think you could make a killing. I’ll take 1 for my streamline.

Since I am not in the USA it makes a bit harder to help my fellow airgunners. Also, I have no access to other airguns other than mines. Hopefully the pictures I am sharing can help the community when sourcing from a local machinist. The issue with this adjuster was the spec M16 X1 which is not easy to find the proper tools. We had to make a nut in a lathe to use it later to calibrate the thread's adjuster.

Your right about the thread size being oddball. So guys have modded this to make stops....

https://www.pegasusautoracing.com/productdetails.asp?RecID=5086



[tsmith]

Shouldn’t it only be the nut? Won’t that interfere with the hammer weight?

Must be how the 12 ft lbs ones are set up. No hammer weight.

Ahhhhh. Gotcha. I just know that won’t work in mine. Ok. I get it.
