Tuning FX Bottle valve compatible with Daystate/BRK?

[MartinT]

Hi guys, just a quick question: is the FX Bottle valve compatible with Daystate/BRK?
Looking at the photos the FX has longer outer threads, (lower 2 pics) but no further info can be gathered from it.

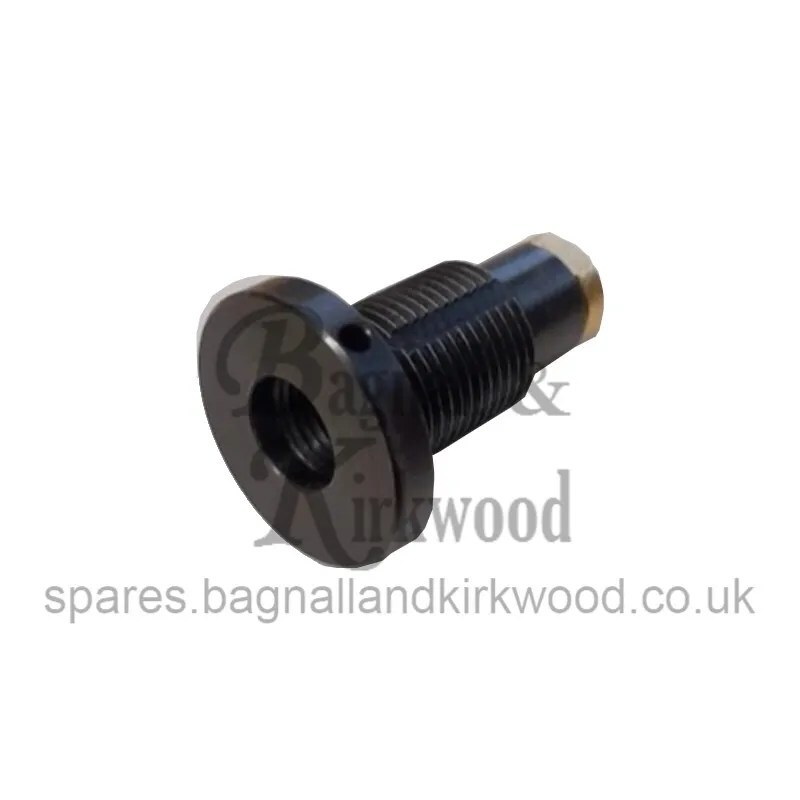

Daystate/BRK valve:

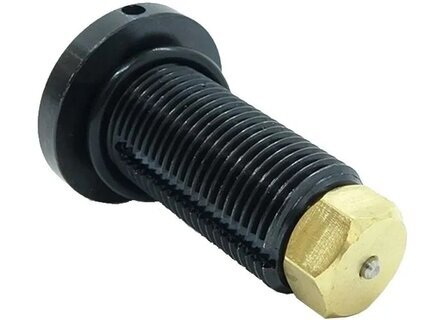

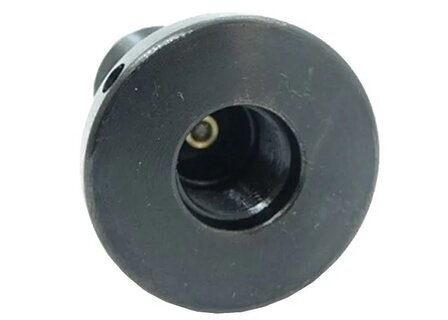

bottom 2 pics are FX valve

But the real issue is the inner diameter, threading and depth of course...

So did anyone try to put an FX bottle on a Daystate/BRK (or vice versa) and did it work out (or not)?



[Joedirt199]

Just need to know how deep the plunger pin is down in the valve. How long the threaded portion is doesn't matter as there is nothing in the bottle for those to bottom out on.



[pesty3782]

I believe the FX thread pattern is M12X1, and Daystate is M12X1.25. I had purchased a Saber Tactical degassing set up for my Daystates and the thread pattern didn’t work and when I called ST they said they made it for the FX valve. That information is not on ST website so it will be returned.

Now I am talking about the inside threads of the valve.

Tony P



[MartinT]

I believe the FX thread pattern is M12X1, and Daystate is M12X1.25. I had purchased a Saber Tactical degassing set up for my Daystates and the thread pattern didn’t work and when I called ST they said they made it for the FX valve. That information is not on ST website so it will be returned.

Now I am talking about the inside threads of the valve.

Tony P

Awww not good... Thank you for your reply!



[brawler1588]

Yes they are not compatible that was probably one of the things that needed to be changed so no patents would overlap. You can get the daystate valve from the same website your grabbed the image.



[MartinT]

...You can get the daystate valve from the same website your grabbed the image.

Yeah I know, but I'll end up with outrageous shipping and customs import costs. The FX valve could be sourced locally, so that would have been the better option...



[pesty3782]

Give AoA a call they sell just the valve for the Delta Wolf & Ghost bottles....Red Wolf doesn't use the same set up. I don't know how much they cost though.

Tony P.
