What’s the best distance between muzzle and Chrony for best results? I will using a Caldwell Beta placed on a Hammers tripod, testing a 25 KalibrGun Cricket.
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
Best distance to place shooting Chrony?
- Thread starter Anthony Jarvis
- Start date
For muzzle velocity, place the sensor as close to the end of the shroud without danger of shooting the chrony.
Upvote 0
I have another Chrony I use for my main purpose. I only got this particular Chrony to compare the velocity to the other and to test for BC at distances. I was thinking maybe a foot or 2
Upvote 0
Since light will pass unobstructed thru air I don't see any issue.
Even if it didn't the pellet is still passing thru before the air. The chrony is basically a timer. Time starts when pellet interrupts light beam to first sensor and then stops when the pellet interrupts the light beam to the 2nd sensor. Based on the time that elapses, and the known distance between the sensors the chrony calculates the speed.
I set mine approx 1' from the muzzle and have had ZERO issues.
Upvote 0
I now have two of these thanks to the Battenfelds over the top customer service. In talking to them, they recommend 15 feet from the chrony. I use my now in doors about 6 foot away and mine likes the pellet in the middle under the lights. When mine is not in use I put a piece of electrical tape over the sensor to keep the dust off it.
Dennis
Dennis
Upvote 0
it can't measure what it can't see. Unless your gun is spitting out something other than lead.
Upvote 0
For an end user just place it constantly for reference. Plumb level & square to the bore eh? Maybe it's a Southern thang bit I have seen air blast readings ( over taking the pellets speed) and you could see the humid fog of the air blast when it was happening, breathing grade dry air seemed to be a dew point issue and mostly nig bores but my .25 Career 707 has done it.
I like it out a bit, 5-6' maybe as it seems easier for me personally to shoot groups while doing chrony and staying in my sweet spot of the light sensors.
That's one of those fancy ones that chit chats with your phone correct?
John
I like it out a bit, 5-6' maybe as it seems easier for me personally to shoot groups while doing chrony and staying in my sweet spot of the light sensors.
That's one of those fancy ones that chit chats with your phone correct?
John
Upvote 0
When I first tried to use a Chrony it was that horrible F-1 model. I had it setup in the house Shooting close to the Chrony. I was get erratic numbers all over the place some in the upper thousands which I knew were wrong that’s when I suspected muzzle blast interference
Upvote 0
I have settled in on 1 yard to the far window of the sensor as the minimum distance to allow the exit dynamics of the pellet settle down and provide more consistent readings. 2 yards would probably be even better. I wouldn't go closer than 1 yard though or you'll be dealing with more questions about speed variation, etc. Whatever distance you choose, stick with it consistently (use a tape measure every time to make sure you're in the same location) so you can have accurate comparisons. If you're checking at different times in the year, record the atmospheric conditions too as they will have an effect on your velocity (and your BC).
I've settled on 1 yard and 50 yards for the rear window spacing for measuring BC's, and recommend those distances as well. I hope that helps. Enjoy!
Sean
I've settled on 1 yard and 50 yards for the rear window spacing for measuring BC's, and recommend those distances as well. I hope that helps. Enjoy!
Sean
Upvote 0
Small piece of poly-carbonate in front helps in case you get a flier. McMaster has 6"x6"x3/8" for $7.50
Upvote 0

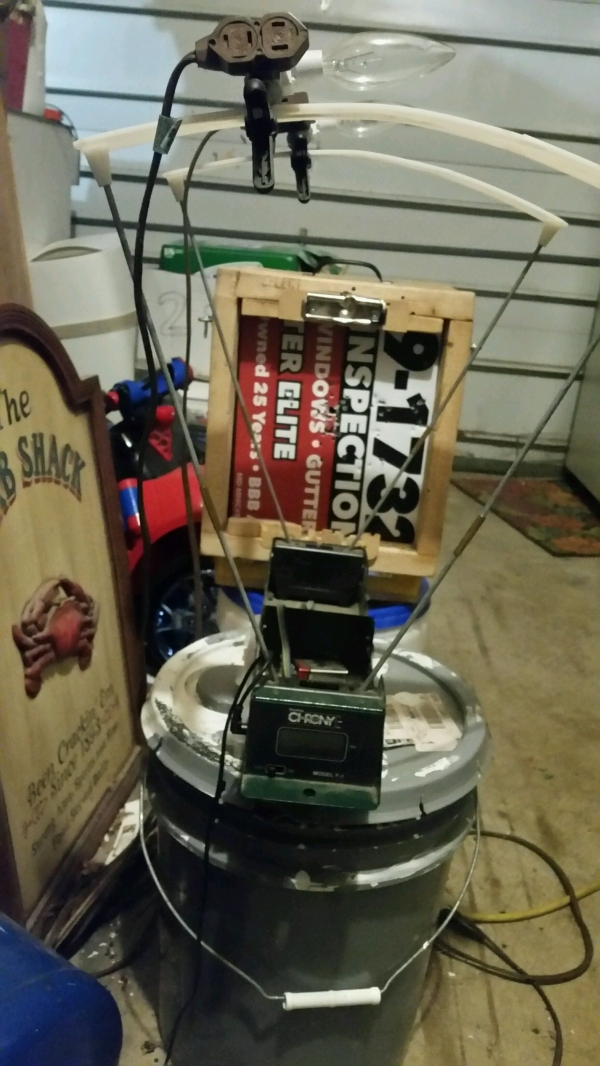

I aim approx 4-5" above the sensors. (you should be able to see the holes in target). I also have one of those "horrible" F1's. With the lights on the sensors as shown I bet I don't get more then 1 "ERR" reading every 100 shots, and usually this is when I shoot to the side of rear sensor.
Upvote 0
