alpha chrony display replacement

[anirudh]

hi...my old alphachrony display is dead...locally checked by electrician who says its a IC problem..the one behind the LCD display.any idea where to get this part from.i think the part number is DE119-RS-20/7,5/M...thanks



[Enkey]

Hi
I don't know if this is what you are looking for.

DE 119-RS-20/6,35/M DISPLAY ELEKTRONIK - Display: LCD | 7-segment (digital); STN Positive; No.of dig: 4; DE119-RS-20/6.35 | TME - Electronic components

DISPLAY ELEKTRONIK DE 119-RS-20/6,35/M | Display: LCD; 7-segment (digital); STN Positive; No.of dig: 4 - This product is available in Transfer Multisort Elektronik. Check out our wide range of products.

www.tme.eu

Regards
Enkey



[anirudh]

yes



[anirudh]

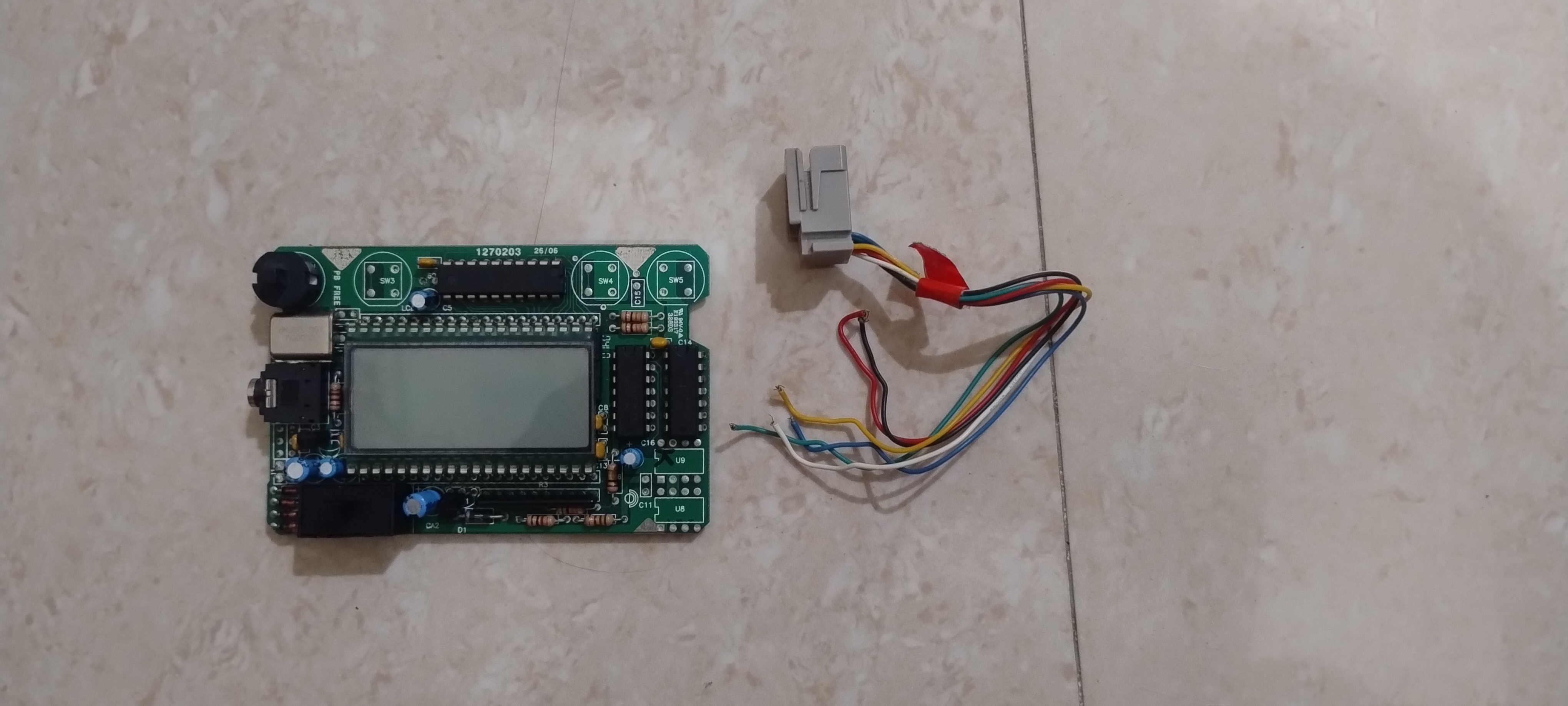

can someone help me with a photo where these wires can all be shown as correctly soldered...this is my display where some wires were snapped.BTW the defective lcd screen is about to reach me from Poland..so will solder it.but i need the correct wire color coded and where they go...someone who has alpha shooting chrony can just remove the display box cover to reveal this display....will be thankful for that

View attachment chrony 1 pdf.pdf



[Privateer]

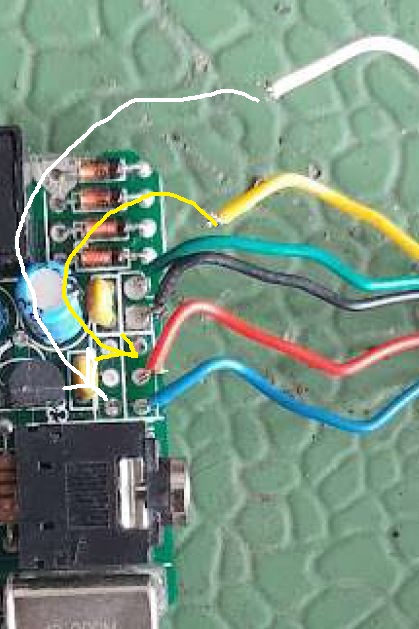

Here's where they go.



[Privateer]

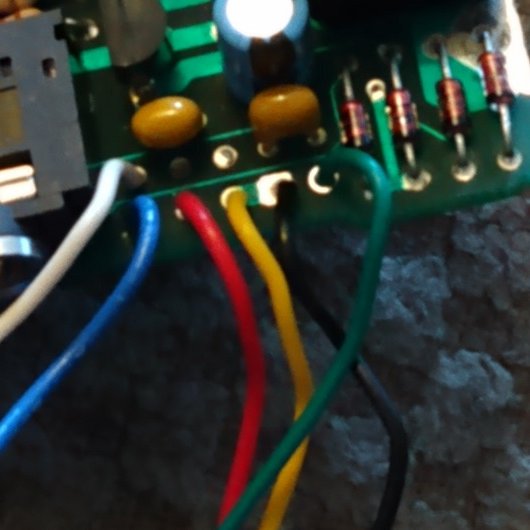

Here's a picture of one.
By the way. ALL the Shooting Chronies are wired like this. From the lowest Alpha to the highest Models with remote screen.
I've worked on all the versions at one time or another.



[anirudh]

thanks
